Reviews·81

5.0 / 5Based on 81 reviews
3 ★0%
2 ★0%
1 ★0%
Gloria B.

Great product

Works as intended.I do a lot of work on cars for family and friends and this has saved a ton of money on verifying if apart is good or bad

Jason W.

Great Scanner/Bi-directional Tester

You really can't beat this for the price. It's a good scan tool and bi-directional tester. It regularly receives updates for every brand of car I know of and then some. It also is easy to use and setup and gives you all the data you could want from every module in the car. Pretty much turn it on, plug in the VCI, and your off. It auto detects the vehicles VIN, so there's no messing around. Worked great recently figuring out which TPMS sensors were dead on my gf's car. The build quality is also very good, its a study tablet, and comes with a screen protector installed out of the box. Long story short, you won't be disappointed in one of these.

Nicole C.

Excellent unit for the price.

I am super impressed with my 808s. It has worked flawlessly, been able to read and access everything I have needed, and accessed even more than I thought it would. It's been durable and hasn't been scuffed badly even with me knocking off onto the ground on accident a few times. It's been able to locate errors and do tests even the OEM scanners haven't been able to locate on older vehicles (GM early 2000s). I haven't had a single issue with it. Just know that the screen likes firmer taps than a phone would, but that is normal on all ruggedized units, not just Autel's. This is my first autel product I have ever purchased,but it won't be my last. Previously I used Cornwell scan tools and paid for the yearly updates for about 10 years until its feature set was woefully outdated. Then I just made do for about 4 to 5 years with the lower level scanning functions before I had to get another high level scanner instead of just an obdII reader.

Specifications

BrandAUTEL
Weight885 g
Operating SystemAndroid 11
Processor / MemoryCortex-A55 quad-core 1.8GHz, 4GB RAM + 64GB
Display7-inch capacitive touchscreen 1024x600
Battery3.7 V/5000 mAh
ConnectivityVCI Mini Bluetooth wireless
Diagnostic FunctionsAll-system read/clear codes, live data, bidirectional control, AutoAuth FCA/SGW
Service Functions26+ (oil, EPB, ABS bleeding, SAS, DPF, etc.)
TPMSFull TPMS: activation, 4 relearn types, 2 MX-Sensor programming methods
Vehicle Coverage80+ brands (1996 and newer)
Dimensions / Weight270.8 × 176.0 × 36.0 mm, 885 g
Free Updates1 year
Compatibility80+ global makes, 1996 and newer; compatible with Videoscope
Software Updates1-year free updates, Wi-Fi upgrade, multi-language

Details

Full-System Diagnostics, Active Tests and Complete TPMS Service in One Tablet

The MaxiCOM MK808Z-TS reads and clears codes on all available systems, runs bi-directional active tests and 26+ service functions, and adds a TPMS module for sensor activation, relearn and MX-Sensor programming. It talks to the vehicle wirelessly through the VCI Mini.

  • All-System Diagnostics
  • Bi-Directional Control
  • 26+ Services
  • Complete TPMS
  • AutoAuth FCA SGW

Key Features

  1. All-System Diagnostics

    Read and clear codes, view live data as text, graph or analog, and retrieve ECU information on all available systems. Auto VIN identifies make, model and year.

  2. Bi-Directional Active Tests

    Send commands to the ECU to activate actuators such as ABS, windows, doors, solenoids, valves and wipers, and monitor them to pinpoint faulty parts.

  3. Service Functions

    Oil and service interval reset, EPB, ABS auto bleed, SAS calibration, DPF regeneration, injector reset, and battery registration and reset.

  4. Complete TPMS

    TPMS diagnostics, activation of all known sensors, four relearn methods and two MX-Sensor programming methods, with vehicle-specific relearn instructions. View sensor ID, tire pressure and temperature, and sensor location.

  5. FCA Secure Gateway

    AutoAuth, unlocked with the latest software update, serves FCA/SGW vehicles for OBDII diagnostics, active tests and calibrations.

More Specifications

Ports and storage Mini USB 2.0, USB 2.0, Wi-Fi, HDMI Type A, Micro SD card slot (up to 64GB)
Sensors Light sensor for automatic brightness
Audio output Beep
Charging 5 VDC power supply; 5V/1.5A charging input
Operating temperature 0 to 55°C (32 to 131°F)
Storage temperature -10 to 60°C (14 to 140°F)
Protocols ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (high-speed, middle-speed, low-speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

MK808Z-TS vs MX808S

MaxiCOM MK808Z-TS MaxiCheck MX808S
TPMS Complete Basic
Advanced TPMS diagnostics Yes No
Program Autel MX-Sensors Yes No
On-screen relearn procedure Yes No
Battery analysis Yes No
Vehicle communication Wireless (Bluetooth) Wired

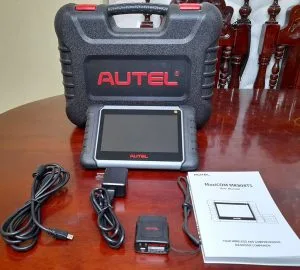

What’s in the Box

  • 1×Main unit
  • 1×VCI Mini
  • 1×Power adapter
  • 1×USB cable (for testing)
  • 1×USB cable (for charging)
  • 1×Quick reference guide
  • 1×User manual
