Caractéristiques

MarqueAUTEL
Poids885 g
Système d’exploitationAndroid 11
Processeur / mémoireCortex-A55 à quatre cœurs 1.8GHz, RAM 4GB + 64GB
AffichageÉcran tactile capacitif de 7 pouces 1024x600
Batterie3.7 V/5000 mAh
ConnectivitéMini VCI sans fil Bluetooth
Fonctions de diagnosticLecture/effacement des codes de tous les systèmes, données en temps réel, commande bidirectionnelle, AutoAuth FCA/SGW
Fonctions d’entretien26+ (huile, EPB, purge ABS, SAS, DPF, etc.)
TPMSFonctions TPMS complètes : activation, 4 types de réapprentissage, 2 méthodes de programmation MX-Sensor
Couverture des véhicules80+ marques (1996 et plus récent)
Dimensions / poids270.8 × 176.0 × 36.0 mm, 885 g
Mises à jour gratuites1 an
Compatibilité80+ marques du monde entier, à partir de 1996 ; compatible avec Videoscope
Mises à jour logicielles1 an de mises à jour gratuites, mise à jour via Wi-Fi, multilingue

Détails

Diagnostic de tous les systèmes, tests actifs et service TPMS complet sur une seule tablette

Le MaxiCOM MK808Z-TS lit et efface les codes défaut de tous les systèmes disponibles, exécute des tests actifs bidirectionnels et plus de 26 fonctions d’entretien, et intègre un module TPMS pour l’activation et le réapprentissage des capteurs ainsi que la programmation des MX-Sensor. Il communique sans fil avec le véhicule via le VCI Mini.

  • Diagnostic de tous les systèmes
  • Commande bidirectionnelle
  • 26+ services
  • TPMS complet
  • AutoAuth FCA SGW

Caractéristiques principales

  1. Diagnostic de tous les systèmes

    Lisez et effacez les codes défaut, consultez les données en temps réel sous forme de texte, de graphiques ou d’affichage analogique et récupérez les informations des ECU sur tous les systèmes disponibles. La fonction Auto VIN identifie la marque, le modèle et l’année.

  2. Tests actifs bidirectionnels

    Envoyez des commandes à l’ECU pour activer des actionneurs tels que l’ABS, les vitres, les portes, les solénoïdes, les vannes et les essuie-glaces, et surveillez leur fonctionnement pour localiser précisément les pièces défectueuses.

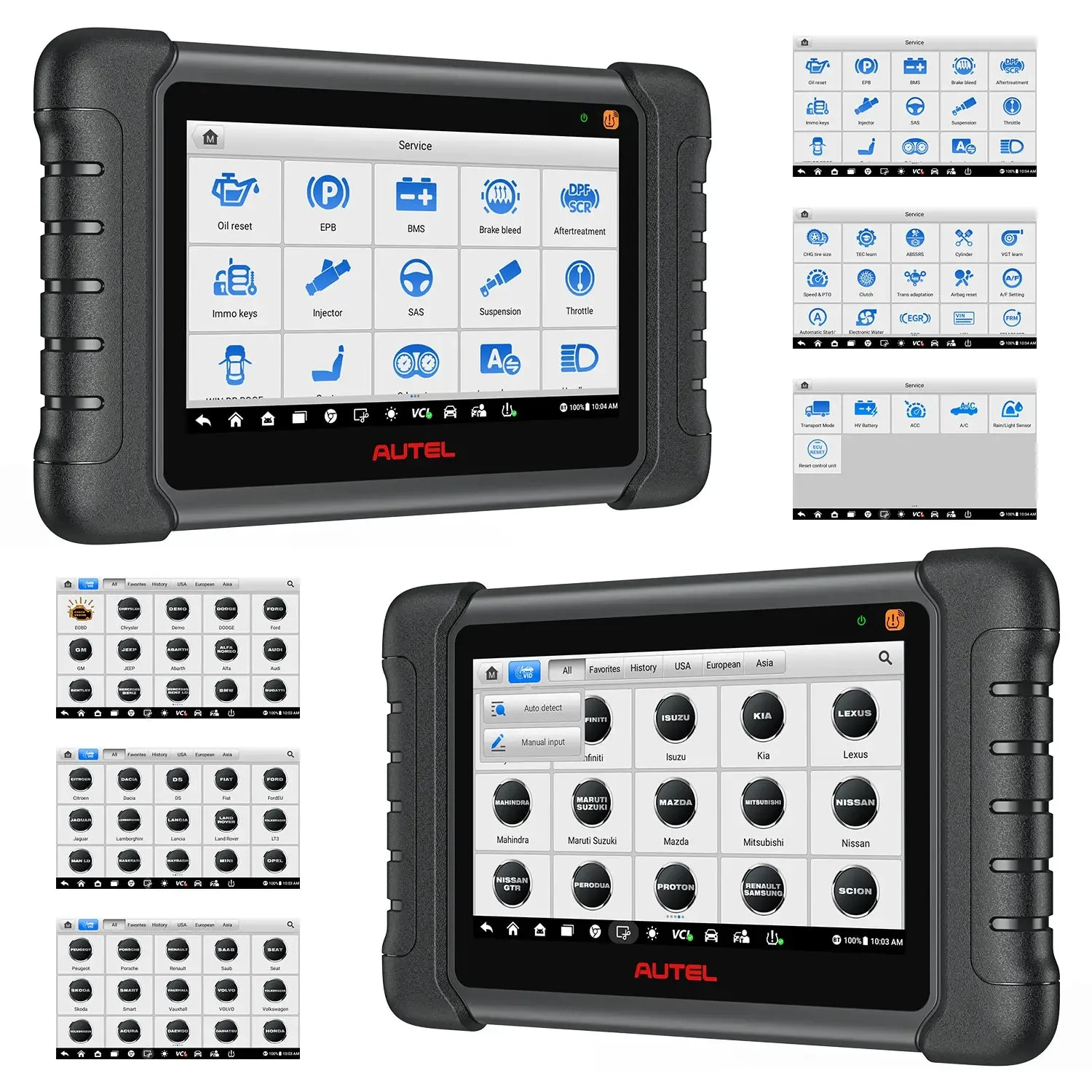

  3. Fonctions d’entretien

    Réinitialisation du service d’huile et des intervalles d’entretien, EPB, purge automatique de l’ABS, étalonnage du SAS, régénération du DPF, réinitialisation des injecteurs, enregistrement et réinitialisation de la batterie.

  4. TPMS complet

    Diagnostic TPMS, activation de tous les capteurs connus, quatre méthodes de réapprentissage et deux méthodes de programmation des MX-Sensor, avec des instructions de réapprentissage propres à chaque véhicule. Consultez l’identifiant du capteur, la pression et la température des pneus, ainsi que l’emplacement du capteur.

  5. Passerelle sécurisée FCA

    AutoAuth, débloqué avec la dernière mise à jour logicielle, permet d’effectuer des diagnostics OBDII, des tests actifs et des étalonnages sur les véhicules FCA/SGW.

Autres caractéristiques

Ports et stockage Mini USB 2.0, USB 2.0, Wi-Fi, HDMI type A, emplacement pour carte Micro SD (jusqu’à 64GB)
Capteurs Capteur de lumière pour réglage automatique de luminosité
Sortie audio Bip
Charge Alimentation 5 VDC ; entrée de charge 5V/1.5A
Température de fonctionnement 0 à 55°C (32 à 131°F)
Température de stockage -10 à 60°C (14 à 140°F)
Protocoles ISO9141-2, ISO14230-2, ISO15765, K/L-Line, codes clignotants, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (CAN haut débit, moyen débit, bas débit et monofilaire, CAN tolérant aux défauts), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

MK808Z-TS vs MX808S

MaxiCOM MK808Z-TS MaxiCheck MX808S
TPMS Complet Basique
Diagnostic TPMS avancé Oui Non
Programmez les MX-Sensors Autel Oui Non
Procédure de réapprentissage à l’écran Oui Non
Analyse de batterie Oui Non
Communication avec le véhicule Sans fil (Bluetooth) Filaire

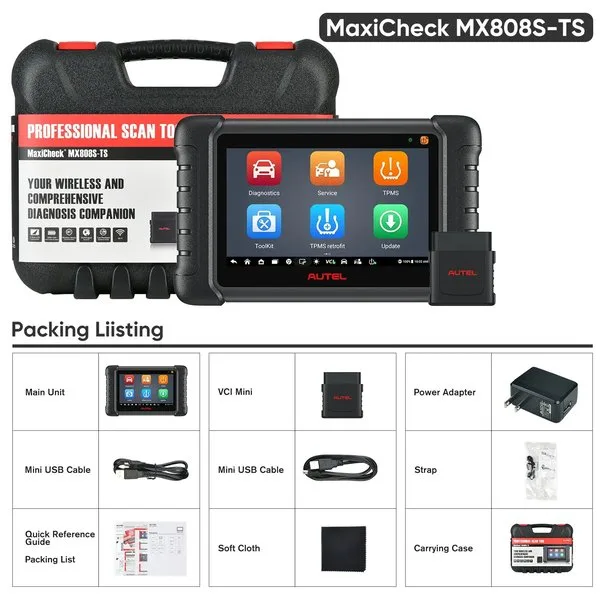

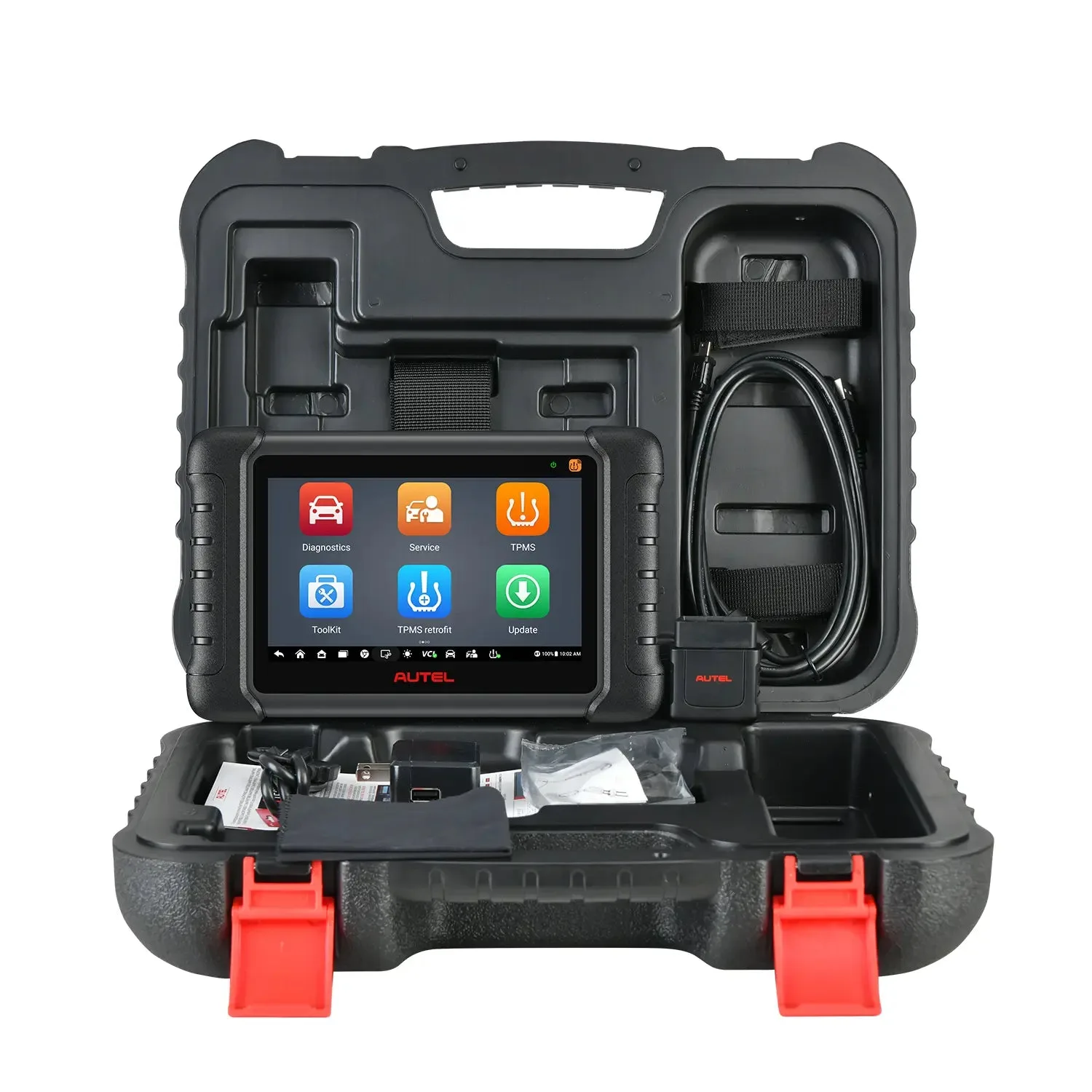

Contenu du coffret

  • 1×Unité principale
  • 1×VCI Mini
  • 1×Adaptateur d’alimentation
  • 1×Câble USB (pour les tests)
  • 1×Câble USB (pour la charge)
  • 1×Guide de référence rapide
  • 1×Manuel d’utilisation
