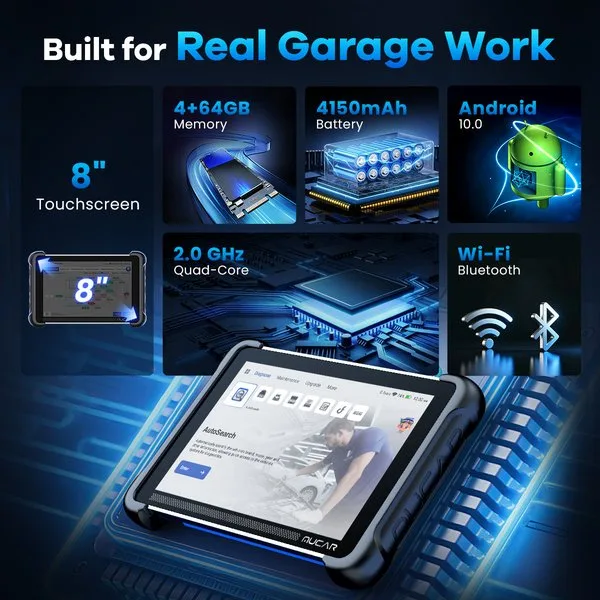

Caractéristiques

MarqueMUCAR
Poids1550 g
Système d’exploitationAndroid 10
ProcesseurCPU à 4 cœurs, 2.0GHz
Mémoire4GB RAM / 64GB de stockage
AffichageÉcran tactile de 8 pouces 1280 × 800
Batterie4150mAh
ConnectivitéVCI sans fil BT 5.0, conception à connecteur magnétique
Protocoles pris en chargePass-Thru J2534, DoIP, CAN-FD
Fonctions de diagnosticCarte topologique, codage des ECU, commande bidirectionnelle/tests actifs, diagnostic par IA (MUAI)
Fonctions d’entretien35+ réinitialisations
Couverture des véhicules100 000+ modèles ; J2534 testé avec Toyota Techstream, Honda HDS, Volvo VIDA, ODIS, BMW ISTA, Ford IDS/FDRS, Subaru SSM4, GM GDS2, wiTECH 2.0, XENTRY, JLR SDD
Langues30 langues
Mises à jour logiciellesmises à jour gratuites à vie

Détails

Cartographie topologique et Pass-Thru J2534 en complément du diagnostic de tous les systèmes et du codage ECU

Le MUCAR 892BT PRO ajoute une carte topologique et la fonction J2534 Pass-Thru pour les logiciels constructeur compatibles aux fonctions du 892BT : diagnostic, codage des ECU, tests actifs, assistant MUAI et 35+ fonctions de réinitialisation. Les logiciels constructeur et les abonnements ne sont pas inclus.

  • Carte topologique
  • J2534 Pass-Thru
  • Assistant MUAI AI
  • Codage ECU et tests actifs
  • CAN-FD et DoIP

Caractéristiques principales

  1. Carte topologique

    Affiche visuellement l’état des systèmes du véhicule pour vous permettre d’identifier les modules concernés et de cibler vos contrôles sans vérifier chaque système un par un.

  2. J2534 Pass-Thru

    Fonctionne avec les logiciels OEM compatibles, ce qui permet de réaliser davantage d’opérations de programmation prises en charge au sein de l’atelier.

  3. Diagnostic par AI

    MUAI explique les codes défaut, les causes possibles et les pistes de réparation.

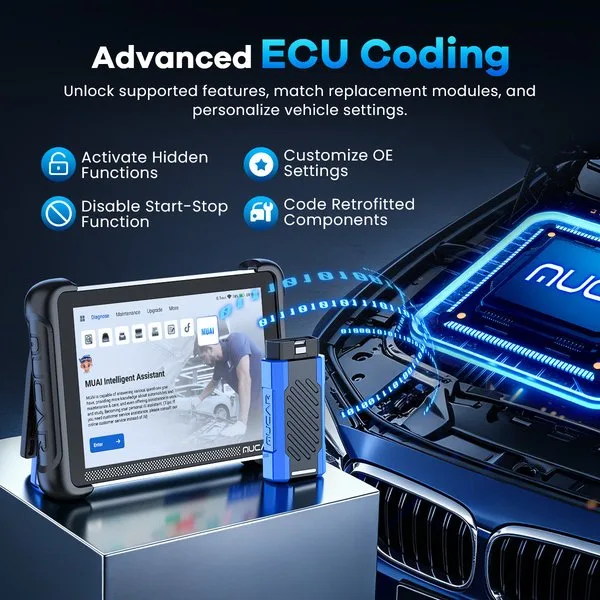

  4. Codage ECU

    Ajustez les réglages pris en charge du véhicule, effectuez des opérations de codage avancées et réalisez l’adaptation des modules compatibles après réparation ou remplacement.

  5. Tests actifs

    Commandez directement les composants et confirmez la panne avant tout remplacement.

  6. Fonctions d’entretien

    Réinitialisations, adaptations et étalonnages pour les opérations d’entretien courantes, avec accès à la passerelle et prise en charge de J2534, DoIP et CAN-FD.

  7. Conception de connecteur magnétique

    Maintient le VCI Bluetooth solidement fixé et réduit l’encombrement des câbles.

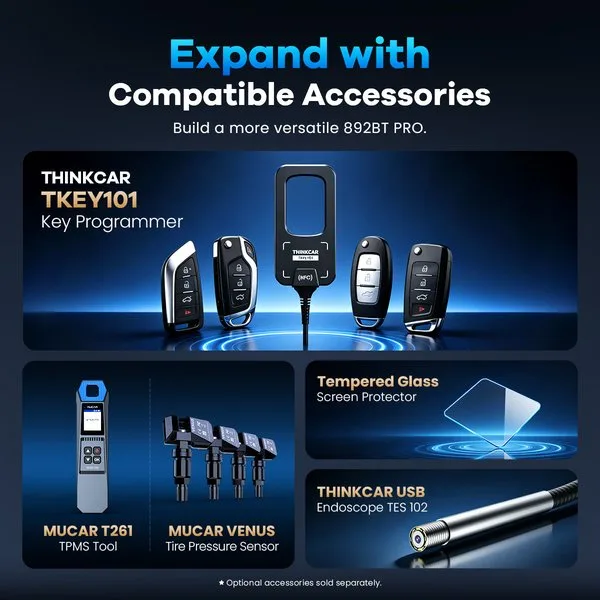

  8. Accessoires en option

    Prend en charge TKEY101, les appareils TPMS et un endoscope.

Points marquants

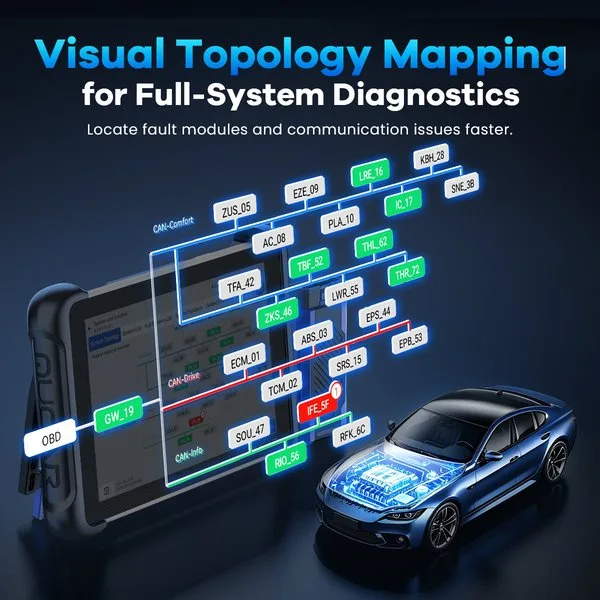

Carte de la topologie du réseau du véhicule présentant les modules sur les bus CAN de confort, de chaîne cinématique et d’information, avec un module défectueux signalé en rouge
Carte topologique

Les modules sont regroupés par réseau, avec les défauts mis en évidence.

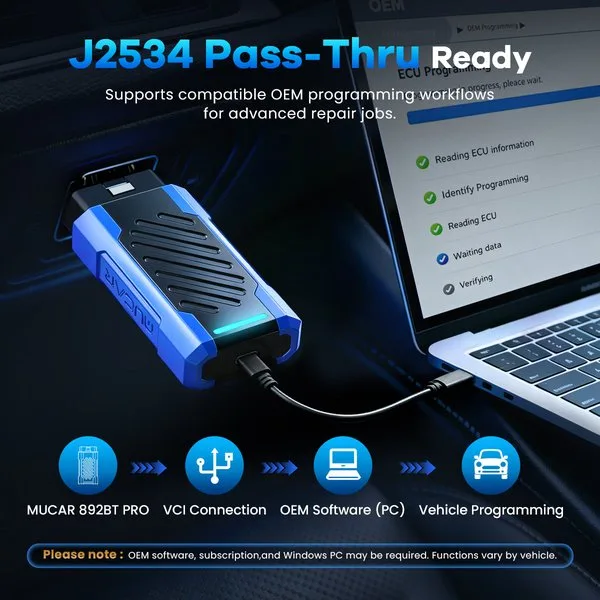

Technicien assis au poste de conduite utilisant un logiciel de programmation constructeur sur un ordinateur portable connecté à l’interface VCI MUCAR
J2534 Pass-Thru

Connectez le VCI à un PC exécutant un logiciel OEM compatible.

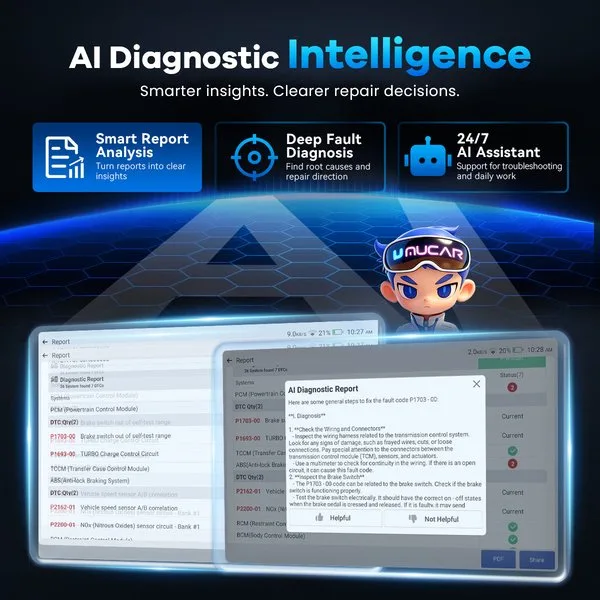

Rapport de diagnostic MUCAR avec une fenêtre de rapport de diagnostic par IA expliquant les étapes de réparation pour un code défaut
Rapport de diagnostic AI

MUAI propose des étapes de réparation pour chaque code défaut.

Menu d’entretien de la tablette MUCAR avec des exemples de tests actifs pour la pompe à carburant, l’embrayage de climatisation, les vitres et la pompe ABS
Tests actifs

Par exemple, activation/désactivation de la pompe à carburant, cycles d’activation et de désactivation de l’embrayage A/C, tests des vitres et de la pompe ABS.

892BT PRO contre 892BT

892BT PRO 892BT
Carte topologique Oui Non
J2534 Pass-Thru Oui Non
Compatible avec les logiciels OEM Oui Non
Assistant MUAI AI Oui Oui
Codage ECU et contrôle bidirectionnel Oui Oui
Plus de 35 services de réinitialisation Oui Oui

Bon à savoir

Attention
  • Les fonctions J2534 dépendent de la prise en charge du véhicule, du logiciel OEM, des exigences d’abonnement et de la procédure d’intervention spécifique ; certains travaux de programmation peuvent nécessiter une autorisation supplémentaire.
  • Les logiciels OEM et les abonnements ne sont pas inclus et doivent être obtenus séparément auprès du constructeur du véhicule ou d’un fournisseur agréé de logiciels OEM.
