Laurie F.

Nice scanner

I bought this scanner to be able to perform a crankshaft sensor relearn and to be able to see misfire counts on different cylinders. It has worked well for me.

John C.

Easy to use

Great product. Great seller . Learn how to use the tool and follow instructions on the website and guide as to what functions work on which cars and you will be fine.Update after about 6 months of use. So i have to say if anyone is looking to get this then don't hesitate.i have a 2020 toyota highlander and i plugged it in when i first received it and it wouldnt even read the vin, a few months later with a new update and everything from oil reset to epb works. This tool is worth every penny, 08 honda pilot had an issue with srs and abs, this tool did the relearn procedure necessary to clear the light and fix the locking up of wheels issue.So many other examples i can give.

Todd A.

Great Scanner with active testing

I've been a mechanic for 13 years and this tool does a fantastic job at a DIY price point. This unit has active tests so you can shut off injectors, reset adaptive learning for most if not all modules, and many more. I would recommend users, who do no have professional training, to be careful about using the resetting and calibrating functions for modules or systems they are unfamiliar with. I almost bought the MK808 but I'm glad I went for the DS808 because the active testing ability makes it worth every penny for someone who works on vehicles often.The tool software is laid out fairly well and I learned to navigate it well within an hour. The quick read function is great and pulls up every code in the body, chassis, and drivetrain. It gives you a easy picture of the current issues with the entire vehicle. And when you click on the code it takes you to the appropriate modules to diagnosis it.Of course this tool does not compete with the dealer tools or other $2000+ tools for commercial shops. But with that being said, this tool will do everything in you can possibly need in your personal garage. I would buy this unit again in a heartbeat,

Specifications

BrandAUTEL
Weight788 g
Operating SystemAndroid 11
Processor / MemoryCortex-A55 quad-core 1.8GHz, 4GB RAM + 64GB
Display7-inch capacitive touchscreen 1024x600
Battery3.7V/5000mAh
ConnectivityWired main test cable; Wi-Fi
Diagnostic FunctionsAll-system read/clear codes, live data, bidirectional control, ECU coding (BMW/Porsche/VW)
Service Functions28+
Vehicle Coverage80+ American, Asian and European brands
FCASupports AutoAuth (2018+ FCA in US/Canada/Mexico)
Dimensions270.8 × 176.0 × 36.0 mm
Free Updates2 years (effective within 3-5 days after registration)
Compatibility80+ American, Asian and European makes
Software Updates2-year free updates, Wi-Fi upgrade, cloud reports, remote support

Details

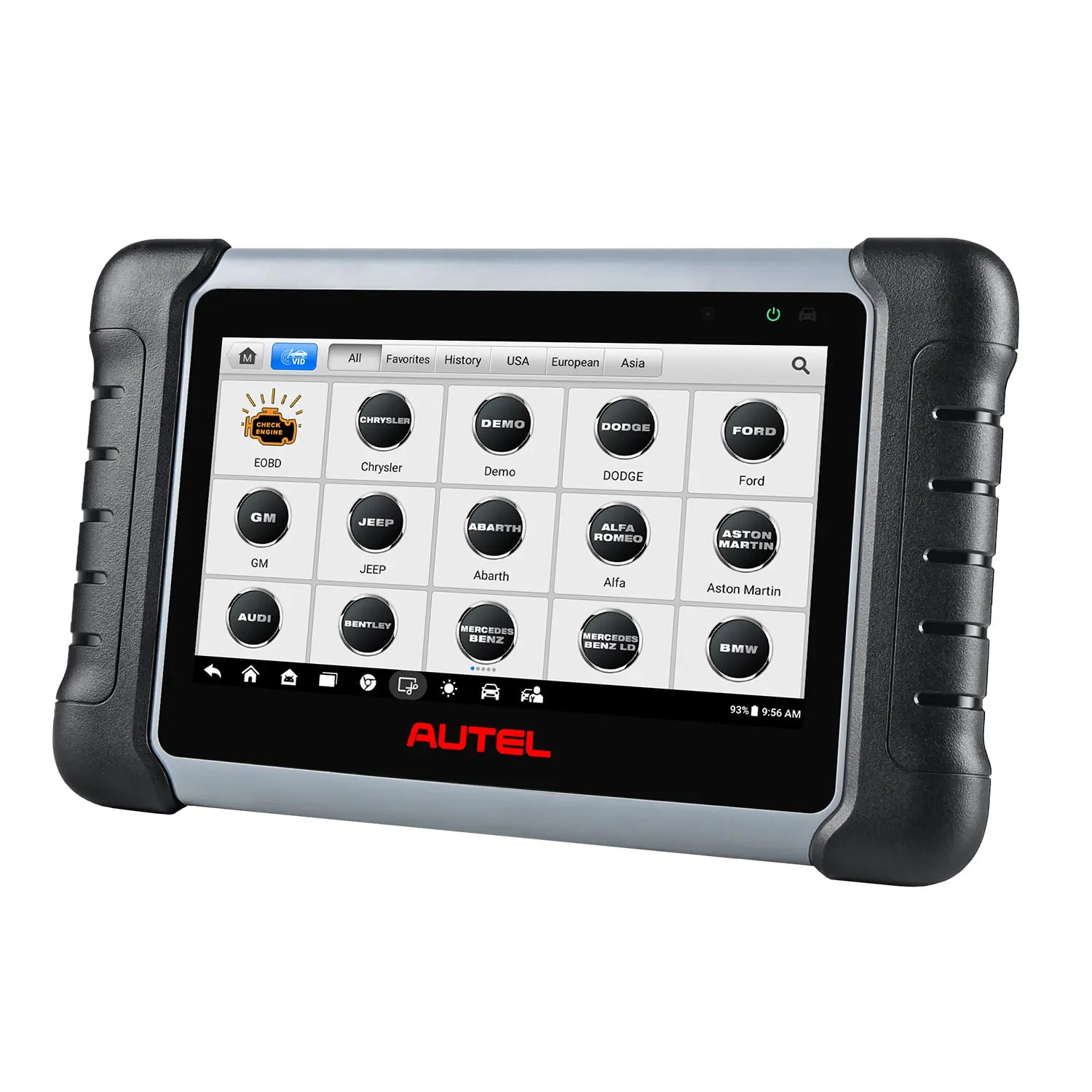

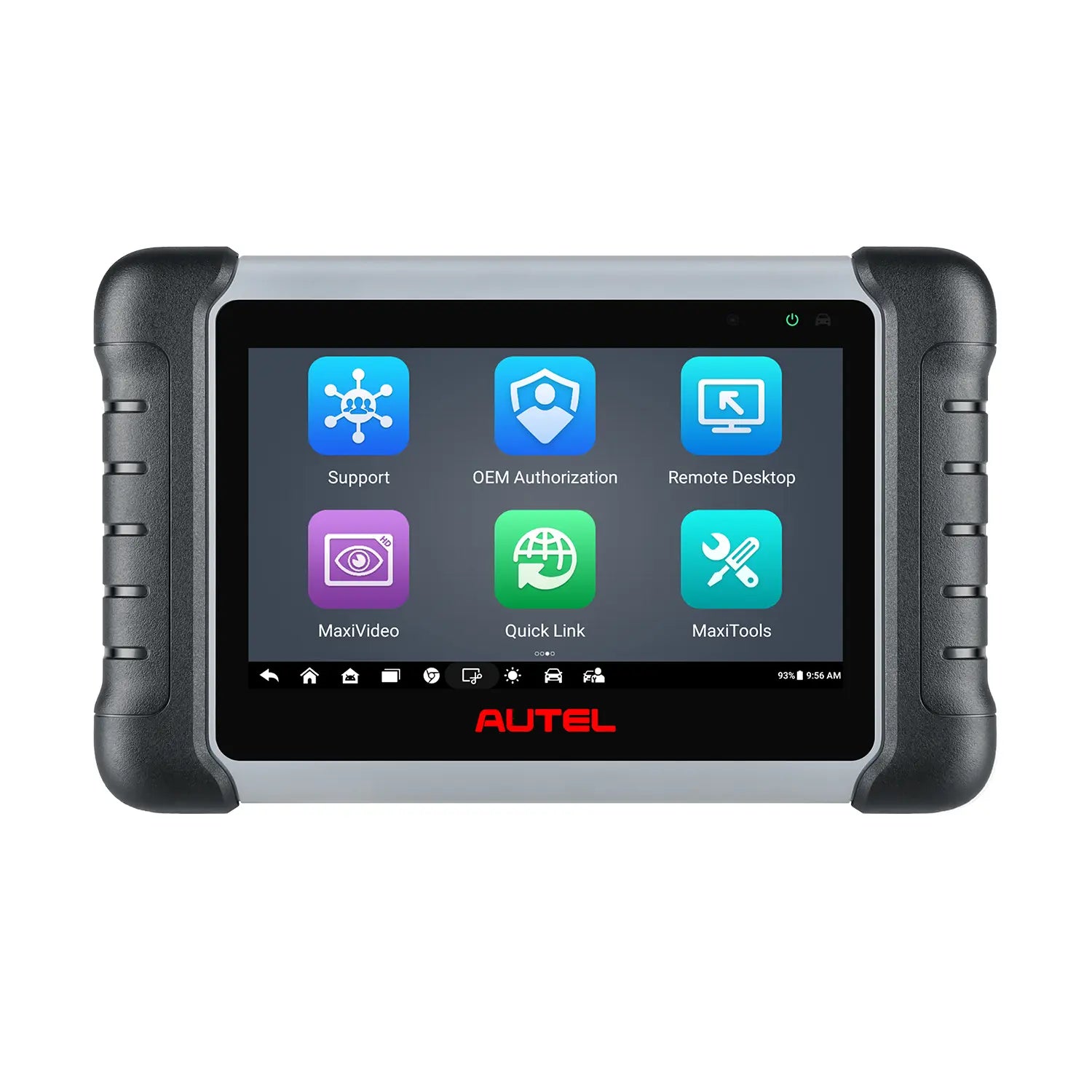

All-System Diagnostics, Active Tests and ECU Coding on a 7-Inch Android Tablet

The MaxiPro MP808S reads and clears codes on all available systems, runs bi-directional active tests and 28+ service functions, and adds ECU coding for BMW, Porsche and VW. Protected 2018+ FCA vehicles in the US, Canada and Mexico are accessible with an authenticated AutoAuth account.

  • OE-Level All Systems
  • 28+ Service Functions
  • ECU Coding
  • Bi-Directional Control
  • AutoAuth for FCA

Key Features

  1. OE-Level All-System Diagnosis

    Access systems such as PCM, ECM, TCM, BCM and SCCM to read and erase codes, view and graph live data, and perform adaptations.

  2. 28+ Service Functions

    Oil reset, SAS, EPB, TPMS, injector coding, bleeding, DPF, throttle and more.

  3. ECU Coding and VAG Guidance

    The same ECU coding features as the MS906 PRO for BMW, Porsche and VW, including refreshing hidden functions; guided functions work on Audi, VW and Skoda.

  4. Bi-Directional Control

    Active tests on components such as solenoids, relays, switches, valves, sunroof, windows and doors.

  5. AutoAuth Gateway Access

    With an authenticated AutoAuth account, access the secure gateway on 2018 and newer Chrysler, Jeep, Dodge and Fiat vehicles in the US, Canada and Mexico.

  6. AutoVIN

    Automatically identifies the vehicle make, model and year.

  7. Reports and Data Management

    Cloud-based reports can be viewed, saved, printed and shared on phones, tablets and computer browsers; customer info and vehicle records stay organized on the tool.

  8. Videoscope and Remote Support

    Compatible with a videoscope; remote control tech support and data logging sessions connect you directly with Autel technical support.

More Specifications

Wi-Fi 802.11a/b/g/n/ac
Ports USB 2.0, Mini USB 2.0, SD card (up to 64GB)
Battery type Lithium-polymer
Charging 5 VDC power supply; 5V/1.5 A input
Sensors Light sensor for automatic brightness
Audio output Beep
Operating temperature 0 to 50°C (32 to 122°F)
Storage temperature -20 to 60°C (-4 to 140°F)
Protocols ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE J1850 VPW, SAE J1850 PWM, ISO 11898 (high-speed, middle-speed, low-speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP 2.0, TP 1.6

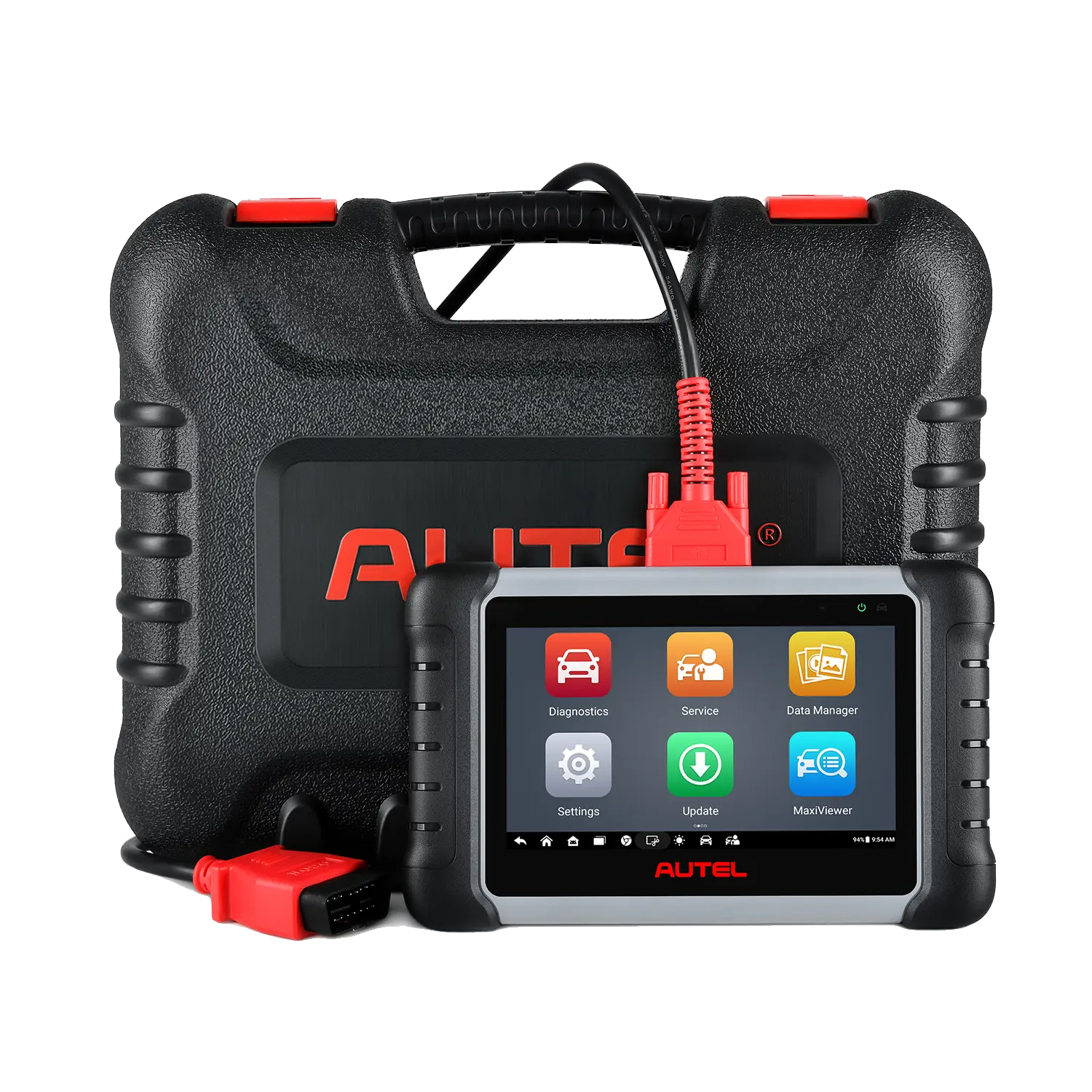

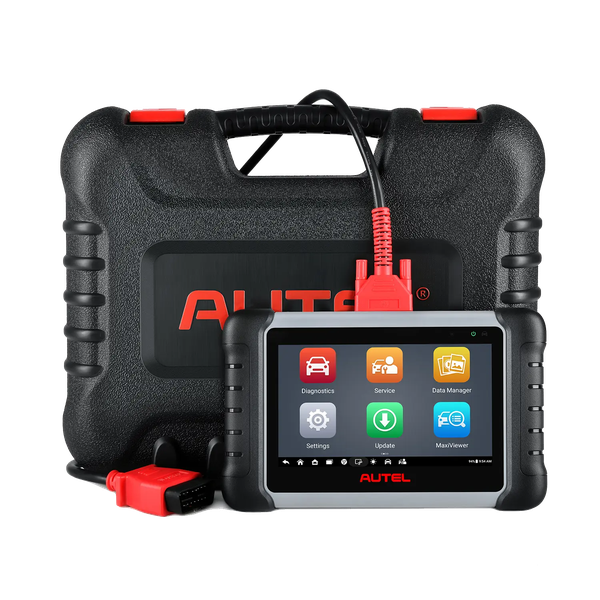

What’s in the Box

  • 1×MP808S main unit
  • 1×Main cable
  • 1×Mini USB cable
  • 1×Power adapter
  • 1×Quick reference guide
  • 1×Packing list
  • 1×Soft cloth
  • 1×Carrying case

Updates & Support

Software updates
2 years free, effective within 3–5 days after registration; automatic updates over Wi-Fi

Good to Know

Caution
  • Gateway access on 2018+ FCA vehicles requires an authenticated AutoAuth account, which is not included.

You may also like

Select specifications

Delivery

Ships in 1-3 business days

Payment methods

  • Credit / Debit CardVisaMastercardAmerican Express
  • PayPalPayPal
  • Apple PayApple Pay
  • Google PayGoogle Pay
  • LinkLink
  • iDEAL | WeroiDEAL | Wero
  • BancontactBancontact
  • EPSEPS
  • Przelewy24Przelewy24
  • BancontactBancontact
  • BlikBlik
  • EPSEPS
  • iDealiDeal
  • MyBankMyBank
  • Przelewy24Przelewy24
  • TrustlyTrustly
  • MultibancoMultibanco

Available methods may vary by currency and billing country; the final list is shown at checkout.

Service

  • Secure checkout

    Payments are processed over an encrypted connection.

  • After-sales support

    Contact us for installation or usage questions.

Specifications

Brand
AUTEL
Weight
788 g
Operating System
Android 11
Processor / Memory
Cortex-A55 quad-core 1.8GHz, 4GB RAM + 64GB
Display
7-inch capacitive touchscreen 1024x600
Battery
3.7V/5000mAh
Connectivity
Wired main test cable; Wi-Fi
Diagnostic Functions
All-system read/clear codes, live data, bidirectional control, ECU coding (BMW/Porsche/VW)
Service Functions
28+
Vehicle Coverage
80+ American, Asian and European brands
FCA
Supports AutoAuth (2018+ FCA in US/Canada/Mexico)
Dimensions
270.8 × 176.0 × 36.0 mm
Free Updates
2 years (effective within 3-5 days after registration)
Compatibility
80+ American, Asian and European makes
Software Updates
2-year free updates, Wi-Fi upgrade, cloud reports, remote support

Reviews73

5.0 / 5Based on 73 reviews
3 ★0
2 ★0
1 ★0
Laurie F.

Nice scanner

I bought this scanner to be able to perform a crankshaft sensor relearn and to be able to see misfire counts on different cylinders. It has worked well for me.

John C.

Easy to use

Great product. Great seller . Learn how to use the tool and follow instructions on the website and guide as to what functions work on which cars and you will be fine.Update after about 6 months of use. So i have to say if anyone is looking to get this then don't hesitate.i have a 2020 toyota highlander and i plugged it in when i first received it and it wouldnt even read the vin, a few months later with a new update and everything from oil reset to epb works. This tool is worth every penny, 08 honda pilot had an issue with srs and abs, this tool did the relearn procedure necessary to clear the light and fix the locking up of wheels issue.So many other examples i can give.

Todd A.

Great Scanner with active testing

I've been a mechanic for 13 years and this tool does a fantastic job at a DIY price point. This unit has active tests so you can shut off injectors, reset adaptive learning for most if not all modules, and many more. I would recommend users, who do no have professional training, to be careful about using the resetting and calibrating functions for modules or systems they are unfamiliar with. I almost bought the MK808 but I'm glad I went for the DS808 because the active testing ability makes it worth every penny for someone who works on vehicles often.The tool software is laid out fairly well and I learned to navigate it well within an hour. The quick read function is great and pulls up every code in the body, chassis, and drivetrain. It gives you a easy picture of the current issues with the entire vehicle. And when you click on the code it takes you to the appropriate modules to diagnosis it.Of course this tool does not compete with the dealer tools or other $2000+ tools for commercial shops. But with that being said, this tool will do everything in you can possibly need in your personal garage. I would buy this unit again in a heartbeat,

Robert I.

I was looking for a 2 way scanner that could calibrate the yaw Sensors on Volvo

I was looking for a 2 way scanner that could calibrate the yaw Sensors on Volvo. Did it with no problem. Has reset many other codes for Volvo. Love it so far.

Kara G.

I can now use this machine

I like the fact that i messed up my car system trying to configure a new key fob and because of that i had to do an extreme research in order to make it right. My car is now fine and i feel like a master in key programming

Andrea T.

Lovely!!!

Amazing product. More than I had expected.

Christopher A.

Great Product

My husband just got this and he is enjoying this product. Easy set up and seems to work great.

David C.

Best dollar to value bi-directional scanner on th

This scanner is awesome. It does take a little time to learn to navigate, but its worth its weight in gold for diagnostics.

Vincent F.

Good scanner

Good device, I have receive it thank you..

Dylan J.

Well worth the money

This scanner is a great value especially with the bidirectional controls. Now every manufacturer is different and the hot functions can vary but still a great tool.
