Specifications

BrandAUTEL
Weight2180 g
Operating SystemAndroid 7.0
ProcessorSamsung Exynos8895V octa-core (2.3GHz + 1.7GHz)
Memory / Storage4GB RAM 256GB
Display12.7-inch TFT-LCD touchscreen 2732 x 2048
Battery18000mAh 3.8 V lithium polymer battery
VCI5-in-1 MaxiFlash VCMI (VCI, oscilloscope, signal generator, multimeter, CAN BUS testing)
Diagnostic FunctionsTopology 2.0, ECU programming (some BMW/Benz) and coding, comprehensive service functions
CameraRear 16MP / front 5MP
Dimensions366.5 × 280.9 × 34 mm
Weight2.18kg
Vehicle Coverage80+ American/Asian/European makes including supercars; ECU programming and coding not universal, VIN confirmation required
Software UpdatesIncludes 1-year free updates

Details

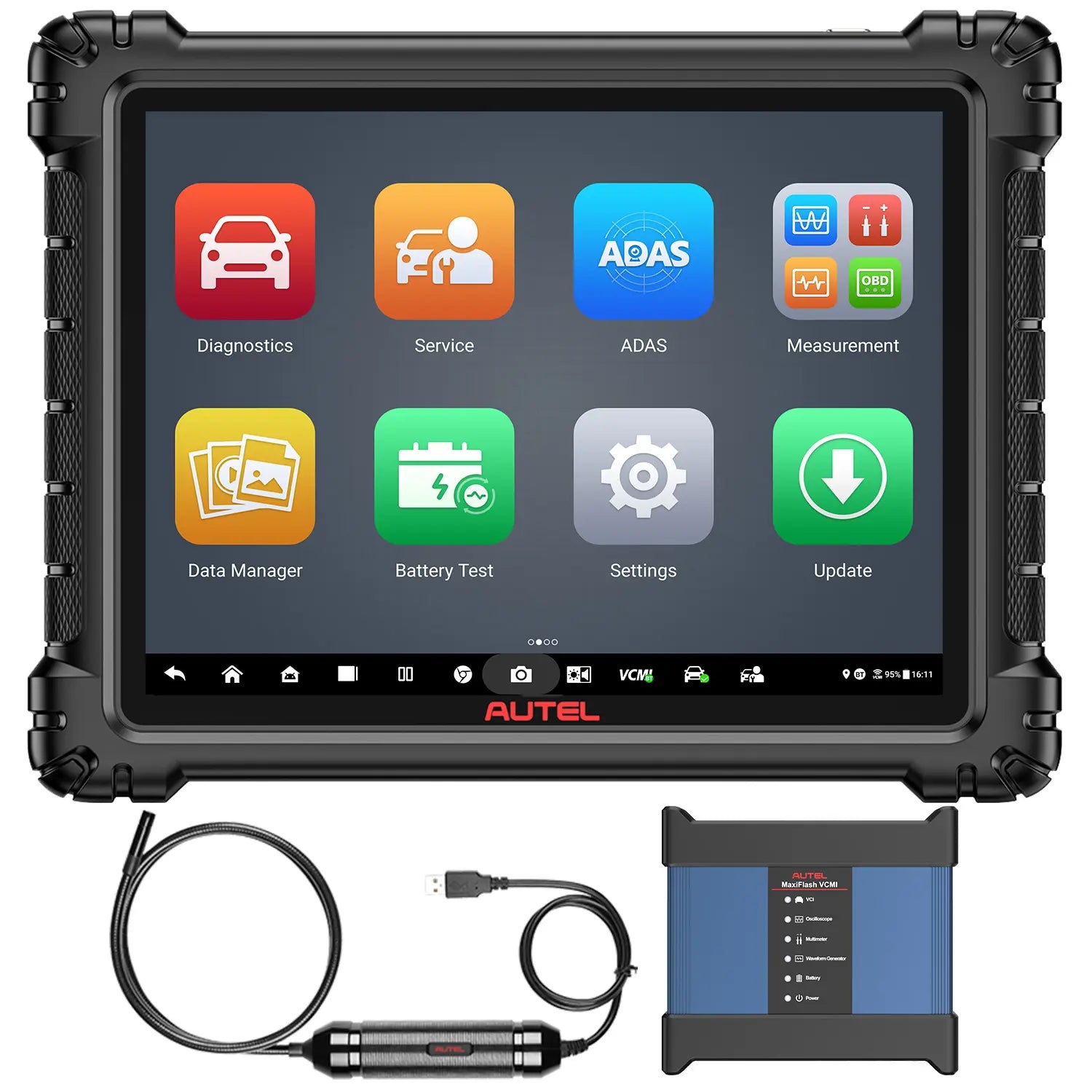

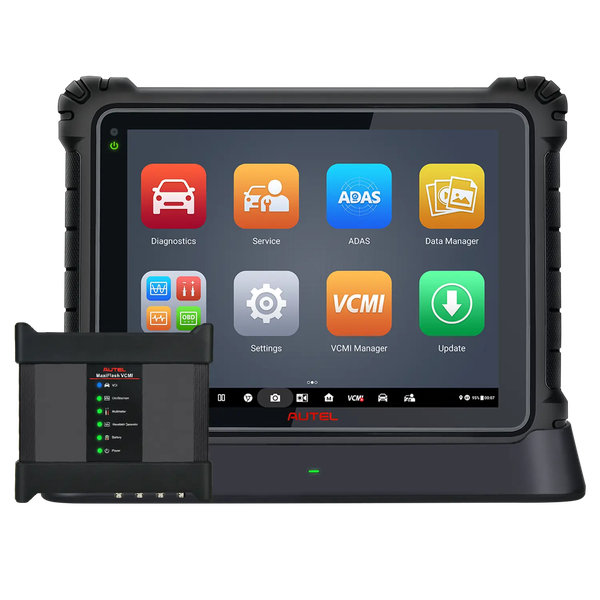

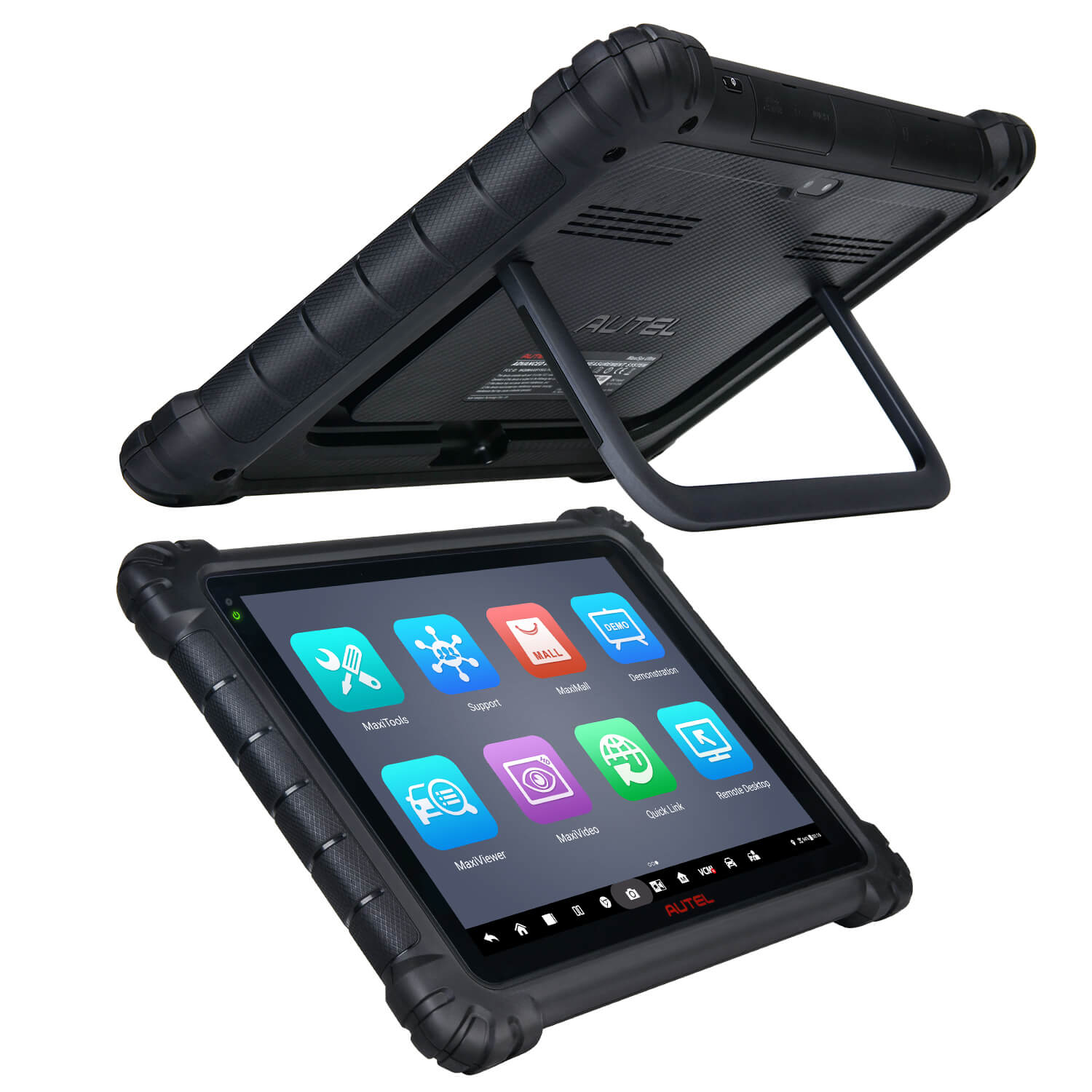

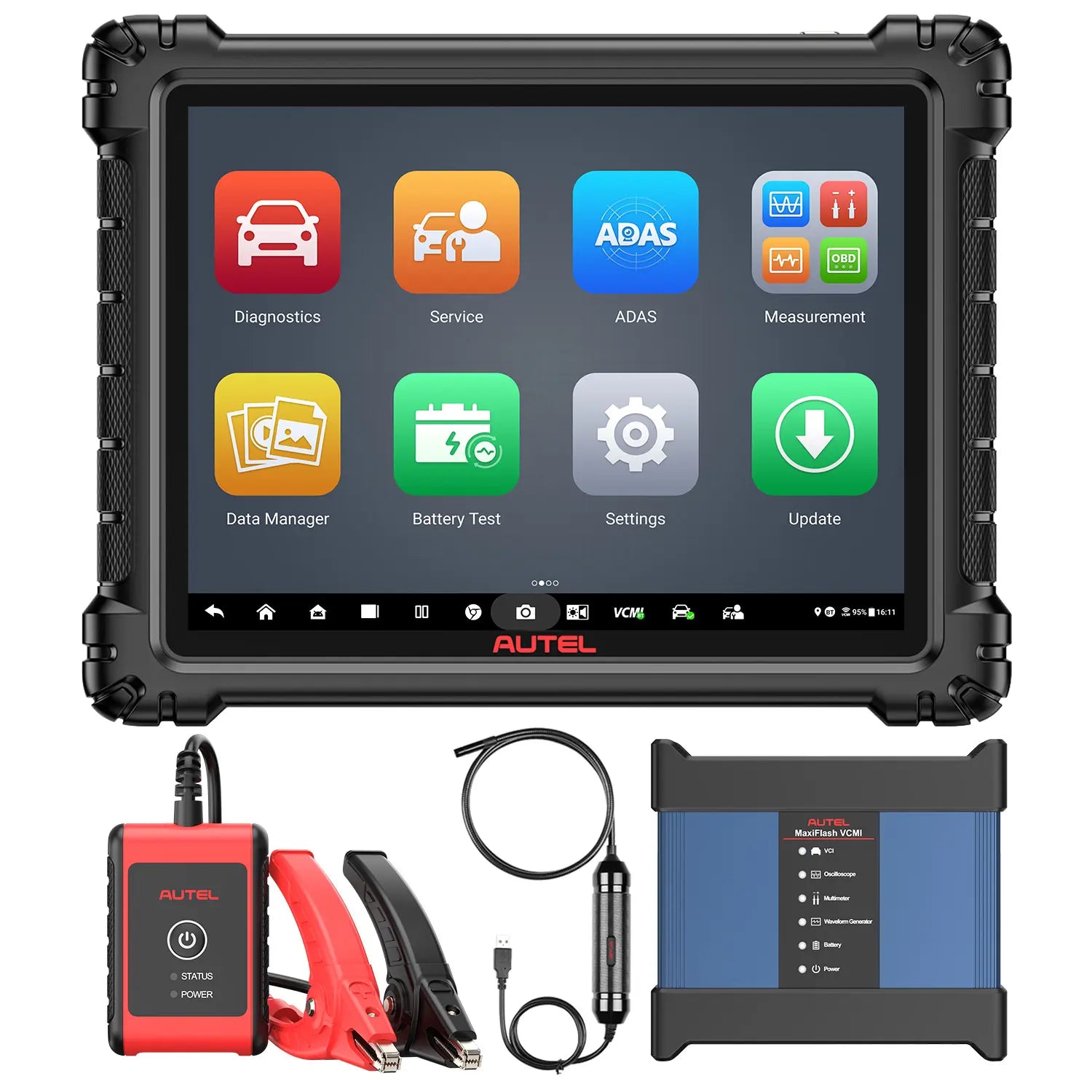

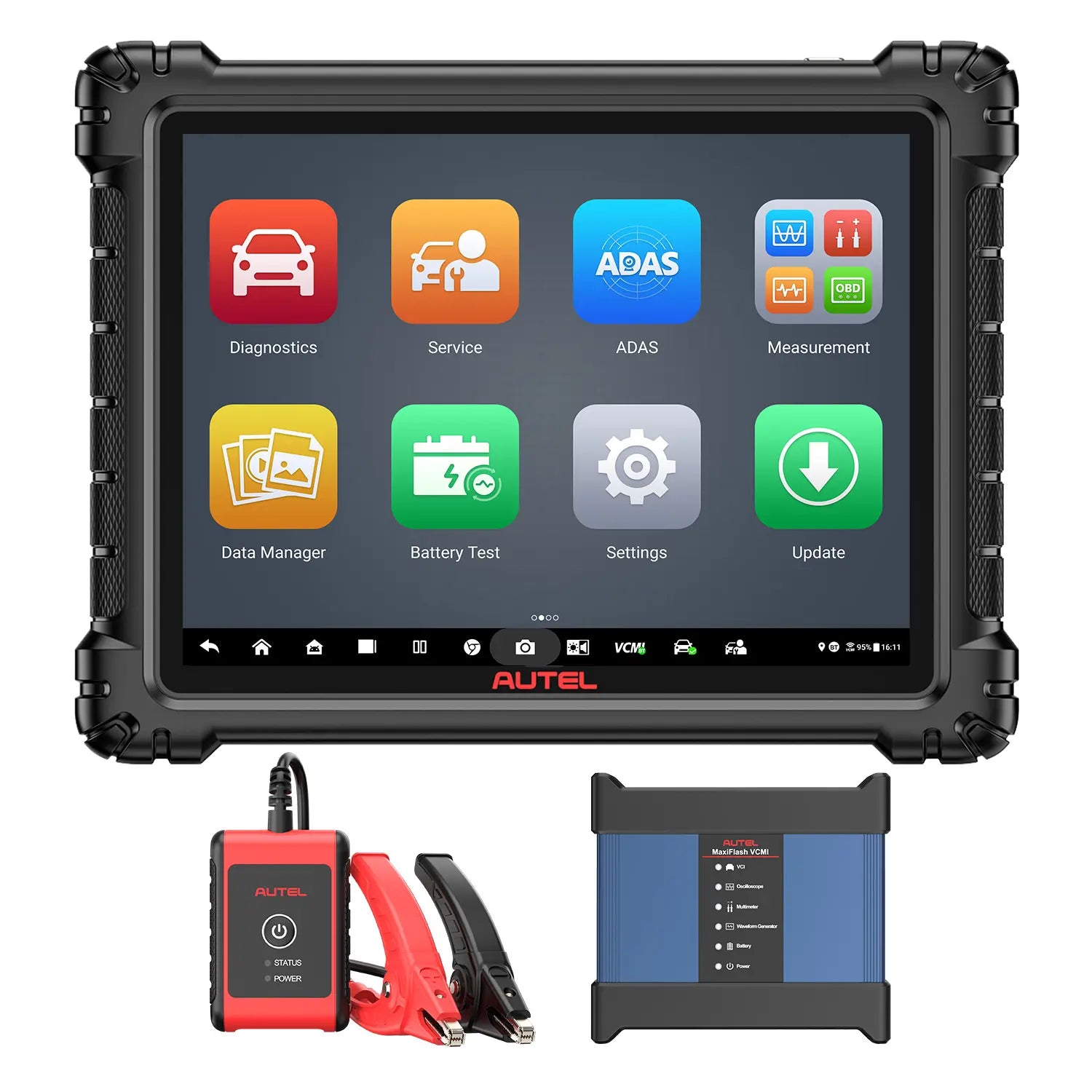

Topology Mapping, a 5-in-1 VCMI and ECU Programming on a 12.7-Inch Tablet

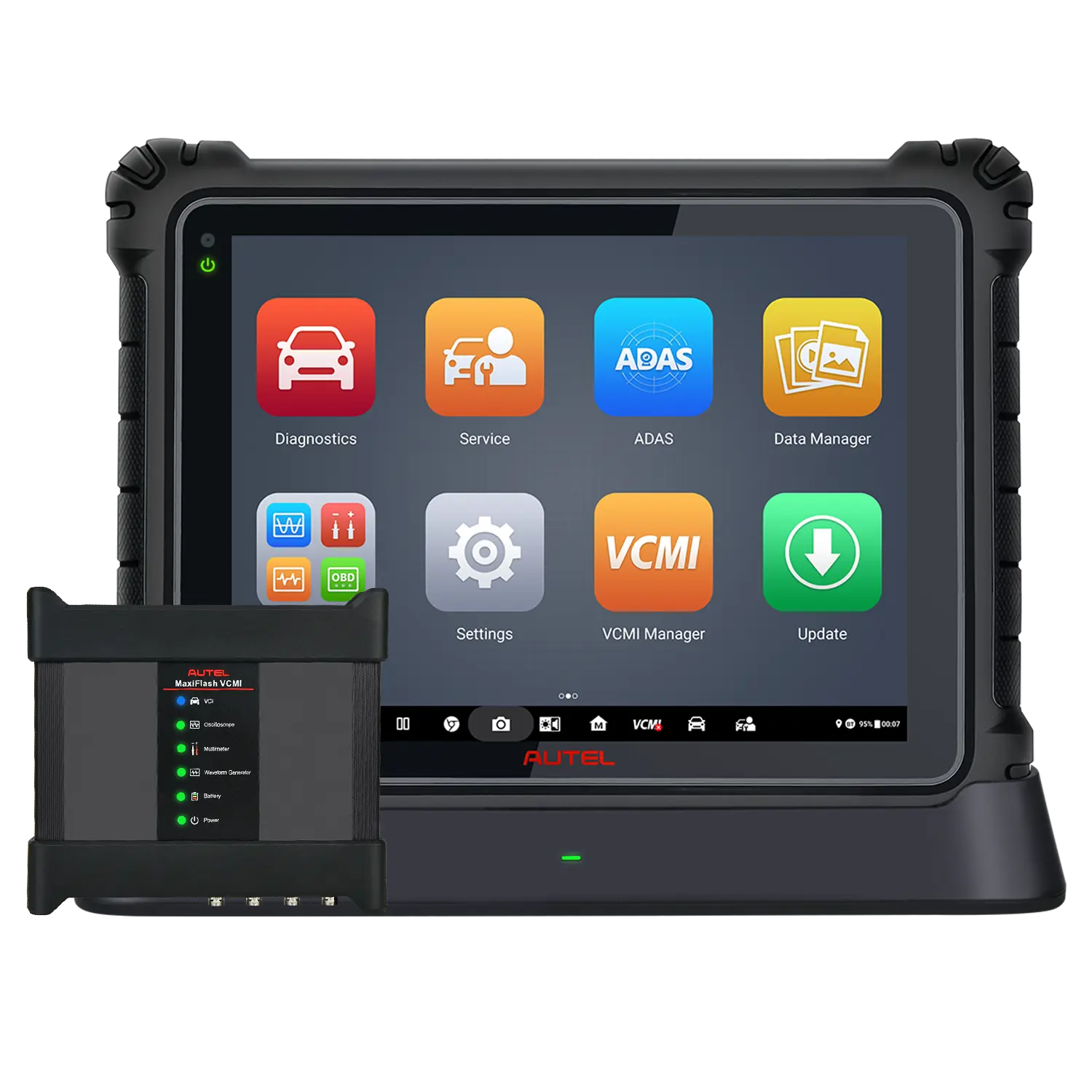

The MaxiSys Ultra combines a 12.7-inch Android tablet with the MaxiFlash VCMI for OE-level diagnostics, topology mapping, scope and meter measurements, service functions and ECU coding and programming on more than 80 U.S. domestic, Asian and European makes, including supercars.

  • Topology Mapping 2.0
  • 5-in-1 VCMI
  • ECU Coding & Programming
  • Docking Station
  • Scope Test Leads

Key Features

  1. Topology Mapping 2.0

    Shows the CAN BUS tree with color-coded modules on one page, so full-system diagnostic results can be read at a glance.

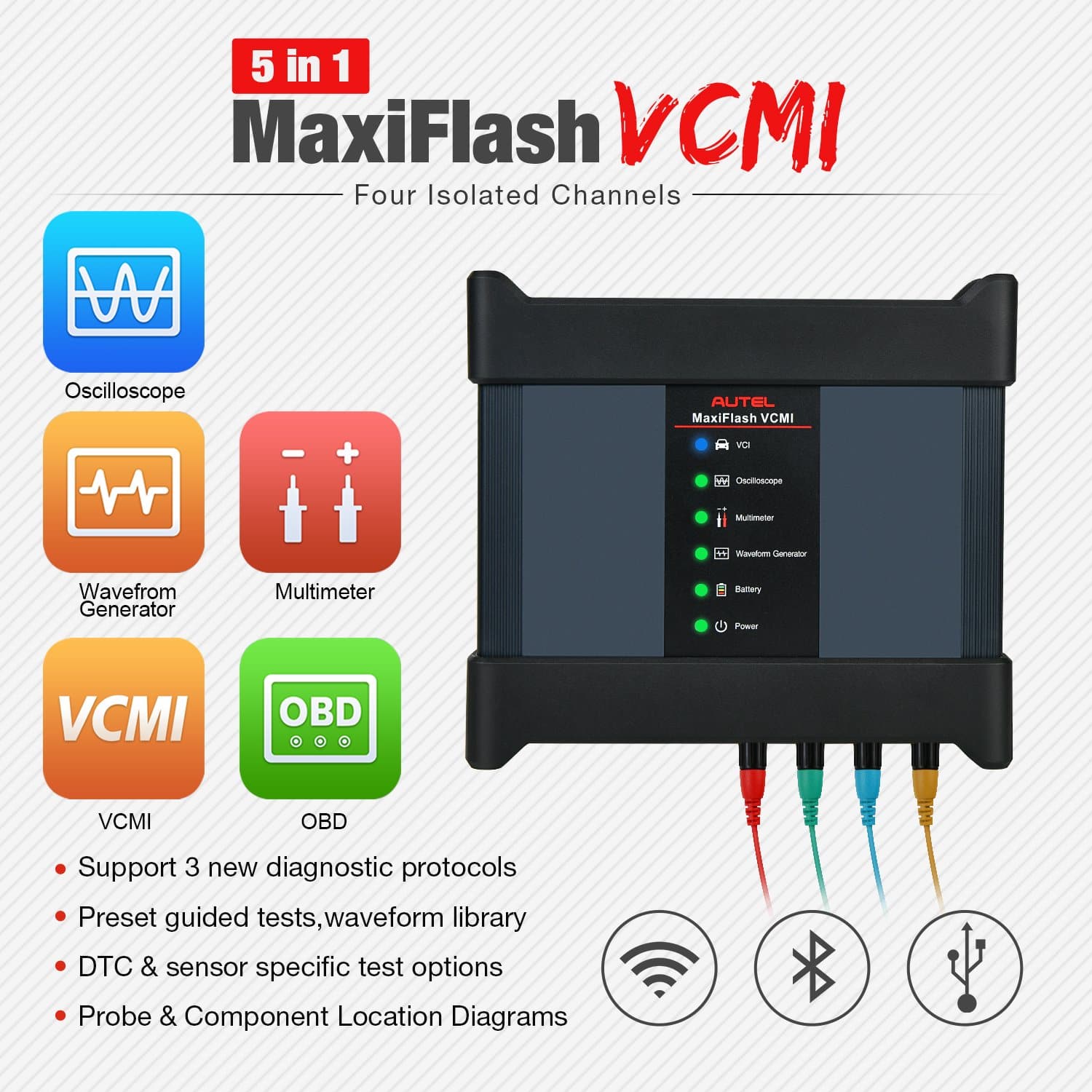

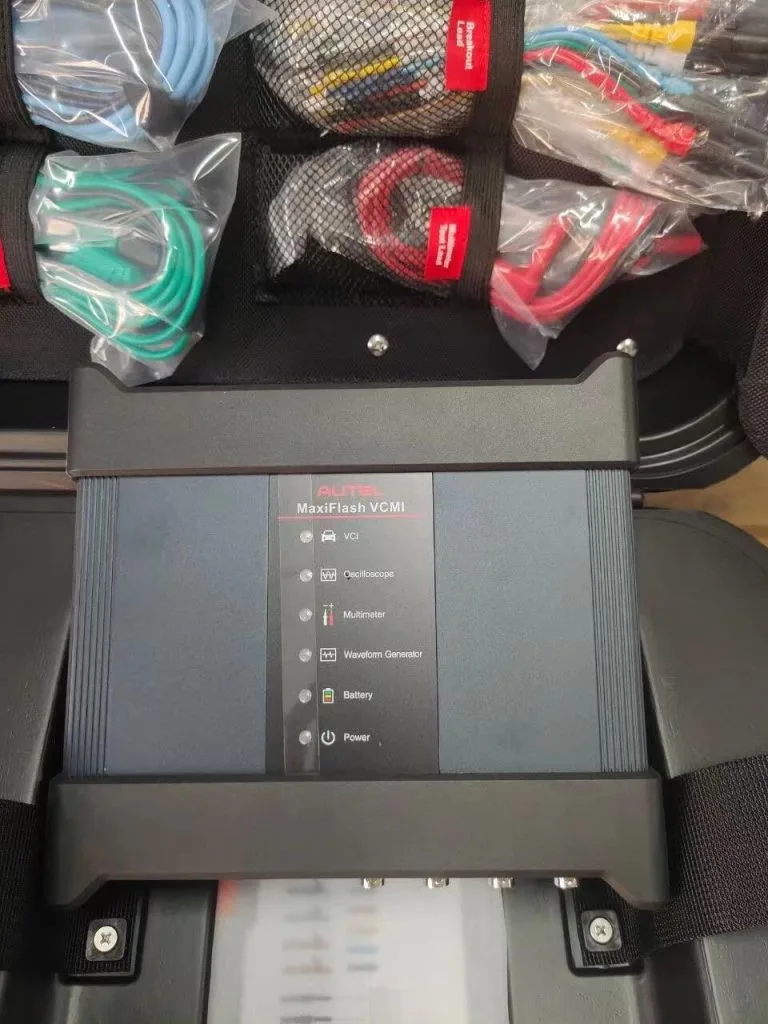

  2. 5-in-1 VCMI

    The MaxiFlash VCMI combines a VCI, oscilloscope, waveform generator, multimeter and OBD2 CAN BUS check in one unit.

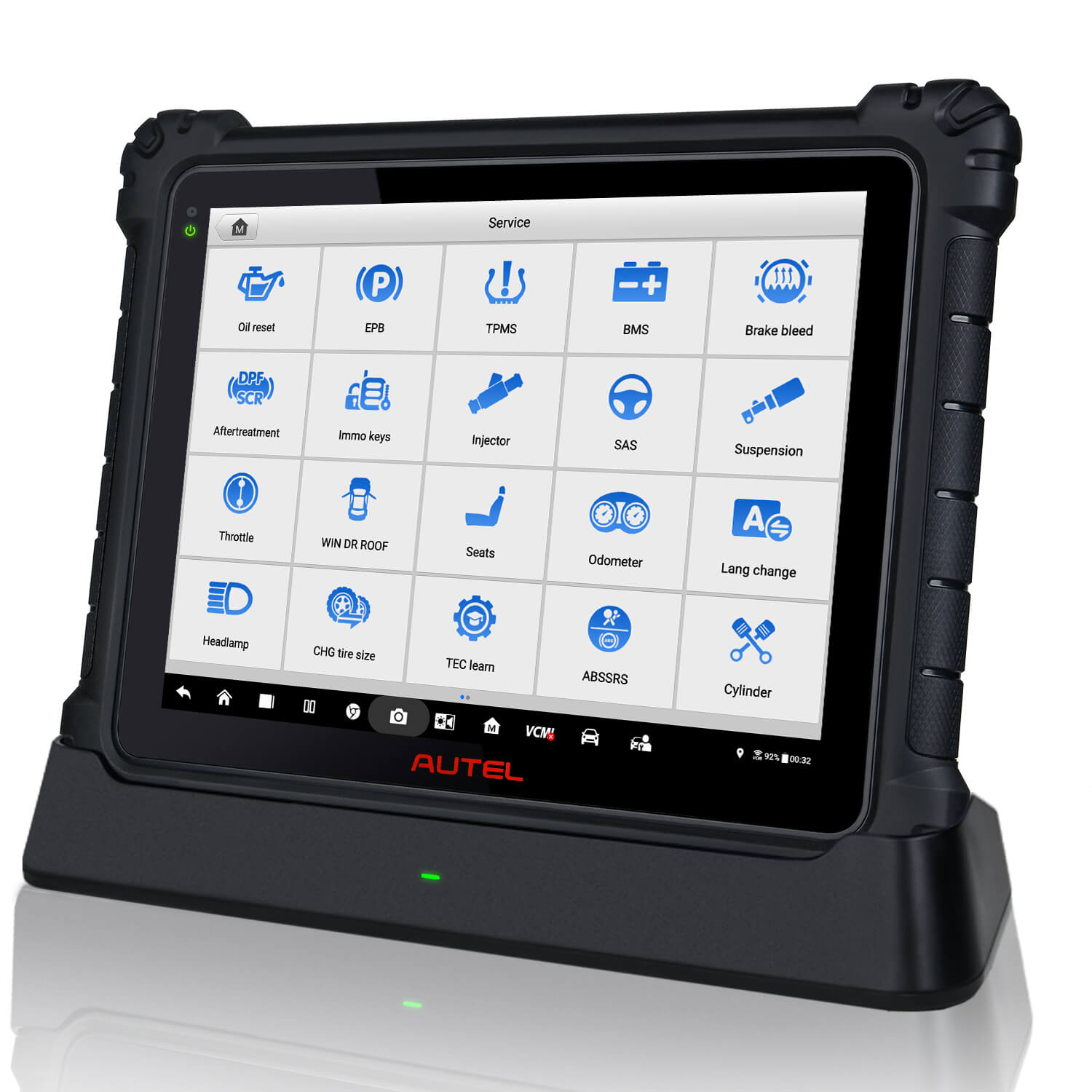

  3. Extensive Service Functions

    Oil reset, EPB reset, SAS calibration, DPF regeneration, battery reset, throttle reset, ABS bleed, injector coding, power balance, key coding, suspension calibration, EGR, VGT turbo calibration, transmission, headlamps, and window, door and roof functions.

  4. ECU Programming and Coding

    Enhanced ECU programming on specific BMW and Mercedes-Benz models to program, rewrite, code and match a new ECU after module replacement, plus advanced ECU coding on most regular cars to enable hidden features.

  5. OE-Level Functionality

    From comprehensive OBDII diagnostics and services to advanced ECU coding and programming.

  6. Data Logging with Support

    Interactive data logging sessions connect you directly with Autel Support to troubleshoot diagnostic bugs and errors.

More Specifications

Connectivity Wi-Fi ×2 (802.11 a/b/g/n/ac 2×2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (two USB host Type A, one USB mini device), HDMI 2.0, SD card (up to 256GB)
Rear camera Autofocus with flashlight
Sensors Gravity accelerometer, ambient light sensor (ALS)
Audio Microphone, dual speakers, 3-band 3.5 mm stereo/standard headset jack
Charging 12 V AC/DC power supply, between 0°C and 45°C
Input voltage 12V/3A adapter
Operating temperature 0 to 50°C (32 to 122°F)
Storage temperature -20 to 60°C (-4 to 140°F)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire CAN (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

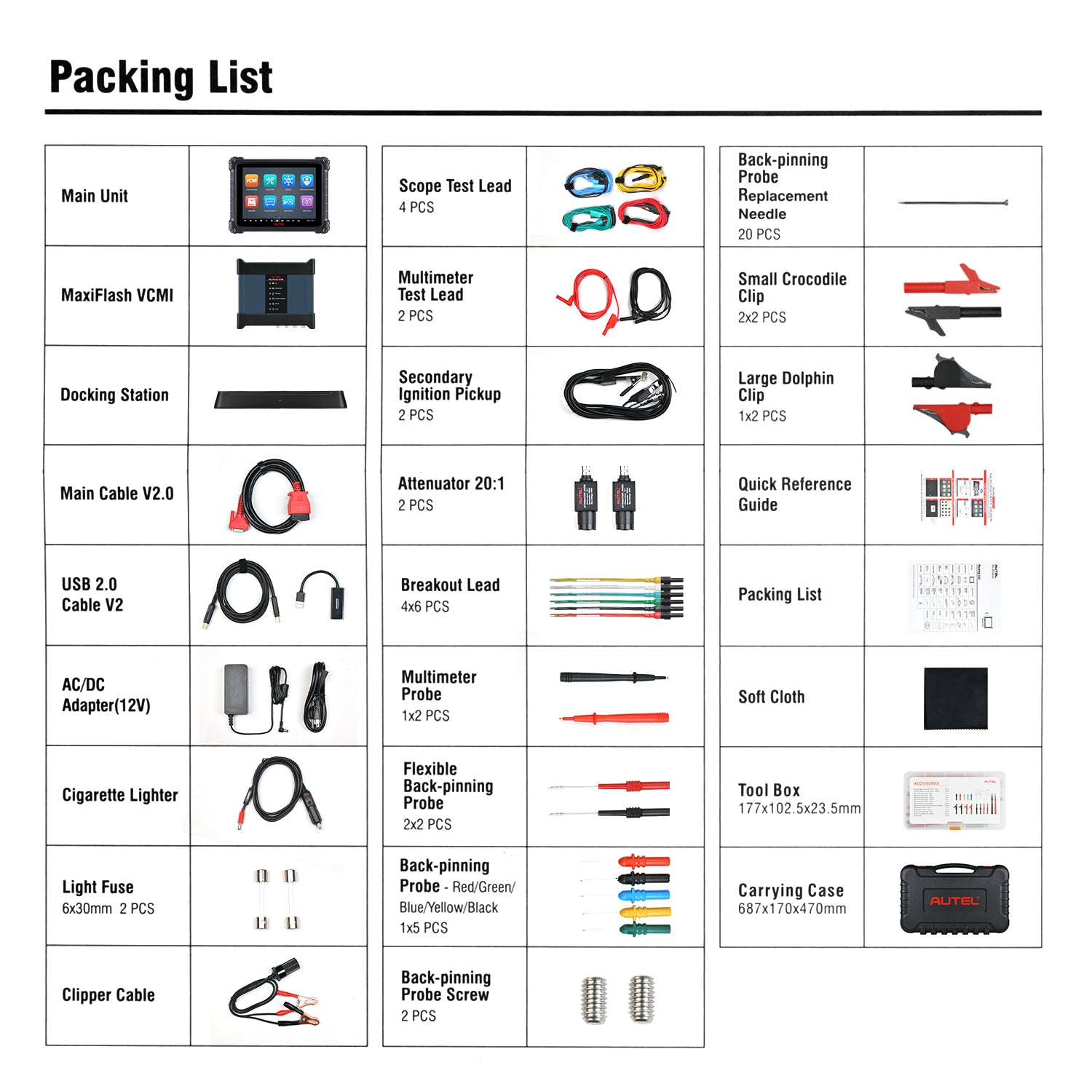

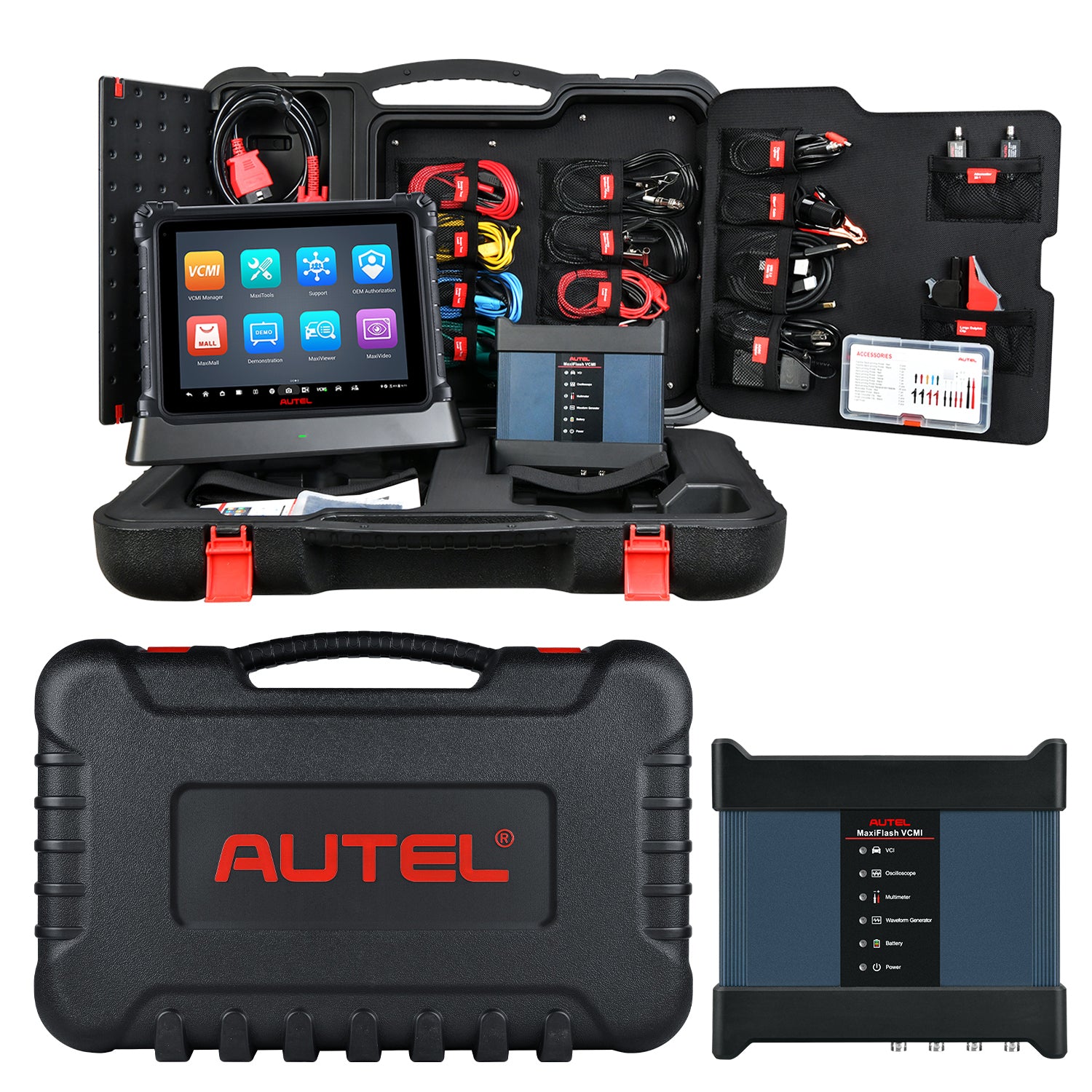

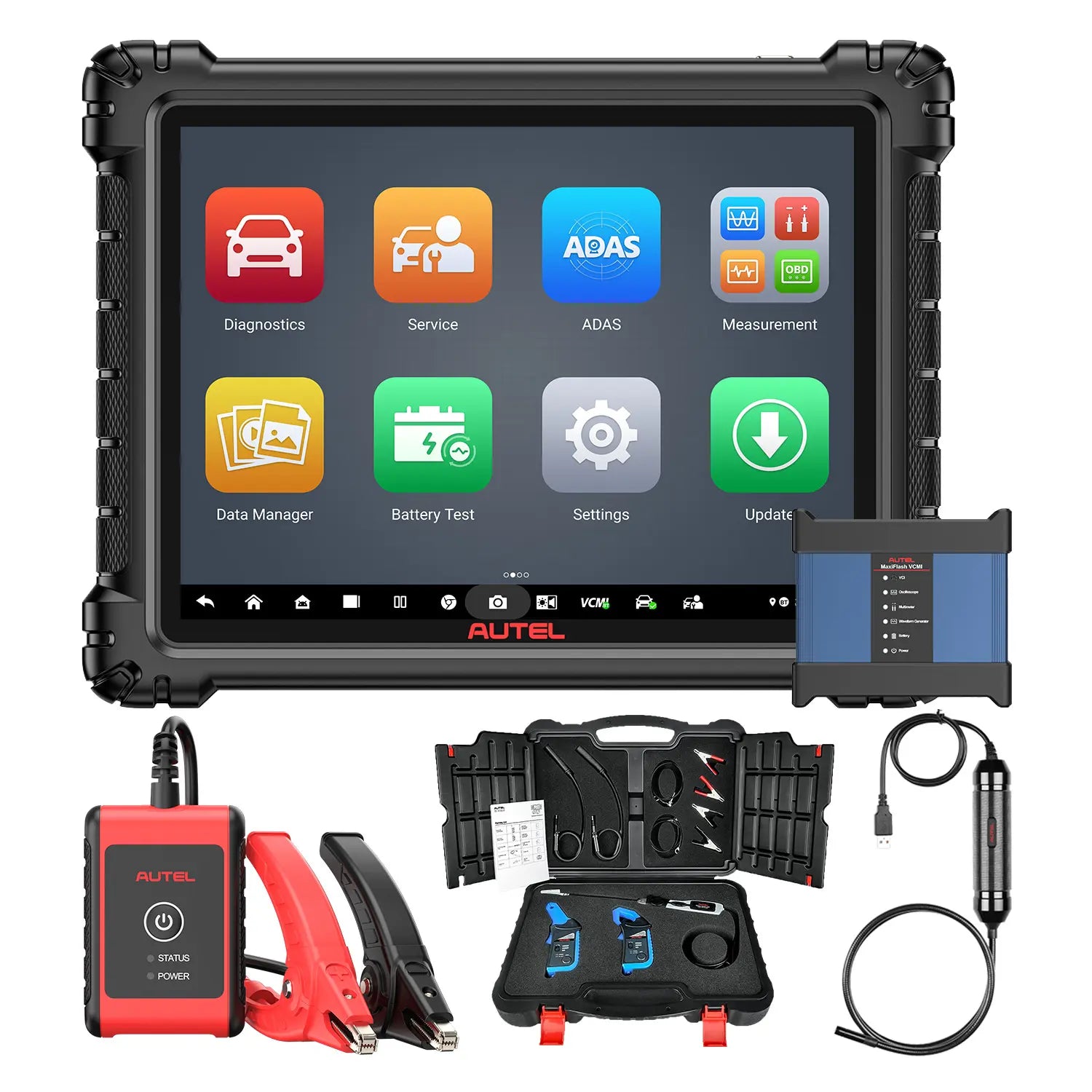

What’s in the Box

  • MaxiSys Ultra main unit
  • MaxiFlash VCMI
  • Docking station
  • Main cable V2.0
  • USB 2.0 cable V2
  • AC/DC adapter (12V)
  • Cigarette lighter
  • Light fuses (6x30mm), 2 pcs
  • Clipper cable
  • Scope test leads, 4 pcs
  • Multimeter test leads, 2 pcs
  • Secondary ignition pickups, 2 pcs
  • Attenuators 20:1, 2 pcs
  • Breakout leads, 4×6 pcs
  • Multimeter probes, 1×2 pcs
  • Flexible back-pinning probes, 2×2 pcs
  • Back-pinning probes, red/green/blue/yellow/black, 1×5 pcs
  • Back-pinning probe screws, 2 pcs
  • Back-pinning probe replacement needles, 20 pcs
  • Small crocodile clips, 2×2 pcs
  • Large dolphin clips, 1×2 pcs
  • Quick reference guide
  • Packing list
  • Soft cloth
  • Tool box (177 x 102.5 x 23.5 mm)
  • Carrying case (687 x 170 x 470 mm)

Updates & Support

Software updates
One year of free updates
Update delivery
Automatic system and software updates with real-time push notifications via internet

Good to Know

Caution
  • ECU programming and coding are not universal; confirm support for your vehicle by VIN before ordering.

You may also like

Select specifications

Delivery

Ships in 1-3 business days

Payment methods

  • Credit / Debit CardVisaMastercardAmerican Express
  • PayPalPayPal
  • Apple PayApple Pay
  • Google PayGoogle Pay
  • LinkLink
  • iDEAL | WeroiDEAL | Wero
  • BancontactBancontact
  • EPSEPS
  • Przelewy24Przelewy24
  • BancontactBancontact
  • BlikBlik
  • EPSEPS
  • iDealiDeal
  • MyBankMyBank
  • Przelewy24Przelewy24
  • TrustlyTrustly
  • MultibancoMultibanco

Available methods may vary by currency and billing country; the final list is shown at checkout.

Service

  • Secure checkout

    Payments are processed over an encrypted connection.

  • After-sales support

    Contact us for installation or usage questions.

Specifications

Brand
AUTEL
Weight
2180 g
Operating System
Android 7.0
Processor
Samsung Exynos8895V octa-core (2.3GHz + 1.7GHz)
Memory / Storage
4GB RAM 256GB
Display
12.7-inch TFT-LCD touchscreen 2732 x 2048
Battery
18000mAh 3.8 V lithium polymer battery
VCI
5-in-1 MaxiFlash VCMI (VCI, oscilloscope, signal generator, multimeter, CAN BUS testing)
Diagnostic Functions
Topology 2.0, ECU programming (some BMW/Benz) and coding, comprehensive service functions
Camera
Rear 16MP / front 5MP
Dimensions
366.5 × 280.9 × 34 mm
Weight
2.18kg
Vehicle Coverage
80+ American/Asian/European makes including supercars; ECU programming and coding not universal, VIN confirmation required
Software Updates
Includes 1-year free updates

Reviews158

5.0 / 5Based on 158 reviews
3 ★0
2 ★0
1 ★0
Gerry N.

Heavy competitor with Snap-On.

Purchased this diagnostic platform per recommendation of another Diagnostician. Very great powerful platform loaded with everything you need to diagnose and repair the vehicle, IF you know what your doing. Loaded with tons of hot functions, Bi-directional controls, and even flash programming features. It ‘s a heavy competitor with Snap-On platforms, I own both. There are some things the ULTRA can do that the ZEUS cannot and vice versa. There’s not one scanner that does it all. But having multiple amazing platforms makes sure you have all the guns needed for the gun show. I recommend this product to anyone looking for a great DIAG/SCOPE platform and don’t want to pay over 10 grand for Snap-On. I wish I didn’t at least.

John S.

Flagship Speed

Boots before I open the toolbox and scans a Benz while I grab gloves. Topology map shows the bad CAN node in seconds. VCMI replaces my old scope and meter so I carry less boxes. Battery lasts the full shift without a wall plug. Customers see the big screen and approve extra work faster.

HBressler

FANTASTIC SO FAR!!!

Pretty fast shipping and well packaged! Comes with a lot of extra goods. Setting it up and registering the tool was straight forward. Still need some time to use it and get a good feeling of it. Customer support has been great.

Michelle L.

Great customer service!

Great scanner! The first one I received didn't work so I contacted them and they got me to send it back and they sent me a brand new one! The replacement I received works flawlessly.

Robert J.

Great value

This is my seccond Autel scanner because I liked my first one so much. The built-in service procedures are really handy as well as the scope function. The large screen is great as well as the topology view of all the control modules and instant display of all trouble codes in the various systems.

Xavier J.

Great so far

The system works good and costs half of the major tool brands. The maxisys does so much, It will take a long time to figure it all out and learn how to use it to its full potential. Recommend finding a seller that offers an extended system update time. Mostsellers offerone year free updates. I have seen some with two year free updates. The yearly updates are very expensive. This system will work without the yearly subscription but all the features that you pay for with the maxisys will not work as intended. This is a great scanner if you know what to expect out of it.

Erik D.

excellent product!!

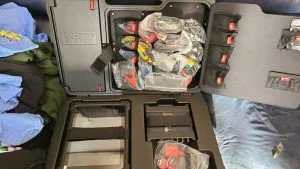

This scanner goes above and beyond what I expected in the best way. For starters, the carry case it comes in is super organized and makes it easy to locate what I need for diagnostic purposes. The scanner itself has such a large screen that makes it easy to both navigate and see what I am doing. The software interface is very user-friendly as well. This scanner does everything you could want for a fraction of the cost of the "other guys." The fact that I can do manufacture-specific ECU programming, coding, and calibrations made this a no-brainer purchase for me. The scoping and waveform abilities are what set it apart from others. It is also compatible with every manufacturer I have worked with. Overall, this is a top-tier scanner, and I recommend it to any shop or technician looking for a scanner that can do almost anything.
