Caractéristiques

MarqueAUTEL
Poids2180 g
Système d’exploitationAndroid 7.0
ProcesseurSamsung Exynos8895V à huit cœurs (2.3GHz + 1.7GHz)
Mémoire / stockage4GB RAM 256GB
AffichageÉcran tactile TFT-LCD de 12.7 pouces 2732 x 2048
BatterieBatterie lithium-polymère 18000mAh 3.8 V
VCIMaxiFlash VCMI 5-en-1 (VCI, oscilloscope, générateur de signaux, multimètre, test du bus CAN)
Fonctions de diagnosticTopologie 2.0, programmation ECU (certains modèles BMW/Benz) et codage, fonctions d’entretien complètes
CaméraArrière 16MP / avant 5MP
Dimensions366.5 × 280.9 × 34 mm
Poids2.18kg
Couverture des véhicules80+ marques américaines/asiatiques/européennes, y compris des supercars ; programmation et codage des ECU non universels, confirmation par VIN requise
Mises à jour logiciellesInclut 1 an de mises à jour gratuites

Détails

Cartographie topologique, VCMI 5-en-1 et programmation des ECU sur une tablette de 12.7 pouces

Le MaxiSys Ultra associe une tablette Android de 12.7 pouces au MaxiFlash VCMI pour le diagnostic de niveau OE, la cartographie topologique, les mesures à l’oscilloscope et au multimètre, les fonctions d’entretien ainsi que le codage et la programmation des ECU sur plus de 80 marques américaines, asiatiques et européennes, y compris des supercars.

  • Cartographie de topologie 2.0
  • VCMI 5-en-1
  • Codage et programmation ECU

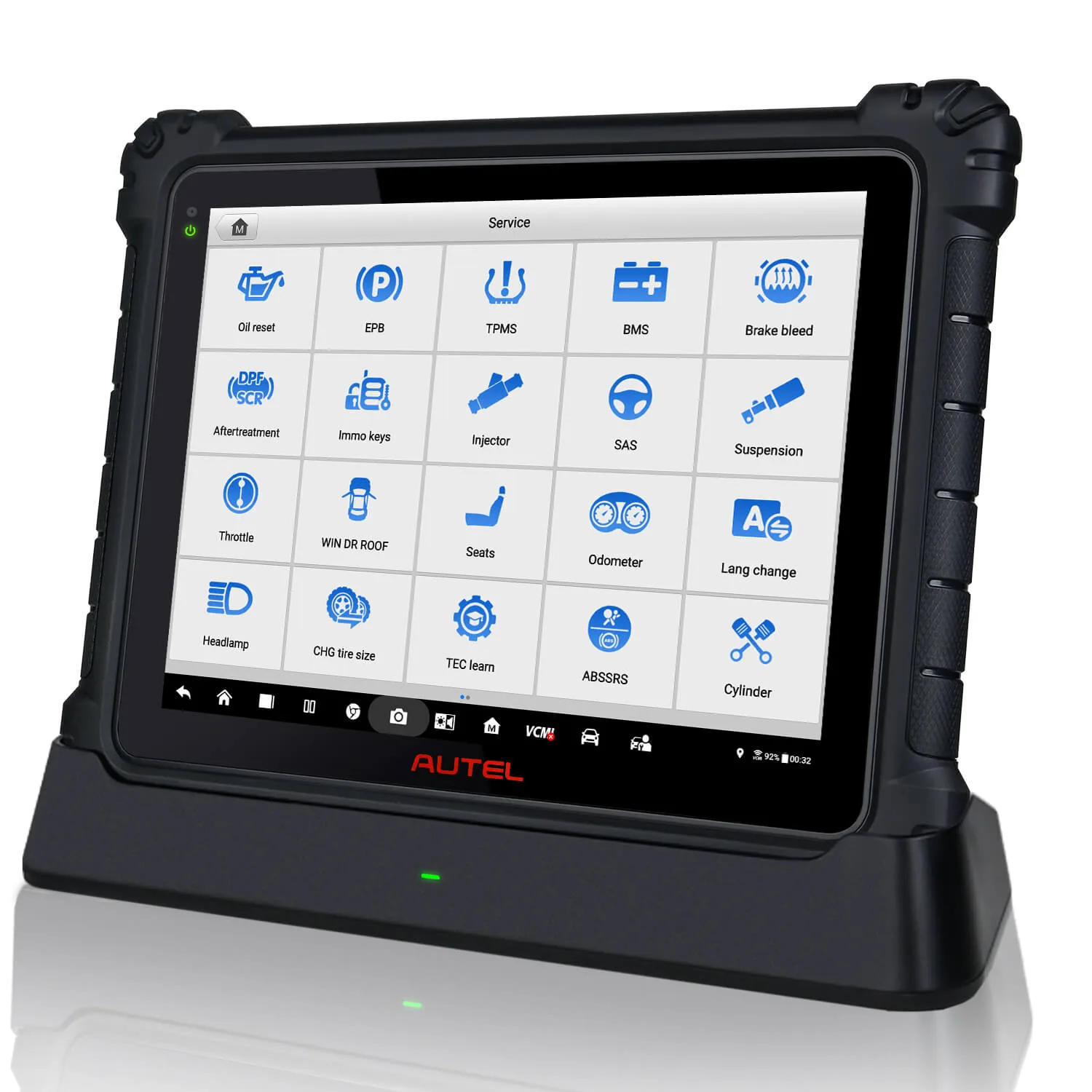

  • Station d’accueil
  • Cordons de test d’oscilloscope

Caractéristiques principales

  1. Cartographie de topologie 2.0

    Affiche l’arborescence du bus CAN avec des modules identifiés par couleur sur une seule page, pour consulter d’un coup d’œil les résultats du diagnostic de tous les systèmes.

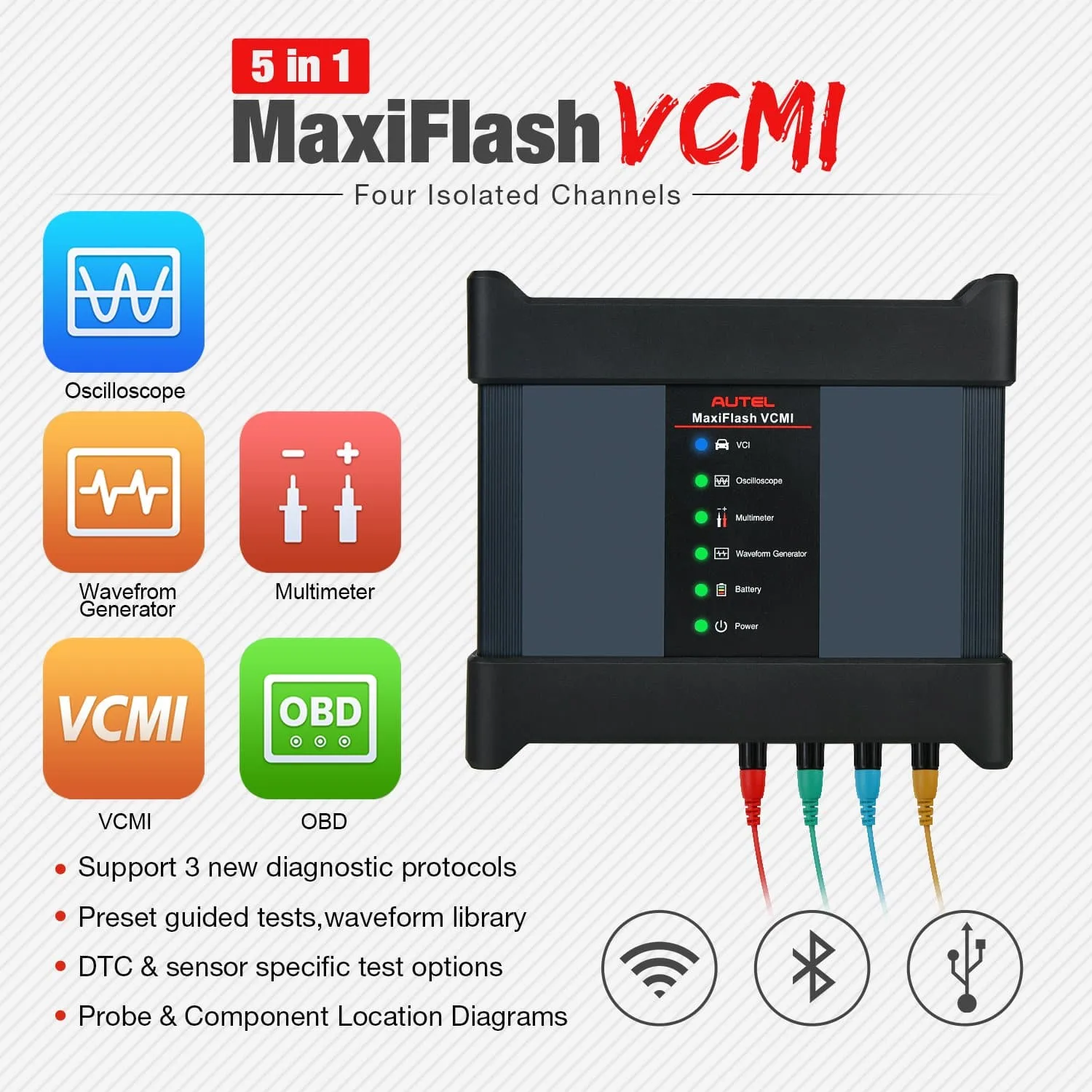

  2. VCMI 5-en-1

    Le MaxiFlash VCMI réunit une VCI, un oscilloscope, un générateur de formes d’onde, un multimètre et une fonction de contrôle du bus CAN OBD2 dans un seul appareil.

  3. Nombreuses fonctions d’entretien

    Réinitialisation du service d’huile, réinitialisation de l’EPB, étalonnage du SAS, régénération du DPF, réinitialisation de la batterie, réinitialisation du papillon, purge de l’ABS, codage des injecteurs, équilibrage de puissance, codage des clés, étalonnage de la suspension, EGR, étalonnage du turbo VGT, transmission, phares et fonctions des vitres, des portes et du toit.

  4. Programmation et codage de ECU

    Programmation avancée des ECU sur certains modèles BMW et Mercedes-Benz pour programmer, réécrire, coder et appairer un nouvel ECU après le remplacement d’un module, ainsi que codage avancé des ECU sur la plupart des voitures courantes pour activer des fonctions cachées.

  5. Fonctions de niveau constructeur

    Du diagnostic et des fonctions d’entretien OBDII complets au codage et à la programmation avancés des ECU.

  6. Enregistrement de données avec assistance

    Les sessions interactives d’enregistrement des données vous mettent directement en relation avec l’assistance Autel pour résoudre les bugs et les erreurs de diagnostic.

Autres caractéristiques

Connectivité Wi-Fi ×2 (802.11 a/b/g/n/ac 2×2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (deux ports hôtes USB de type A, un port mini-USB en mode périphérique), HDMI 2.0, carte SD (jusqu’à 256GB)
Caméra arrière Mise au point automatique avec lampe torche
Capteurs Accéléromètre de gravité, capteur de lumière ambiante (ALS)
Audio Microphone, deux haut-parleurs, prise casque stéréo/standard de 3 bandes et 3.5 mm
Charge Alimentation 12 V AC/DC, entre 0°C et 45°C
Tension d’entrée Adaptateur 12V/3A
Température de fonctionnement 0 à 50°C (32 à 122°F)
Température de stockage -20 à 60°C (-4 à 140°F)
Protocoles DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 CAN monofilaire (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART avec horloge, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

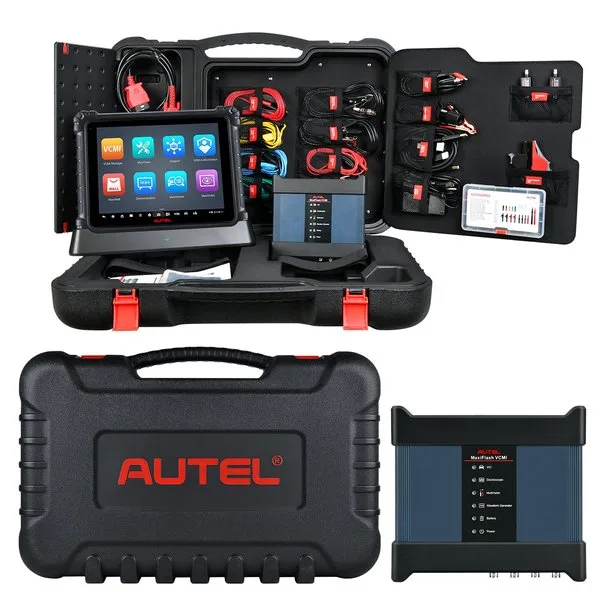

Contenu du coffret

  • Unité principale MaxiSys Ultra
  • MaxiFlash VCMI
  • Station d’accueil
  • Câble principal V2.0
  • Câble USB 2.0 V2
  • Adaptateur AC/DC (12V)
  • Allume-cigare
  • Fusibles d’éclairage (6x30mm), 2 pièces
  • Câble pince
  • Cordons de test d’oscilloscope, 4 pcs
  • Cordons de test de multimètre, 2 pièces
  • Capteurs d’allumage secondaire, 2 pièces
  • Atténuateurs 20:1, 2 pcs
  • Cordons de dérivation, 4×6 pièces
  • Sondes de multimètre, 1×2 pièces
  • Sondes flexibles pour contrôle à l’arrière des connecteurs, 2×2 pièces
  • Sondes de mesure par l’arrière des connecteurs, rouge/vert/bleu/jaune/noir, 1×5 pcs
  • Vis de sonde pour mesure à l’arrière des broches, 2 pièces
  • Aiguilles de rechange pour sonde de sondage par l’arrière, 20 pièces
  • Petites pinces crocodiles, 2×2 pièces
  • Grandes pinces dauphin, 1×2 pièces
  • Guide de référence rapide
  • Contenu de l’emballage
  • Chiffon doux
  • Boîte à outils (177 x 102.5 x 23.5 mm)
  • Mallette de transport (687 x 170 x 470 mm)

Mises à jour & assistance

Mises à jour logicielles
Un an de mises à jour gratuites
Distribution des mises à jour
Mises à jour système et logicielles automatiques avec notifications push en temps réel via Internet

Bon à savoir

Attention
  • La programmation et le codage ECU ne sont pas universels ; vérifiez la prise en charge de votre véhicule à l’aide du VIN avant de commander.
