Wireless All-System Diagnostics, Active Tests and ECU Coding

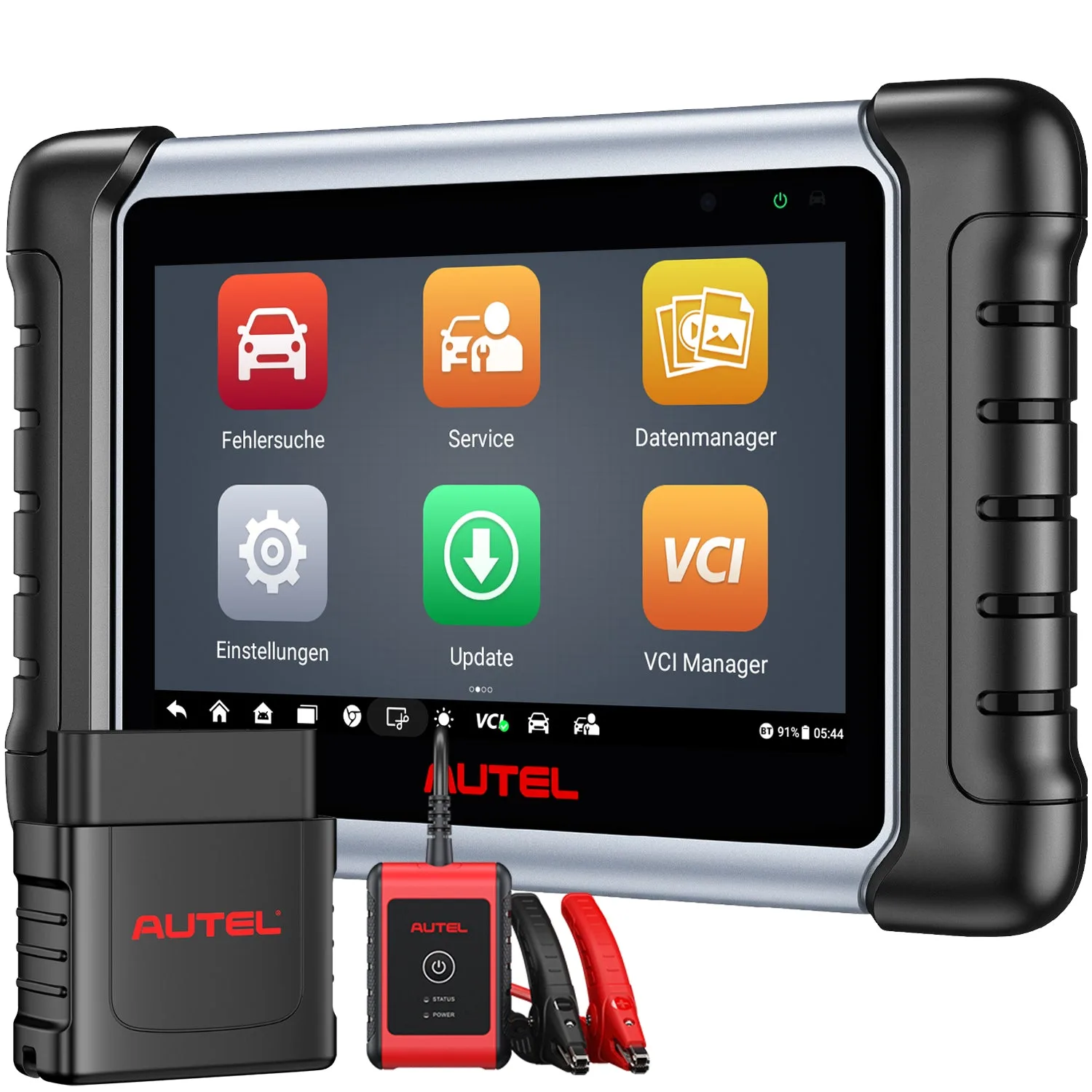

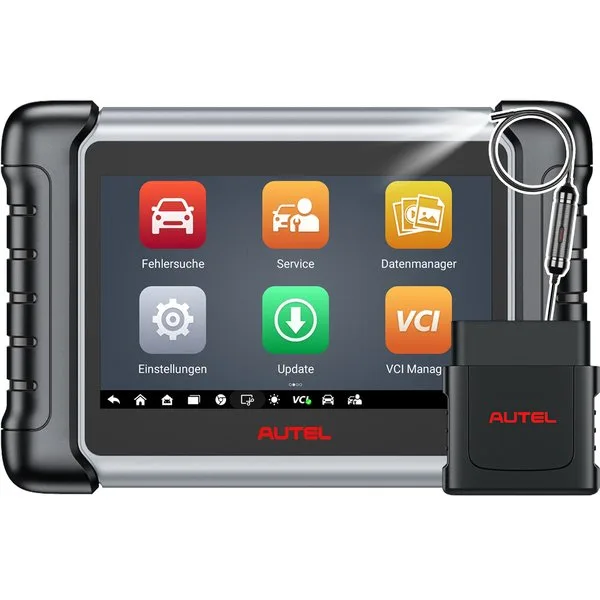

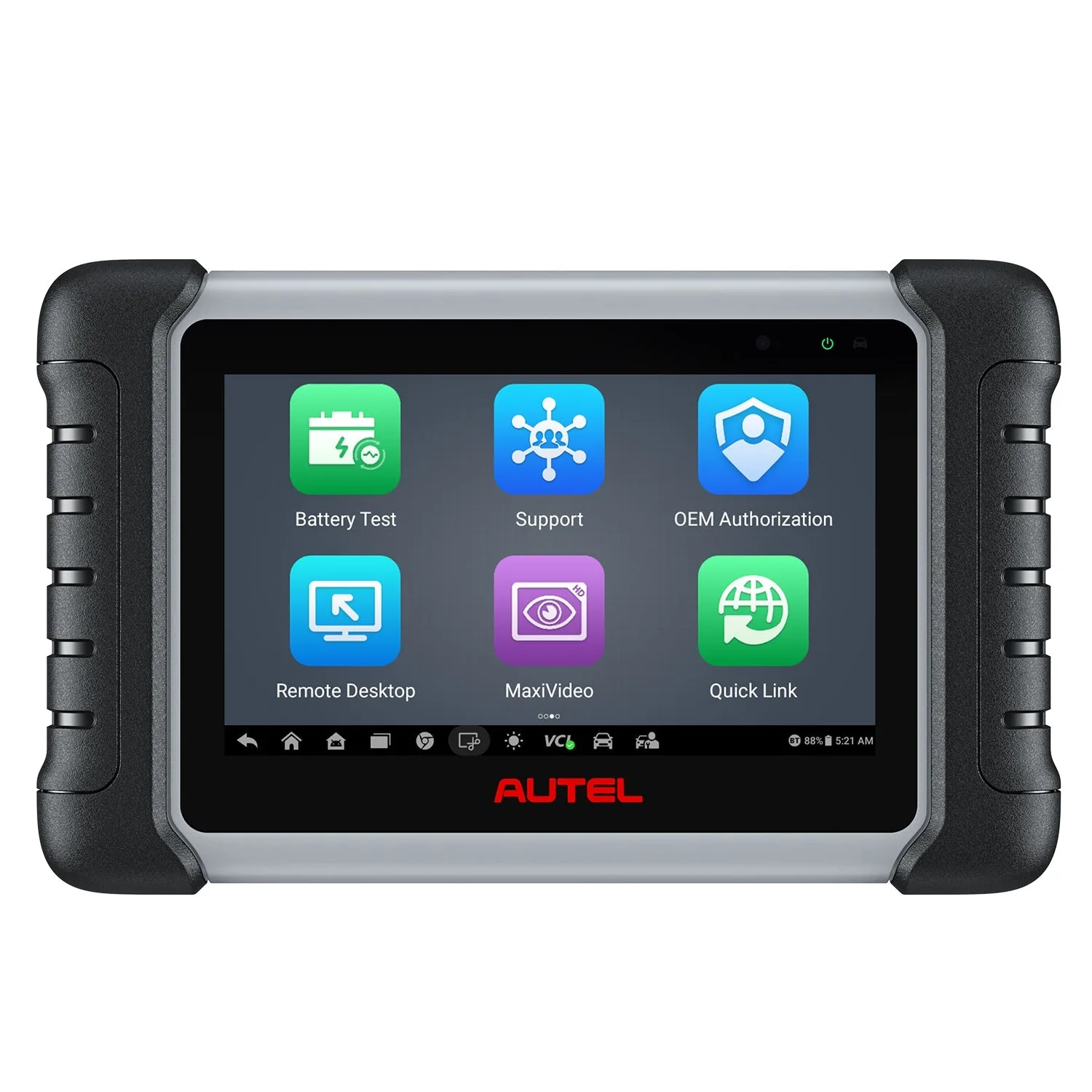

The MaxiPRO MP808BT Pro is a 7-inch Android tablet that connects through the wireless VCI mini to diagnose all available systems, run bi-directional tests, perform ECU coding and handle 37+ service functions.

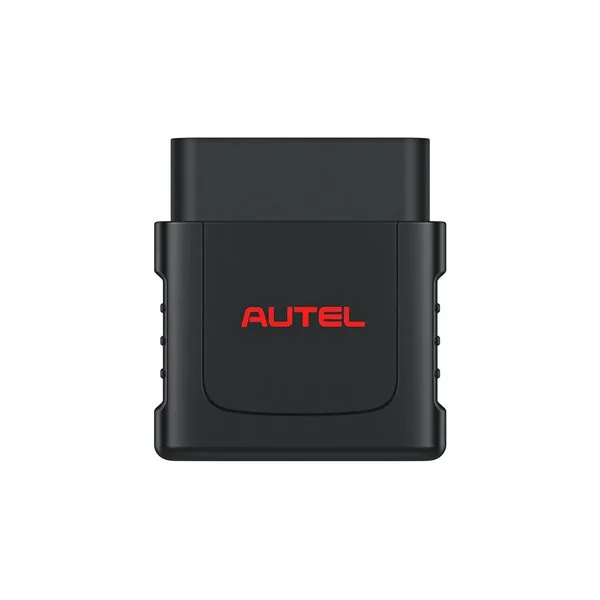

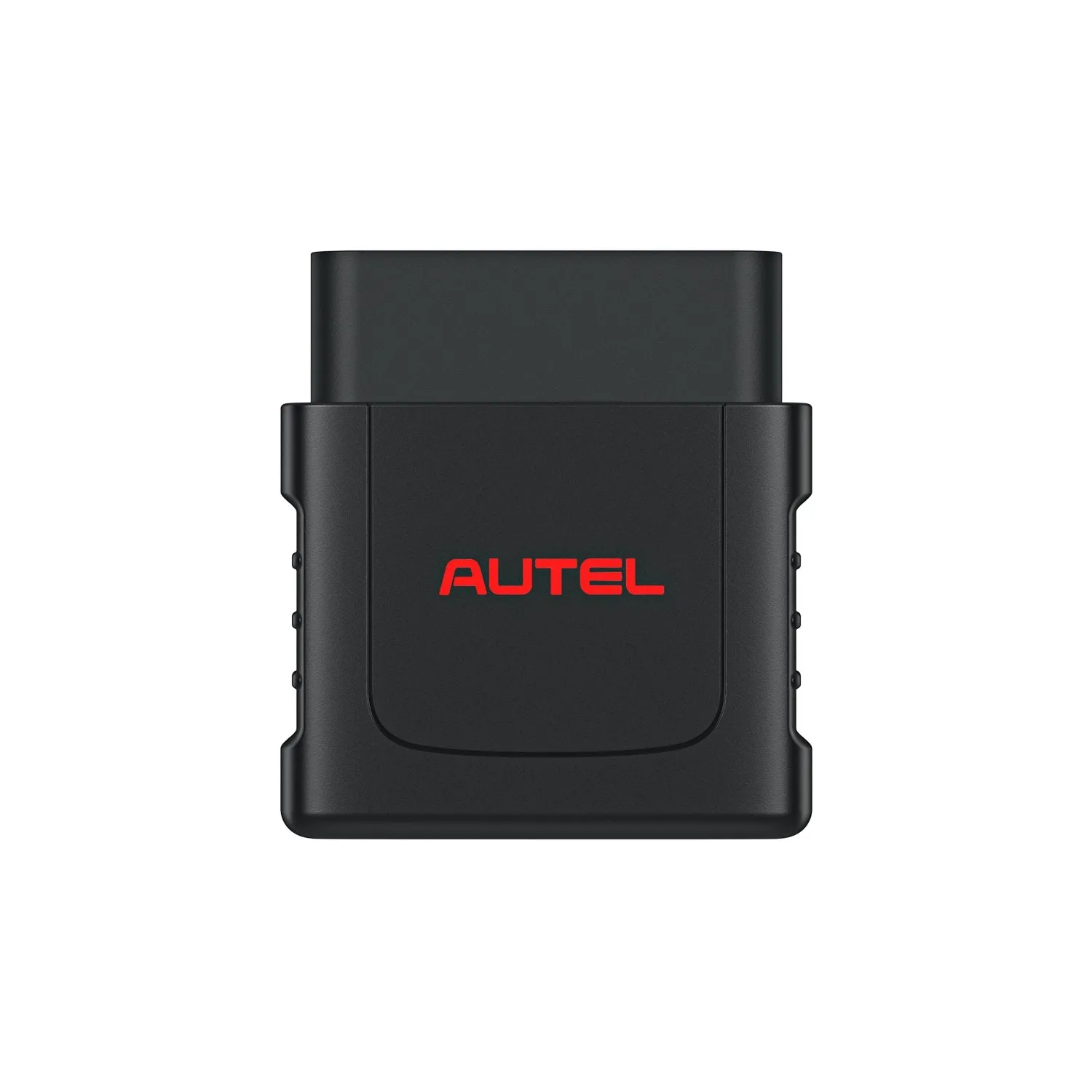

- Draadloze VCI Mini
- Bidirectionele aansturing
- ECU Coding
- 37+ Services
- FCA AutoAuth
Key Features
-
Diagnose van alle systemen op OE-niveau
Read and erase codes on all available systems, view freeze frame data, graph live data and access ECU information.
-
Bidirectionele aansturing
Send commands to activate actuators such as ABS, windows, doors, solenoids, relays, switches, valves and headlamps, and watch how they operate.
-
37+ servicefuncties
Including oil reset, EPB, SAS, DPF, BMS, ABS bleed and injector coding.
-
Geavanceerde ECU-codering
Hidden feature refresh on BMW, Audi, VW and Skoda, VAG guided functions on Audi, VW and Skoda, and ECU coding for BMW, Porsche, VW and other brands.
-
FCA AutoAuth-toegang
OBDII diagnostics, active tests and calibrations on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat and other FCA vehicles.
-
Rapporten en werkplaatsgegevens
AutoVIN identification, cloud-based reports for viewing and sharing, and a Shop Management app for customer and vehicle history.
-
Behuizing voor de werkplaats
Rubberized outer protection and a rugged internal housing.
Meer specificaties
| Sensoren | Ambient light sensor for automatic brightness |
|---|---|
| Audio output | Zoemer |
| Battery type | Lithium-polymeer |
| Opladen | 5 VDC power supply, 5 V/1.5 A charging input |
| Energieverbruik | 500 mA @3.7 V (LCD on at default brightness, Wi-Fi on) |
| Bedrijfstemperatuur | 0 tot 55°C (32 tot 131°F) |
| Opslagtemperatuur | -20 tot 60°C (-4 tot 140°F) |
| Bedrijfsluchtvochtigheid | 5% tot 95%, niet-condenserend |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, SAE J2610, GM UART, UART Echo Byte, ISO11898 (high-, middle-, low-speed and single-wire CAN, fault-tolerant CAN), Honda Diag-H, TP2.0, TP1.6 |
Inhoud van de doos
- 1×MaxiPRO MP808BT Pro-hoofdeenheid
- 1×VCI mini
- 1×Power adapter
- 1×Mini USB cable
- 1×Main cable
- 1×Carrying case
- 1×Band
- 1×Beknopte handleiding
- 1×Packing list
