Wireless All-System Diagnostics, Active Tests and ECU Coding

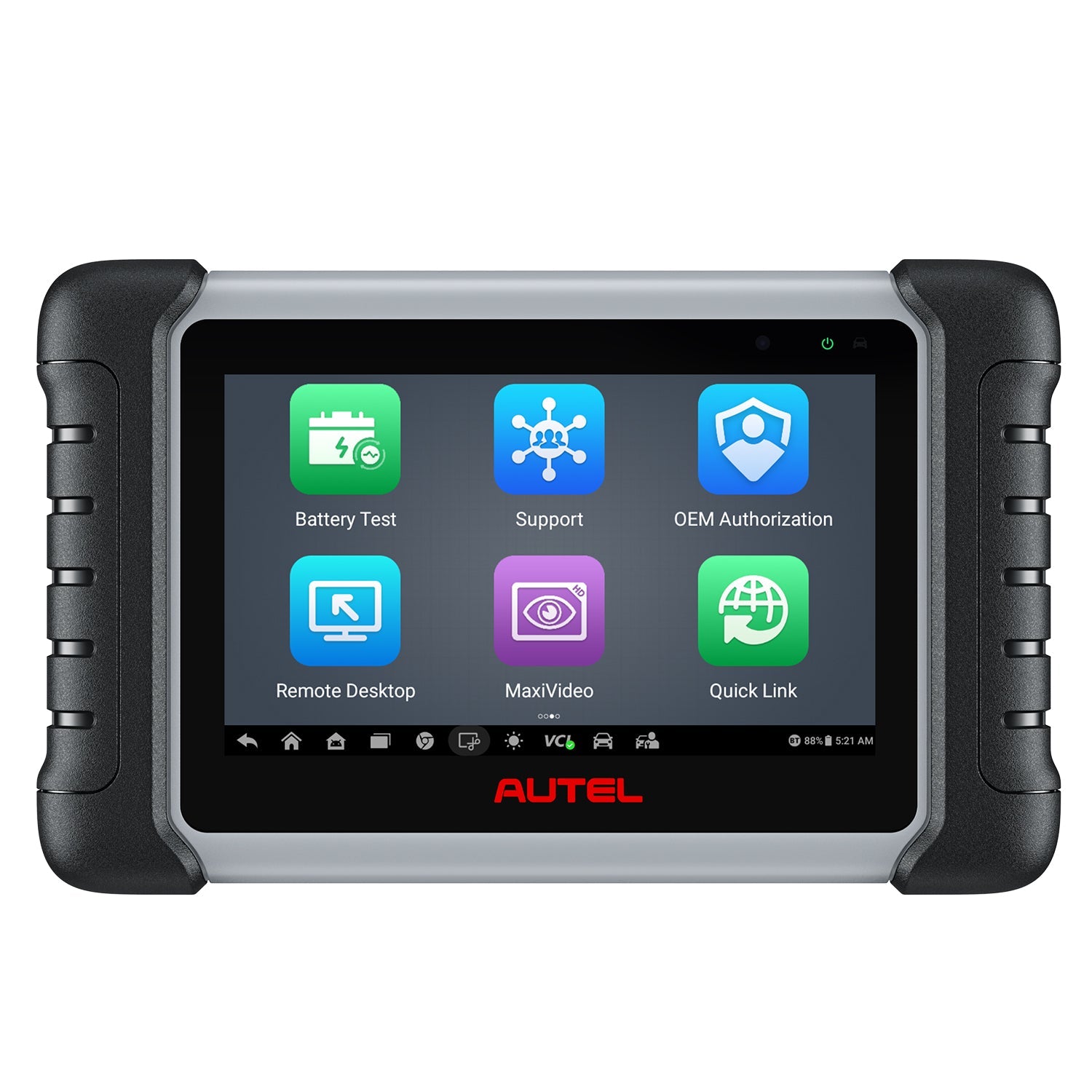

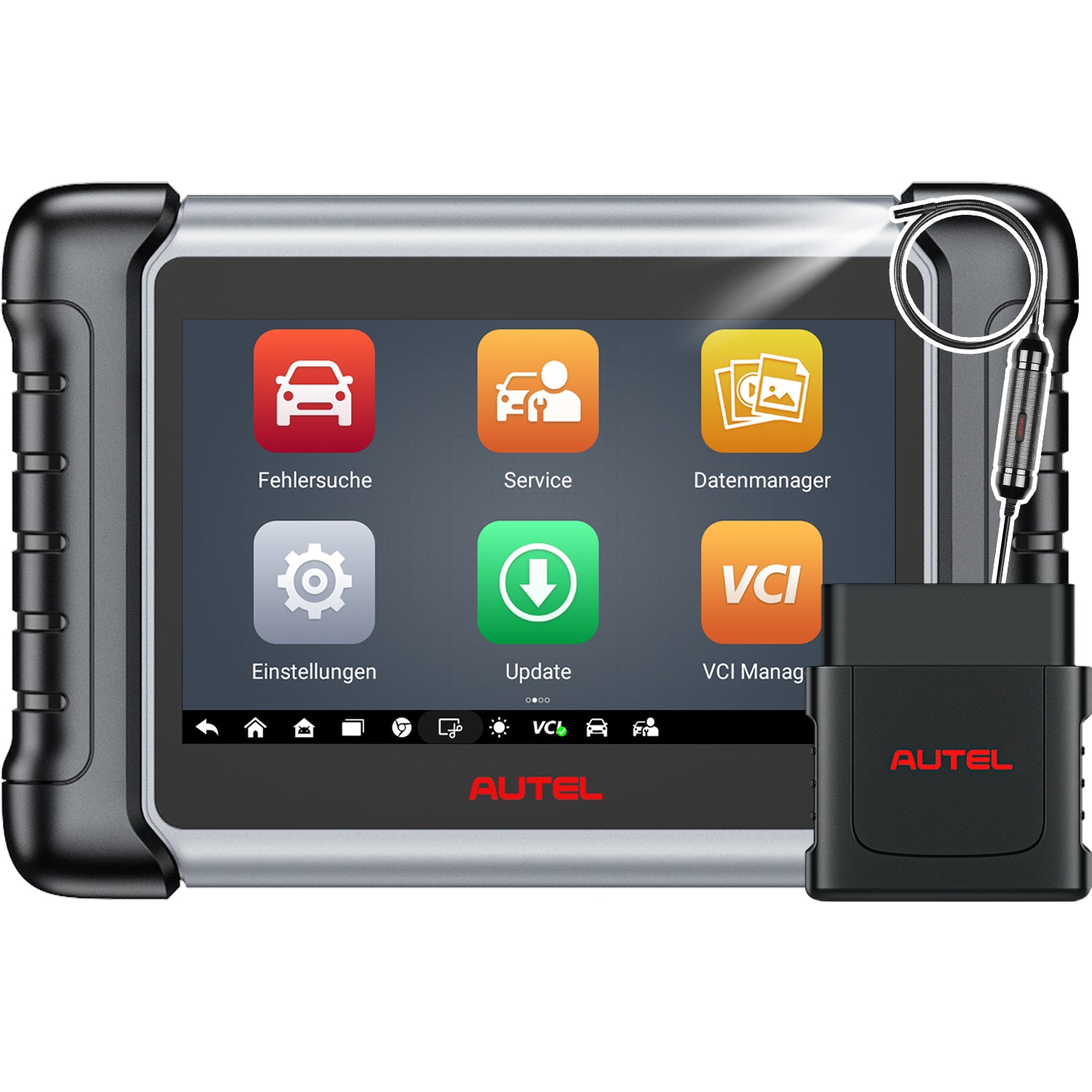

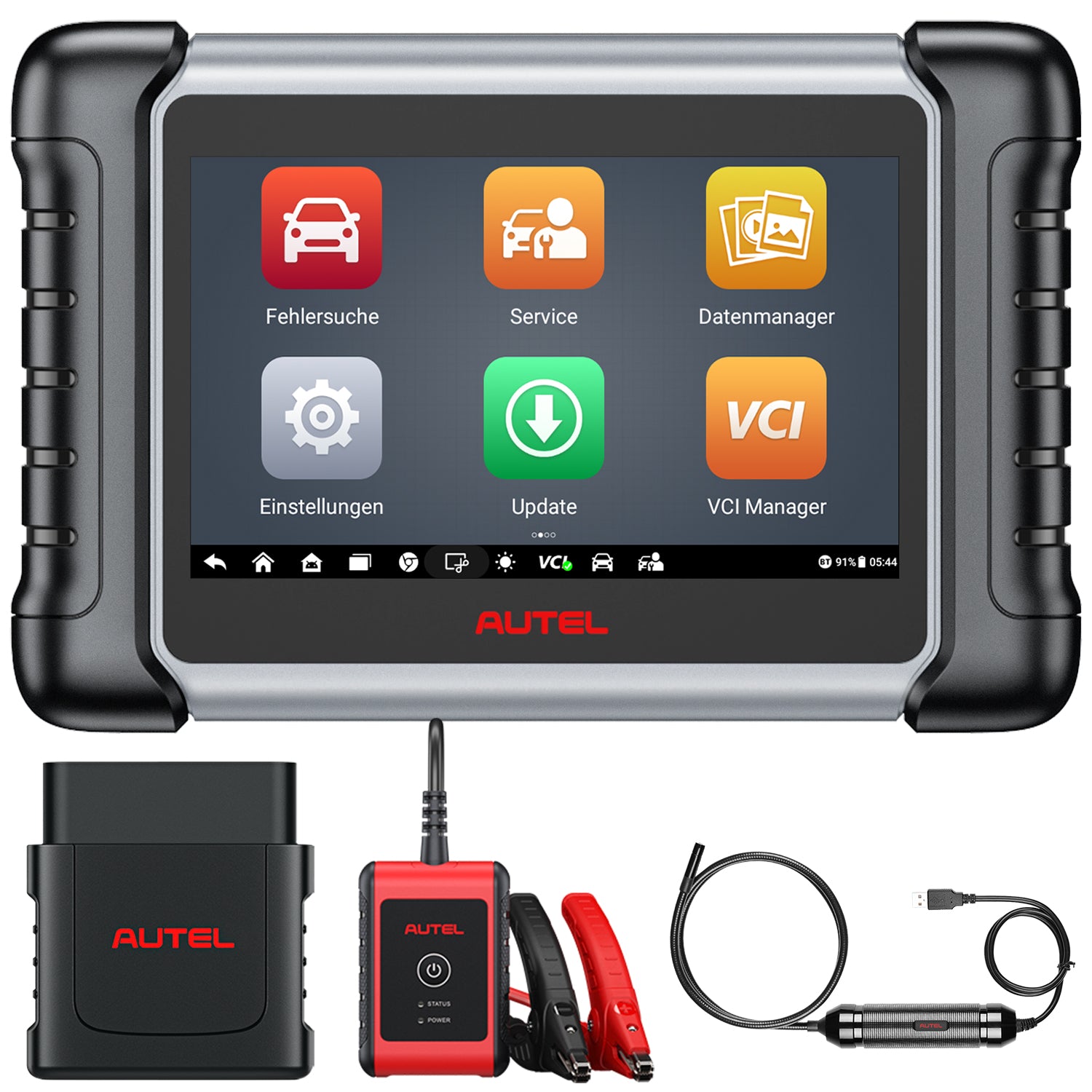

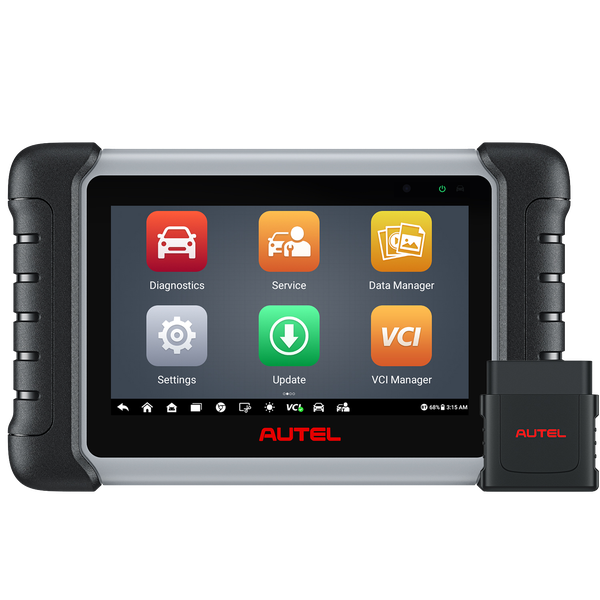

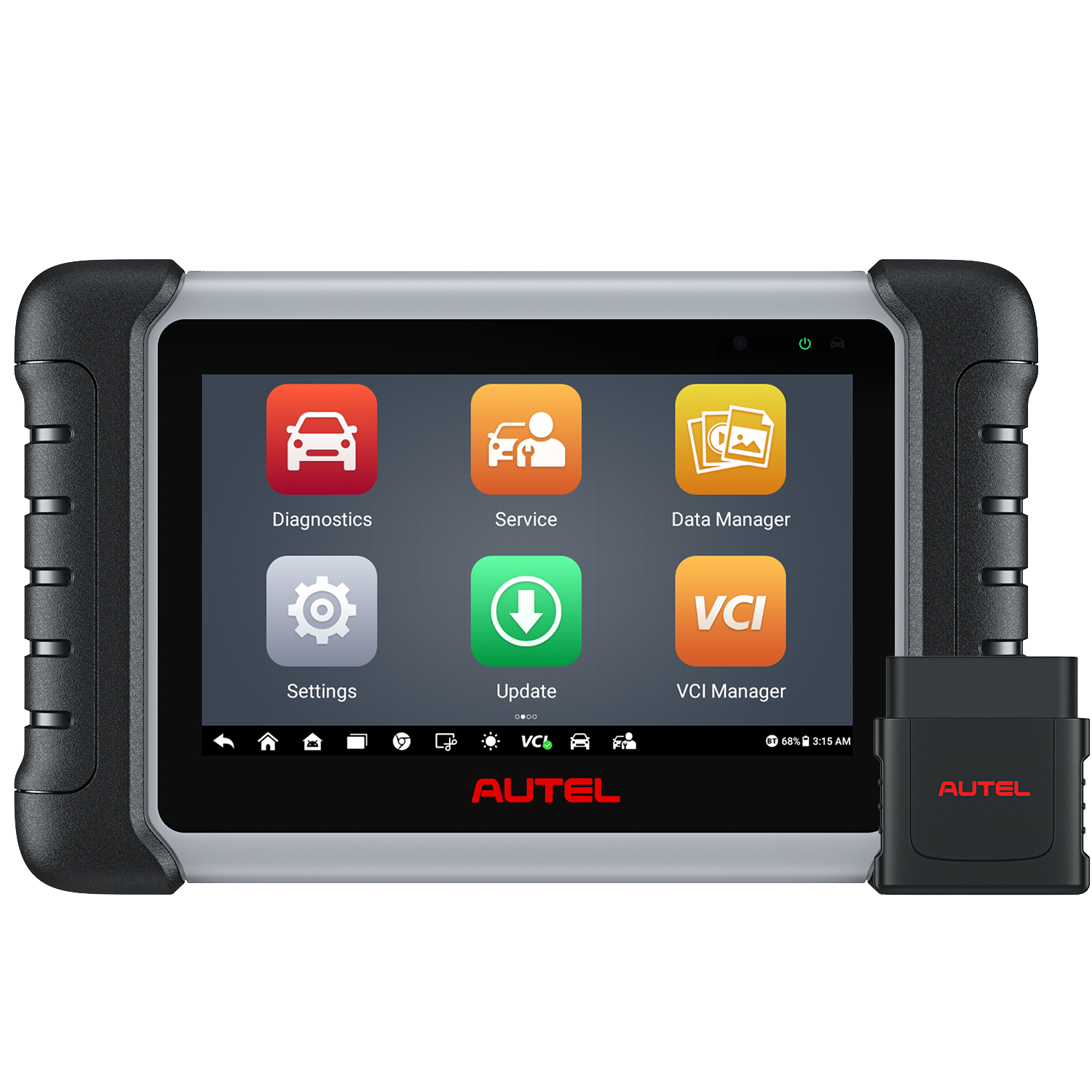

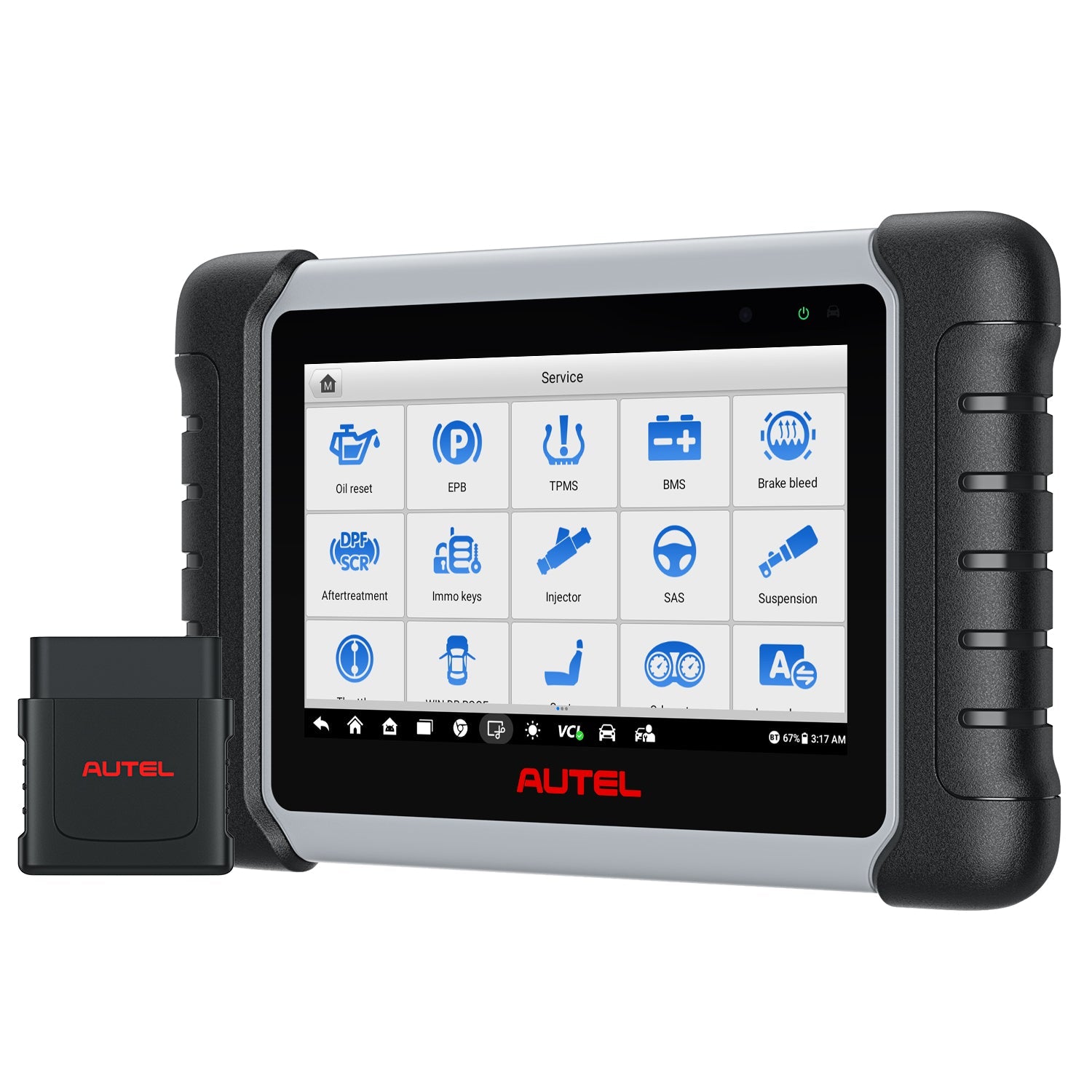

The MaxiPRO MP808BT Pro is a 7-inch Android tablet that connects through the wireless VCI mini to diagnose all available systems, run bi-directional tests, perform ECU coding and handle 37+ service functions.

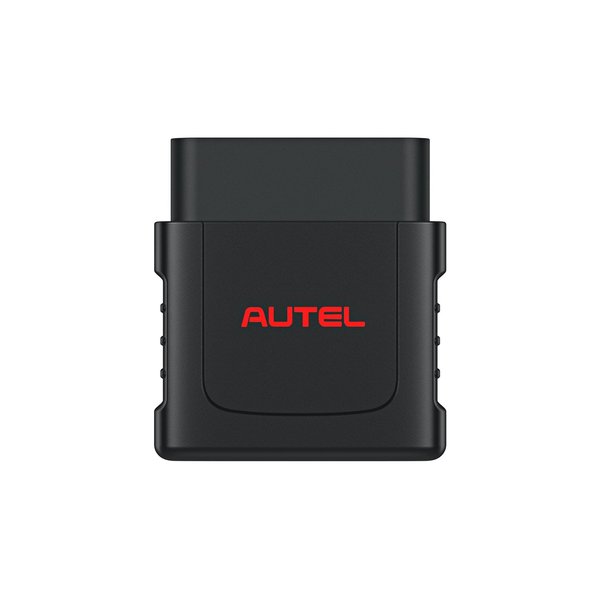

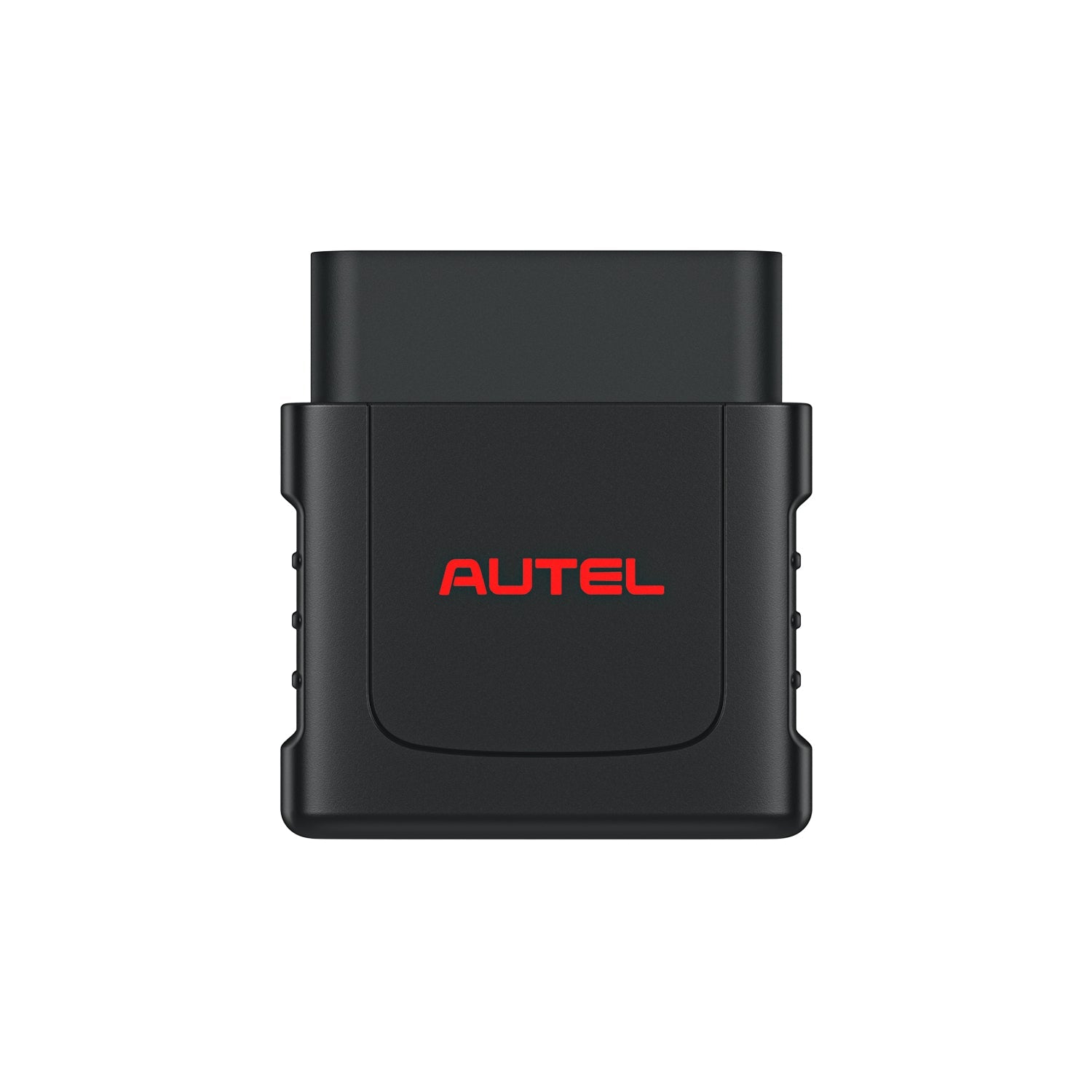

- Wireless VCI Mini
- Bi-Directional Control
- ECU Coding
- 37+ Services
- FCA AutoAuth
Key Features
-
OE-Level All-System Diagnostics
Read and erase codes on all available systems, view freeze frame data, graph live data and access ECU information.
-
Bi-Directional Control
Send commands to activate actuators such as ABS, windows, doors, solenoids, relays, switches, valves and headlamps, and watch how they operate.
-
37+ Service Functions
Including oil reset, EPB, SAS, DPF, BMS, ABS bleed and injector coding.
-
Advanced ECU Coding
Hidden feature refresh on BMW, Audi, VW and Skoda, VAG guided functions on Audi, VW and Skoda, and ECU coding for BMW, Porsche, VW and other brands.
-
FCA AutoAuth Access
OBDII diagnostics, active tests and calibrations on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat and other FCA vehicles.
-
Reports and Shop Records
AutoVIN identification, cloud-based reports for viewing and sharing, and a Shop Management app for customer and vehicle history.
-

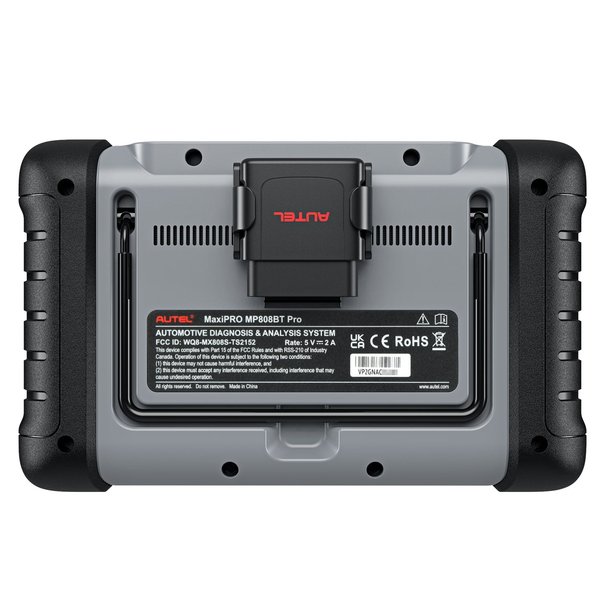

Shop-Ready Housing
Rubberized outer protection and a rugged internal housing.
More Specifications
| Sensors | Ambient light sensor for automatic brightness |
|---|---|
| Audio output | Buzzer |
| Battery type | Lithium-polymer |
| Charging | 5 VDC power supply, 5 V/1.5 A charging input |
| Power consumption | 500 mA @3.7 V (LCD on at default brightness, Wi-Fi on) |
| Operating temperature | 0 to 55°C (32 to 131°F) |
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Operating humidity | 5% to 95% non-condensing |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, SAE J2610, GM UART, UART Echo Byte, ISO11898 (high-, middle-, low-speed and single-wire CAN, fault-tolerant CAN), Honda Diag-H, TP2.0, TP1.6 |

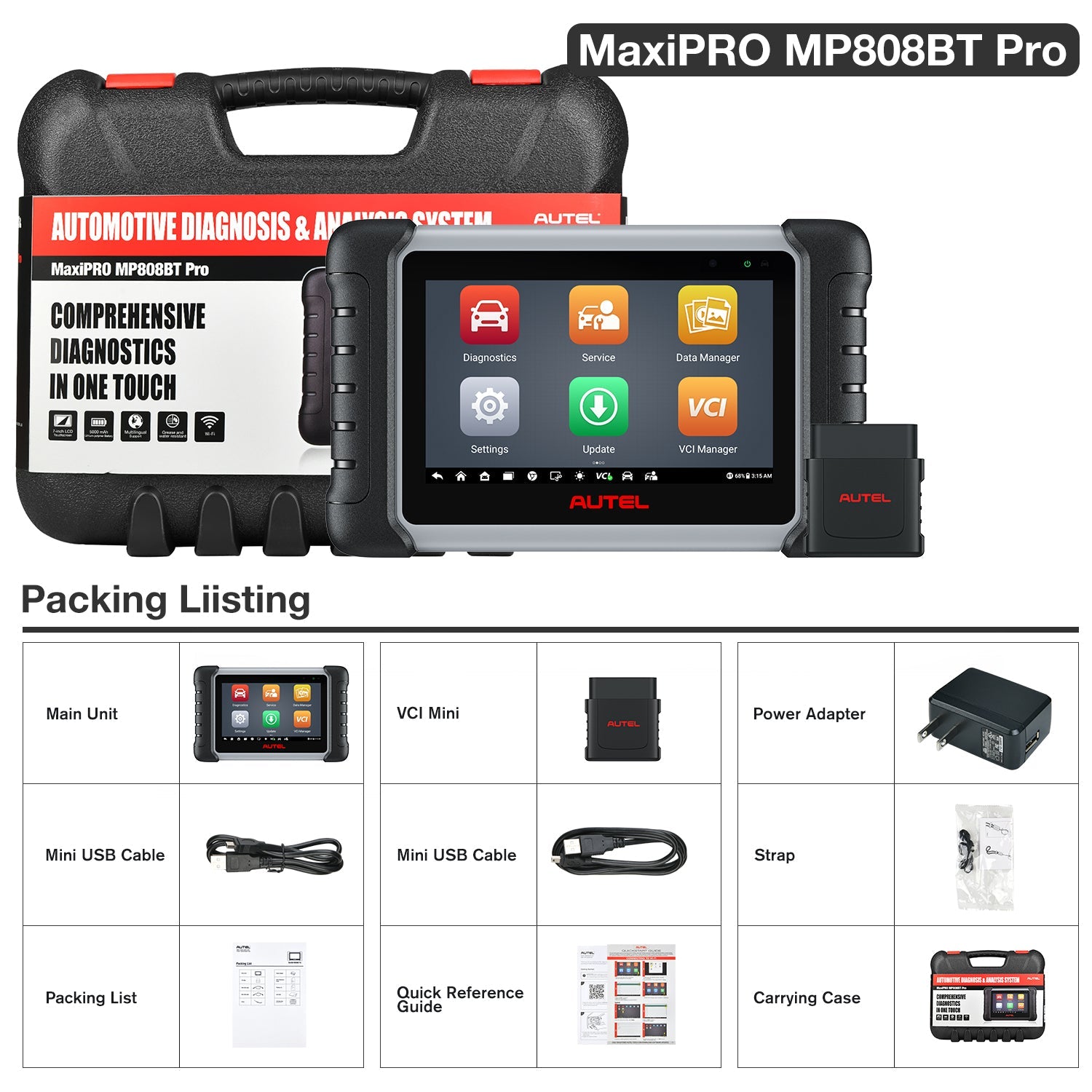

What’s in the Box
- 1×MaxiPRO MP808BT Pro main unit
- 1×VCI mini
- 1×Power adapter
- 1×Mini USB cable
- 1×Main cable
- 1×Carrying case
- 1×Strap
- 1×Quick reference guide
- 1×Packing list
