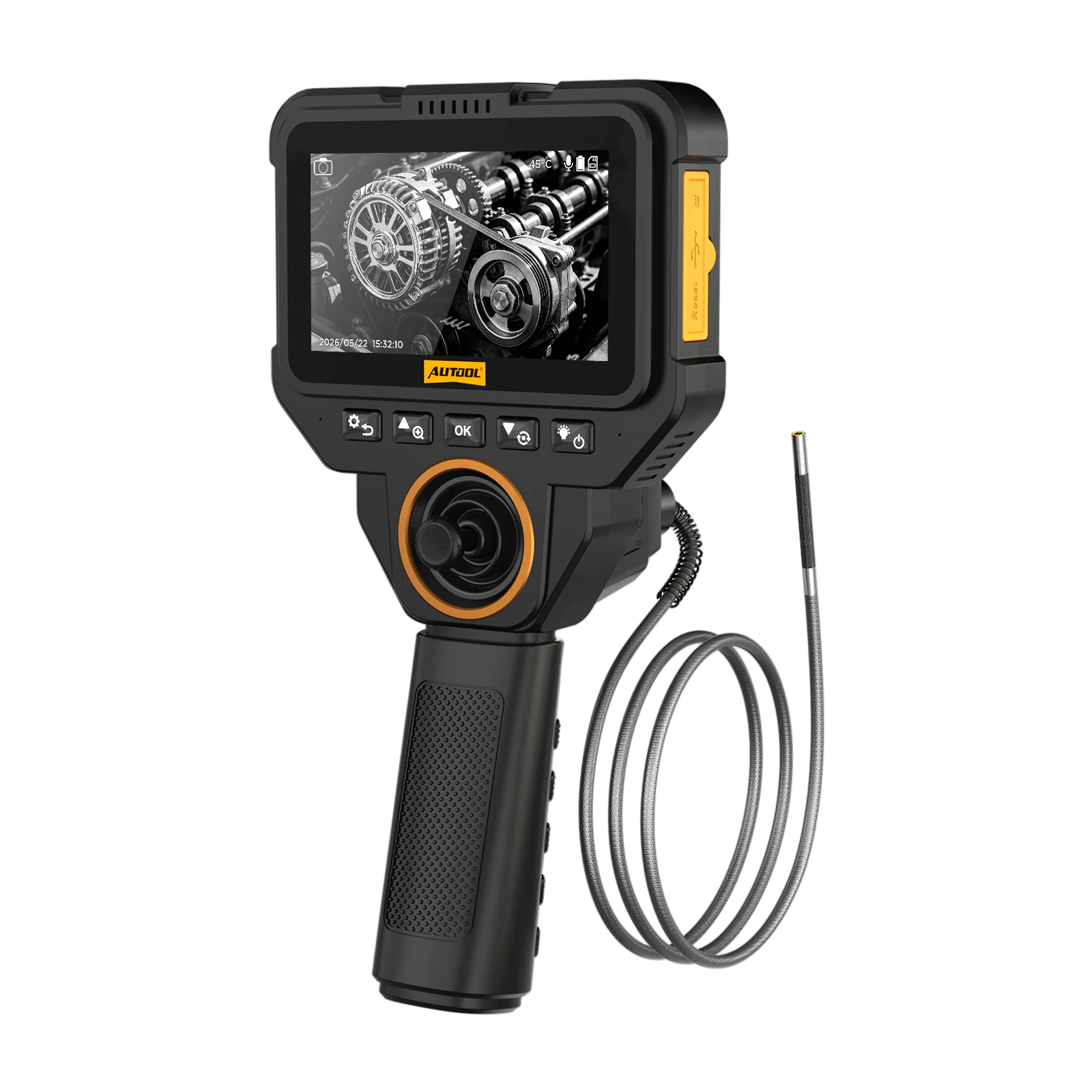

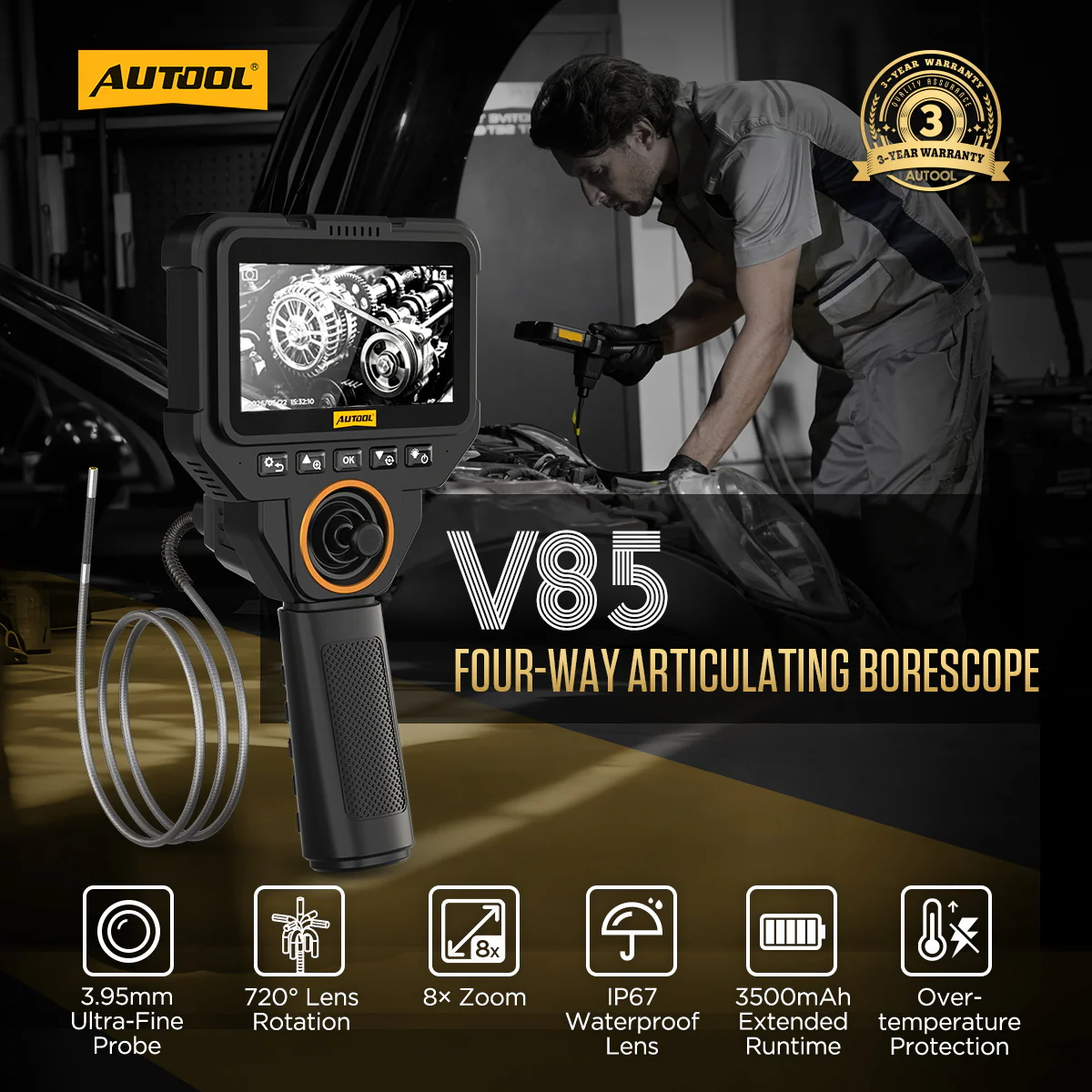

Steer a 3.95 mm Probe Into Narrow Engine and Pipe Passages

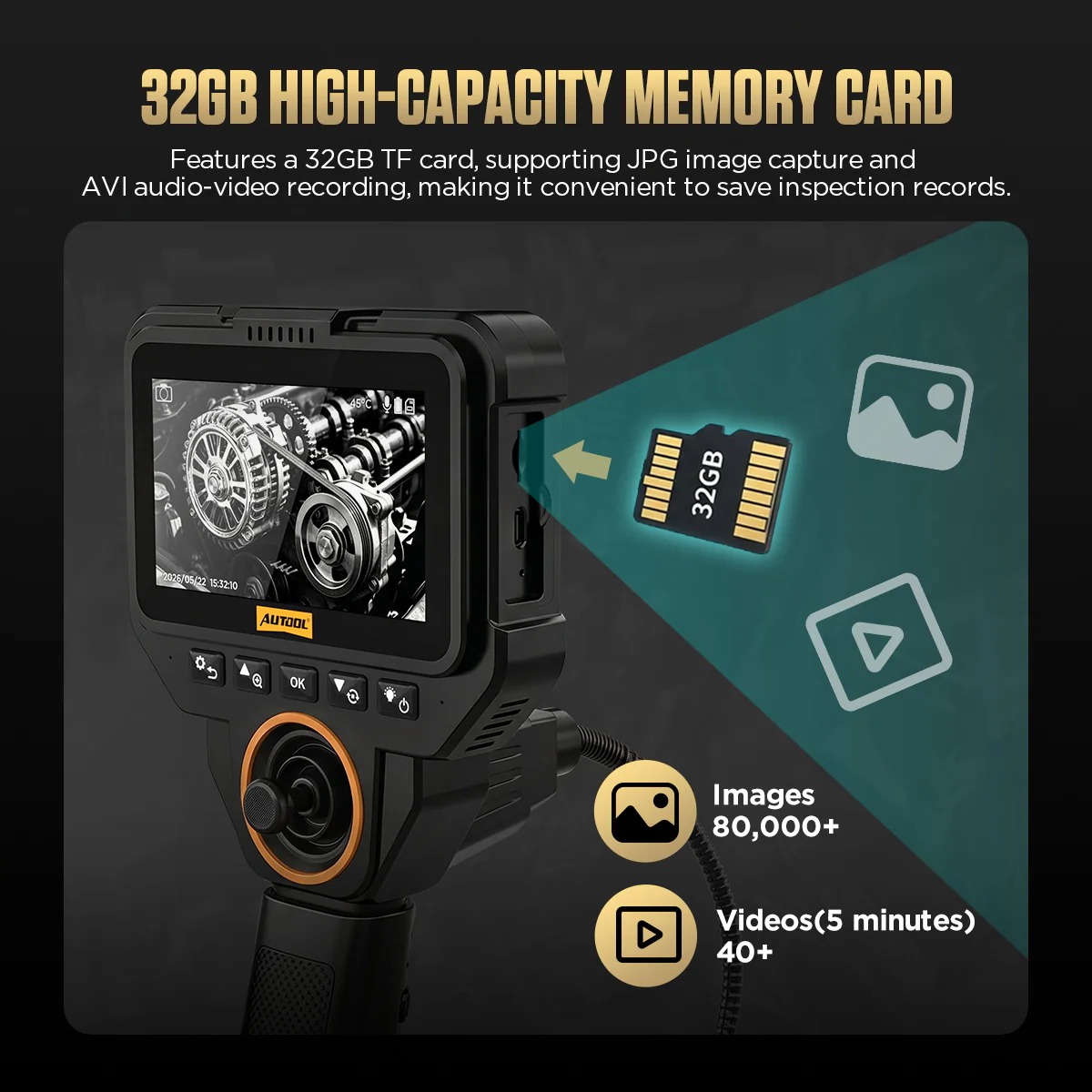

The V85 guides a four-way articulating probe through tight engine, pipe and equipment paths and shows the live 2 MP image on its own 4.3-inch screen, with no phone or app. Save photos and video to a TF card for later review. Check the full tip and turning space against the access path before inspection.

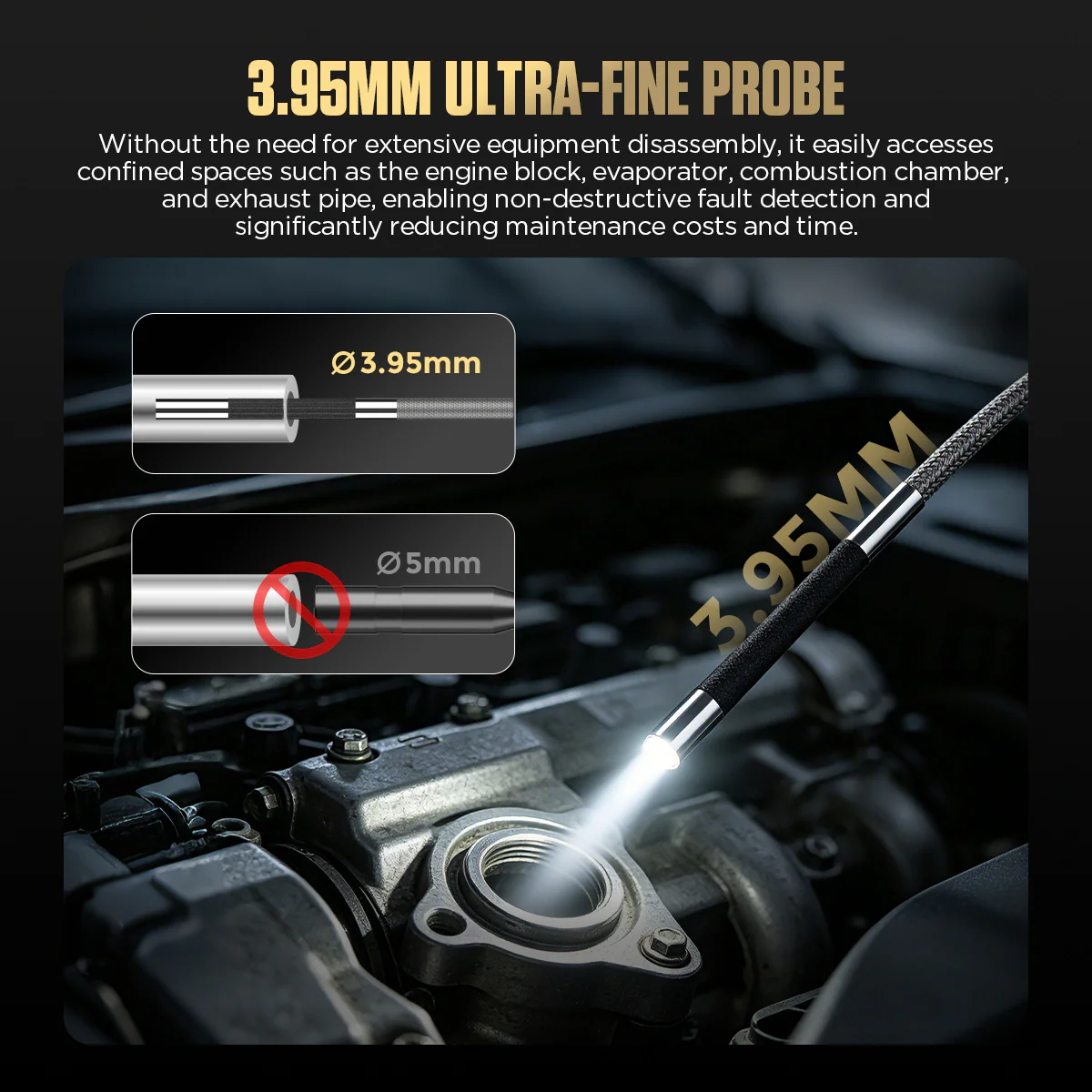

- 3.95 mm Four-Way Probe
- 2 MP Imaging
- 4.3-Inch Standalone Screen
- 15–100 mm Viewing Range
- Photo and Video Recording
Key Features
-

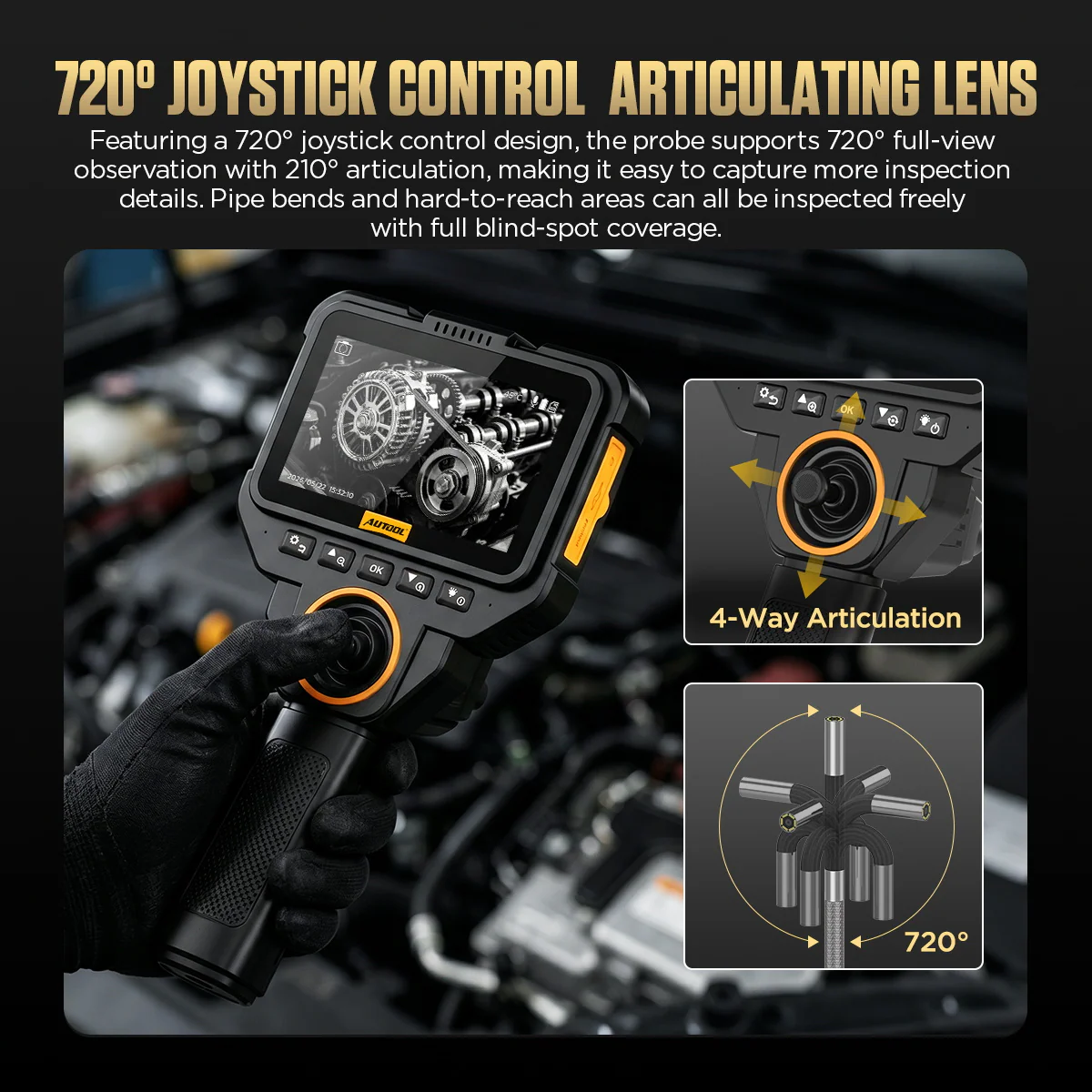

Four-Way Articulation
Steer the tip in four directions with the handle control. The 720° product designation does not mean continuous rotation or coverage of every surface.
-

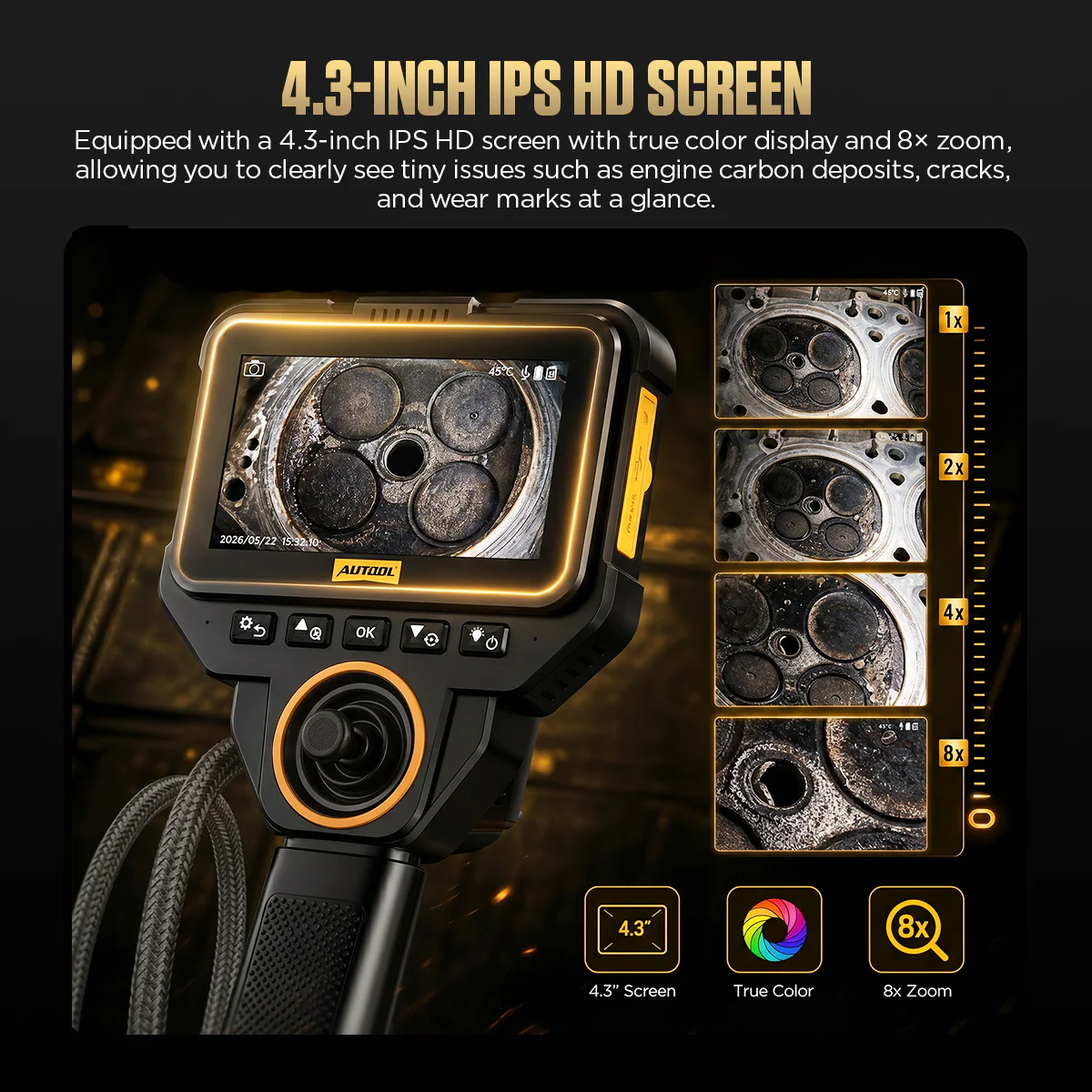

Standalone Display
Live viewing, playback and device controls run on the integrated color screen without a phone app or separate display.
-
Adjustable Probe Lighting
Three brightness levels plus off help reduce dark areas and reflections in the cavity.
-
Capture, Playback and Rotation
Record photos or video with the handle capture button, then review the files with playback and image rotation.
-
Digital Zoom for Review
Enlarges the displayed image to check a detail; it does not add optical information the camera did not capture.
-
Magnetic Positioning
A magnetic base attaches to a suitable ferrous surface to help hold the unit while you guide the probe.

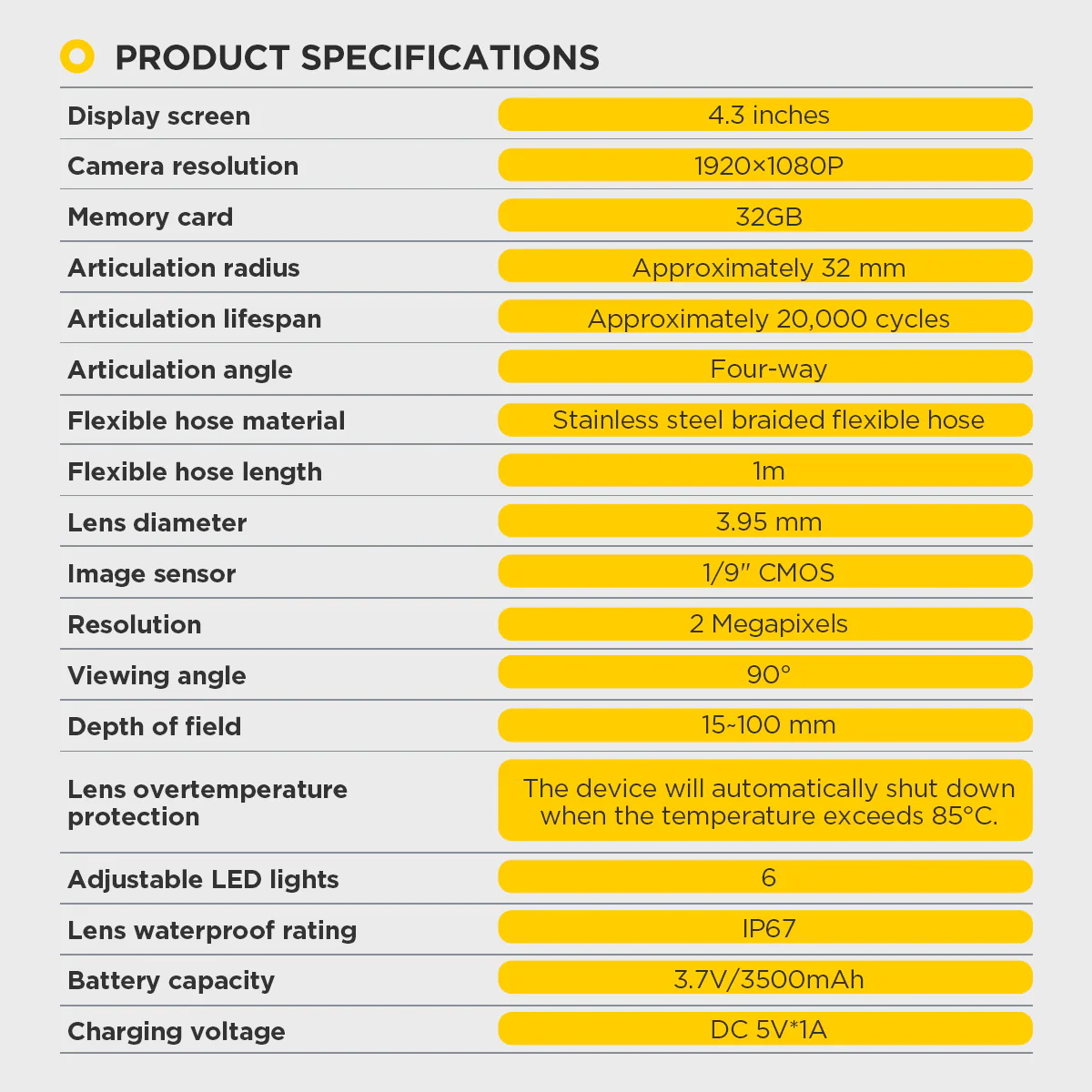

More Specifications
| Articulation life | Approximately 20,000 cycles |
|---|---|
| Fast charging | Not supported |

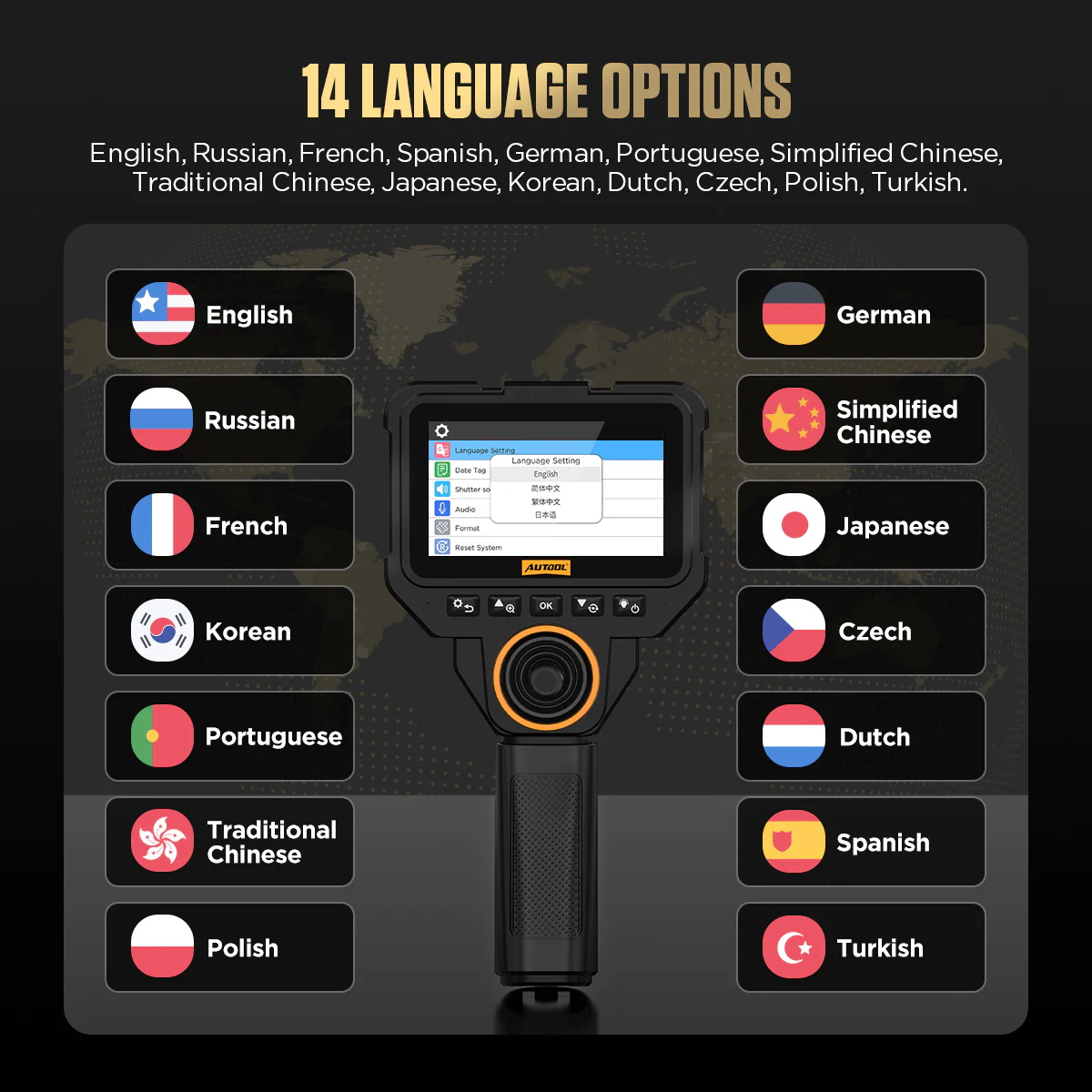

| Menu languages | English, Chinese (simplified and traditional), French, Spanish, German, Czech, Portuguese, Japanese, Korean, Russian, Dutch, Turkish, Polish |
Four-Way Model Comparison
| V85 | V82 | V83 | |
|---|---|---|---|
| Lens diameter | 3.95 mm | 6.25 mm | 5 mm |
| Camera resolution | 1920×1080 | 1920×1080 | 1280×720 |
| Adjustable LED lights | 6 | 6 | 8 |
| Steering | Four-way | Four-way | Four-way |

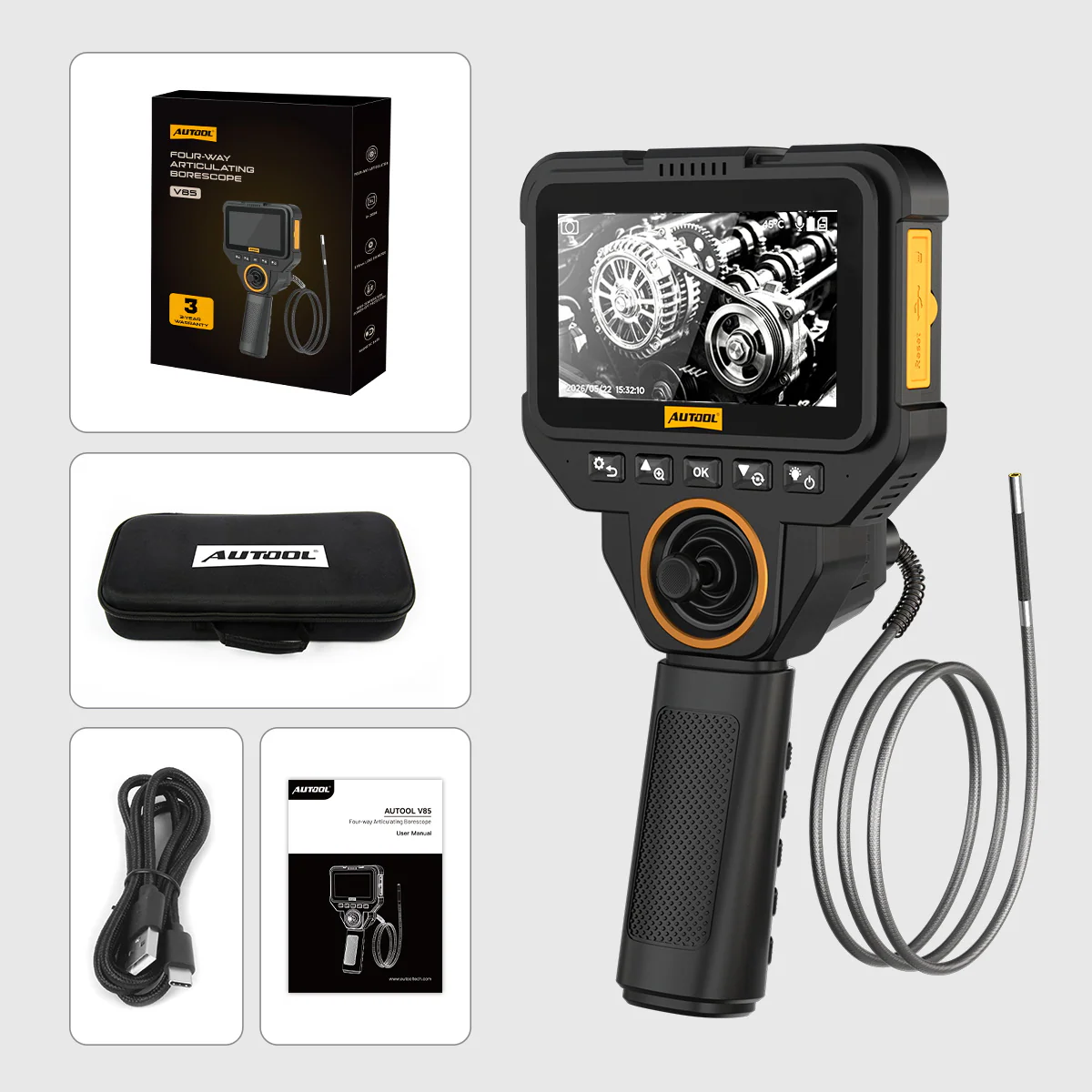

What’s in the Box

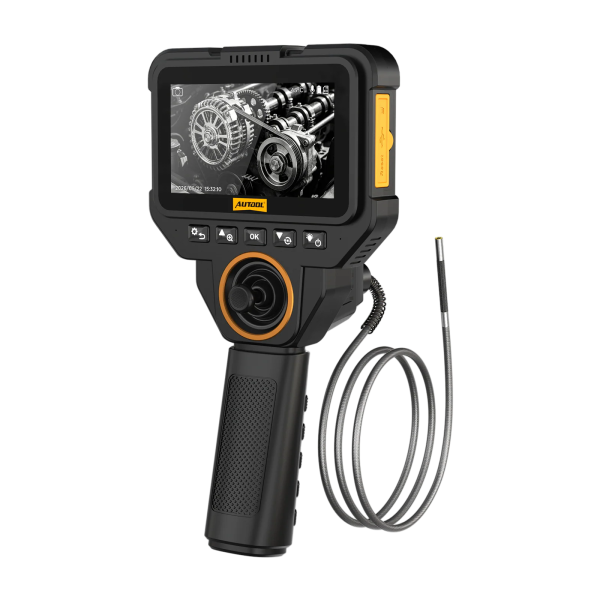

- V85 borescope with 3.95 mm articulating probe and integrated screen
- Carrying case
- USB charging cable
- User manual
Steering, lighting, recording, heat protection and safe withdrawal: V85 user manual (PDF).
How to Use
- Define the targetIdentify the entry point and surface you need to see, and confirm the probe and viewing range suit that path.
- Check the equipmentInspect the tip and cable, charge the unit, and check steering, lighting and saving.
- Prepare the vehicleIsolate moving and live parts and let the inspection area cool as the service procedure requires.
- Guide and illuminateInsert gently while watching the live image, steer and adjust lighting; never force a bend.
- Record findingsCapture the target from useful angles and note the component, entry point and viewing direction.
- Withdraw and storeStraighten the tip, withdraw gently, check the probe, then clean, dry and store it.
Good to Know
Caution
- The IP67 rating applies to the probe only. Keep the screen and handle dry, and do not infer oil, fuel or solvent compatibility from the rating.
- If the probe resists withdrawal, stop pulling, return the tip with the steering control and follow the manual. Do not start the engine with the probe inserted.
- The heat shutdown is a protective threshold, not a working-temperature rating; let components cool before inserting the probe.
- Avoid coiled operation and forced bending of the braided hose.
Care
- A borescope image documents what is visible; compression, leak-down or other tests may still be needed when the picture is inconclusive.
