Four-Post Alignment Runways With an Auxiliary Lift Trolley

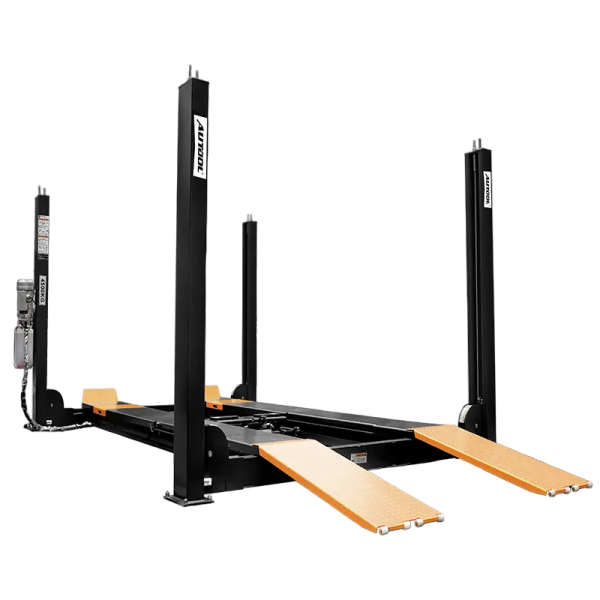

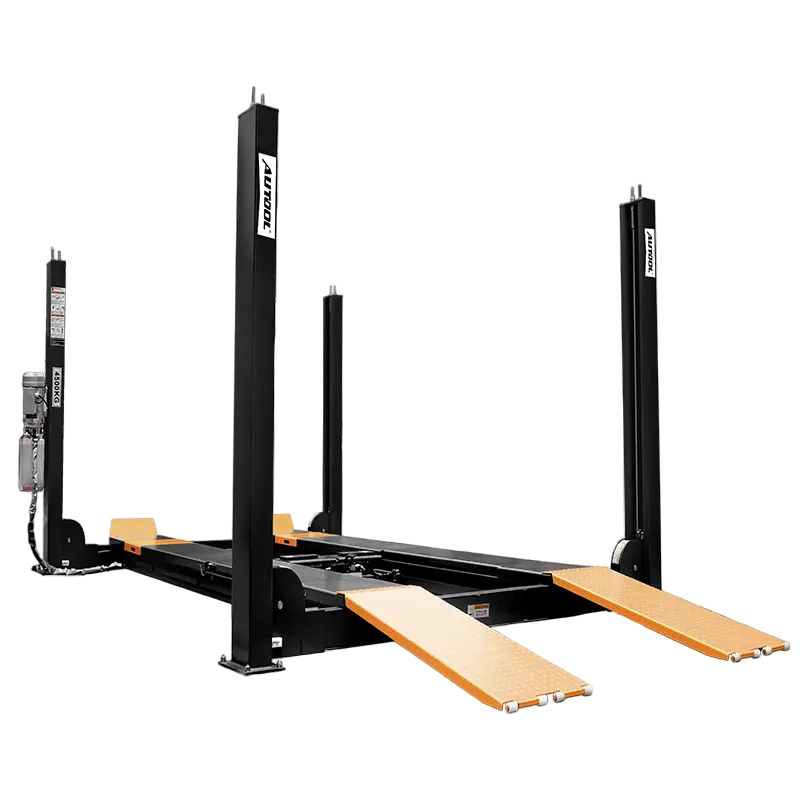

The ATL-4.5F is a 4500 kg four-post lift for wheel alignment and repair bays, driven by a wire-rope electro-hydraulic system with wire-rope breakage protection. An EU-standard auxiliary lifting trolley comes as standard, and the lift is ordered with manual or automatic unlocking.
- 4500 kg Capacity
- 1700 mm Lift Height
- Auxiliary Trolley Included
- Manual / Auto Unlock
Key Features
-
Manual or Automatic Unlocking
The automatic version unlocks during descent, reducing manual steps when lowering.
-
Wire-Rope Breakage Protection
An integrated safety device helps reduce accident risk if a wire rope fails.
-
Auxiliary Lifting Trolley
The trolley is fixed under load and moves easily when unloaded.
-
Solid Steel X-Frame
The X-shaped frame adds stability and load support during lifting and alignment work.
-
Copper-Core Motor and EU-Standard Control Box
Full copper-core motor in an aluminum alloy housing, with a fully automatic EU-standard control box.
-
Adjustable Effective Length
The standard 4.5 m platform’s effective load length can be adjusted through platform width for different vehicles.
How to Use
- Qualify the siteConfirm the installation drawing, concrete, anchors, ceiling and door clearance, power, air and approach space.
- Inspect before useCheck anchors, posts, platforms, hoses, cables, cylinders, locks and synchronization parts.
- Position the vehicleCenter it on the runways, matching wheelbase and load distribution, with doors and bodywork clear of posts.
- Use the trolley correctlyPlace trolley pads only at the vehicle manufacturer’s approved pickup points.
- Raise and checkLift just enough to take the load, verify contact and balance, then continue while watching both sides.
- Set the locksLower onto the mechanical locks and confirm both sides are engaged before anyone works underneath.
- Clear and lowerRemove tools and people, release the locks as designed and lower under control.
Good to Know
Caution
- Install only on a level concrete base more than 500 mm thick, following the model installation drawing.
- Do not exceed the rated load; capacity alone does not prove fit for a given vehicle or load distribution.
- Stop use if hoses, cylinders, cables, seals or anchors show damage, leakage or abnormal movement.
- Keep people, tools and hoses clear of platforms, locks and cables while the lift moves.
Care
- Confirm the unlocking version and any optional equipment, such as a wireless remote, for your order.
