Battery Pack Analysis and ECU Programming for EV, Hybrid, Gas and Diesel Vehicles
The MaxiSys Ultra EV pairs its tablet with the MaxiFlash VCMI and a dedicated EVDiag Box to analyze high-voltage battery packs via OBD or directly with the included cables and jumpers, alongside full diagnostics, ECU programming and coding.
- EVDiag Box Included
- Offline Pack Diagnostics
- SOC / SOH Analysis
- Topologiekaart 2.0
- 40+ Service Functions
Key Features
-
Offline Battery Pack Diagnostics
With the EVDiag Box, check pack data including SOC/SOH, voltage, current, pack voltage delta, temperature and pack status.
-
Guided High-Voltage Work
Read and erase codes and view live data on the high-voltage system, with diagrams of the system block, components and sockets, step-by-step disassembly instructions and on-screen connection guidance.
-
Topologiekaart 2.0

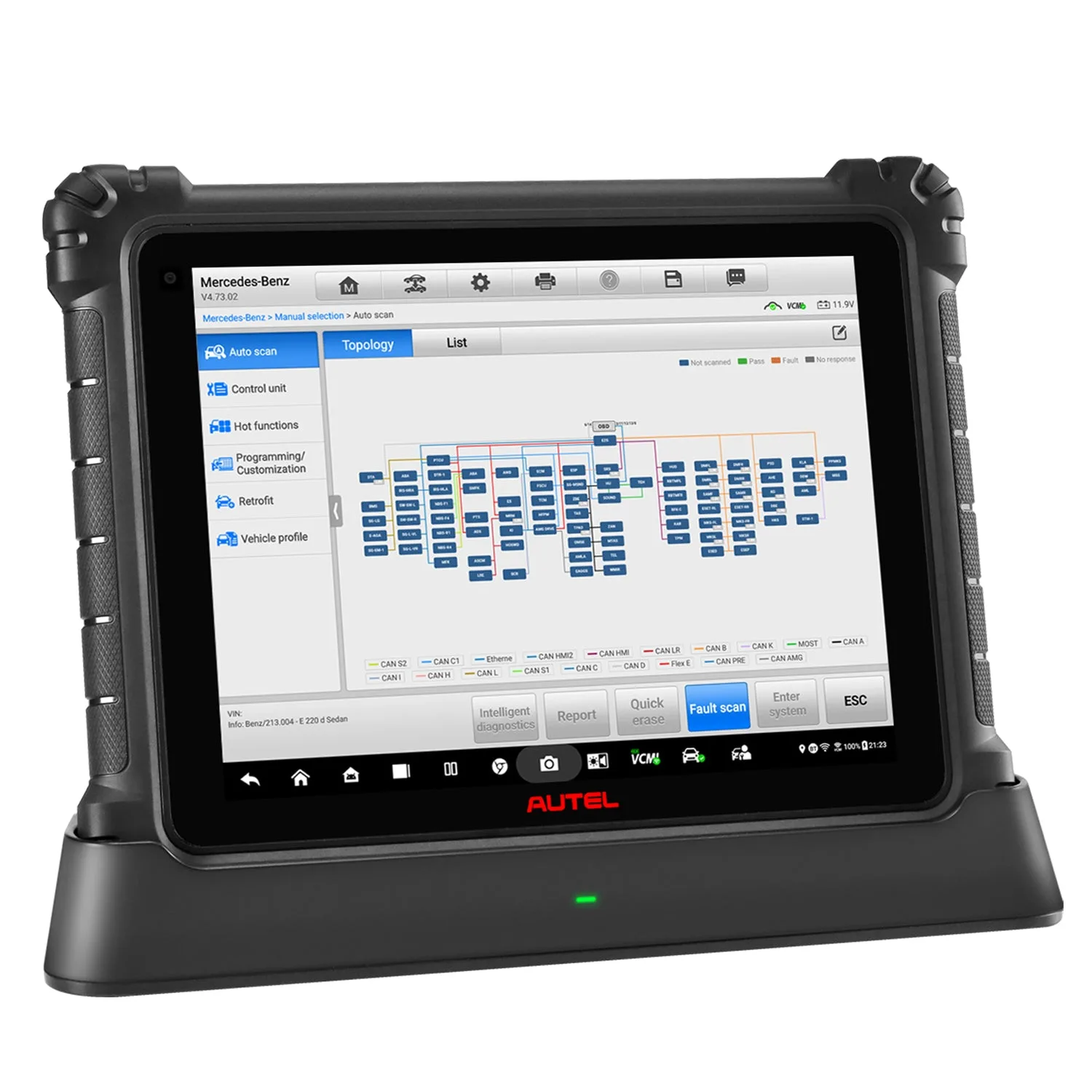

Shows the relationships between vehicle systems in different colors.
-
ECU Programming and Coding
Program, code and match blank ECUs, reprogram adaptive data after repair or replacement, and update ECU software; the VCMI includes J2534 pass-thru programming.
-
Service Functions and Active Tests
Oil reset, EPB, BMS, brake bleed, injector, SAS, suspension, throttle, headlamp, tire size change, ABS and SRS, and more, plus bi-directional control of actuators.
-
Werkplaatsregistraties
The cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes; Data Logging sessions send issues straight to Autel Support.
More Specifications
| Connectivity | Dual Wi-Fi (802.11 a/b/g/n/ac 2×2 MIMO), Bluetooth 2.1 + EDR, GPS, USB 2.0 (two USB host Type A, one mini USB device), HDMI 2.0, SD card up to 256GB |
|---|---|
| Cameras | Rear 16 MP with autofocus and flashlight; front 5 MP |
| Sensors | Gravity accelerometer, ambient light sensor |
| Audio | Microphone, dual speakers, 3-band 3.5 mm headset jack |
| Charging | 12 V AC/DC power supply (12V/3A adapter), between 0°C and 45°C |
| Operating temperature | 0 to 50°C (32 to 122°F) |
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire CAN (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
What’s in the Box

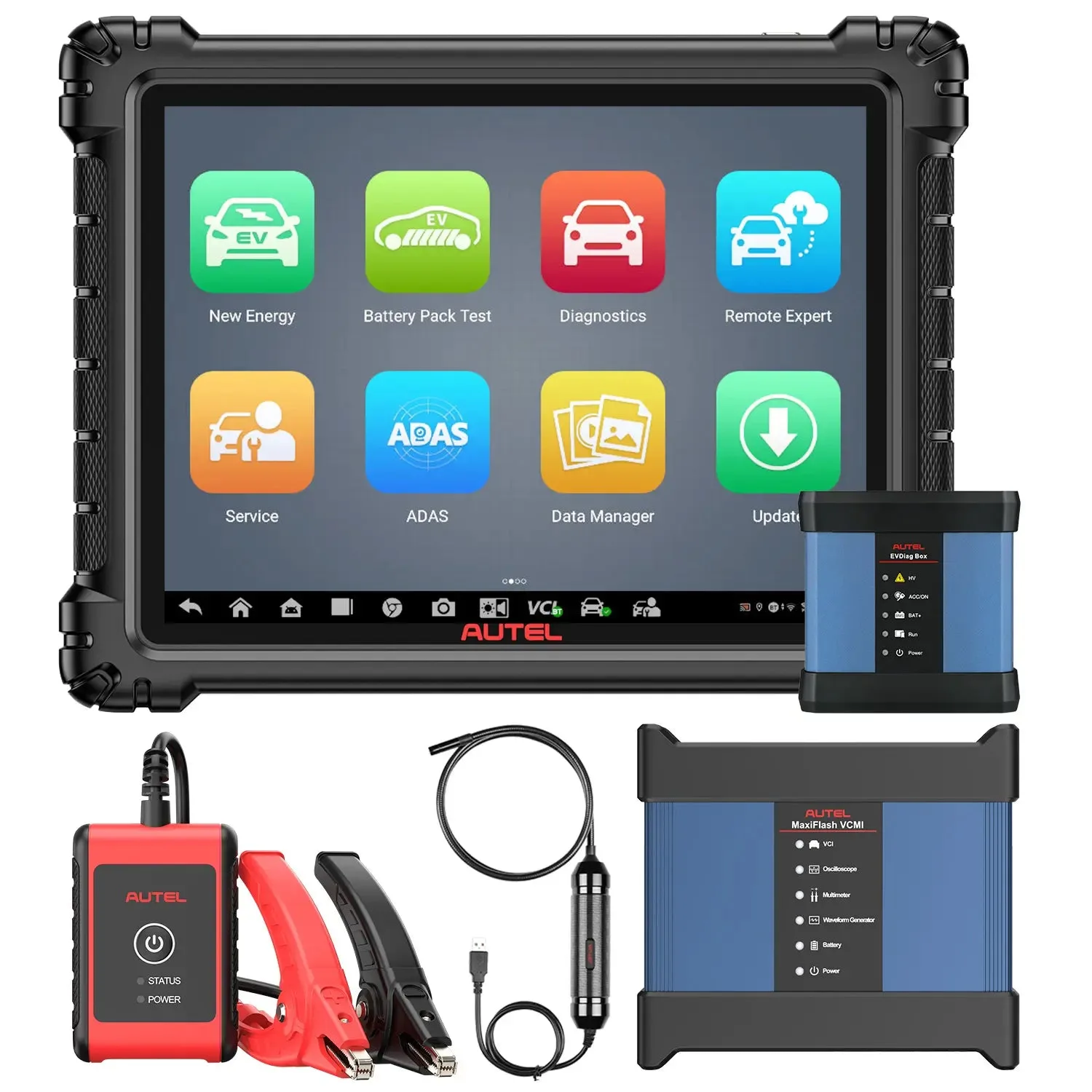

- MaxiSys Ultra EV tablet and docking station
- MaxiFlash VCMI
- Main cable V2.0, USB 2.0 cable V2, AC/DC adapter (12 V) and auxiliary power outlet adapter
- Measurement accessories: scope test leads, multimeter test leads and probes, secondary ignition pickups, attenuators, breakout leads, back-pinning probes with screws and replacement needles, crocodile and dolphin clips, clamp cable and light fuses
- USB to Ethernet adapter
- Tool box, soft cloth, quick reference guide, packing list and carrying case
- EV Diagnostics Upgrade Kit: EVDiag Box, EVDiag Box main cable, breakout leads and extension cords, dual banana plugs, vehicle-specific adapter cables, DB25 snake cable, packing list and carrying case
