ECU Programming, Topology Mapping and Built-In Scope Testing on a 9.7-Inch Tablet

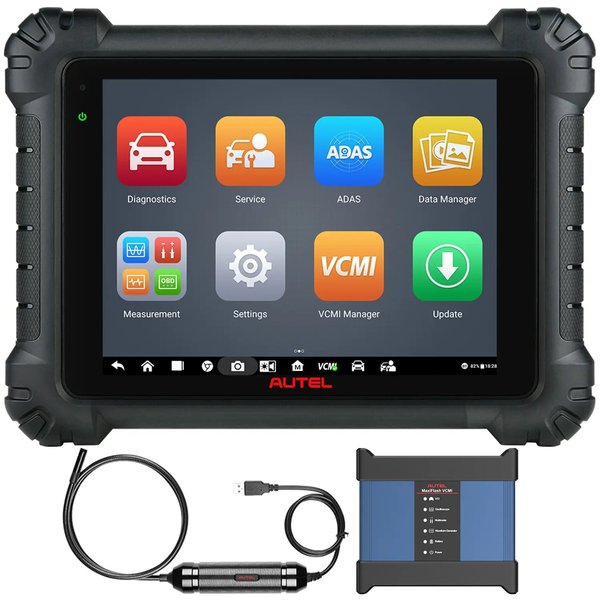

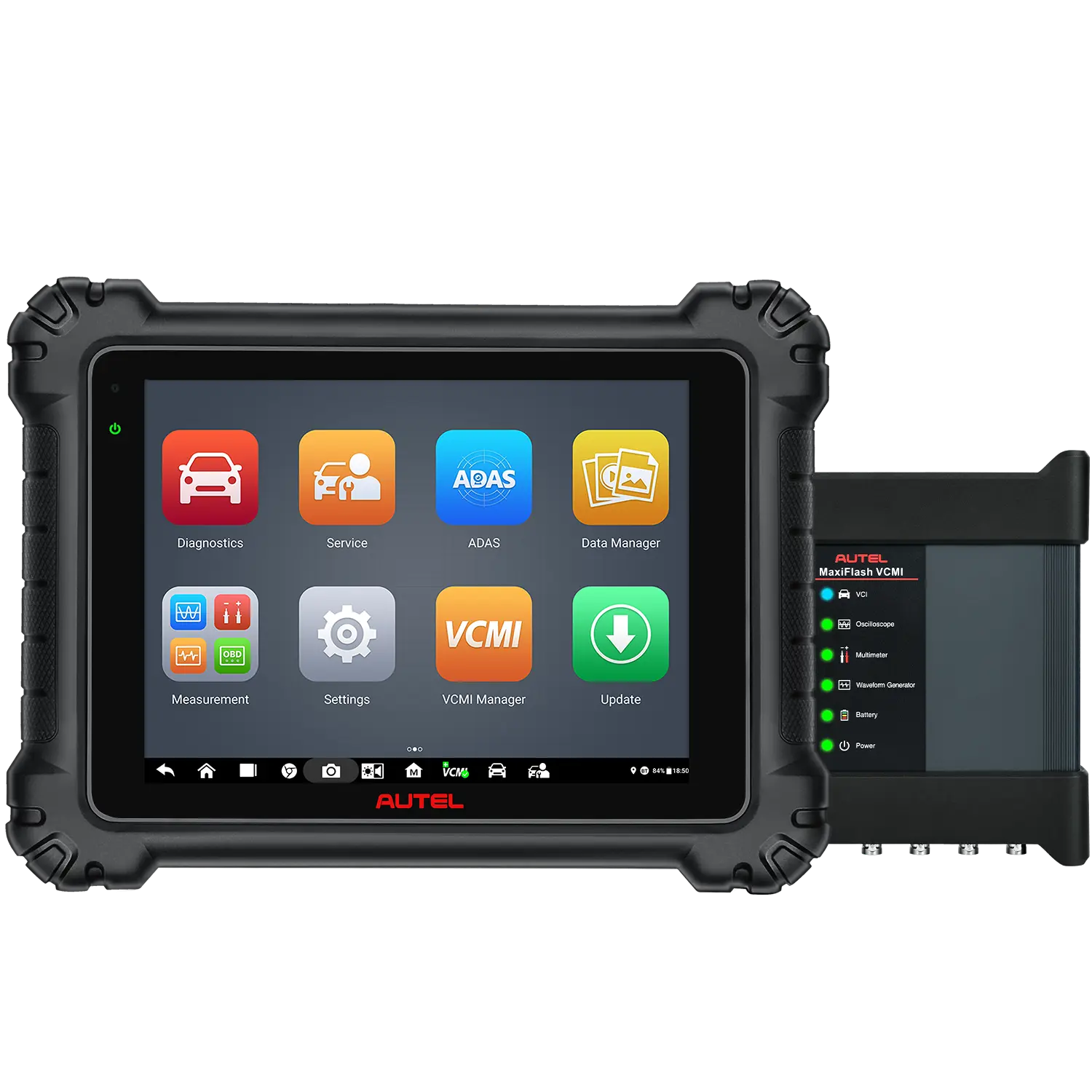

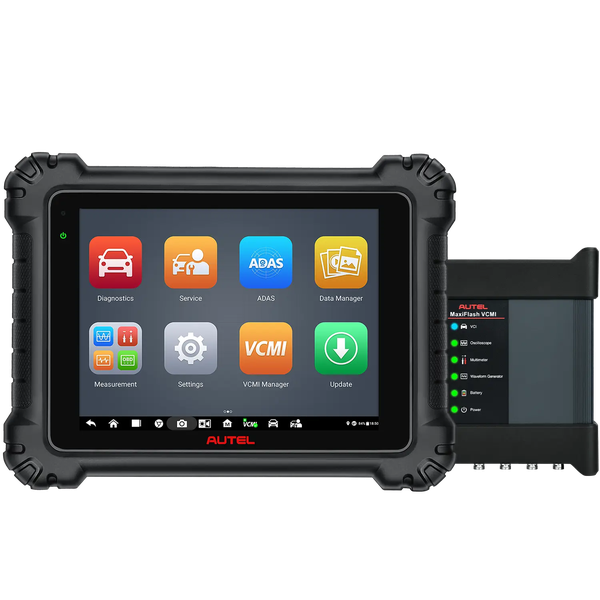

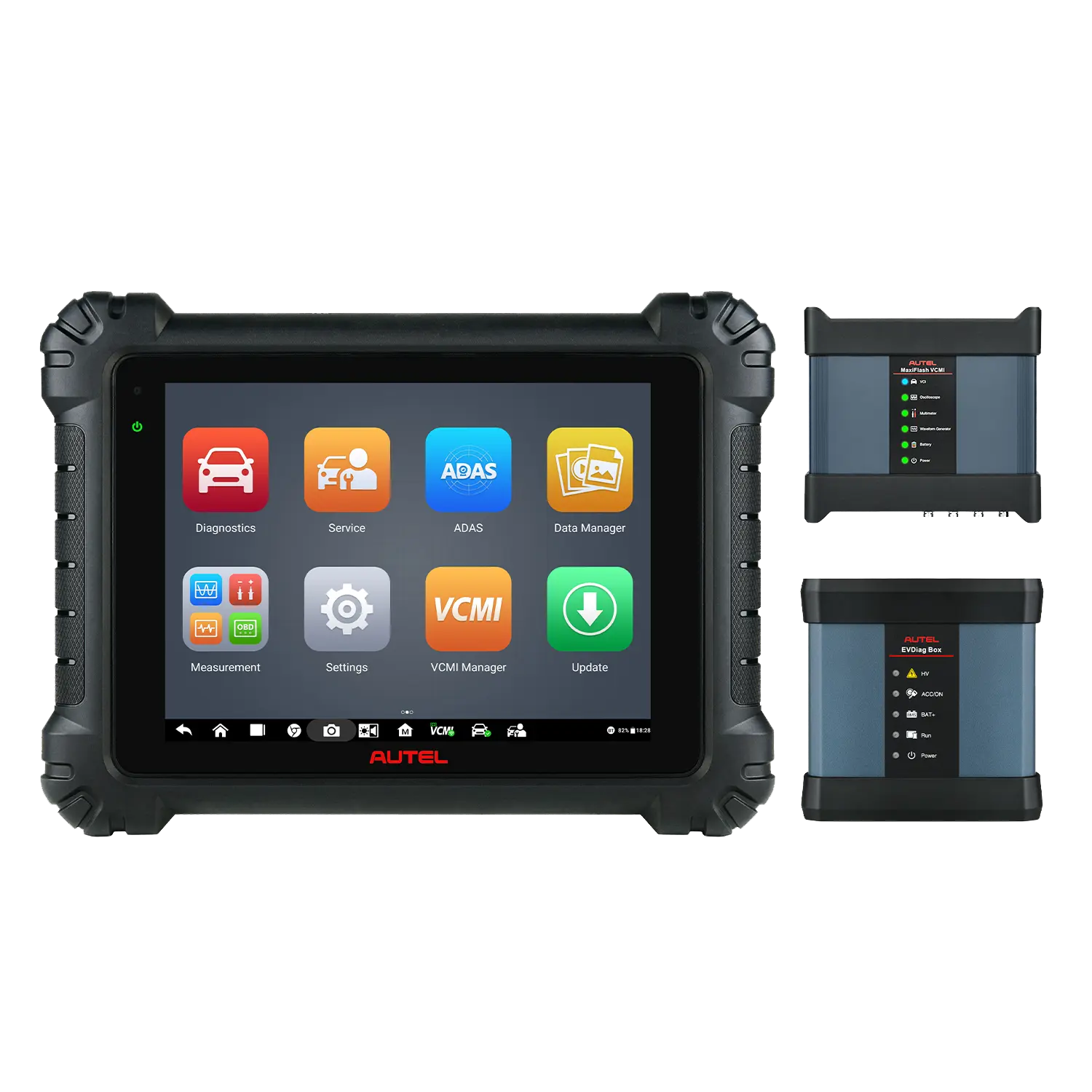

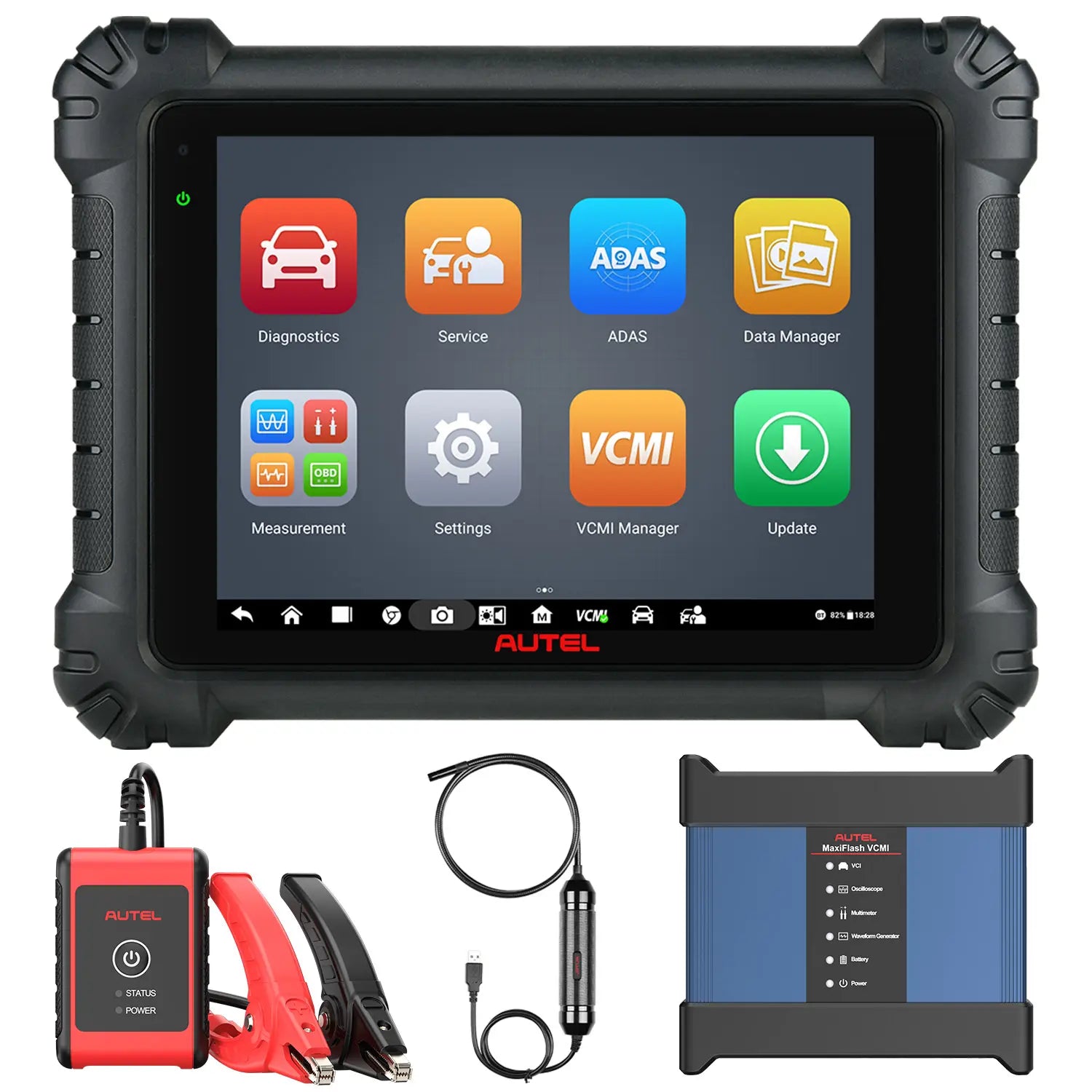

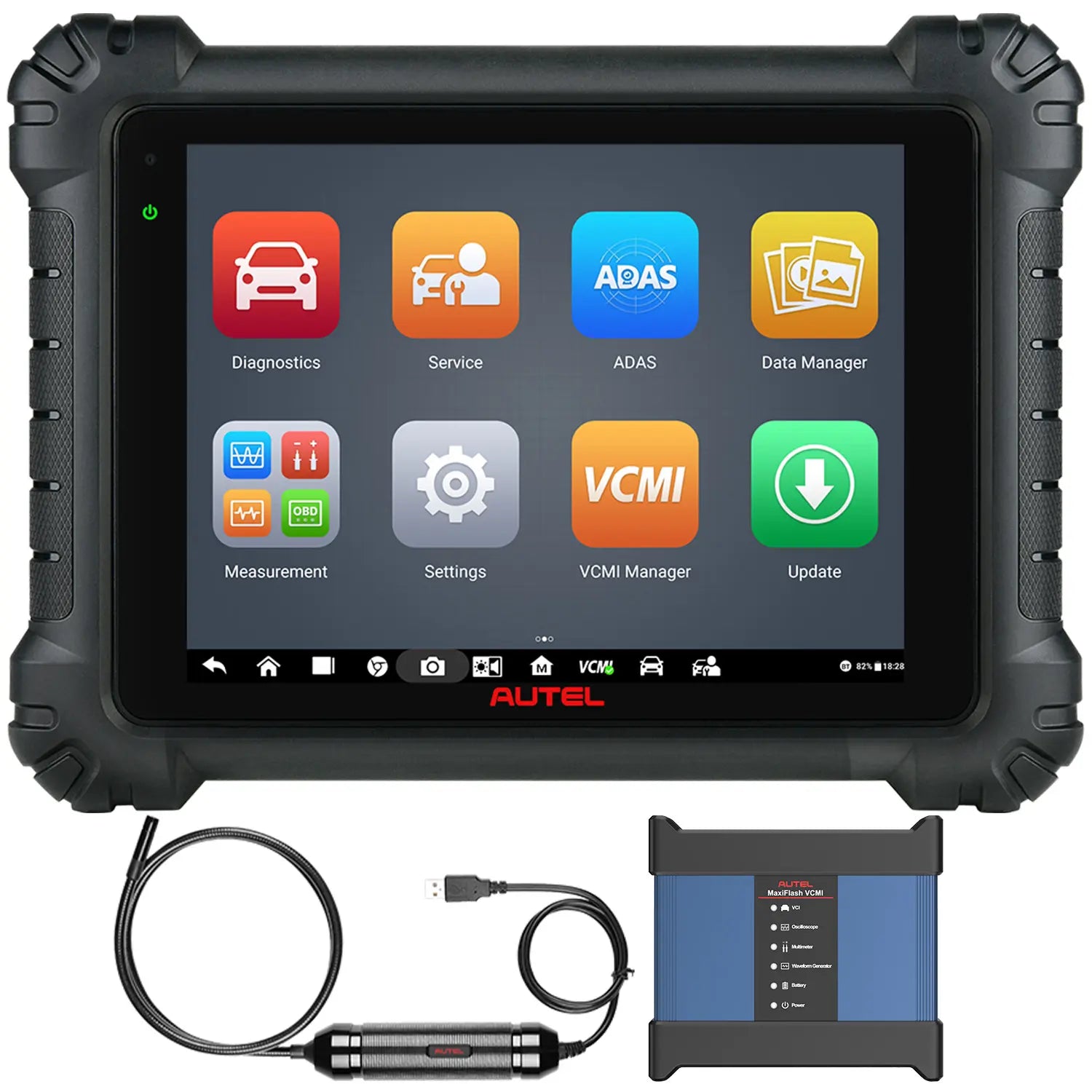

The MaxiSys MS919 pairs a 9.7-inch diagnostic tablet with the 5-in-1 MaxiFlash VCMI, which adds oscilloscope, waveform generator, multimeter and CAN BUS testing to OE-level diagnostics, ECU coding and programming.
- 5-in-1 VCMI
- ECU Programming & Coding
- Topology Mapping 2.0
- J2534 / D-PDU / RP1210
- FCA AutoAuth
Key Features
-

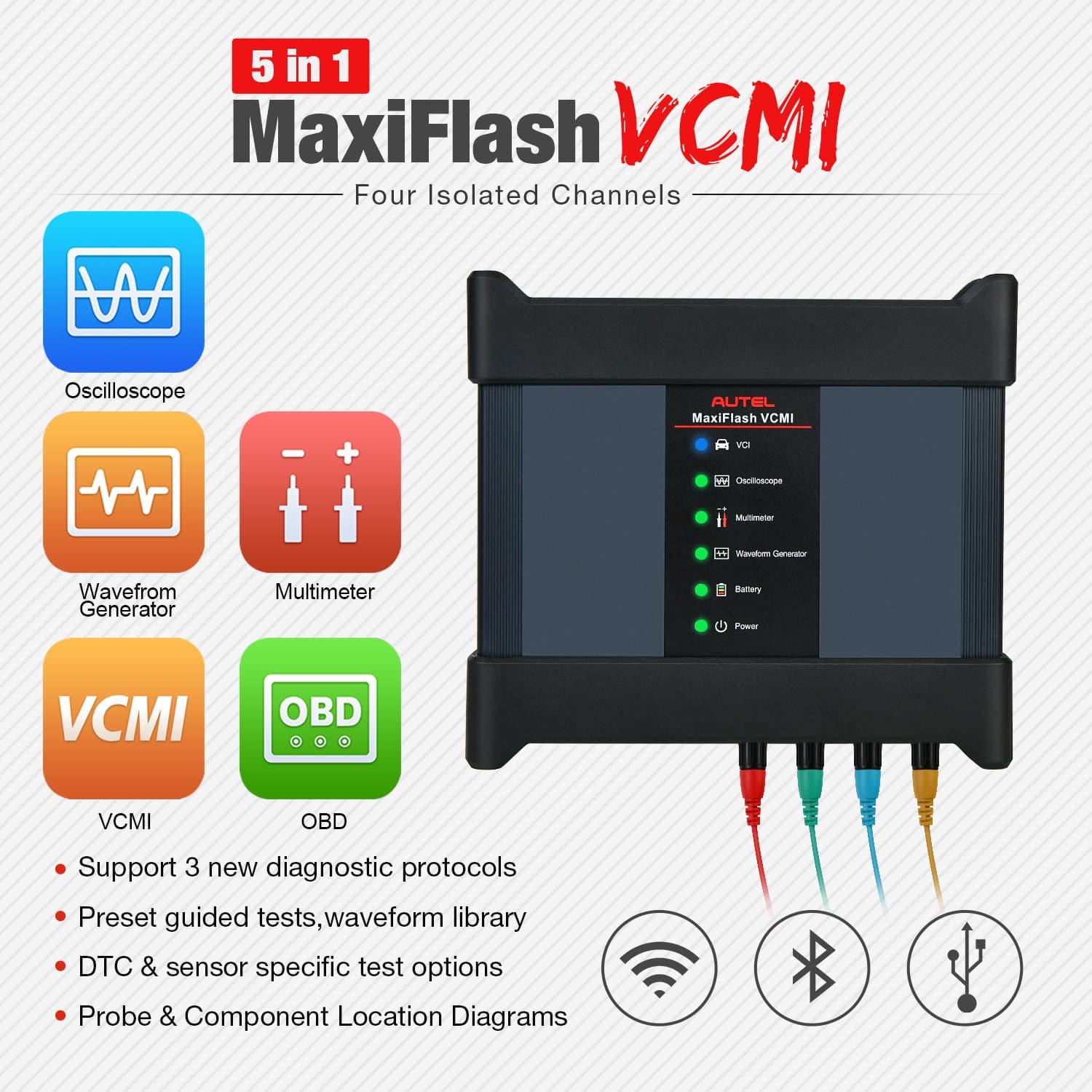

5-in-1 VCMI
A compact interface with oscilloscope, waveform generator, multimeter and CAN BUS tester hardware, the same as on the Autel Ultra. It handles several transmission protocols at once, including KWP, CAN, CAN-FD and DoIP.
-
ECU Programming and Coding
Change parameters or parts, replace existing software or firmware in ECUs, and reprogram component data after repairs and replacements.
-

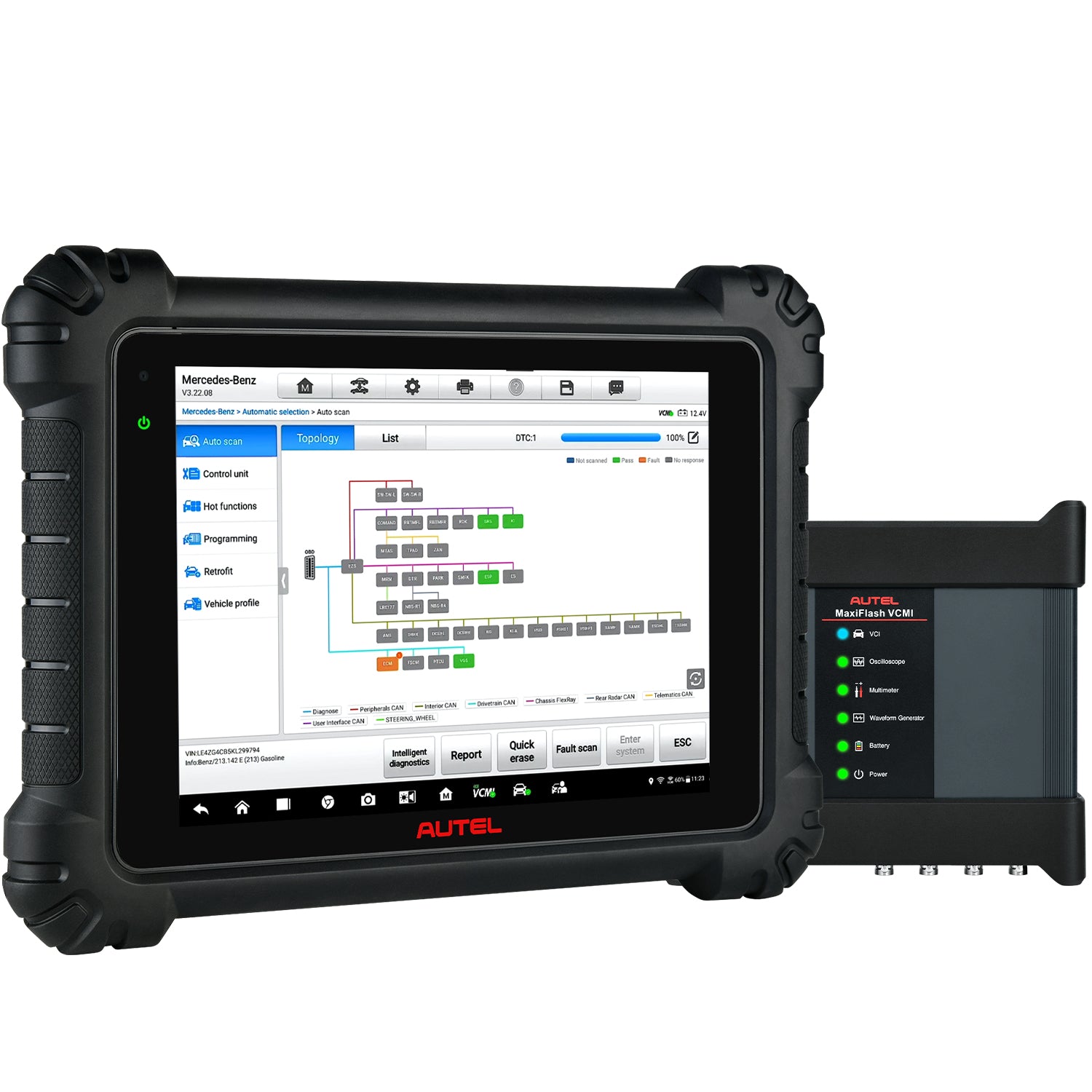

Topology Mapping 2.0
A color-coded CAN BUS tree shows the status of every module and the communication structure between them for faster full-system results.
-
PassThru Programming
The D-PDU, SAE J2534 and RP1210 compliant interface works with OEM diagnostic software to diagnose and program more passenger and commercial vehicles, such as Volvo, VW and Benz.
-
FCA AutoAuth
Access secured functions on 2018 and newer FCA vehicles (Chrysler, Dodge, Jeep, Fiat) in the US, Canada and Mexico.
-
Support and Data Management
Data Logging sessions connect directly with Autel Support for troubleshooting, and the cloud-based Data Manager stores customer and vehicle records, scanner data and technician notes. System and software updates arrive automatically with push notifications.
More Specifications
| Connectivity | Wi-Fi x2 (802.11 a/b/g/n/ac 2×2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (two USB host Type A, one USB mini device), HDMI 2.0, SD card (up to 256GB) |
|---|---|
| Cameras | Rear 16 MP autofocus with flashlight; front 5.0 MP |
| Sensors | Gravity accelerometer, ambient light sensor |
| Audio | Microphone, dual speakers, 3-band 3.5 mm stereo/standard headset jack |
| Charging | 12V AC/DC power supply (12V/3A adapter), at temperatures between 0°C and 45°C |
| Operating temperature | 0 to 50°C (32 to 122°F) |
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Protocols | DoIP, PLC J2497, TP16, SAE-J1939, SAE J1708, SAE-J2411 Single Wire CAN (GMLAN), SAE-J2819 (TP20), SAE-J2610 (Chrysler SCI), SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), SAE J2819 (VAG KW81), SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2), ISO-15765, ISO-14229 UDS, ISO-11897-2, ISO-11897-3, ISO-9141, ISO-14230, UART Echo Byte, Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, KW82 |

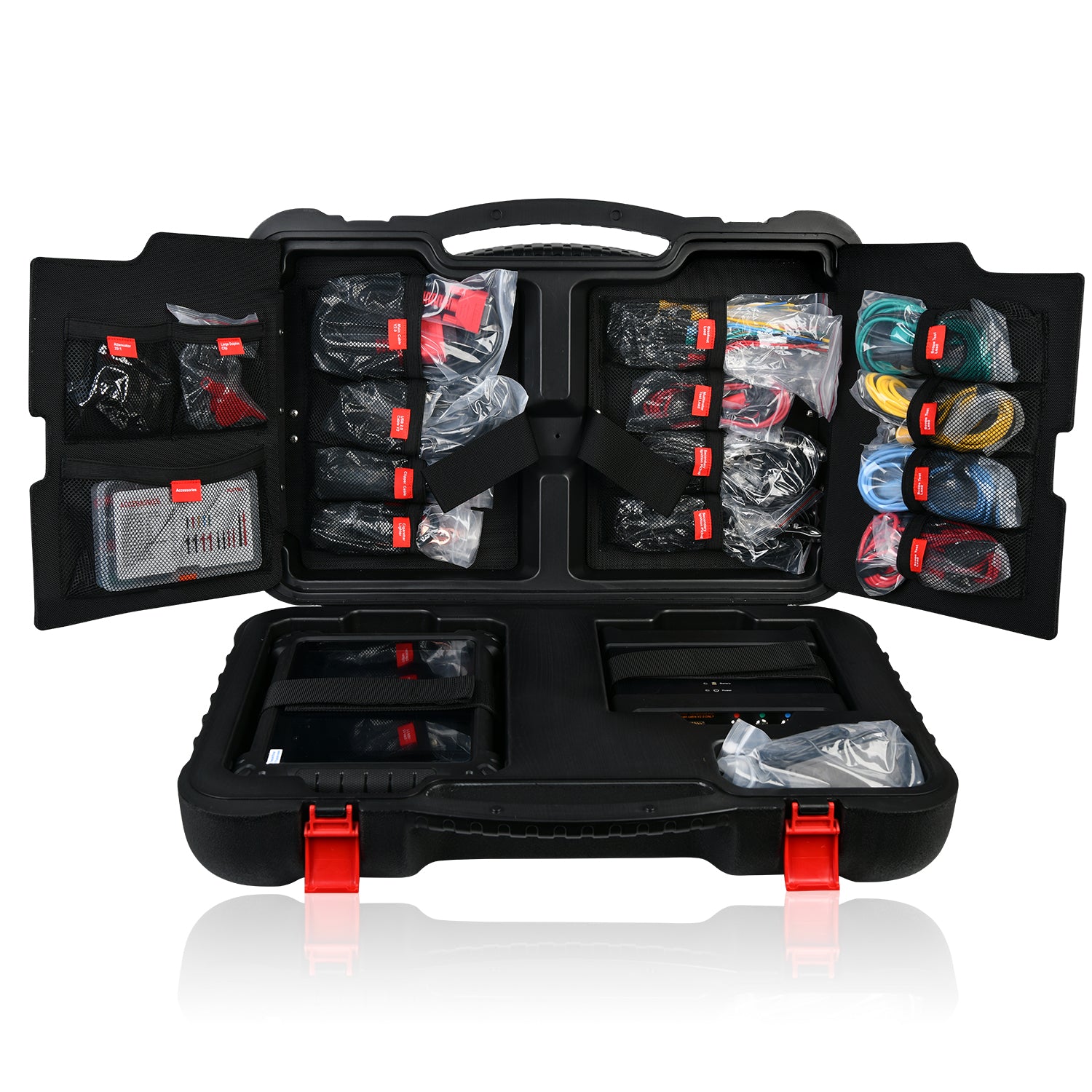

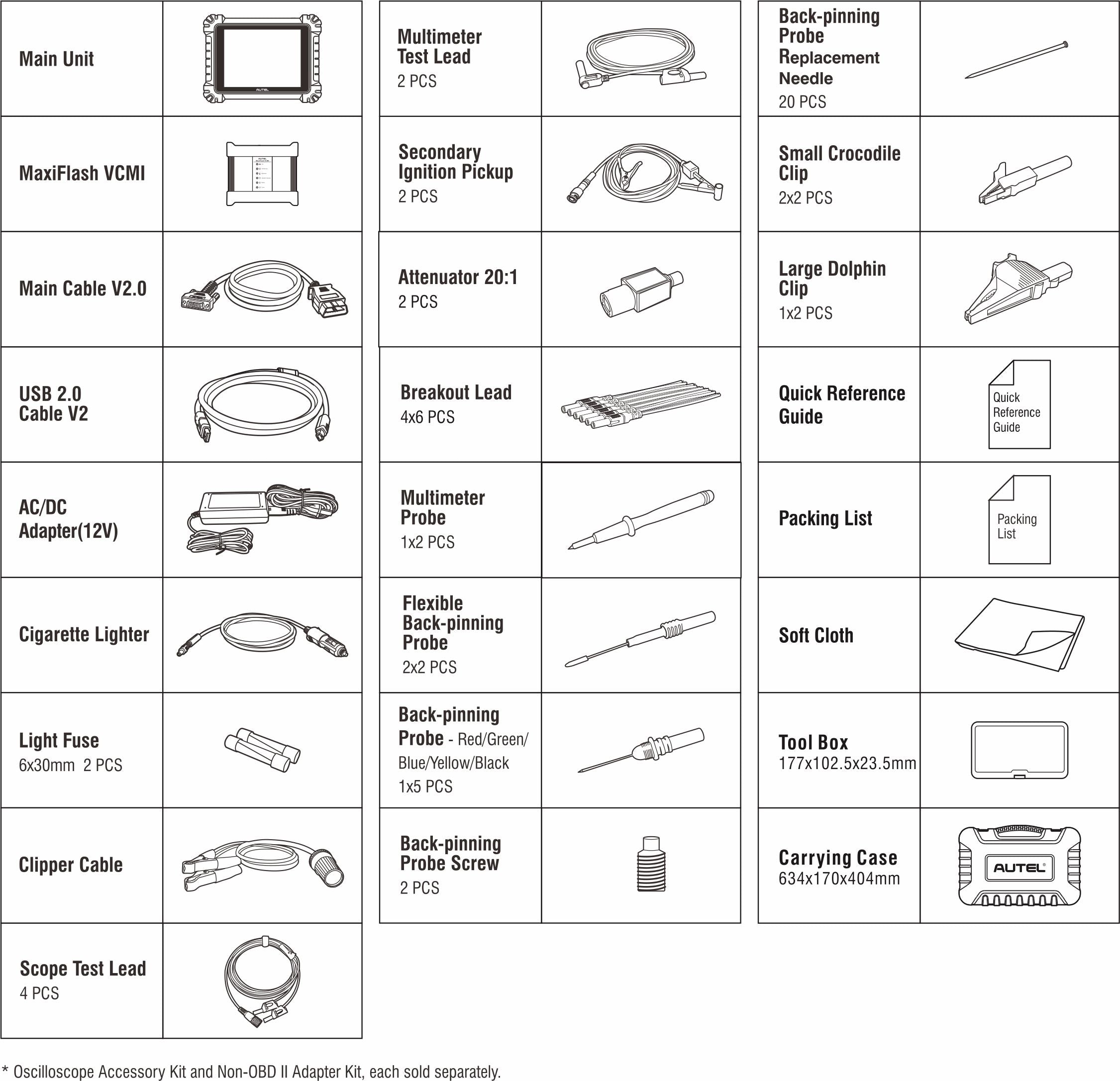

What’s in the Box
- Main unit
- MaxiFlash VCMI
- Main cable V2.0
- USB 2.0 cable V2
- AC/DC adapter (12V)
- Cigarette lighter cable
- Light fuses (6x30mm)
- Clipper cable
- Scope test leads
- Multimeter test leads
- Secondary ignition pickups
- Attenuators 20:1
- Breakout leads
- Multimeter probes
- Flexible back-pinning probes
- Back-pinning probes (red, green, blue, yellow, black)
- Back-pinning probe screws
- Back-pinning probe replacement needles
- Small crocodile clips
- Large dolphin clips
- Tool box
- Quick reference guide
- Packing list
- Soft cloth
- Carrying case (634x170x404mm)
Good to Know
Caution
- The oscilloscope accessory kit and the non-OBD II adapter kit are each sold separately.
