Set Up ADAS Calibration Targets With Laser Guidance and an Electric Lift

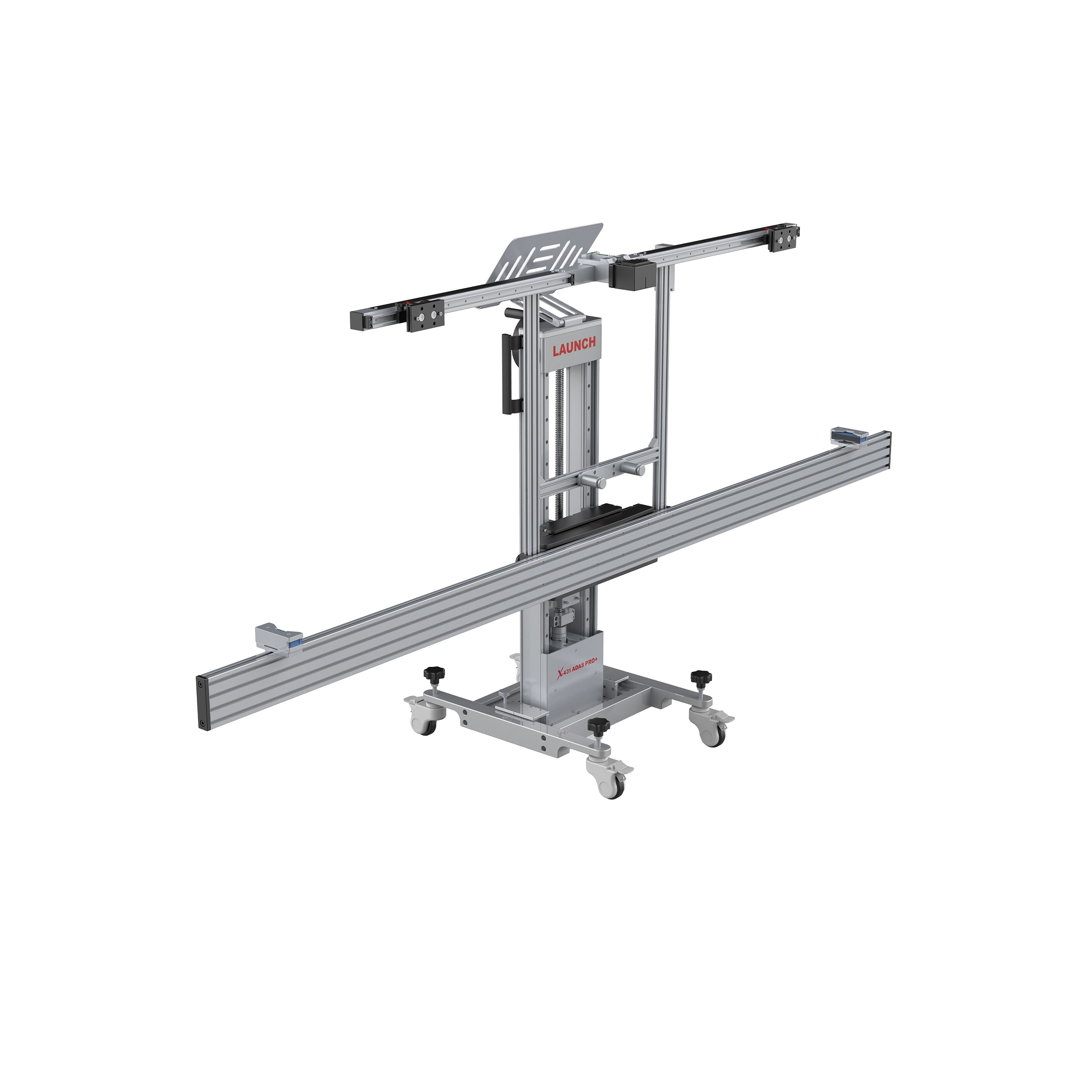

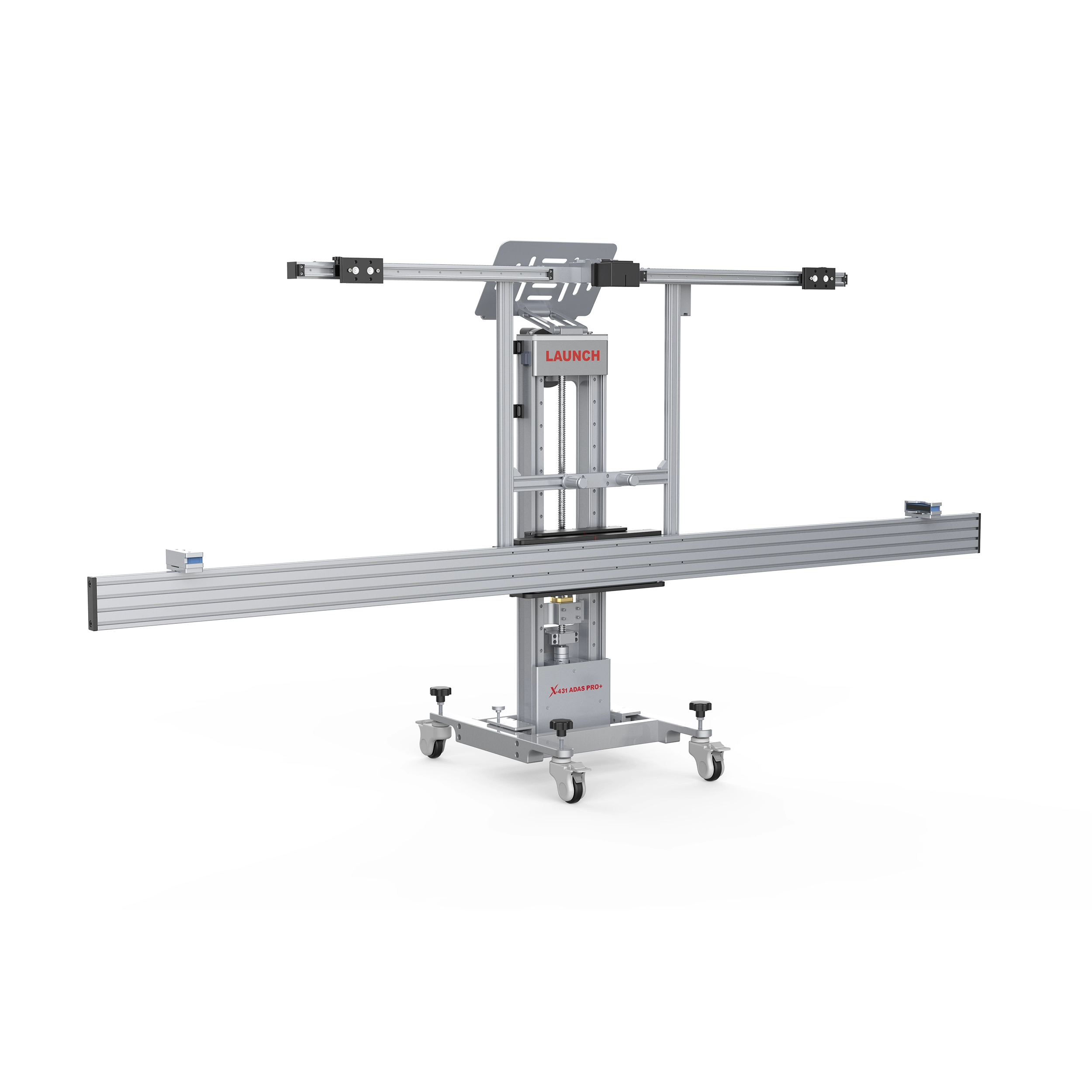

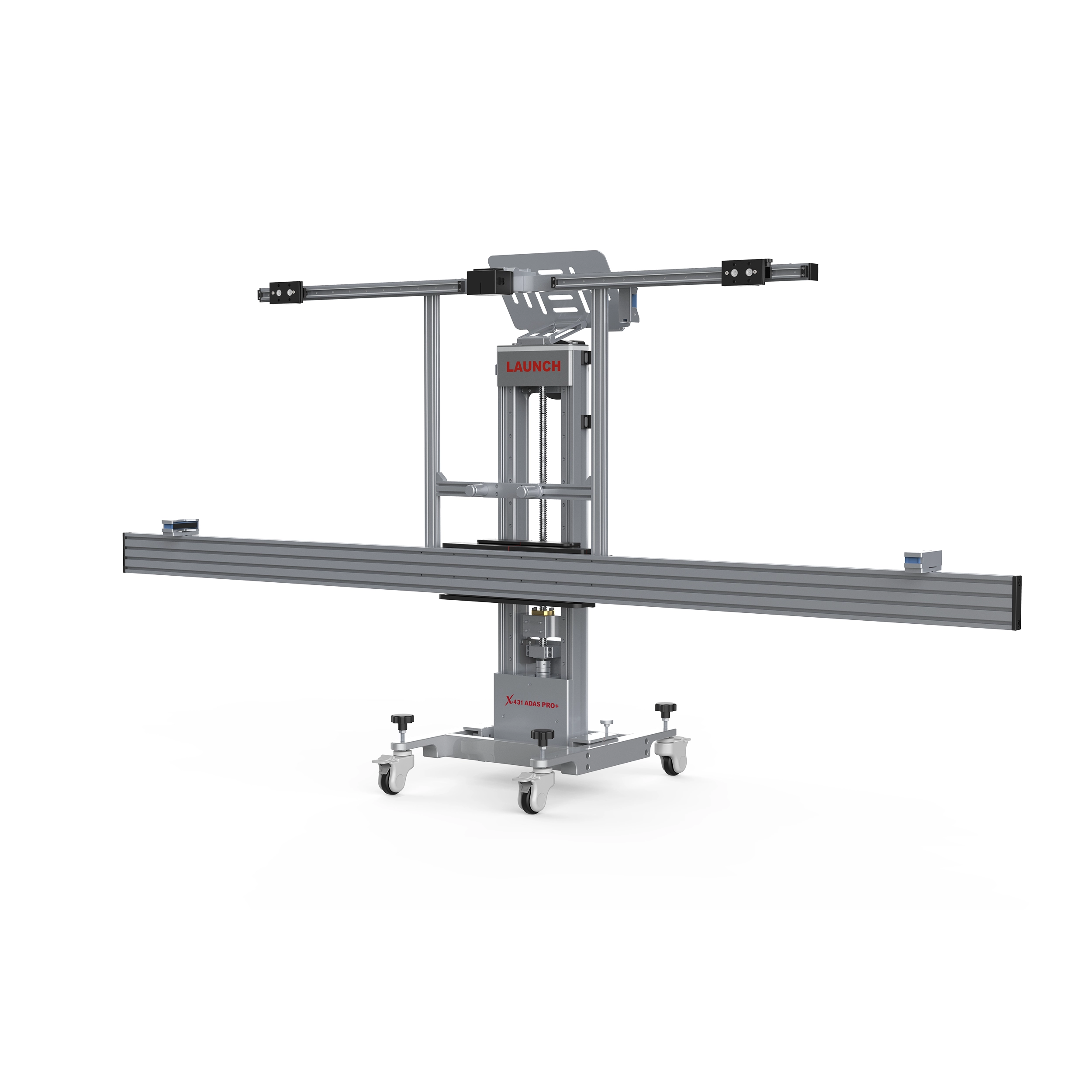

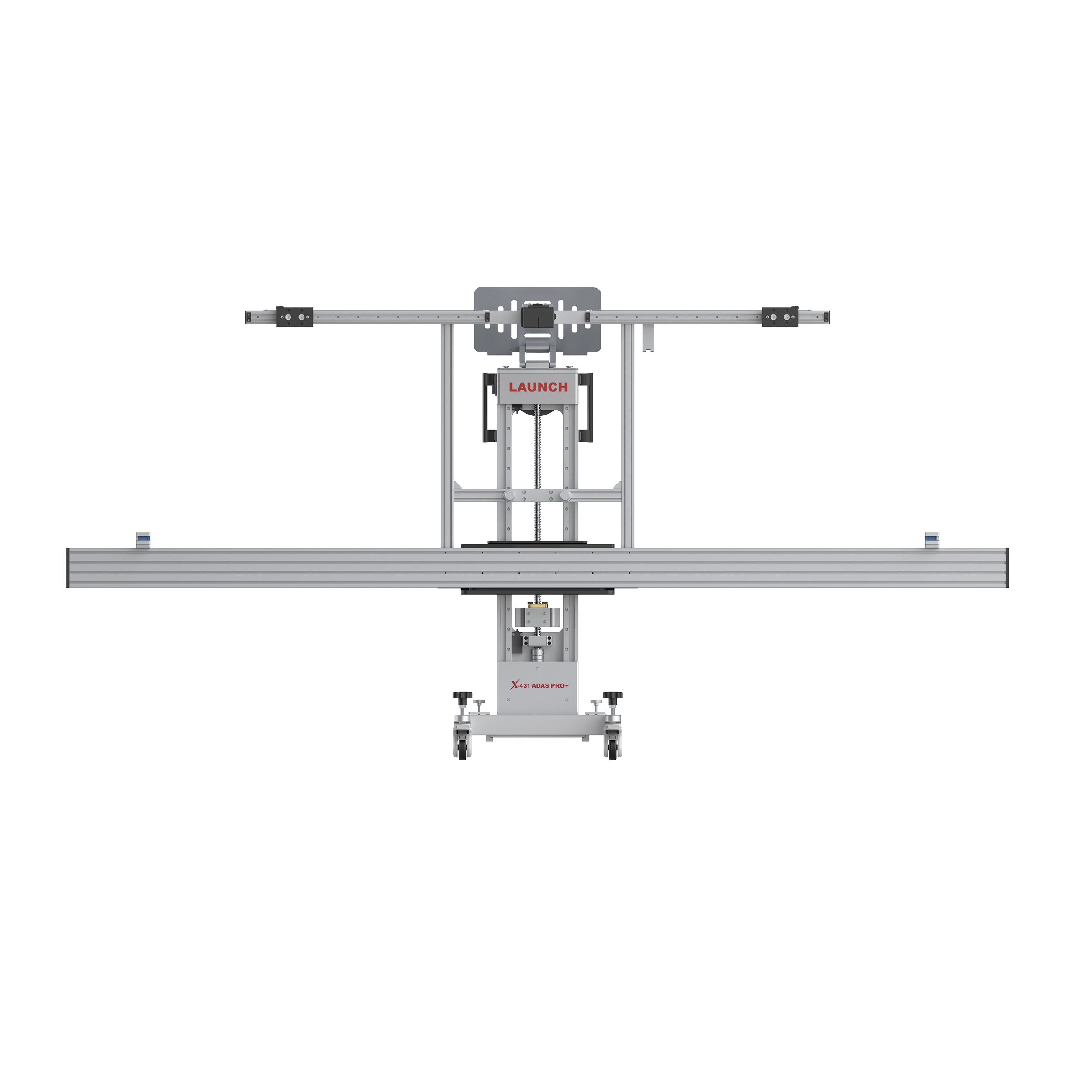

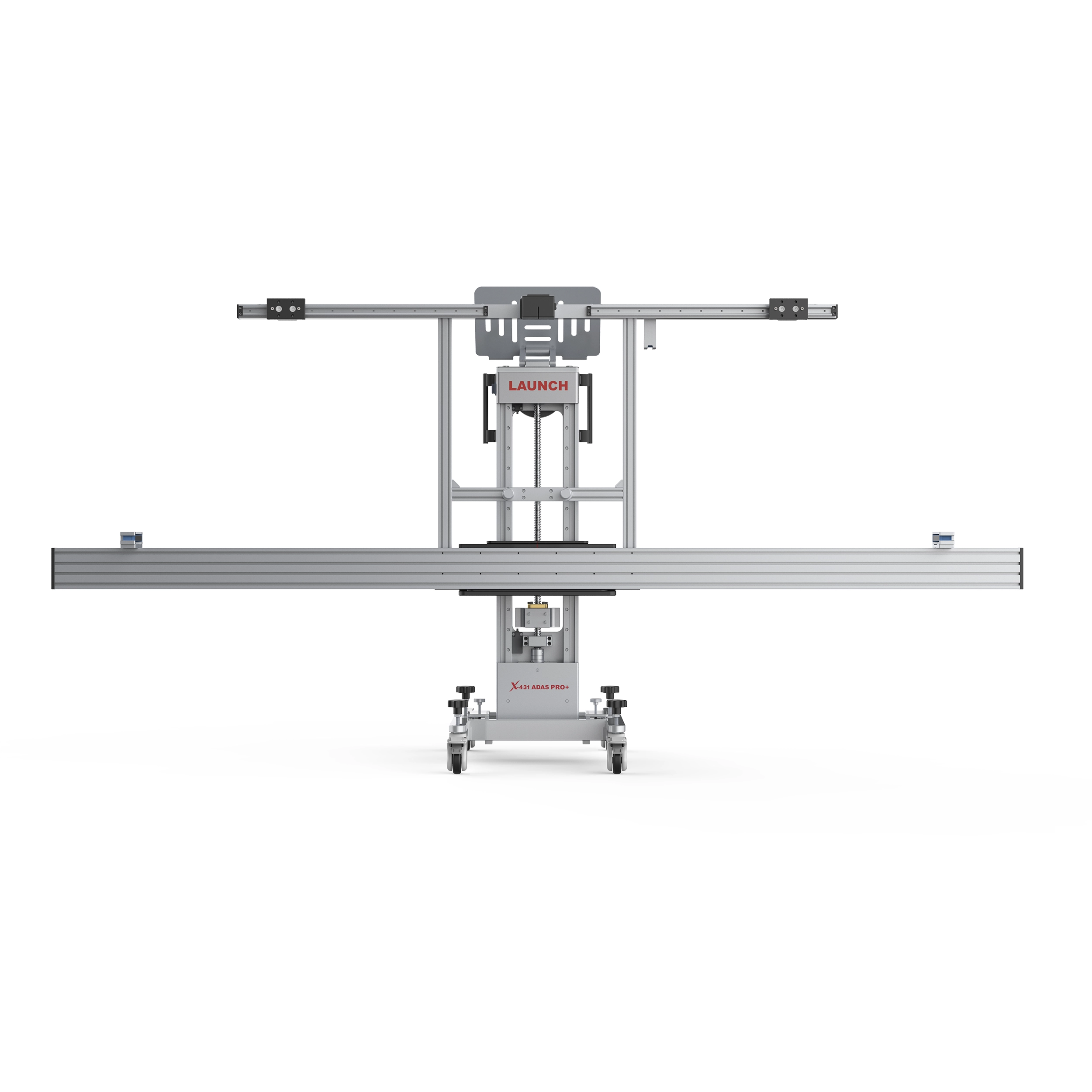

The X-431 ADAS Pro Plus is a calibration frame for LAUNCH diagnostic tablets: laser rangefinders and a central laser align it to the vehicle, an electric lift raises and lowers the targets, and locking casters hold it in place.
- Electric Target Lift
- Laser Rangefinders
- Central Laser Alignment
- Rear Wheel Clamps
- Locking Casters
Key Features
-
Multi-Directional Fine-Tuning
Adjust height, position and yaw precisely.
-
Durable Construction
Aluminum frame with a cross-member and pedestal.
-
Electric Power Lift
Raise or lower the targets without manual cranking.
-
Locking Casters
Move the frame into position, then lock it for stability.
-
Laser Rangefinders
Measure height, distance and yaw.
-
Central Laser
Centers the frame on the vehicle.
-
Rear Wheel Clamps
Set yaw using laser guidance from the rear wheels.
More Specifications
| Basic Package part no. | 701040001 |
|---|---|
| LDW Standard Package part no. | 701040010 |
| Forward Facing Deluxe Package part no. | 701040011 |
| Premium Package part no. | 701040012 |
What’s in the Box
- Pro Plus main frame
- Cross member
- Target holder
- Central laser
- Range finder (height)
- Range finders (yaw), 2 pcs
- Central range finder
- Ranging panel
- Tablet pedestal
- Wheel clamps, 2 pcs
- Power adapter
- User manual
- Activation PIN card
Good to Know
Caution
- Calibration runs from a compatible LAUNCH diagnostic tablet (Throttle V, Torque Link or Turbo III), which is not in the box.
