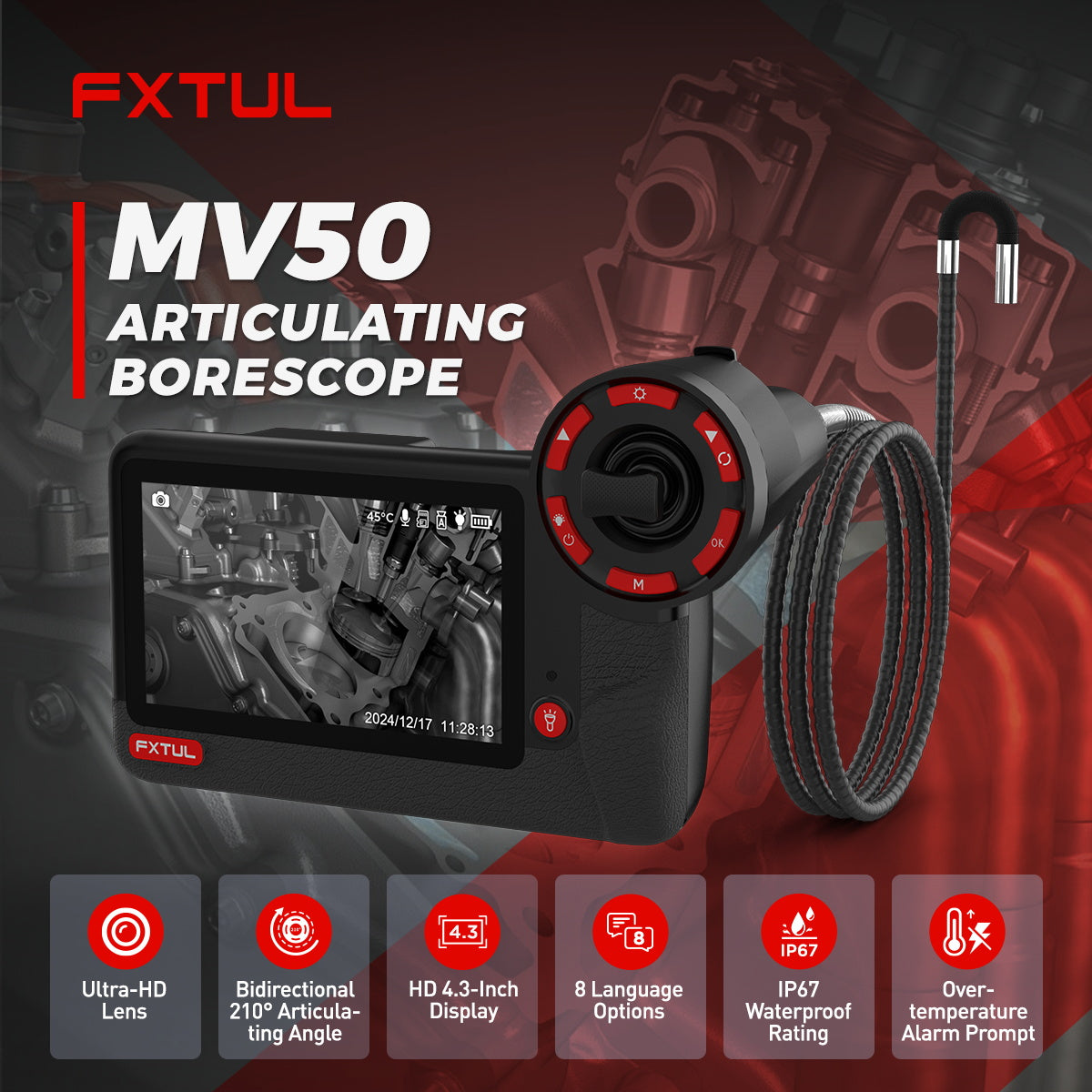

Two-Way 210° Articulating Borescope for Engine and HVAC Inspection

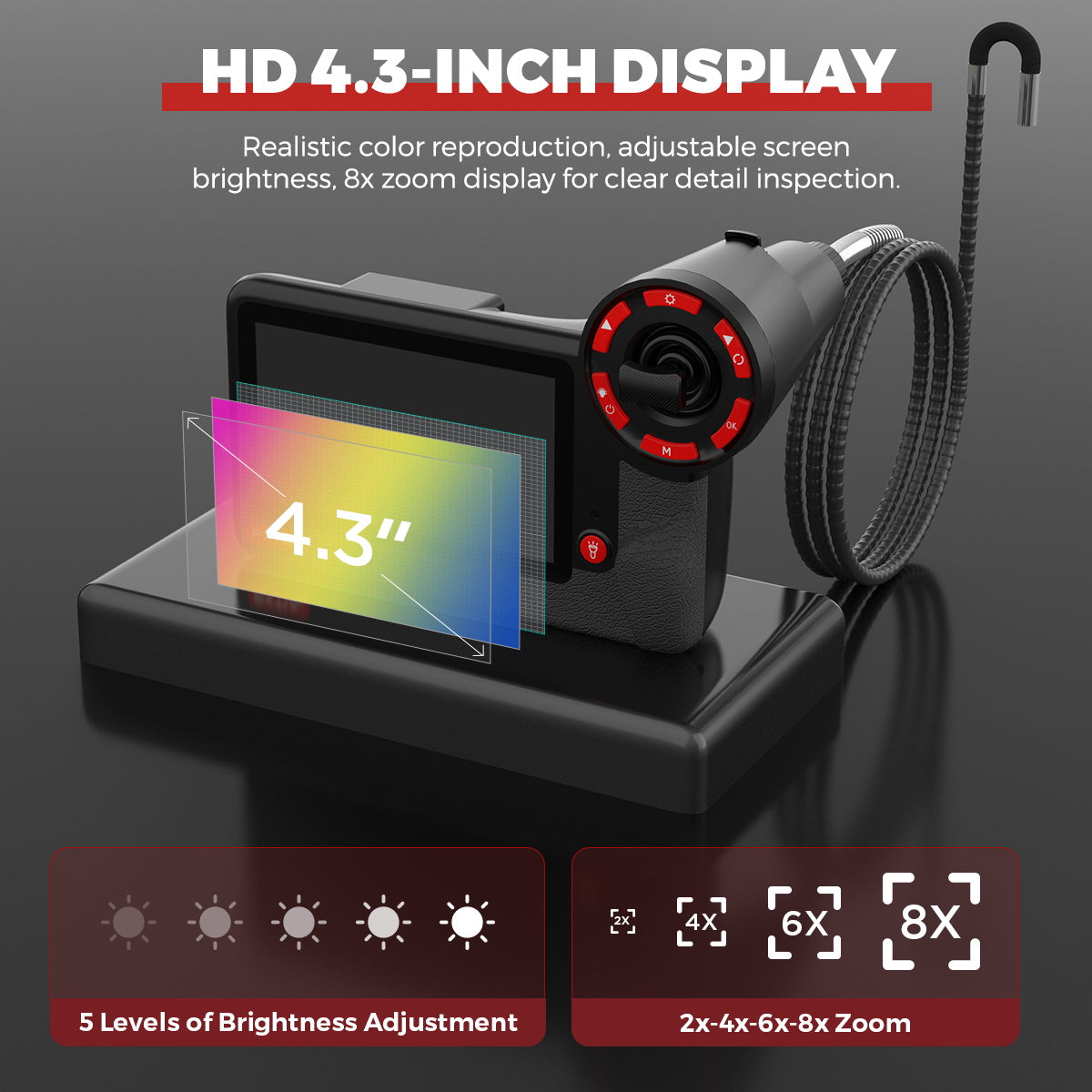

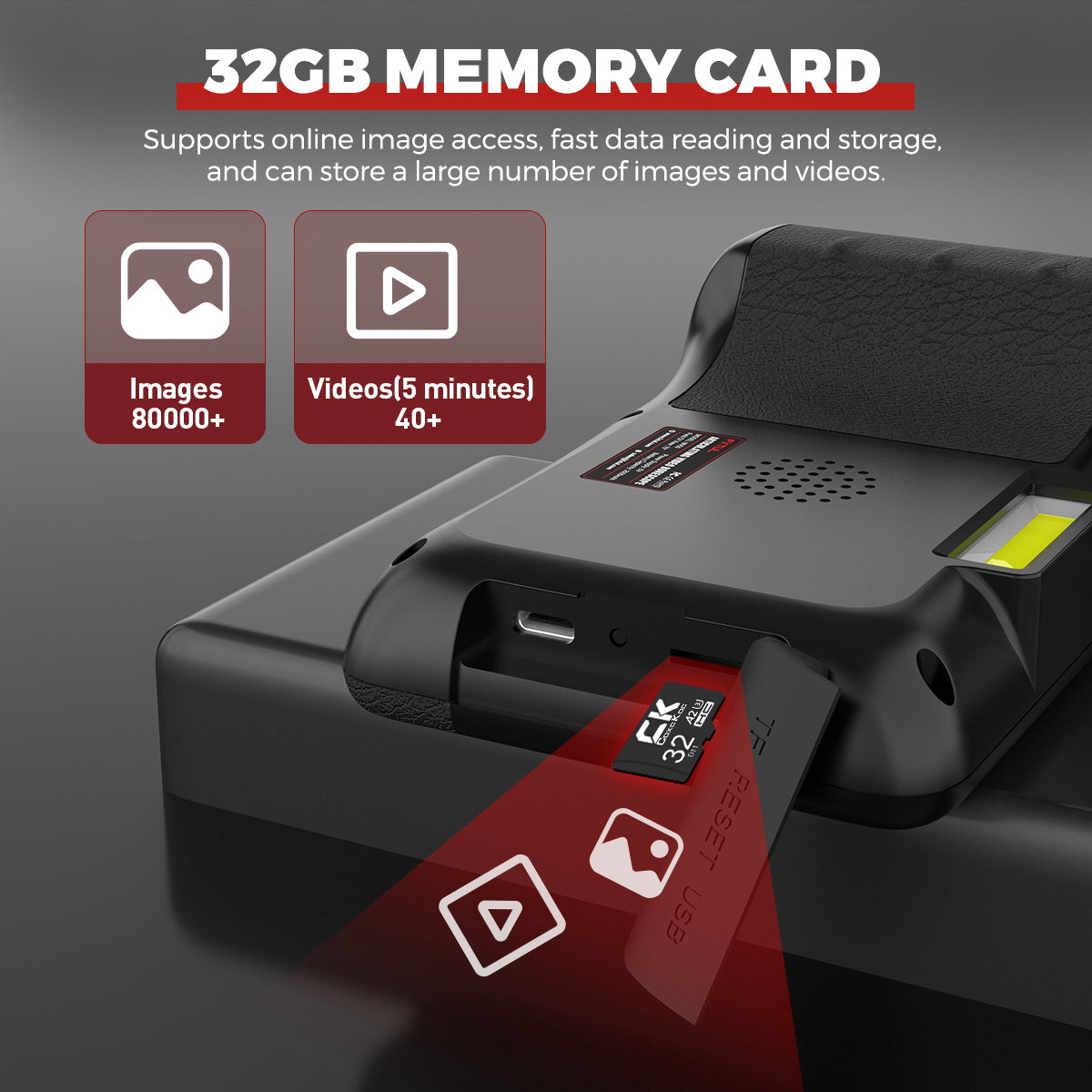

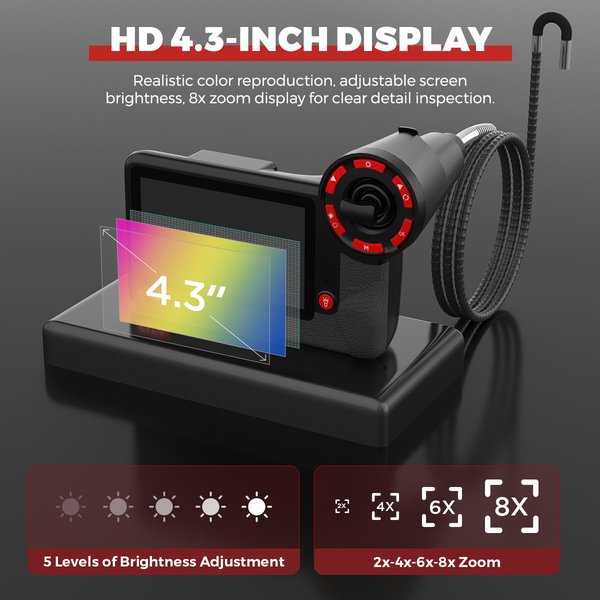

The FXTUL MV50 bends its 5.5 mm camera tip up to 210° with a thumb lever, so you can look around corners inside cylinders, evaporators, combustion chambers and pipes. Live video shows on a 4.3-inch screen and saves to the included 32GB card.
- 210° Two-Way Steering
- 5.5 mm Camera

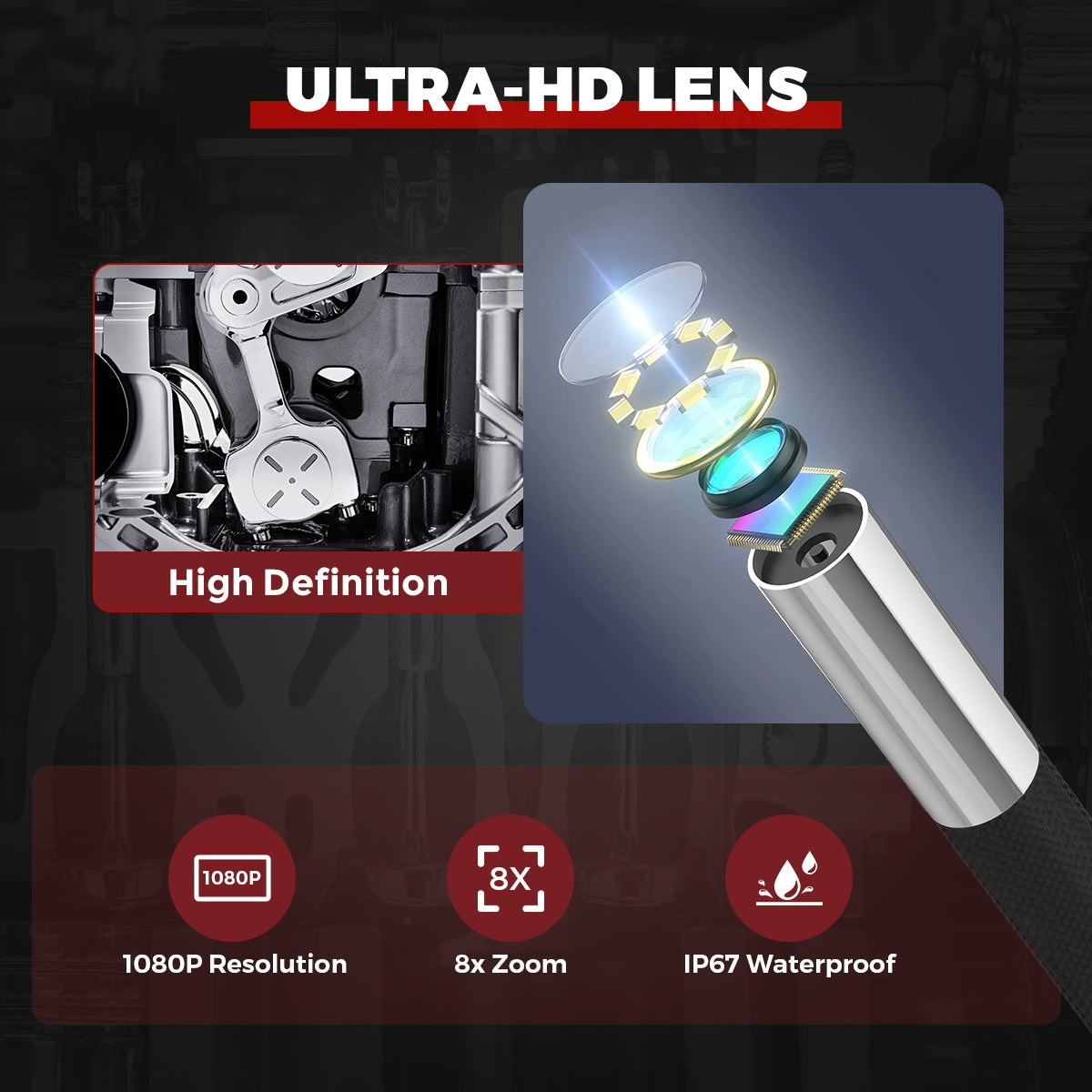

- 1080p
- 1 m Metal Tube
- IP67 Probe
Key Features
-

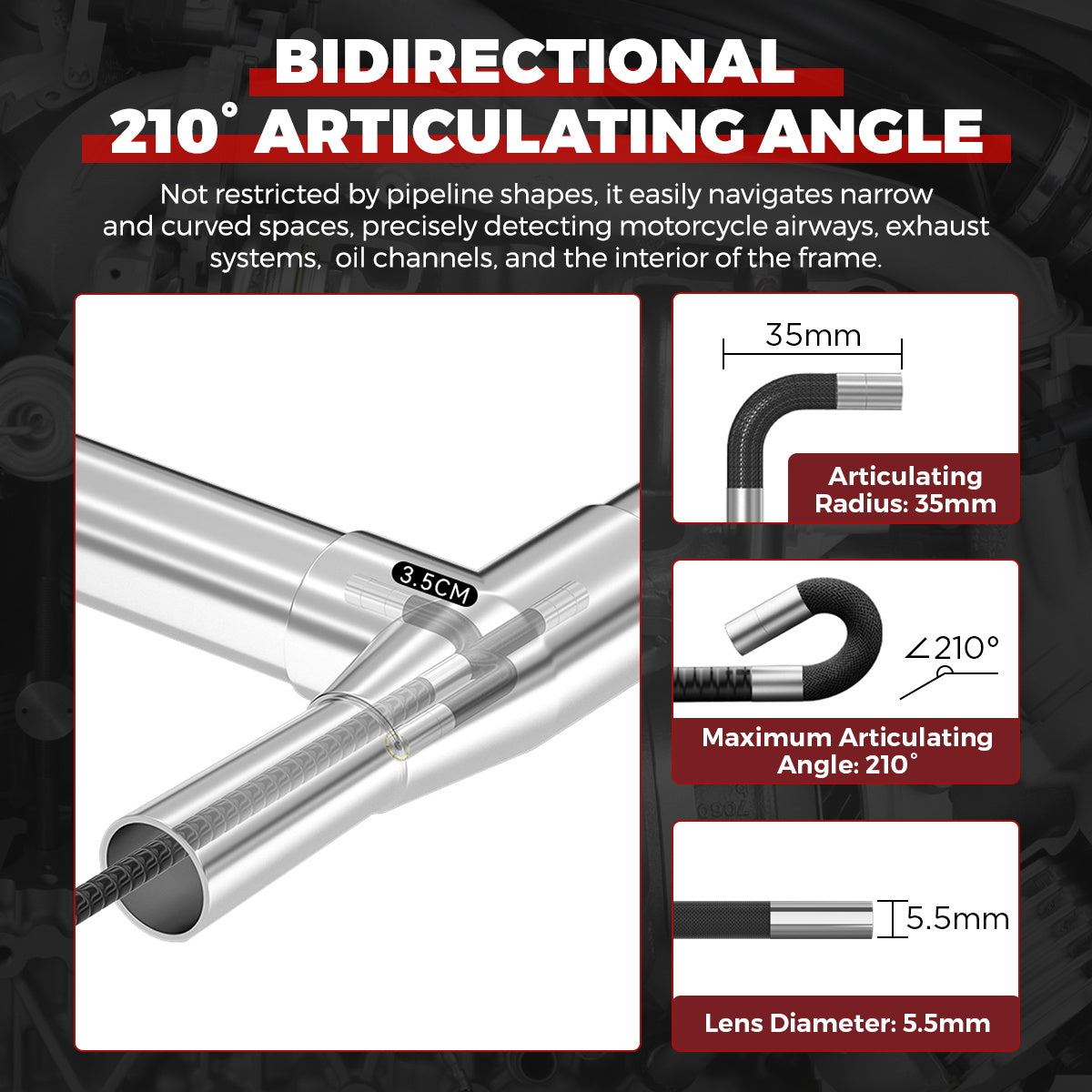

Steer Around Bends
The steering lever turns the tip in two directions up to 210°, following curved passages such as exhaust ports, oil channels and frame tubes.
-
One-Key Photo and Video

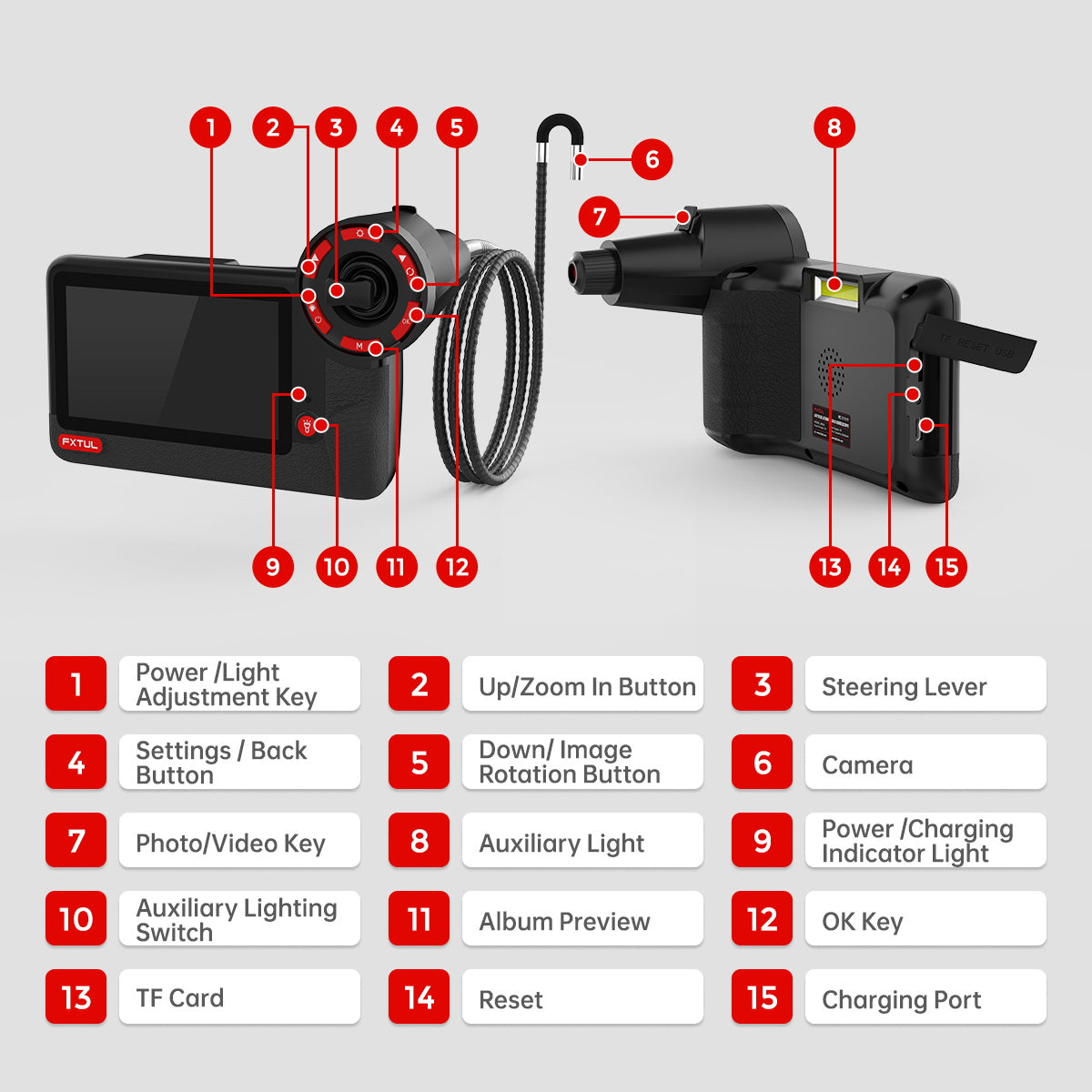

A dedicated key captures stills or video. Zoom and image rotation buttons sit on the handle.
-

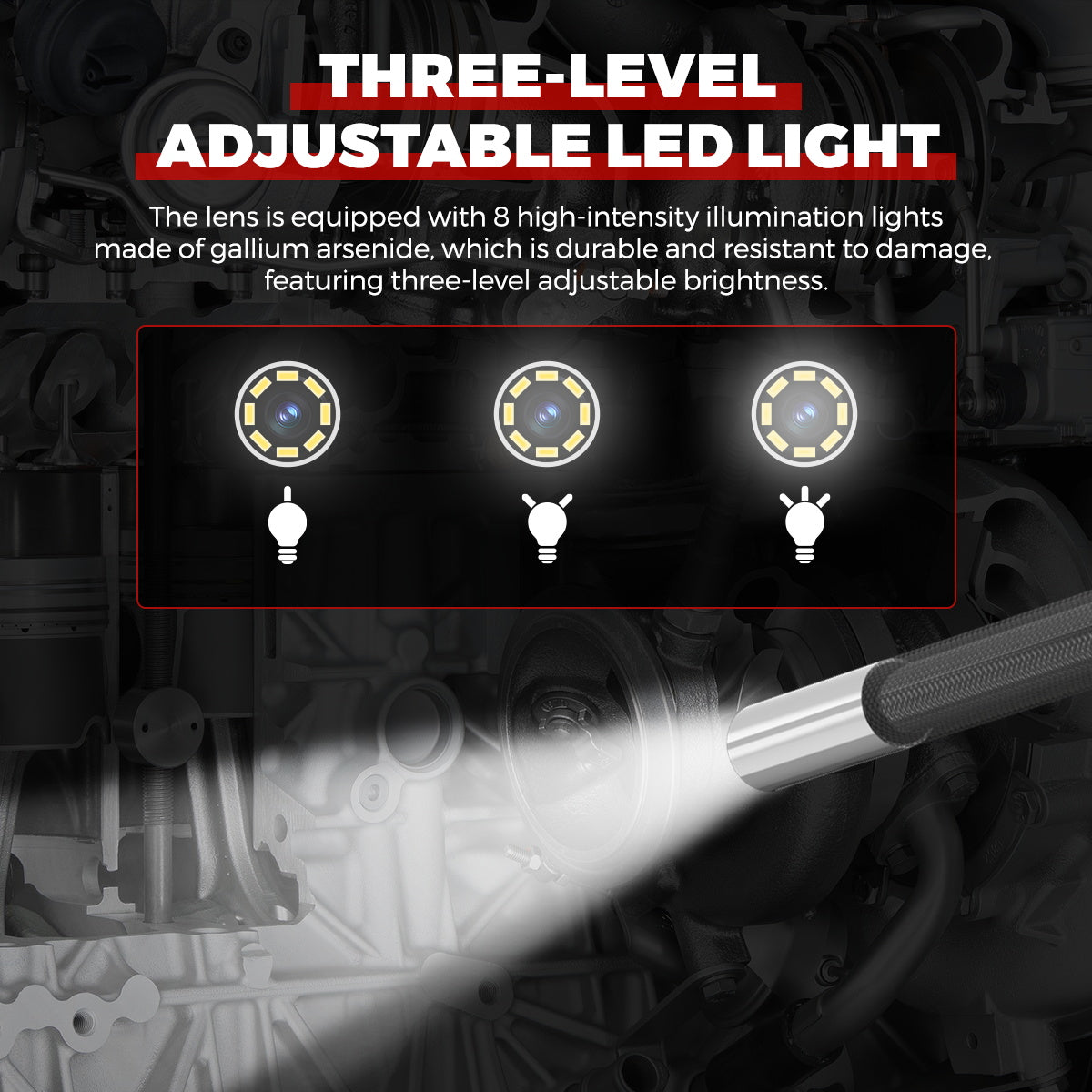

Adjustable Lighting

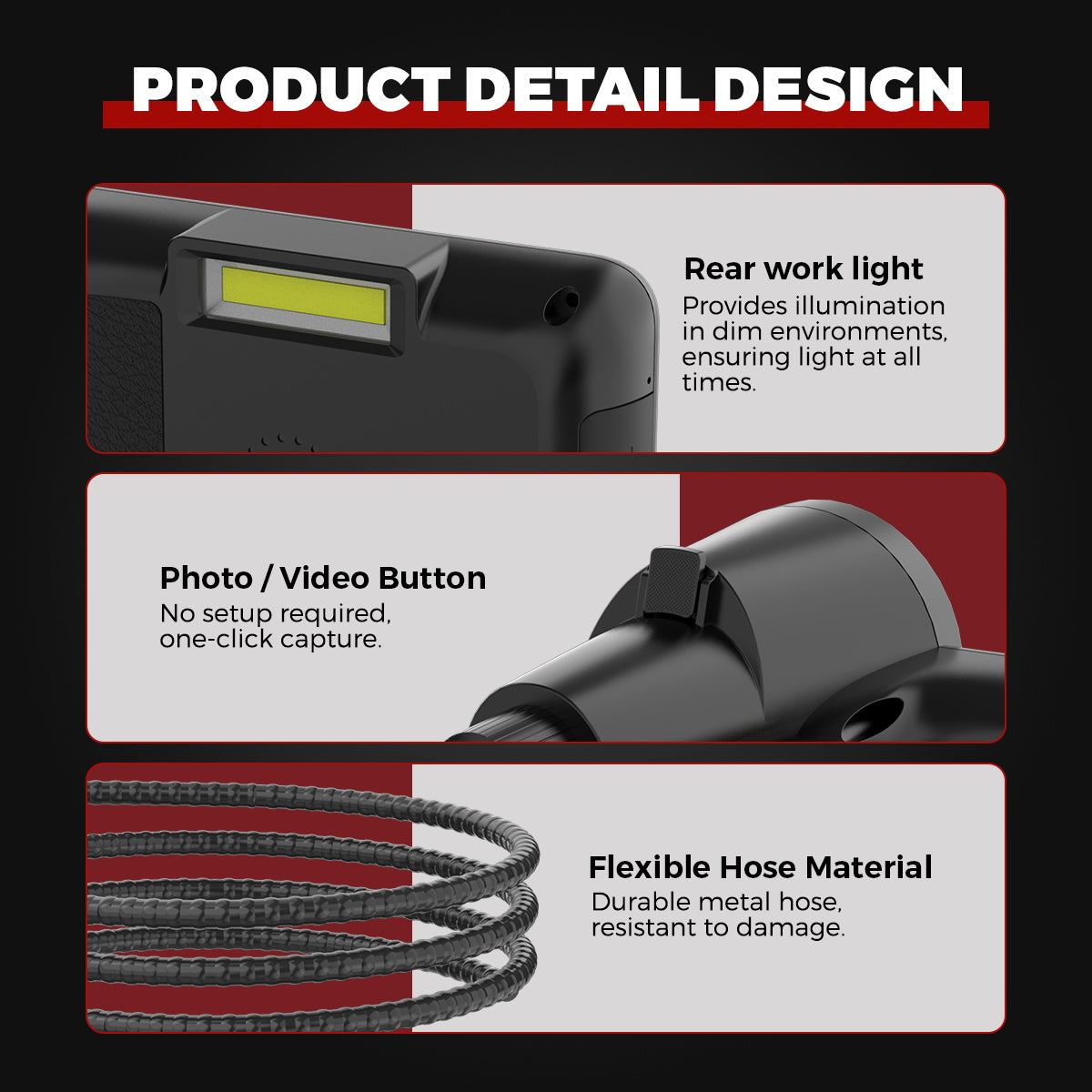

Eight gallium arsenide LEDs at the tip offer three brightness levels, and a work light on the back of the handset lights the work area.
-
Overheat Alarm
Above 85°C the probe cuts the camera signal, beeps and shows a high-temperature warning.
-

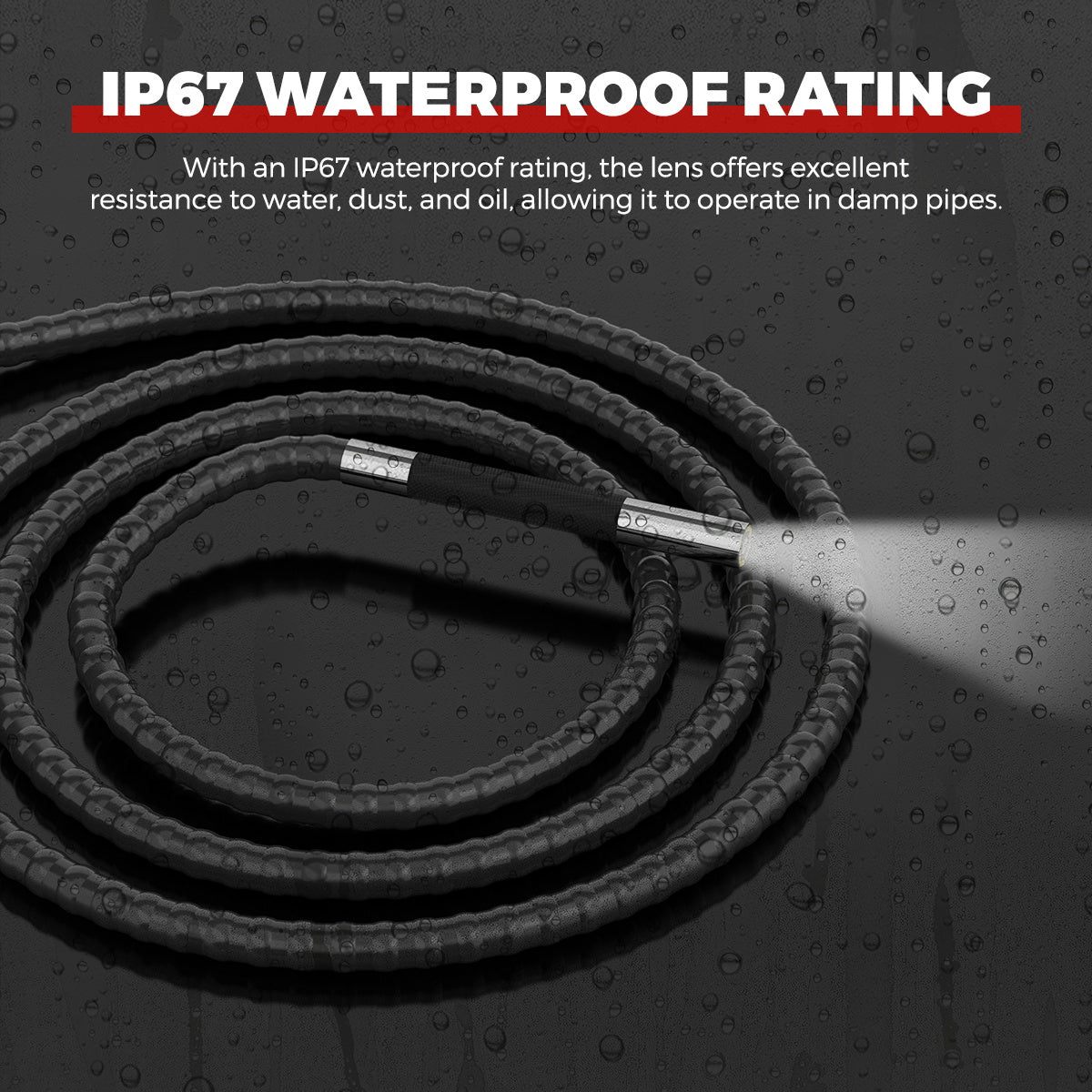

Sealed Probe
The IP67 lens resists water, dust and oil, so it can work in damp pipes.
-

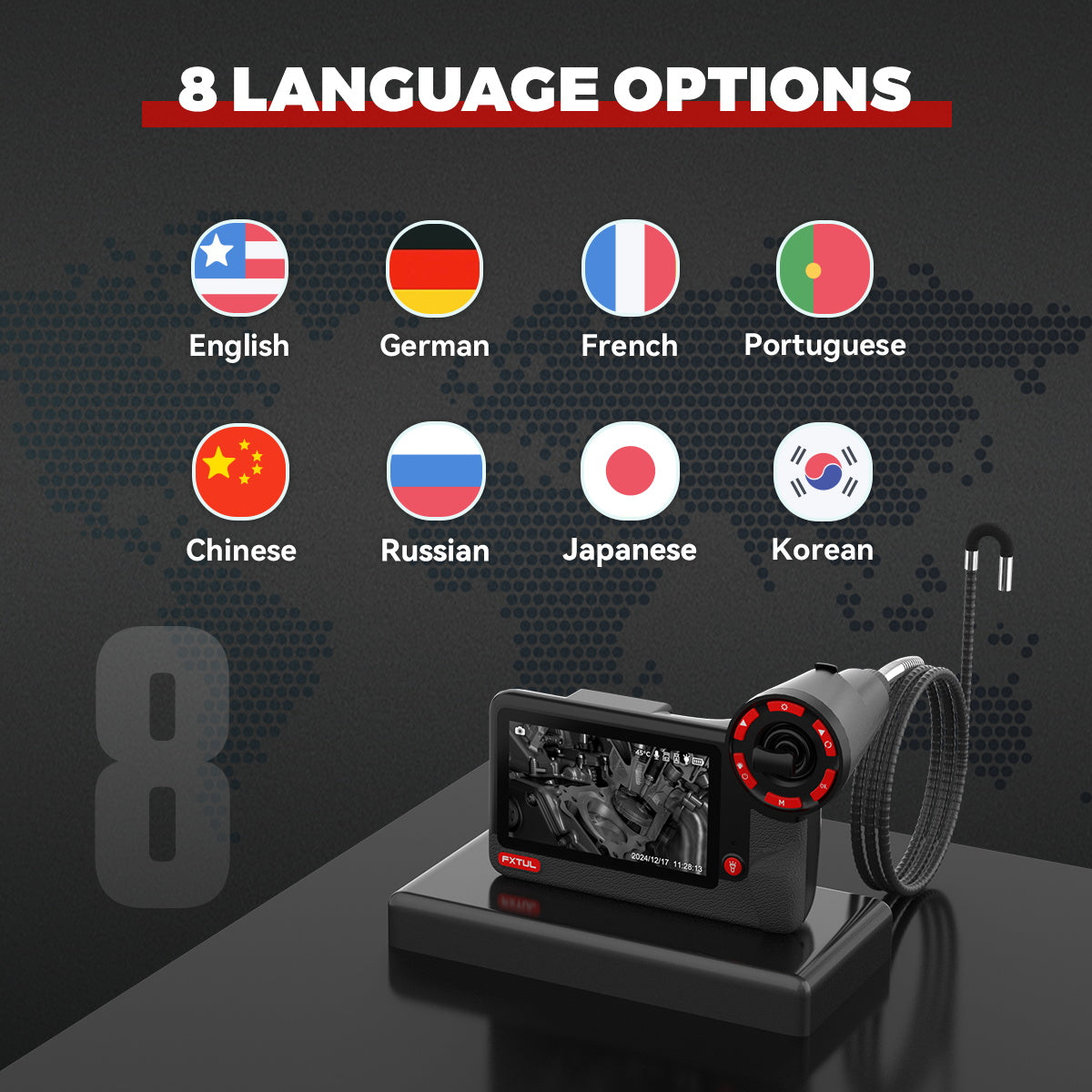

Eight Languages
English, French, Portuguese, German, Chinese, Japanese, Korean and Russian.

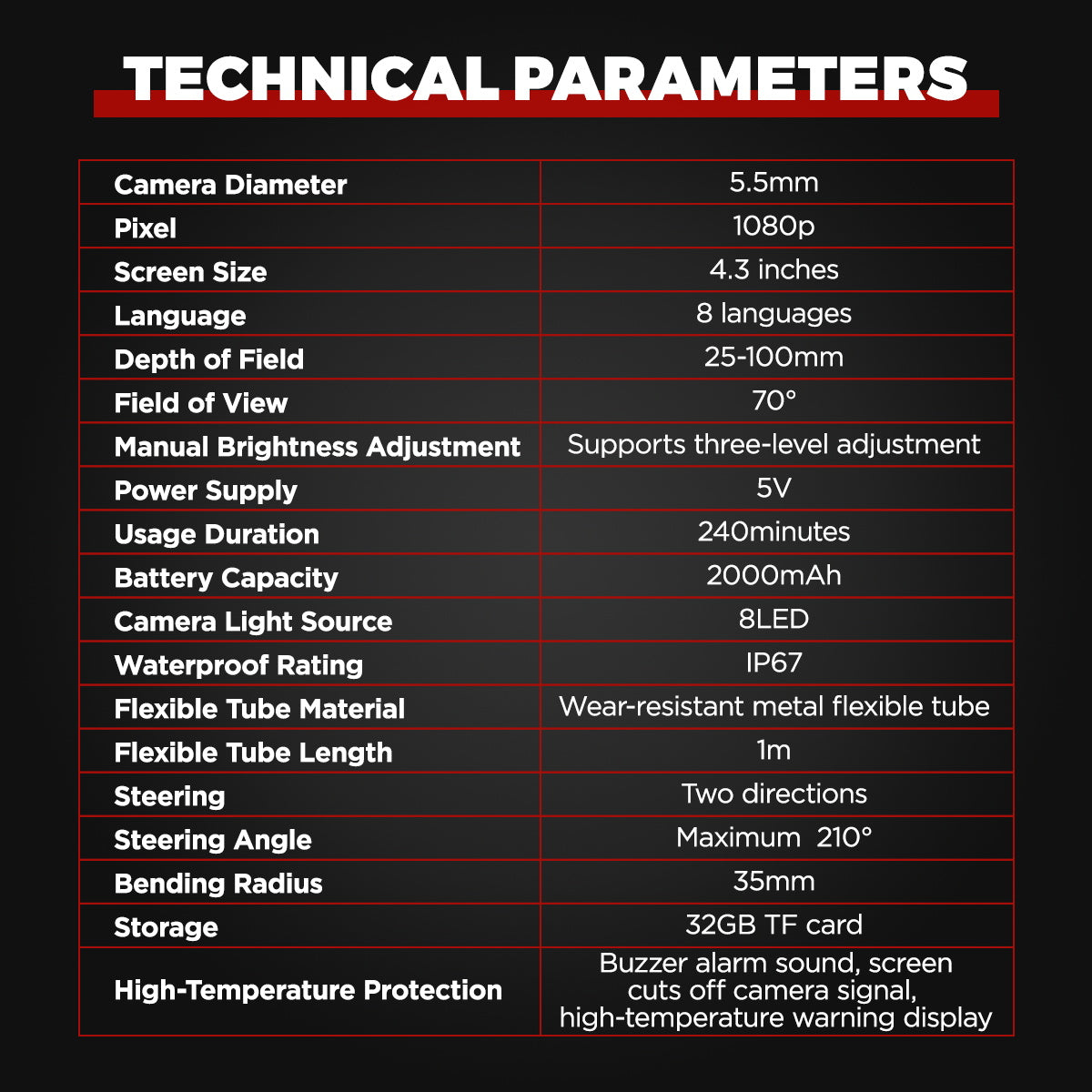

More Specifications
| Field of view | 70° |
|---|---|
| Depth of field | 25–100 mm |
| Bending radius | 35 mm |
| Flexible tube | Wear-resistant metal |
| Battery | 2000mAh, about 240 minutes of use |
| Power / charging | 5V, Type-C charging port |

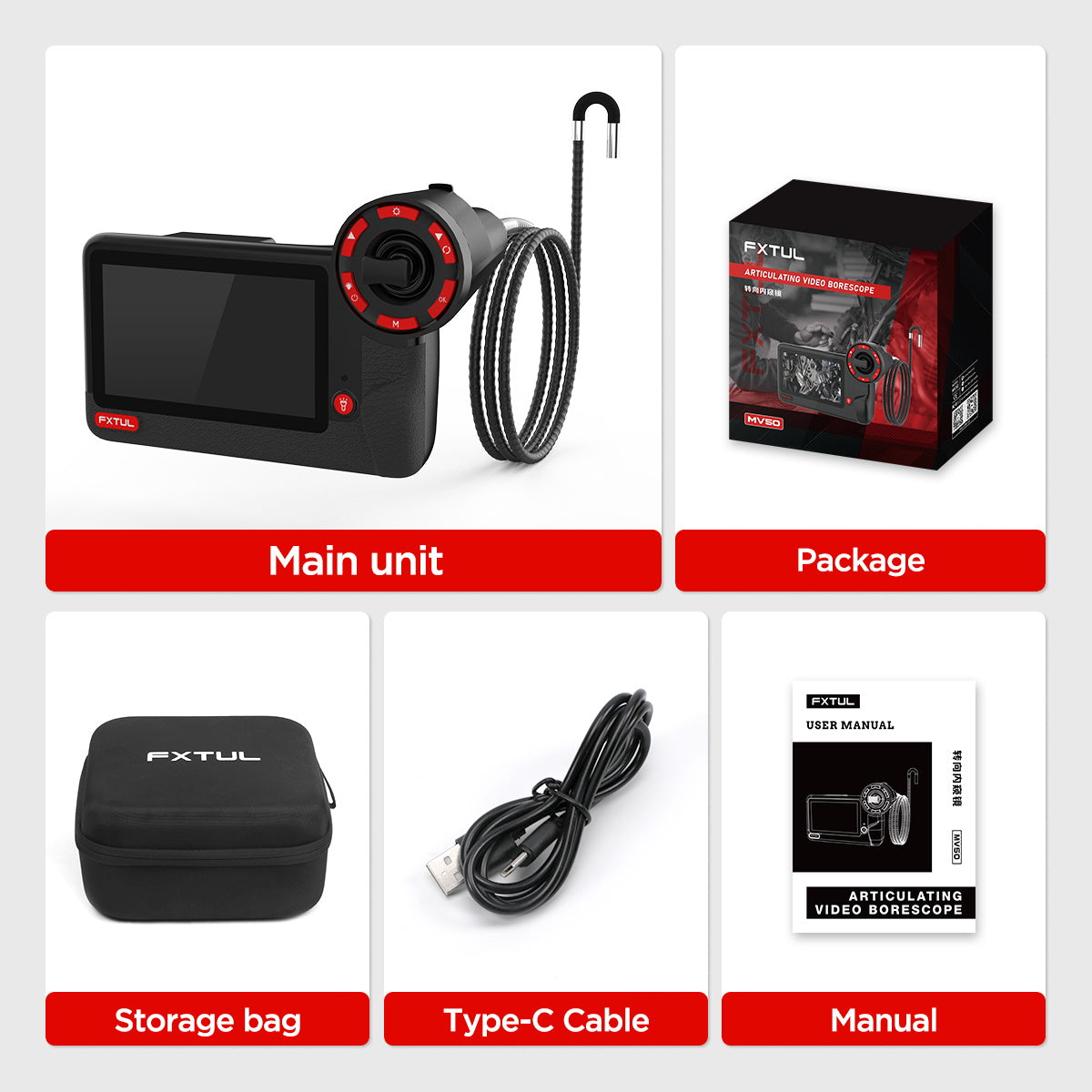

What’s in the Box
- MV50 main unit
- Storage bag
- Type-C cable
- User manual
Good to Know
Caution
- The lens is not heat resistant. Keep it below 75°C and let the engine cool fully before inspecting; after shutdown this typically takes 1 to 2 hours.
Care
- Keep the probe clean and out of prolonged direct sunlight.
- Avoid soaking the probe in water, oil or corrosive liquids.
