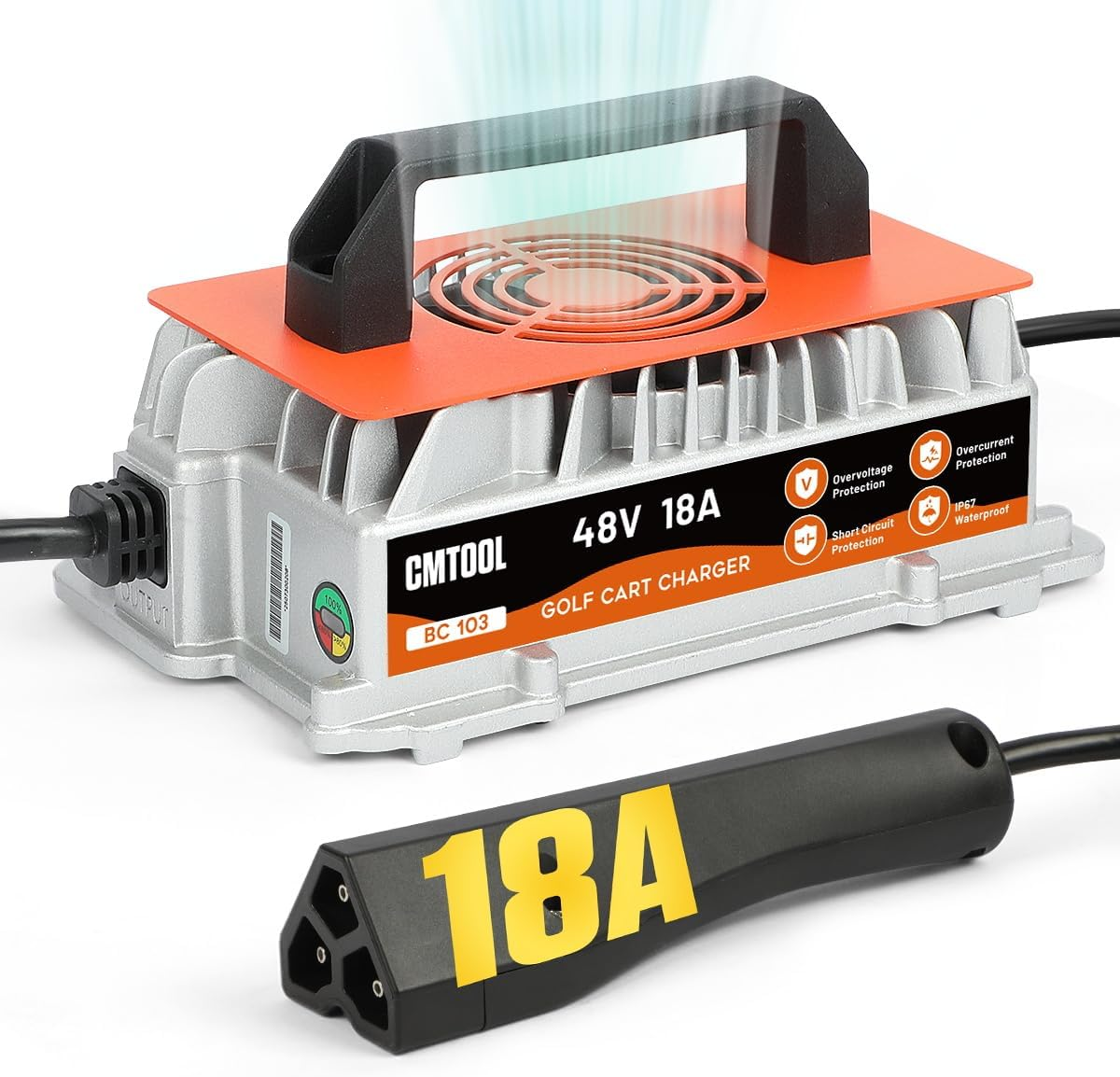

Fast 48V Charging for EZGO RXV and TXT Golf Carts
An 18A, 1250W charger with the 3-pin triangular plug for 48V lead-acid EZGO RXV and TXT carts.

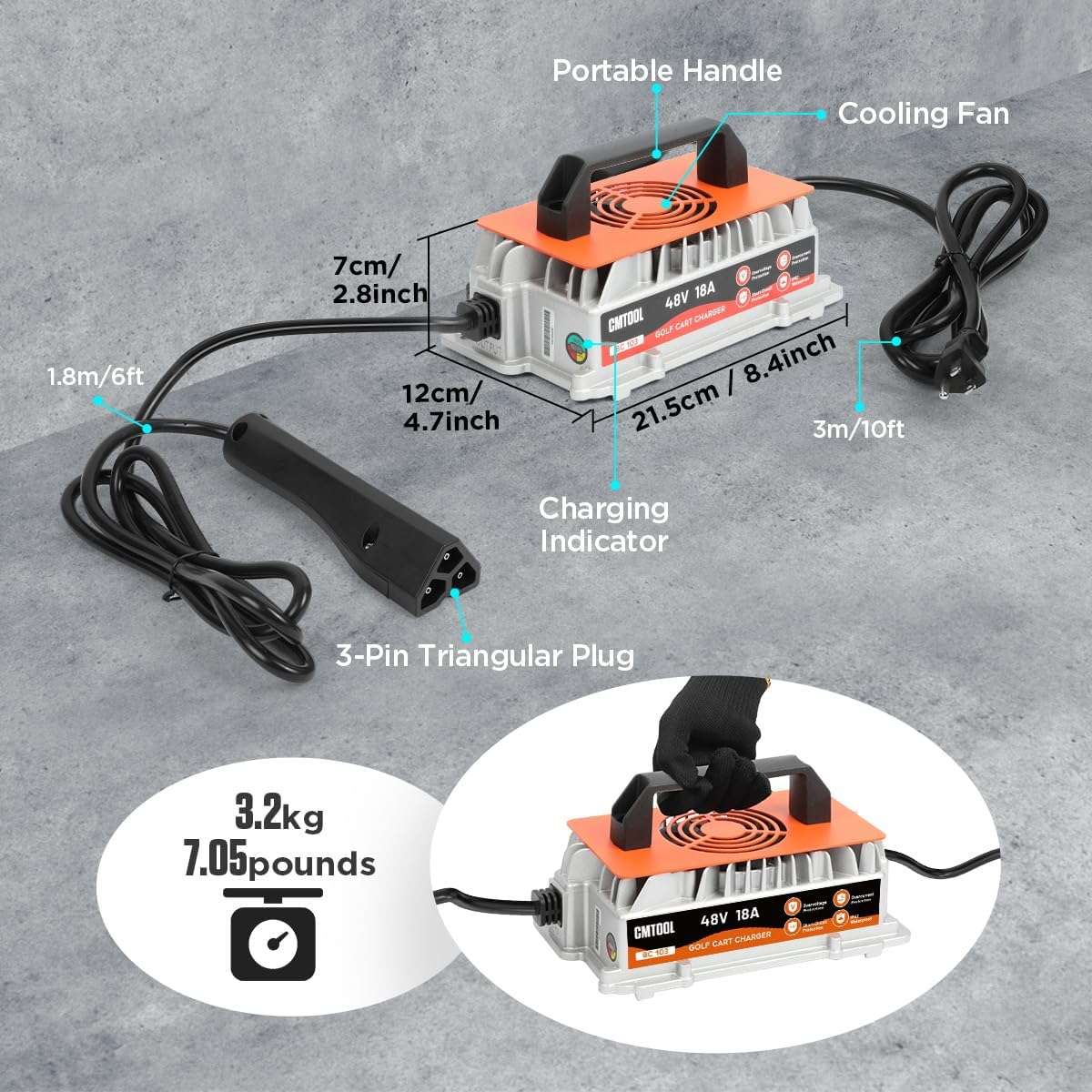

- 48V 18A / 1250W
- 3-Pin Triangle Plug
- 16 ft Total Cable
- FCC & ETL Certified
Key Features
-
Temperature-Compensated Output
A built-in sensor adjusts charging voltage to ambient temperature between -20 °C and +45 °C.
-

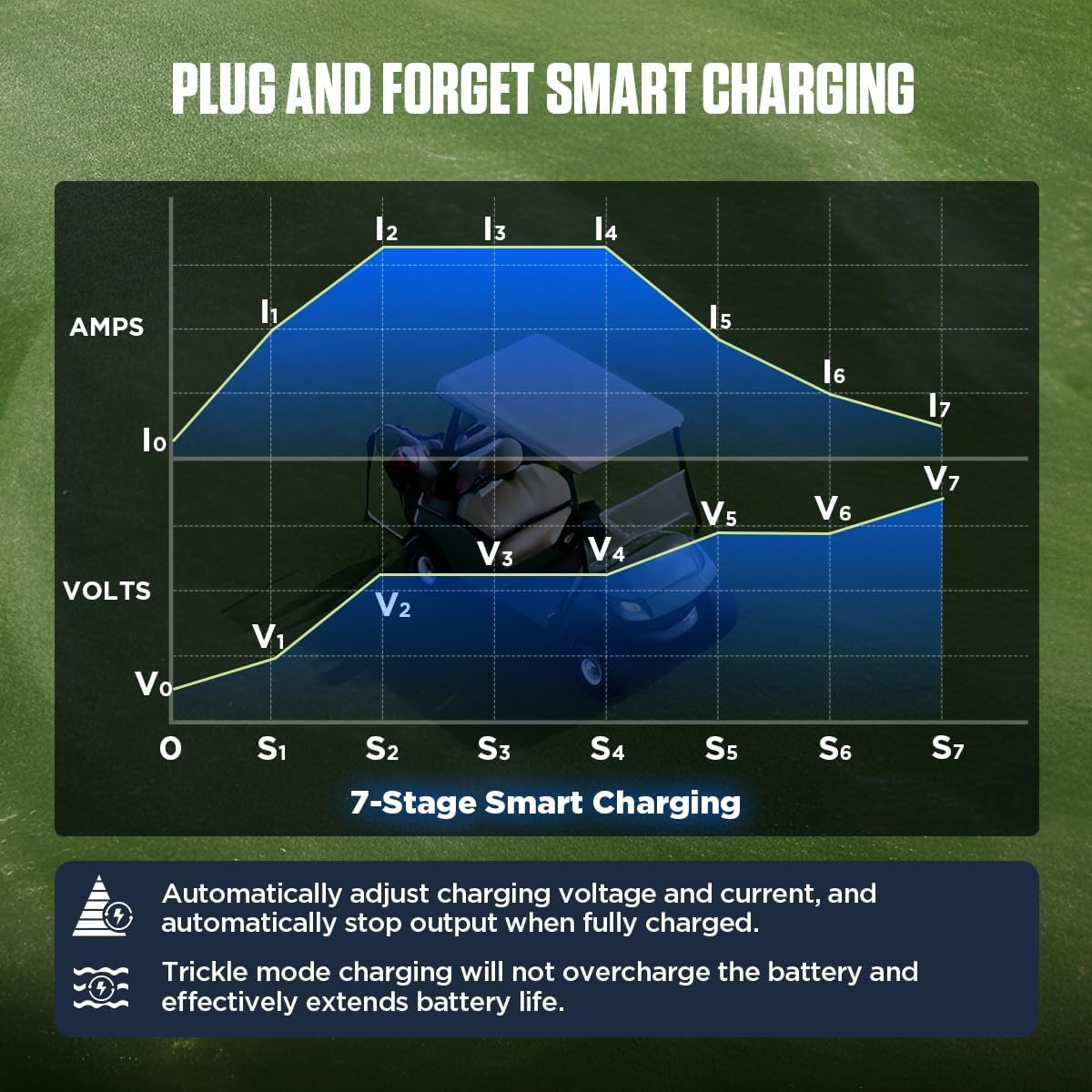

Seven Stages, Then Trickle

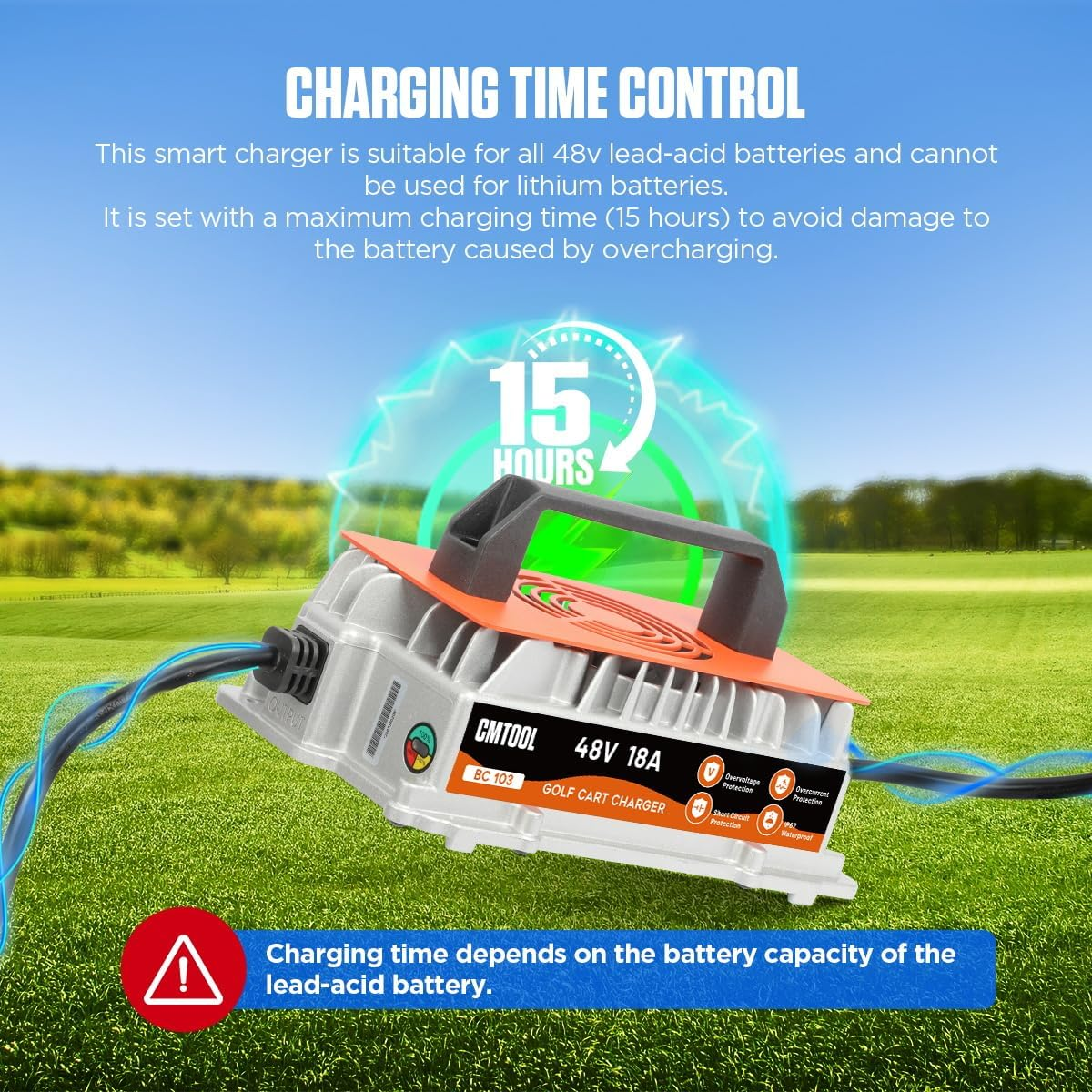

Voltage and current are adjusted automatically through the cycle; at full charge the output stops and trickle mode takes over, with a 15-hour maximum charging time.
-
Six Safety Protections
Over-voltage, over-current, reverse polarity, short-circuit, no-load and over-temperature. If it overheats, the charger shuts down and resumes once the temperature returns to normal.
-

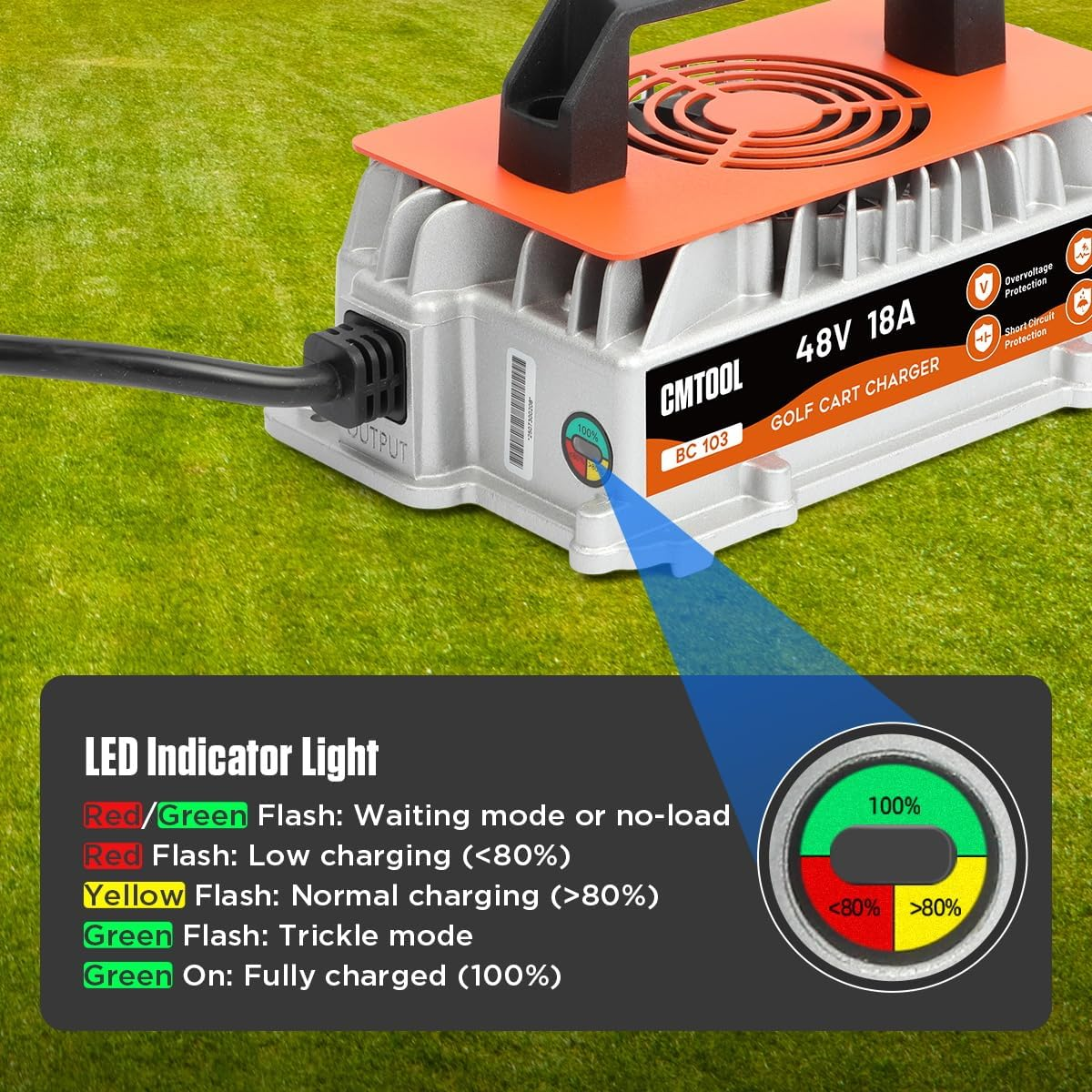

3-Color LED Indicator
Shows every stage from standby to full charge.
-
Outdoor-Rated Housing

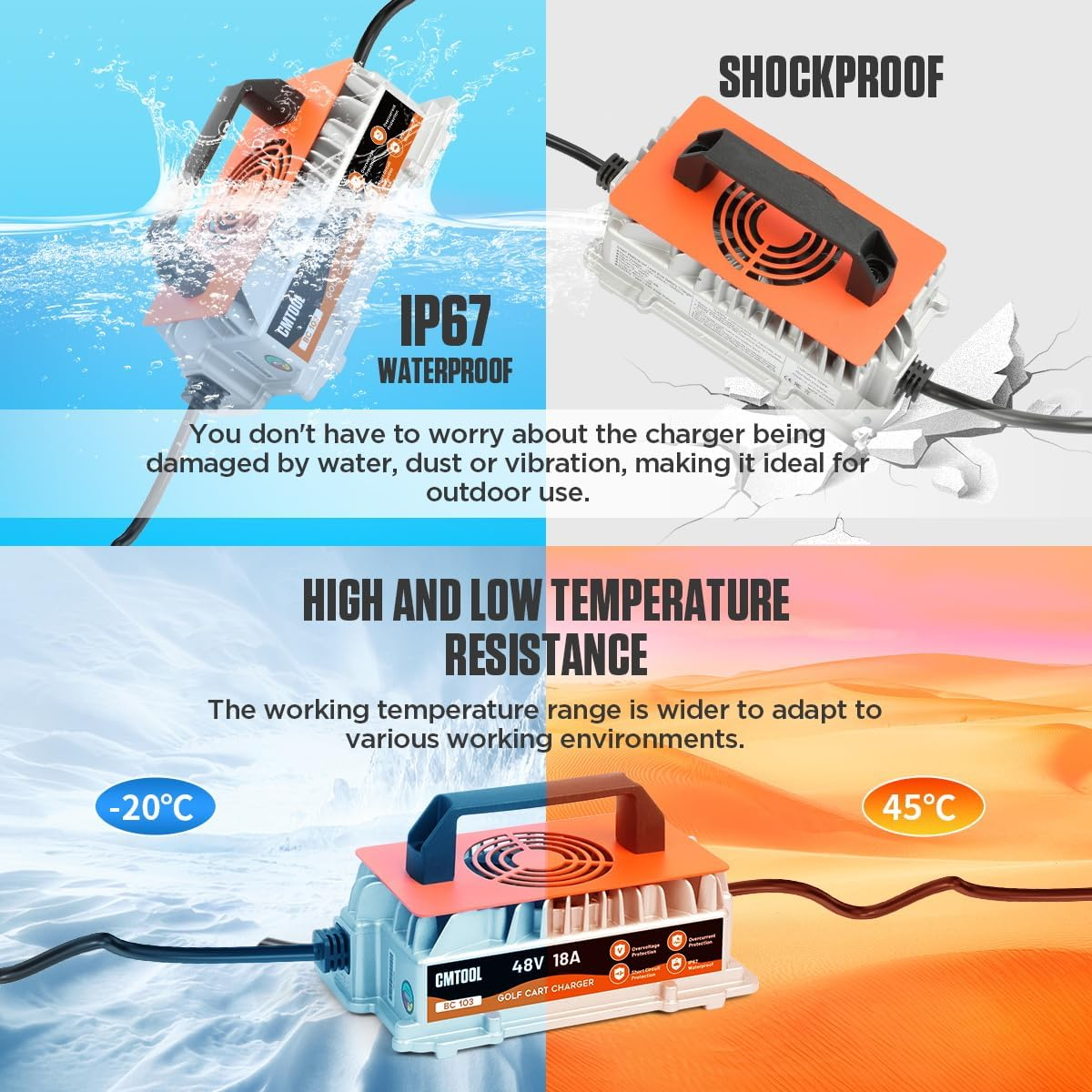

All-aluminum IP67 body with automotive-grade shockproofing and an integrated cooling fan for heat dissipation.
-
Tested Electronics
Uses PFC and LLC technology, and every unit passes a 100% full-load aging test. A built-in handle makes it easy to carry.
Good to Know
Caution
- Designed for 48V lead-acid batteries on EZGO RXV and TXT carts. Confirm your cart uses the 3-pin triangular receptacle before ordering.
