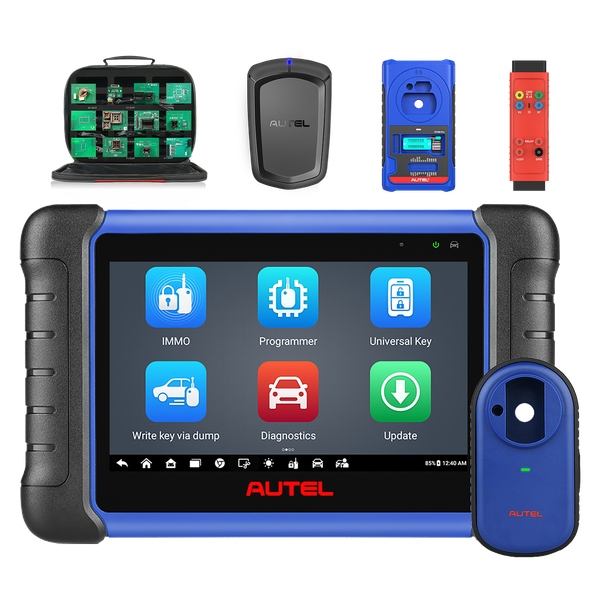

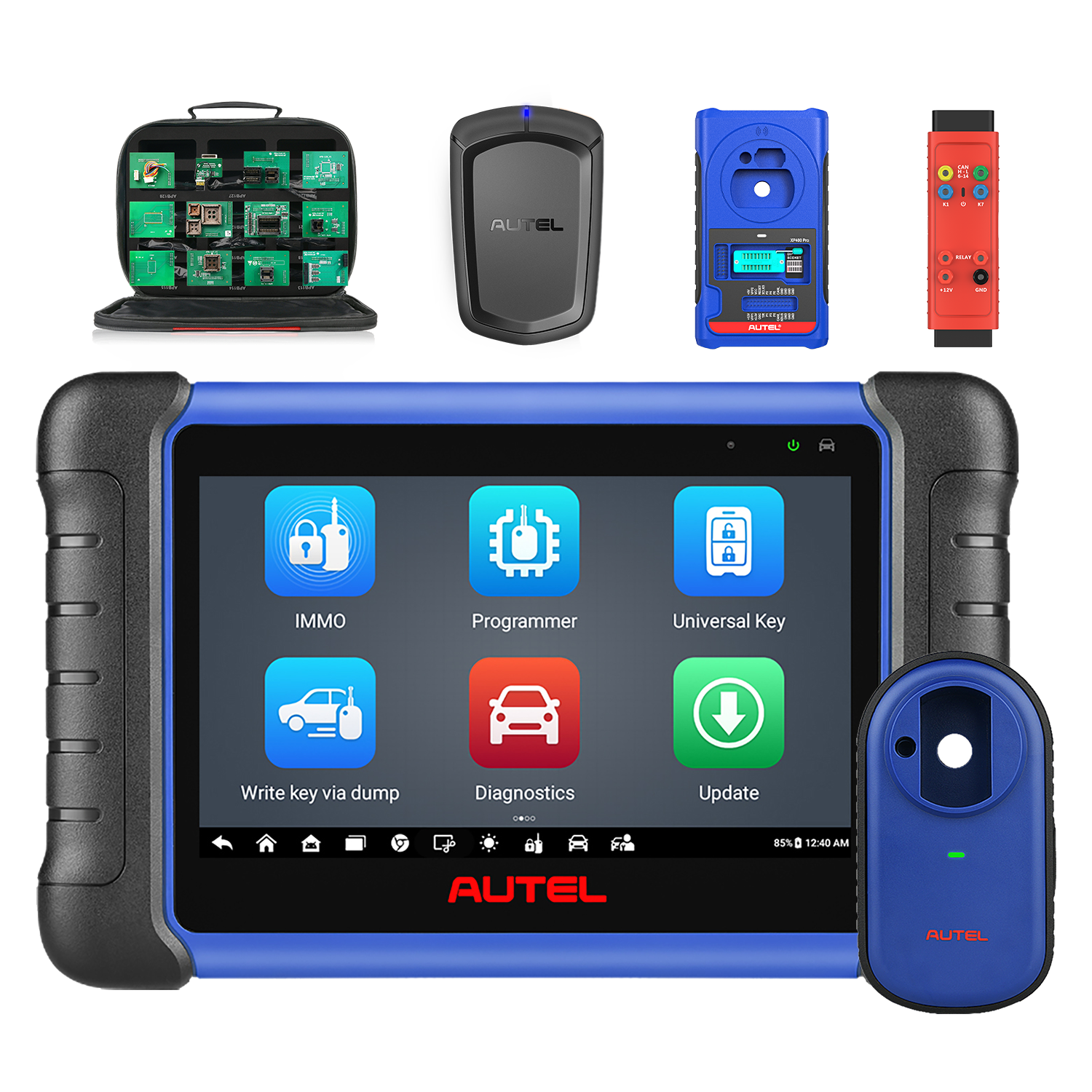

Portable Key Programming and Full-System Diagnostics, Expanded With XP400 Pro
This IM508S full kit includes both the XP200 and the XP400 Pro key programmers, plus IMKPA, APB112 and G-BOX3, for immobilizer and key work including read PIN/CS with all keys lost, alongside full-system diagnostics and service functions.
- XP200 + XP400 Pro
- IMKPA, APB112, G-BOX3
- All Keys Lost / Read PIN
- Mercedes ECU & TCU Cloning
- Smart Mode Guidance
Key Features
-
IMMO and Key Programming
IMMO ECU reset, adaptation, refresh and coding, read PIN/CS, key generation, key learning and remote learning.
-
BBA ECU Cloning
Mercedes-Benz ECU and TCU cloning completes ECU cloning coverage for Mercedes, BMW and Volkswagen.
-
Smart Mode
Guided functions give step-by-step instructions through the whole operation.
-
Service Functions
EPB, DPF, SAS and BMS service, plus TPMS sensor replacement and sensor test.
-
Full-System Diagnostics
Quickly diagnoses all modules on the majority of makes and models.
More Specifications
| Connectivity | Mini USB 2.0, USB 2.0, Wi-Fi, Micro SD card (supports up to 64GB) |
|---|---|
| Charging | 5 VDC power supply; 5 V/1.5 A charging input |
| Power consumption | 500 mA at 3.7 V (LCD on at default brightness, Wi-Fi on) |
| Sensors | Ambient light sensor for automatic brightness |
| Audio output | Buzzer |
| Operating temperature | 0 to 50°C (32 to 122°F) |
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Operating humidity | 5%–95% non-condensing |

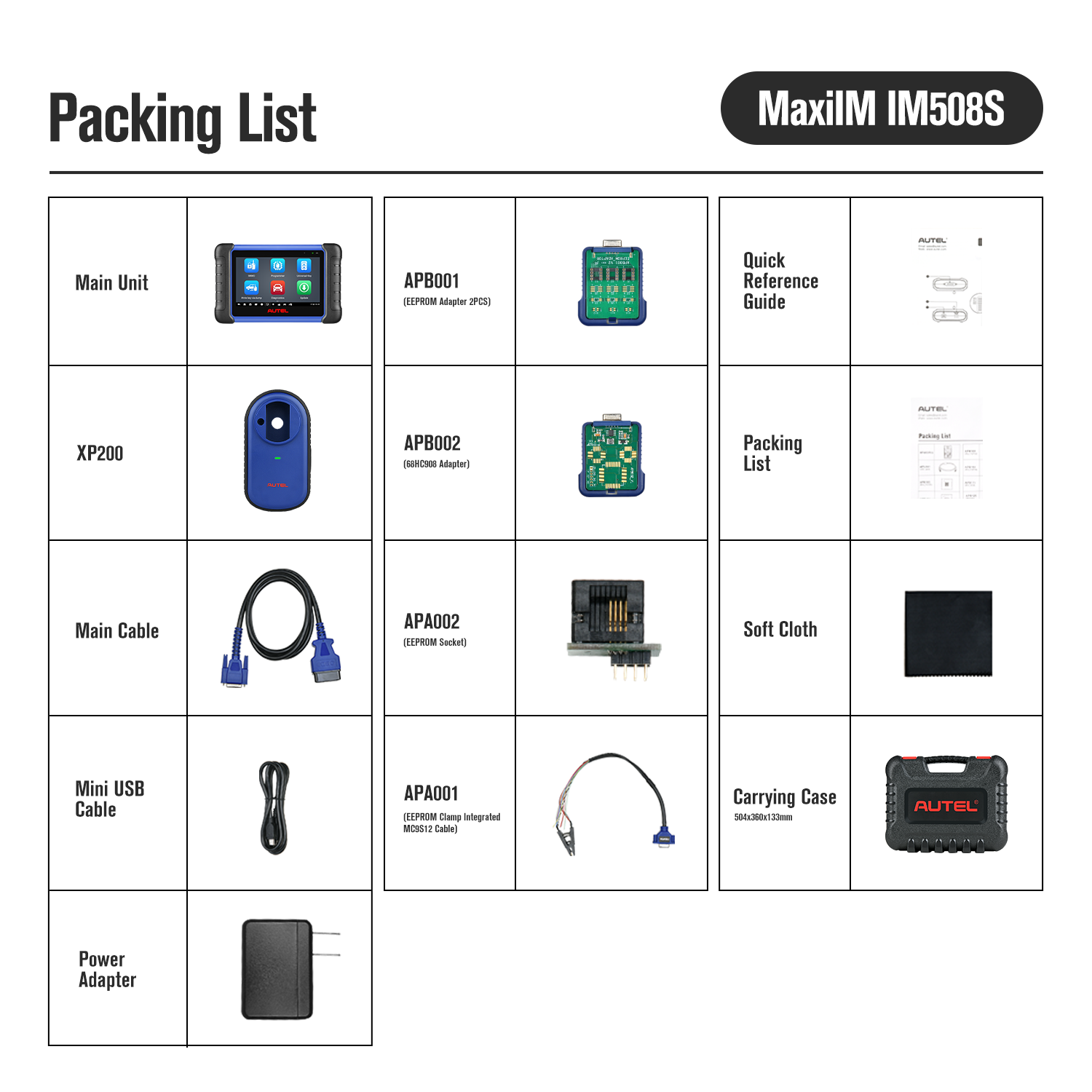

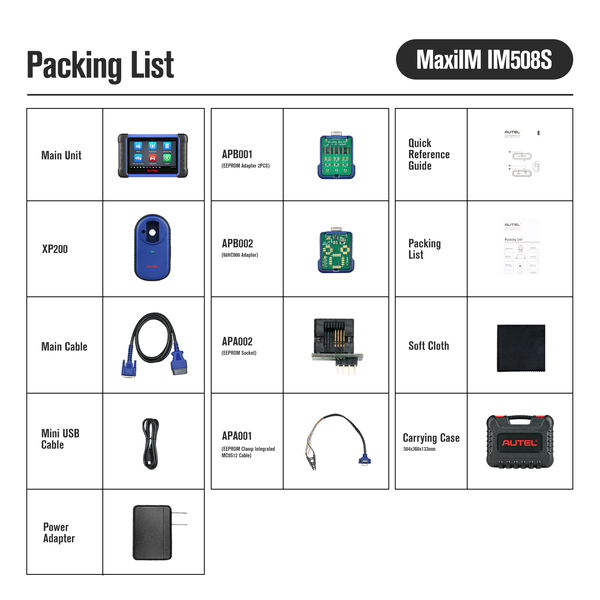

What’s in the Box
- 1×IM508S main unit
- 1×XP200 key programmer

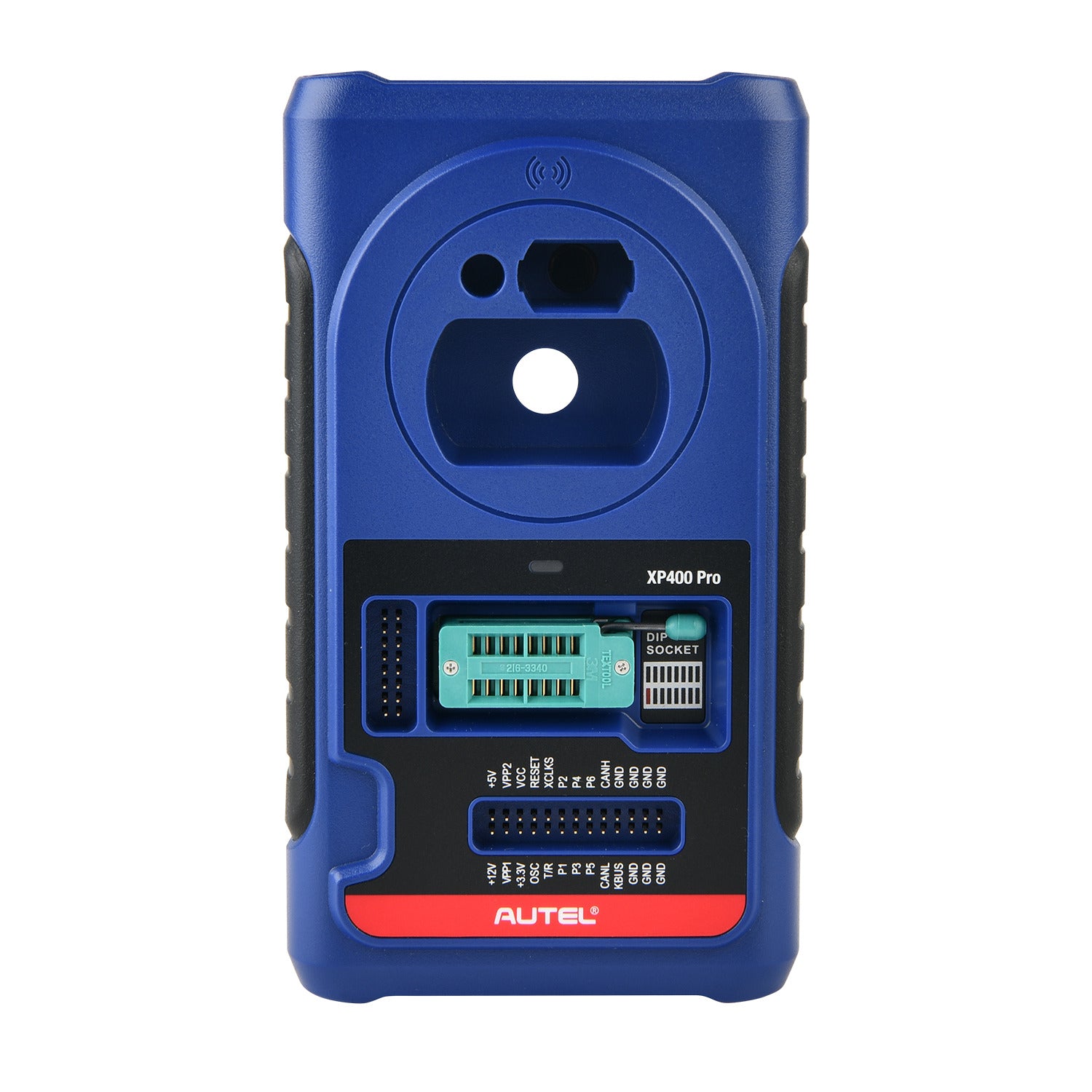

- 1×XP400 Pro key programmer

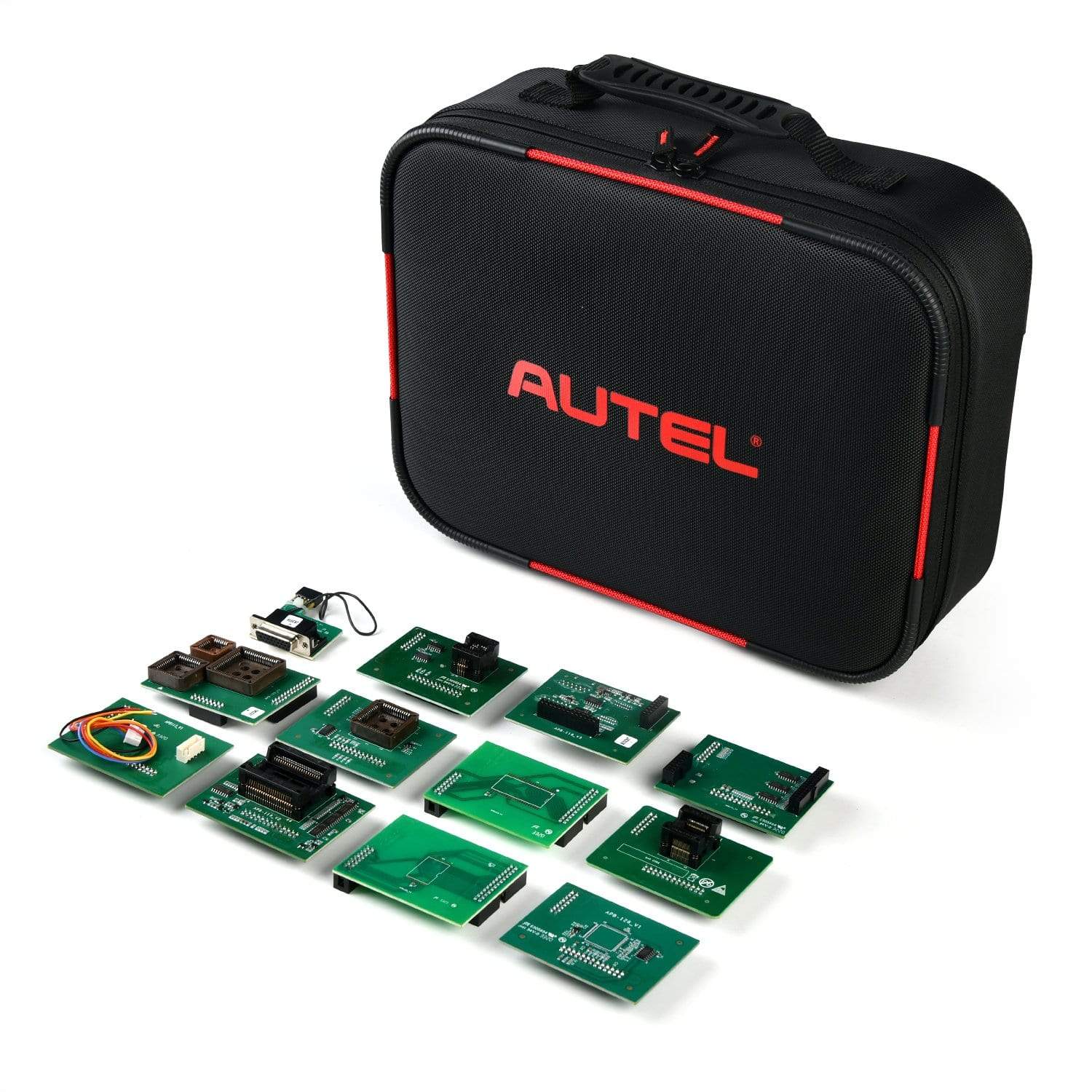

- 1×IMKPA

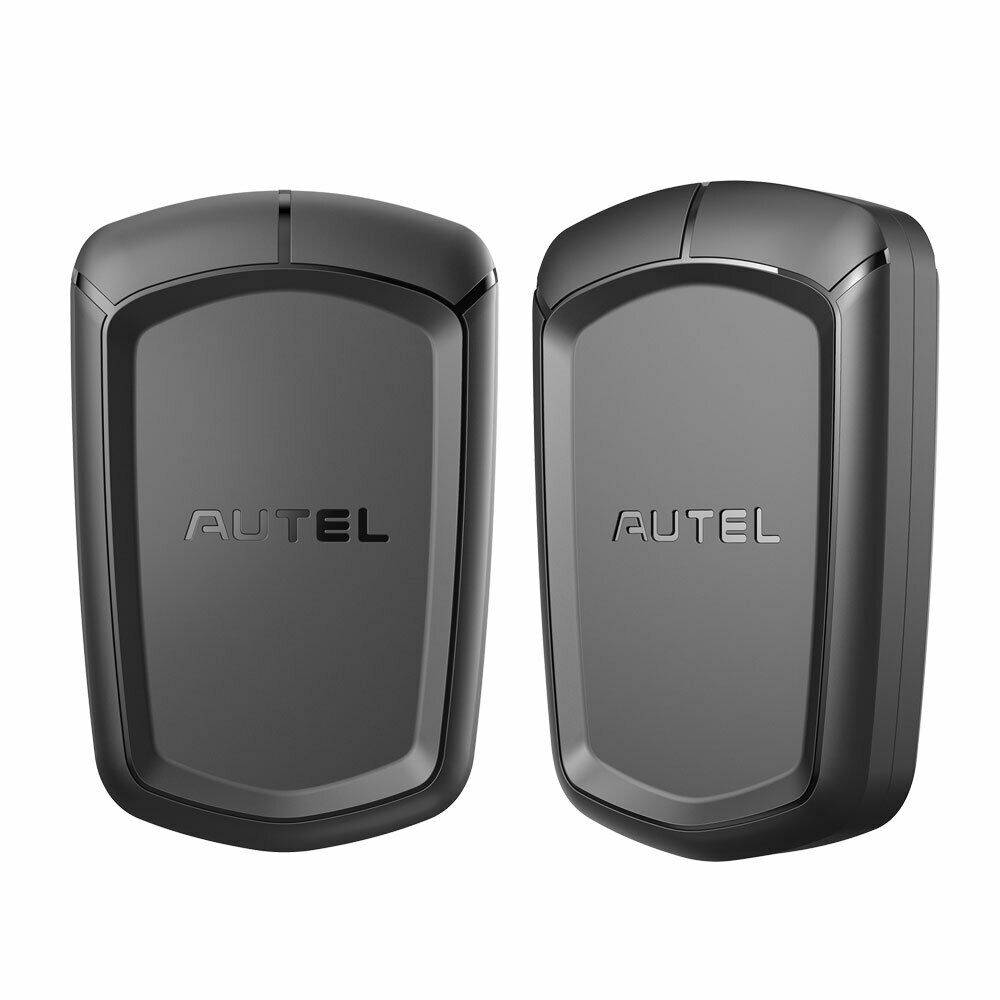

- 1×APB112

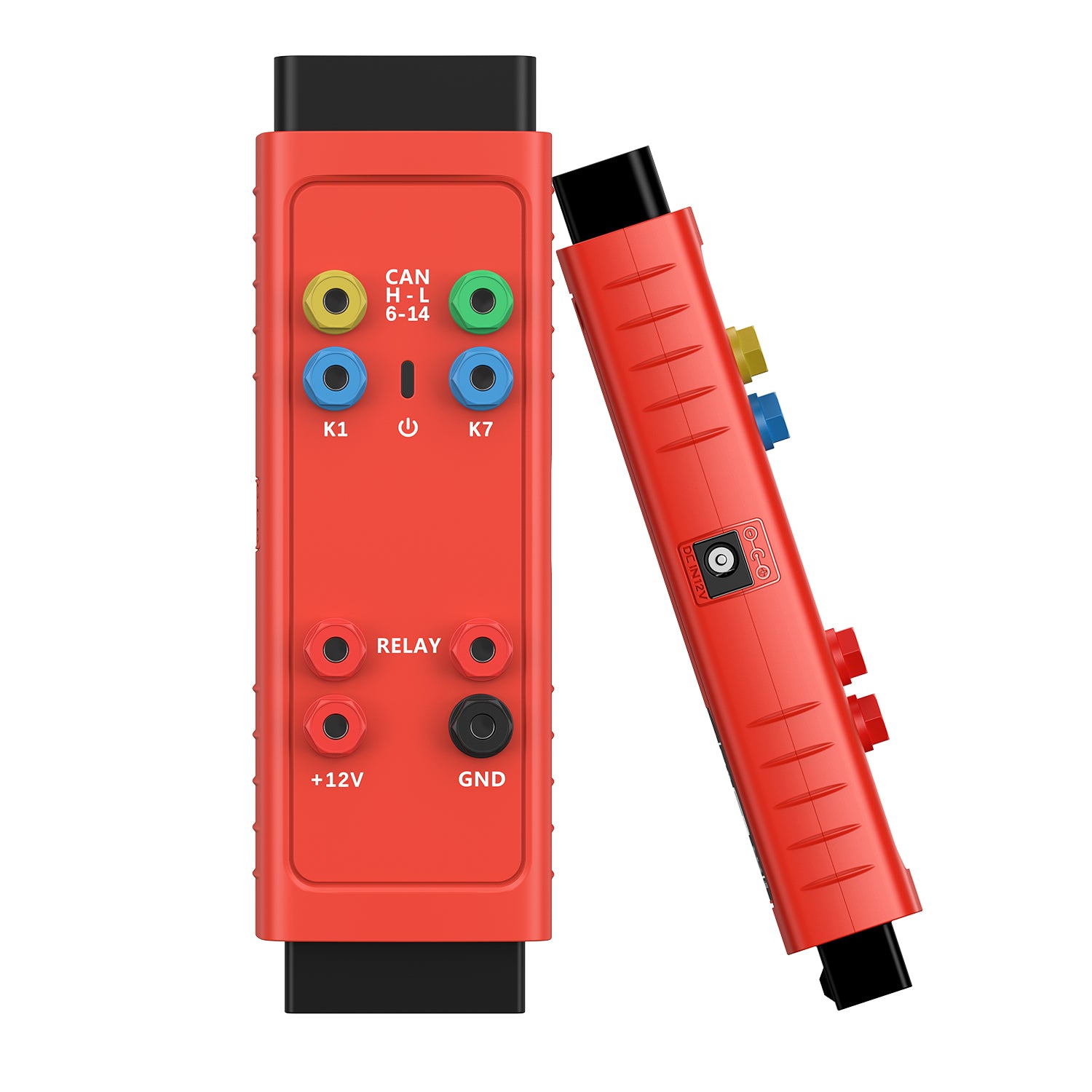

- 1×G-BOX3
- 1×Main cable
- 1×Mini USB cable
- 1×Power adapter
- 1×APB001 EEPROM adapter
- 1×APB002 68HC908 adapter
- 1×APA002 EEPROM socket
- 1×APA001 EEPROM clamp with integrated MC9S12 cable
- 1×Packing list
- 1×Soft cloth
- 1×Quick reference guide
- 1×Carrying case (504 × 360 × 133 mm)
Setup and operation: IM508S user manual (PDF) and IM508S quick guide (PDF).
Good to Know
Caution
- Under a North American IP address, the MaxiIM IM508 series requires an active NASTF SDRM subscription, which is not included and must be purchased separately.
- ECU programming is not available on this tool.
