Key Features

1. Engine (ECM)

   Retrieves current, permanent and pending codes, turns off the check engine light and shows OBD II extended data such as fuel and emissions data.

2. ABS and SRS

   Reads and clears ABS codes with live ABS data, and checks the electronic parameters of the airbag system, including impact sensors and the control module.

3. Transmission and Body

   Reads TCM codes and turns off the transmission light after repair; diagnoses the BCM that controls lamps, wipers, door locks, power windows and sunroofs.

4. TPMS Check

   Checks that the sensor IDs stored in the control unit match the tire pressure sensors.

5. Service Resets After Repair

   EPB reset after replacing brake pads, wear sensor lines or the servomotor; steering angle learning after steering parts are replaced; throttle matching after replacing or cleaning the throttle or replacing the ECU; plus oil, TPMS, ABS bleeding and DPF regeneration.

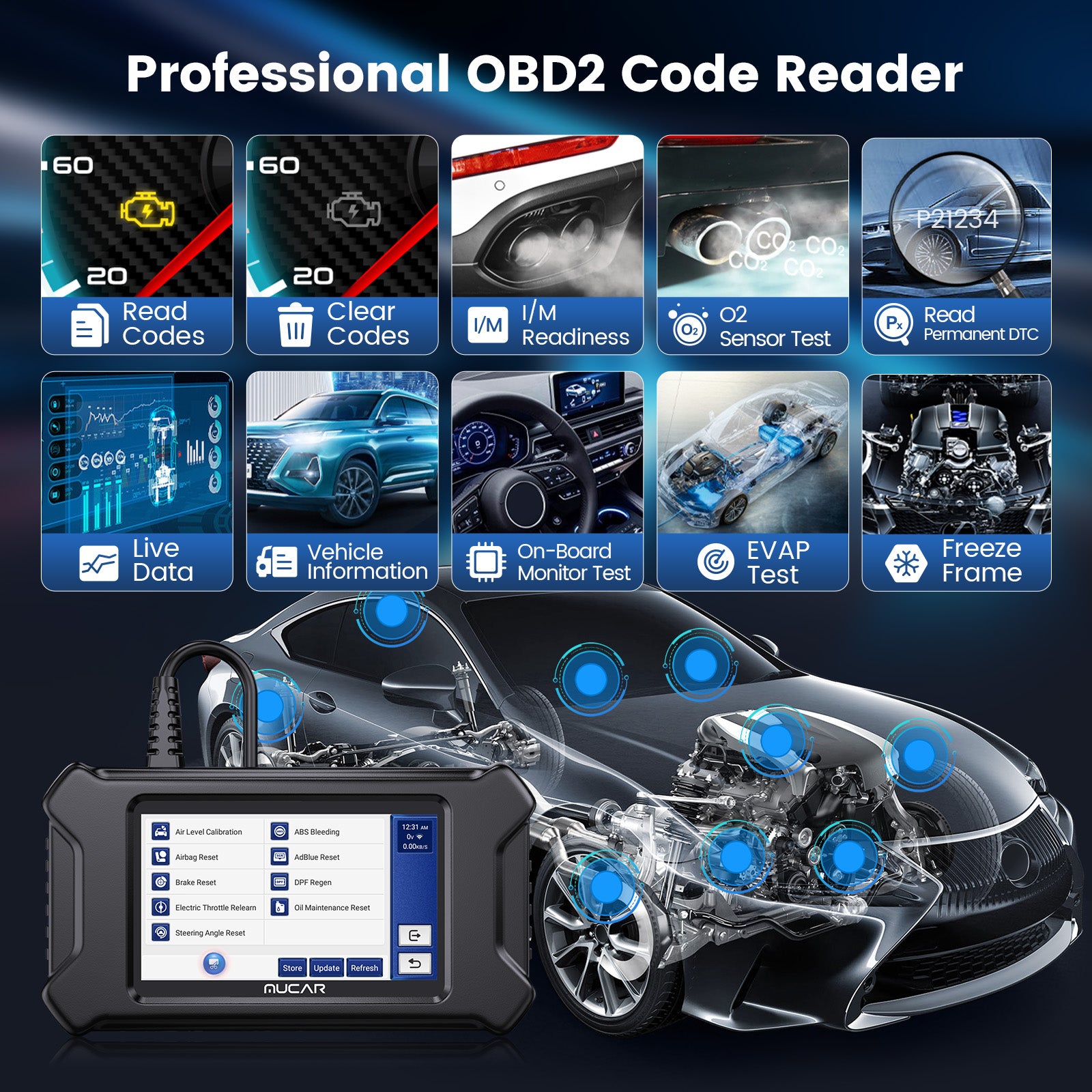

6. Full OBDII Functions

   Freeze frame, I/M readiness, O2 sensor test, on-board monitor tests, EVAP leak test, VIN, CIN and CVN retrieval, and a built-in DTC library with cause analysis.

7. Live Data Record and Playback

   Record up to 10 PIDs at once and play them back as text or graphs, with two independent graphs or 4 PIDs combined.

8. Online Maintenance Resources

   Operating tips, DTC help, an automotive technology handbook, repair cases and how-to videos.

More Specifications

What’s in the Box

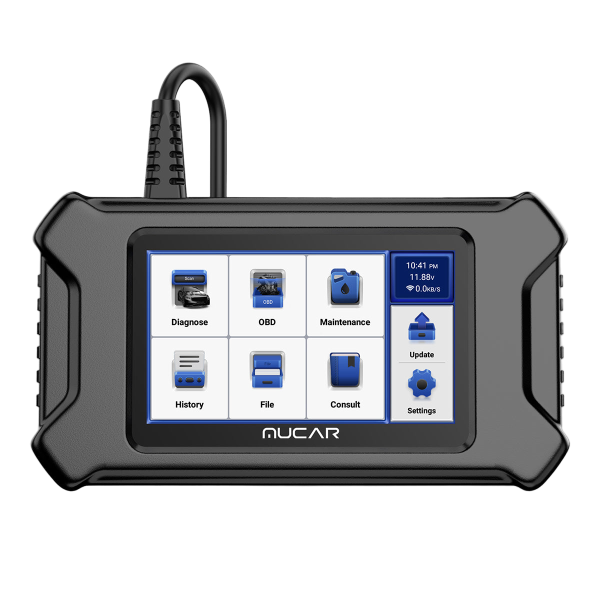

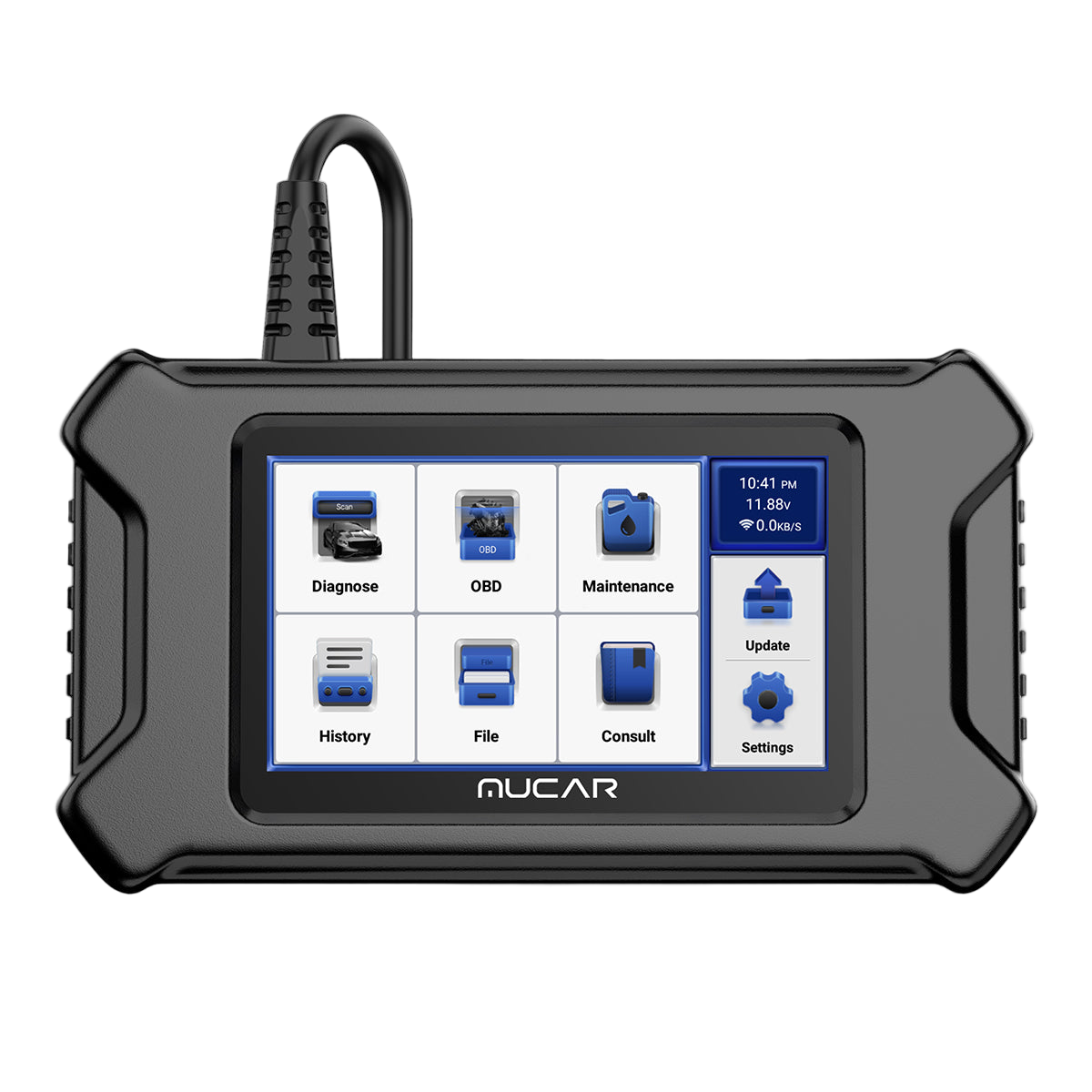

• 1×MUCAR CS6 host
• 1×Manual
• 1×Charging cable
