Specifications

BrandOBDSTAR
SKUOBDSTAR-4325
VersionHKSR27,HKSO564
Weight1.2 lbs
Main FunctionsAirbag reset (OBD/BENCH), Audi/Volvo battery reset (BENCH), SAS reset, Volvo ECM reset, Tesla airbag (BENCH)
Coverage108 brands, 16600+ ECU part numbers and some MCUs (H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570)
Advanced FunctionsRead ECU info, read/clear codes, read/write EEPROM/FLASH, write VIN, clear crash data, unlock ECU
Operating SystemAndroid 5.1.1
ProcessorRK3128 quad-core ARM Cortex A7
Storage16GB, supports 32G micro SD
Display5.0-inch capacitive touch screen, 800*480
Battery2600mA lithium polymer battery
Operating Temperature-20°C ~ 55°C
Dimensions198mm*115mm*31mm
LanguagesEnglish only
Compatibility108 brands incl. Tesla; Hyundai/Kia 95910 series TC2xxx and some Toyota 89170 series require the CAN FD adapter (included)
Software Updates1 year free, then paid annual renewal; registration required, dealer code 0086A002; Odo Master functions via purchasable license

Details

Airbag, Battery and SAS Reset With the CAN FD Adapter Included

The OBDSTAR P50 is a handheld airbag reset tool for 108 brands. It ships with the CAN FD adapter that Hyundai/Kia 95910-series TC2xxx and some Toyota 89170-series airbag modules require, plus the P004 bench adapter. Check the supported list before ordering.

  • 108 Brands
  • CAN FD Adapter Included
  • OBD and BENCH Modes
  • Audi / Volvo Battery Reset
  • Tesla Bench Airbag Reset

Key Features

  1. One-Click Airbag Reset

    Find the module by fuzzy part-number search, then follow the clear BENCH-mode wiring diagrams and fault-code description files.

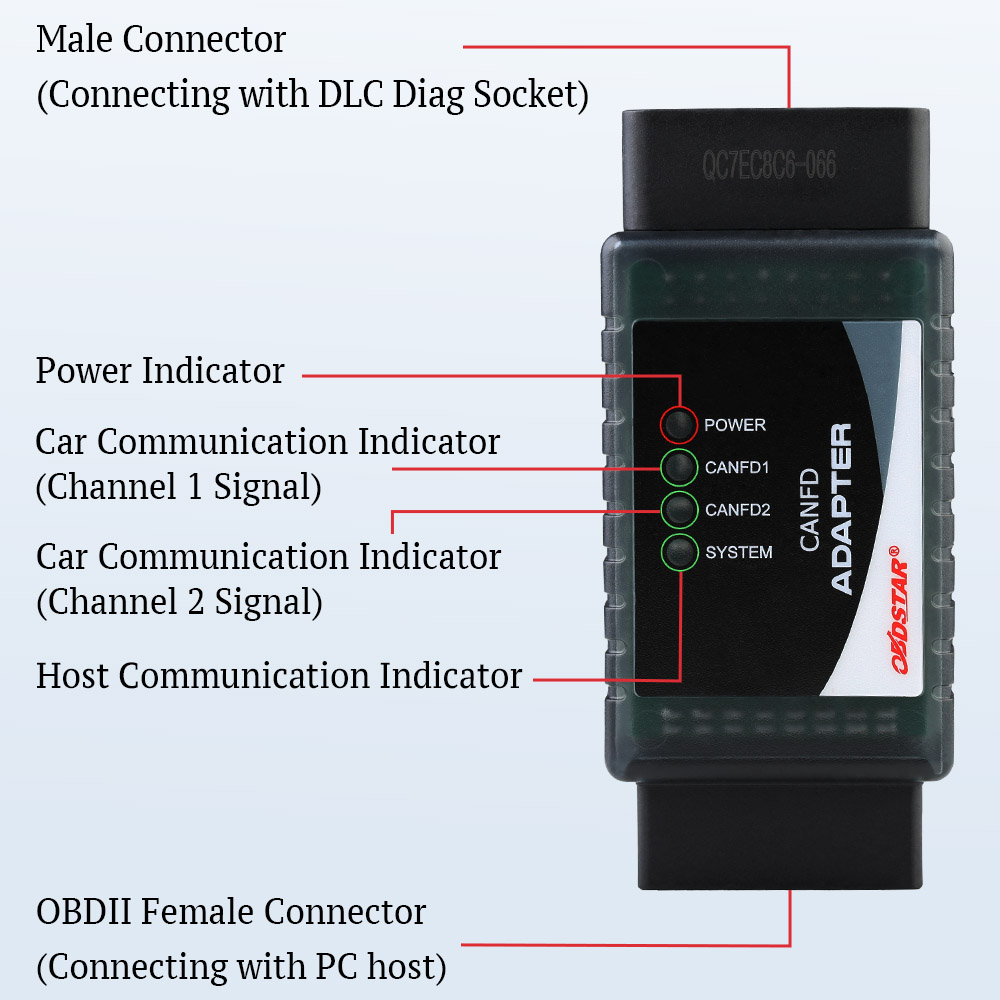

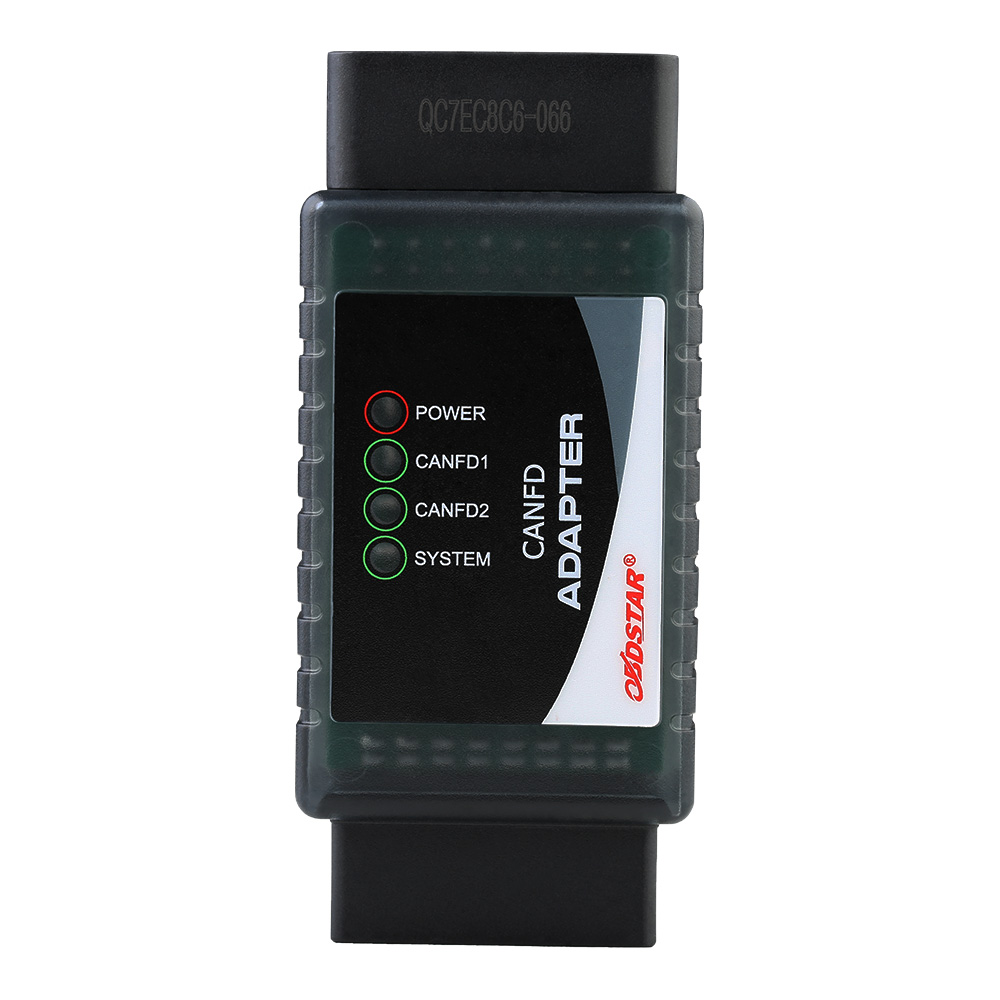

  2. CAN FD Support

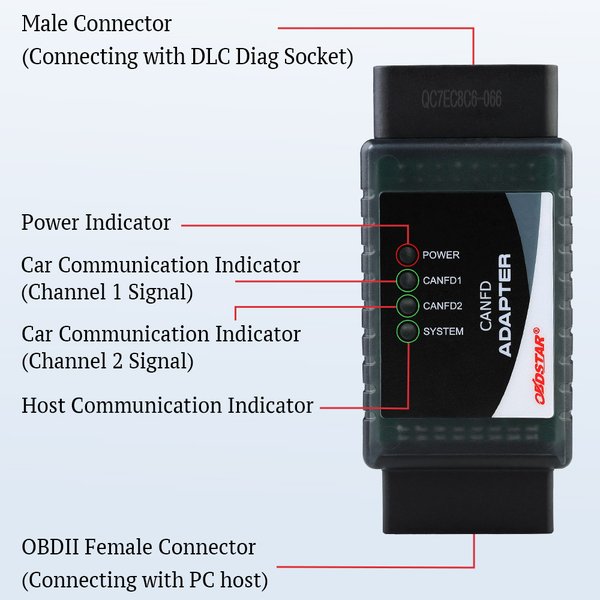

    The adapter’s female connector joins the OBDII-16 cable and its male connector goes to the vehicle diagnostic socket, enabling bench airbag reset on Hyundai/Kia TC2xxx types.

  3. Battery Reset by BENCH

    Audi BMS and Volvo MVBM battery modules are reset on the bench.

  4. Tesla and SAS Functions

    Tesla bench airbag reset and steering angle sensor reset, including Toyota SAS.

  5. ECU Data Read/Write

    Read ECU part number information, read and clear fault codes, back up and write EEPROM data, and read and write flash.

  6. P004 Bench Adapter

    Keeps communication whether its 12 V power button is on or off, switches the 120 Ω CAN resistance at any time, supports 6&14 and 3&11 CAN together plus GM single-wire CAN and K-line, and its DB15 connector works with any OBDII-16 I/O interface.

Highlights

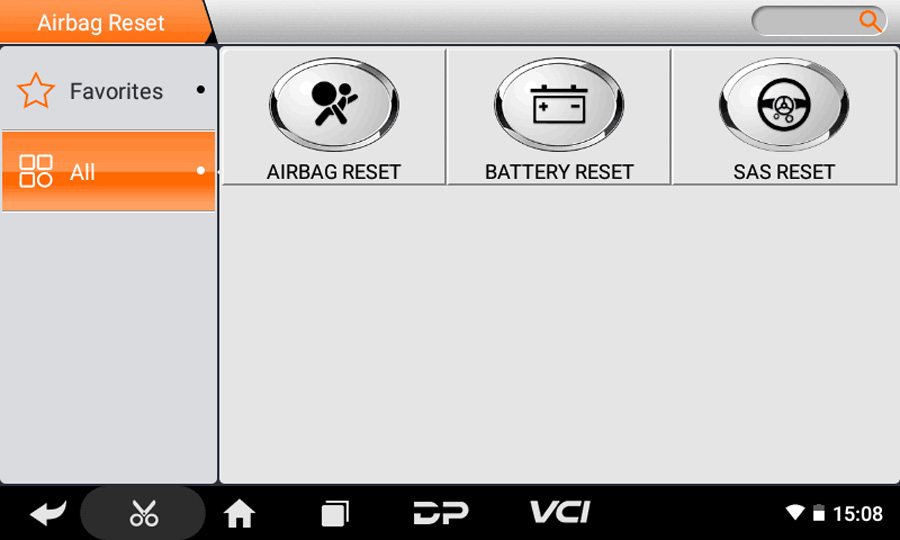

OBDSTAR P50 function menu with Airbag Reset, Battery Reset and SAS Reset
Three Reset Functions

Airbag, battery and SAS reset from one menu, with a favorites list.

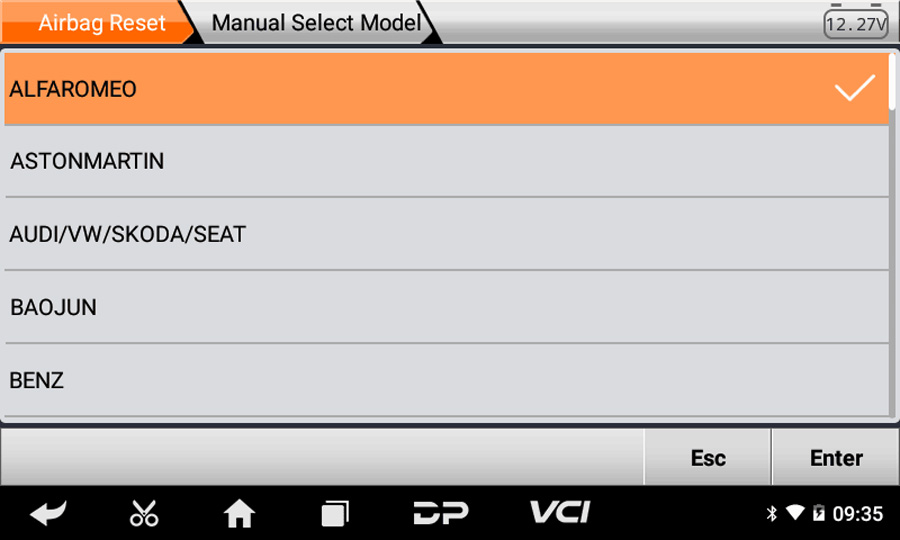

OBDSTAR P50 airbag reset manual model selection list
Select by Brand

Pick the brand manually to reach the matching airbag modules.

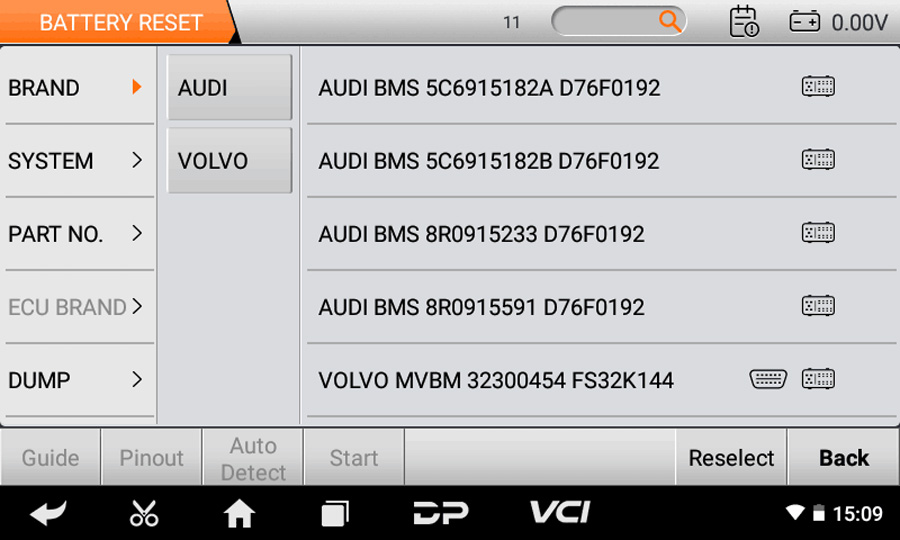

OBDSTAR P50 battery reset screen listing Audi BMS and Volvo MVBM modules
Battery Reset

Filter by brand, system or part number, with guide and pinout buttons.

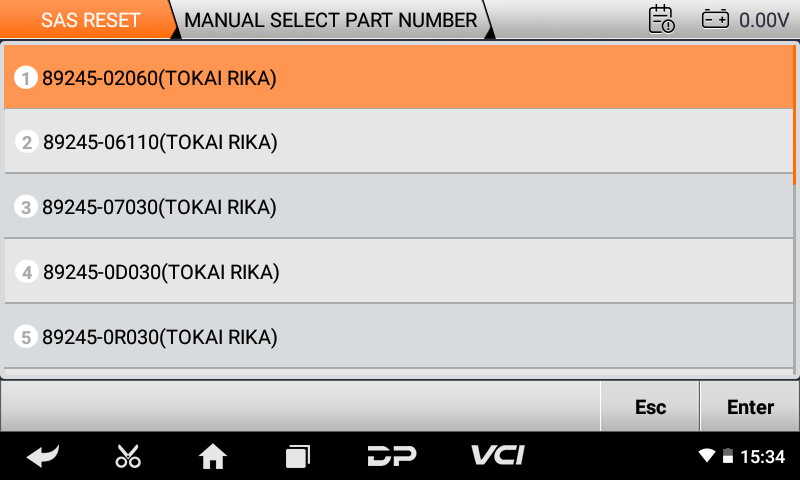

OBDSTAR P50 SAS reset part number selection for Tokai Rika sensors
SAS Reset

Choose the sensor by part number or by type.

More Specifications

Wi-Fi Supported
Storage temperature -20 to 70 °C (-4 to 158 °F)

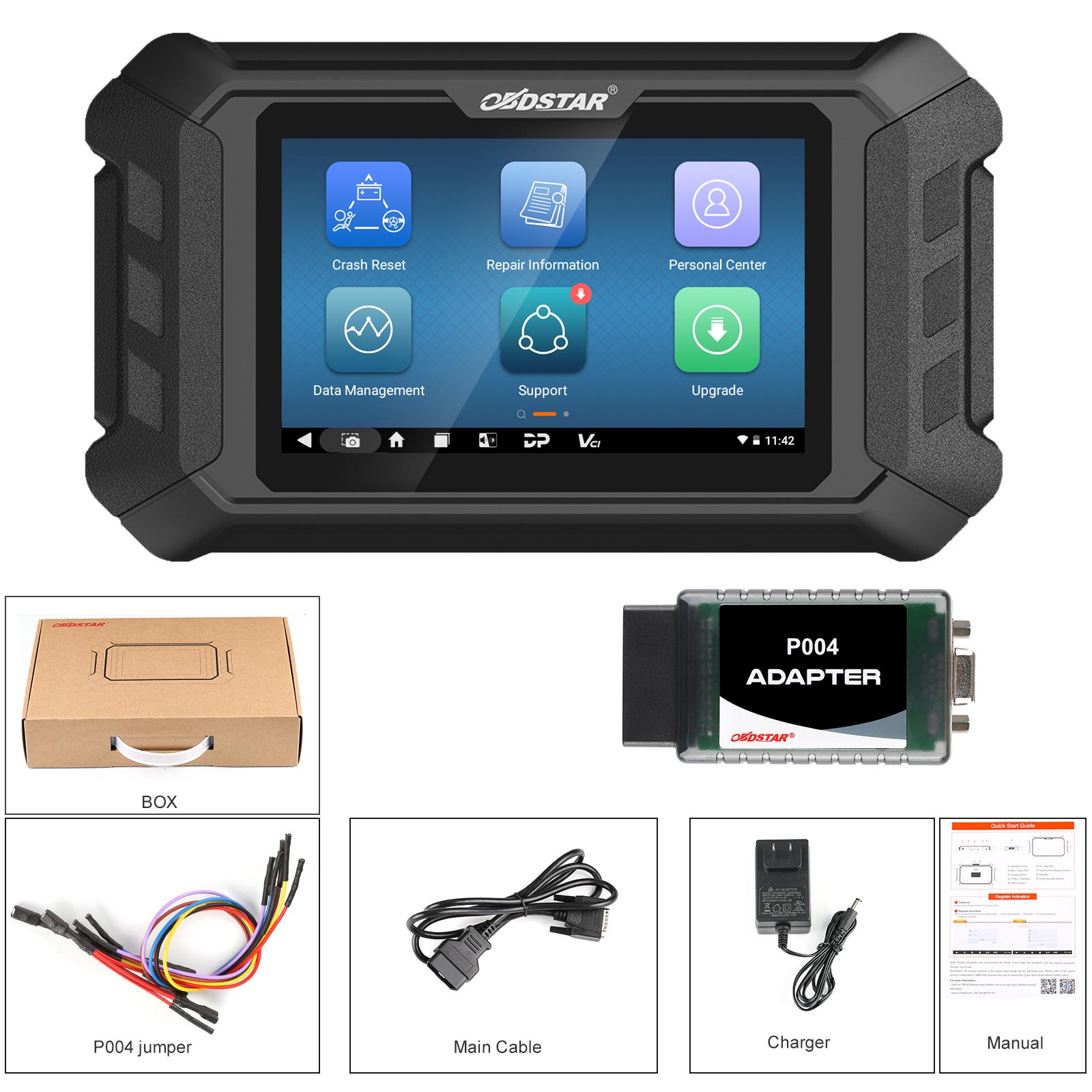

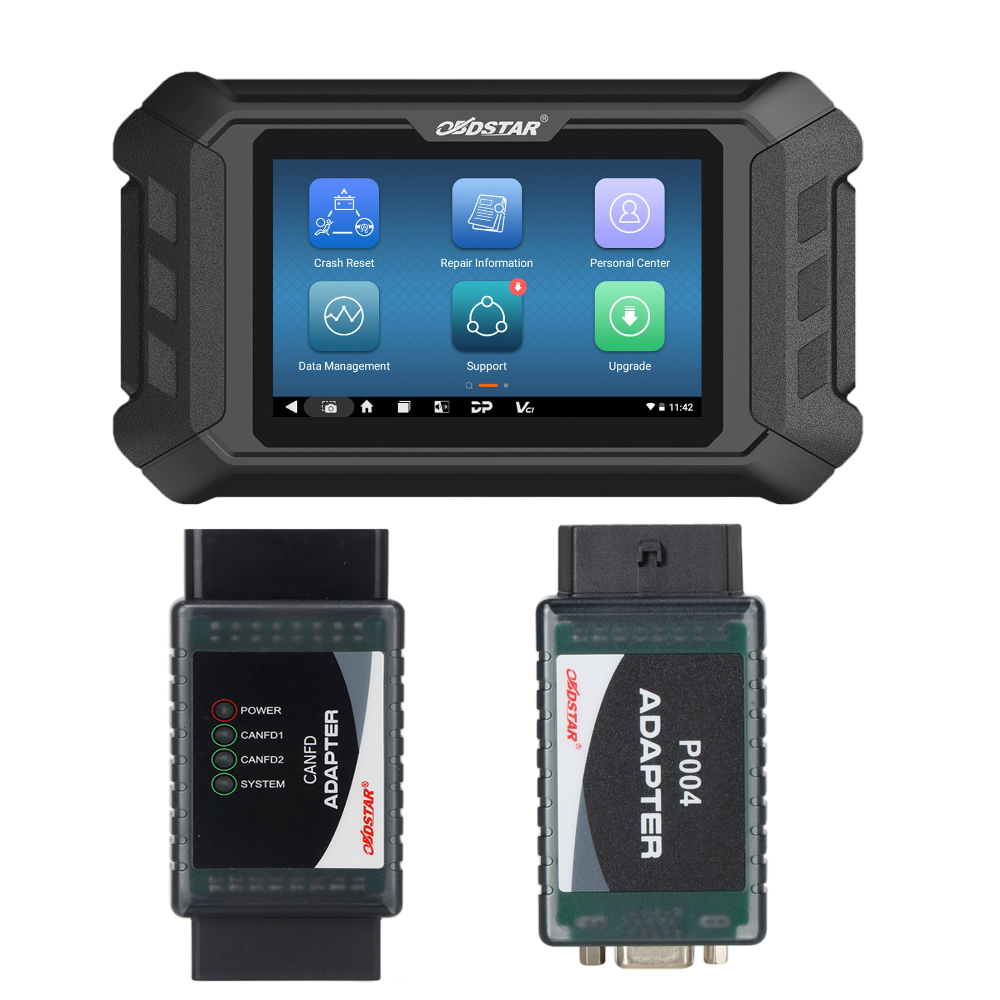

What’s in the Box

  • 1×P50 main unit
  • 1×Main cable
  • 1×P004 adapter
  • 1×P004 jumper
  • 1×12 V 2 A charger
  • 1×CAN FD adapter

Operating instructions: P50 user manual (PDF).

Good to Know

Caution
  • ECU clone cannot be added to the P50.
  • Part numbers listed as DIAG ONLY support fault-code reading only.
  • Part numbers listed as PARTIALLY or BETA may not work, and no further solution is available.
  • JTAG mode requires the MP001 and the RH850/V850 adapter, which are not included.
Care
  • Register the device before first use.

You may also like

Select specifications

More

Delivery

Shipping calculated at checkout

Service

  • Secure checkout

    Payments are processed over an encrypted connection.

  • After-sales support

    Contact us for installation or usage questions.

Specifications

Brand
OBDSTAR
SKU
OBDSTAR-4325
Version
HKSR27,HKSO564
Weight
1.2 lbs
Main Functions
Airbag reset (OBD/BENCH), Audi/Volvo battery reset (BENCH), SAS reset, Volvo ECM reset, Tesla airbag (BENCH)
Coverage
108 brands, 16600+ ECU part numbers and some MCUs (H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570)
Advanced Functions
Read ECU info, read/clear codes, read/write EEPROM/FLASH, write VIN, clear crash data, unlock ECU
Operating System
Android 5.1.1
Processor
RK3128 quad-core ARM Cortex A7
Storage
16GB, supports 32G micro SD
Display
5.0-inch capacitive touch screen, 800*480
Battery
2600mA lithium polymer battery
Operating Temperature
-20°C ~ 55°C
Dimensions
198mm*115mm*31mm
Languages
English only
Compatibility
108 brands incl. Tesla; Hyundai/Kia 95910 series TC2xxx and some Toyota 89170 series require the CAN FD adapter (included)
Software Updates
1 year free, then paid annual renewal; registration required, dealer code 0086A002; Odo Master functions via purchasable license

Write a review

OBDSTAR P50 Airbag Reset Tool with CAN FD Adapter – 108 Brands, 16,600+ ECU Part Nos.
Overall rating *
What stood out?optional, up to 3
Add photos0 / 5
JPG, PNG or WebP, up to 5 MB each.

Reviews are checked before they appear. Verified Purchase is added automatically when your email matches an order.

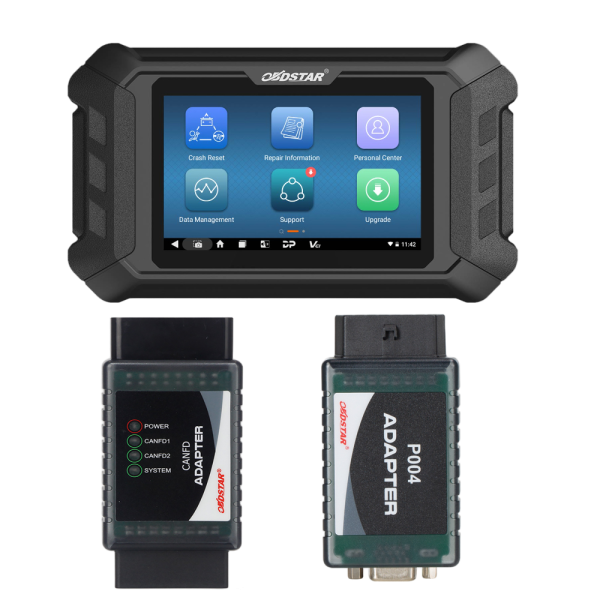

[US/EU No Tax] OBDSTAR P50 Airbag Reset Tool with CAN FD Adapter Support Battery Reset/ SAS Reset/ ECM Reset/ Tesla Airbag Reset
