Specifications

BrandOBDSTAR
SKUOBDSTAR-4270
VersionHKPP117
Weight1.5 lbs
ConfigurationIncludes M041 cable, supports 2019 and later Ducati
Dedicated BrandDucati motorcycle diagnostics + key programming
Diagnostic FunctionsAuto scan, VIN recognition, module programming, cluster coding, TPMS, service light reset, CO/idle adjustment, ABS settings, etc.; can activate fog lights/heated grips
Storage16GB
Operating SystemAndroid 5.1.1
ProcessorRK3128 quad-core ARM Cortex A7
Display5.0-inch capacitive touch screen, 800*480
Battery2600mA rechargeable lithium polymer battery
ConnectivityWiFi supported
Operating Temperature-20°C~55°C (14°F~131°F)
Dimensions198mm*115mm*31mm
Vehicle CoverageDucati motorcycles, some models up to 2025 (including 2019 and newer)
LanguagesEN, ES, PT, FR, DE, IT
Software Updates1 year free, then paid annual renewal; mileage adjustment requires a separately purchased license

Details

Diagnostics, Service Resets and Key Programming for Ducati

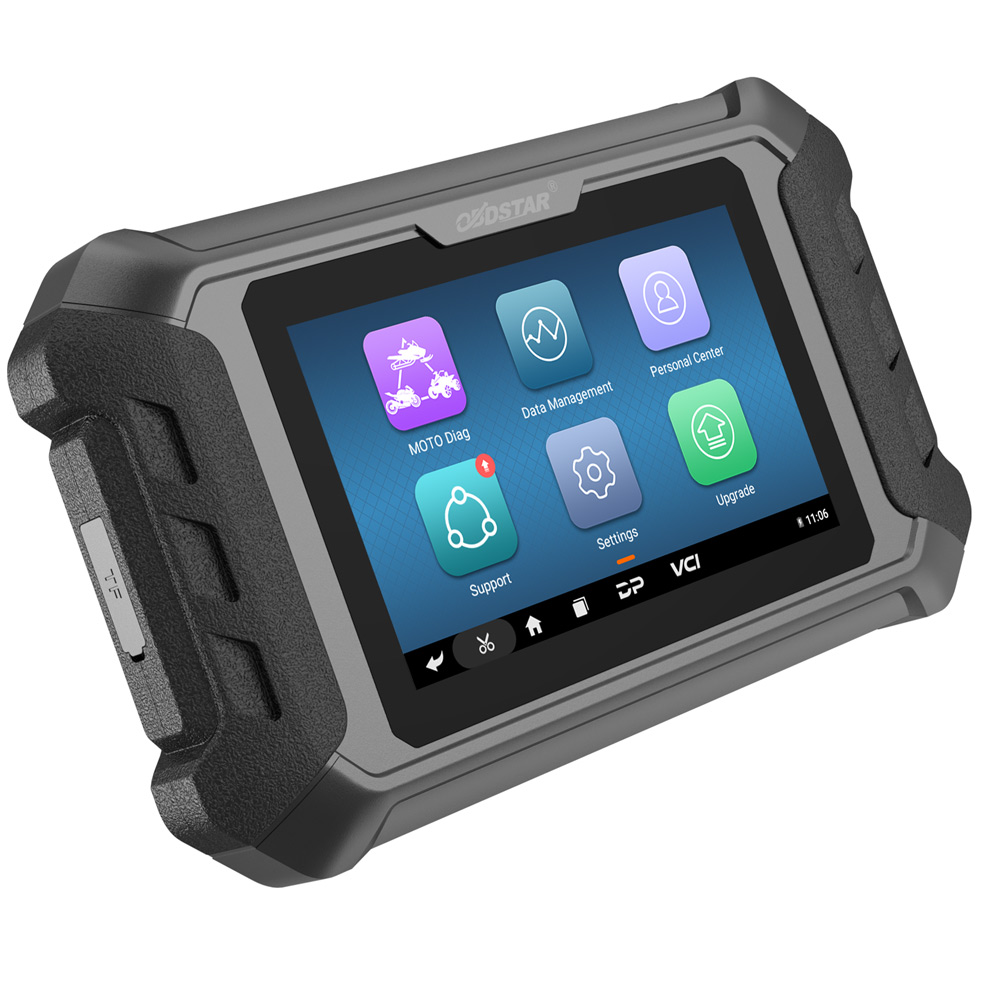

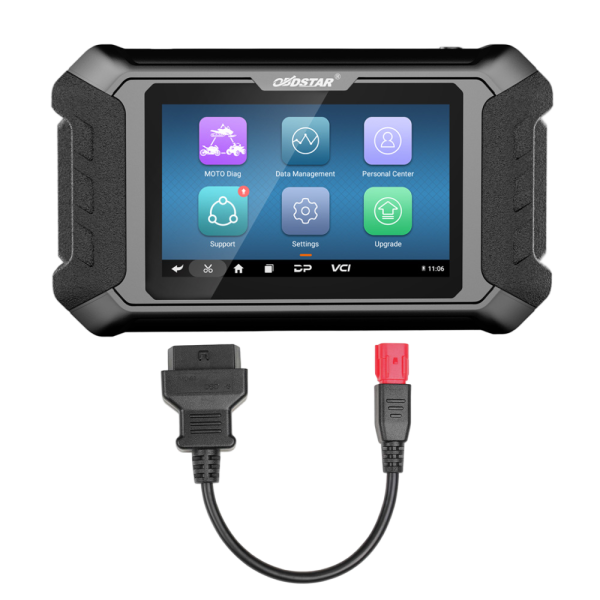

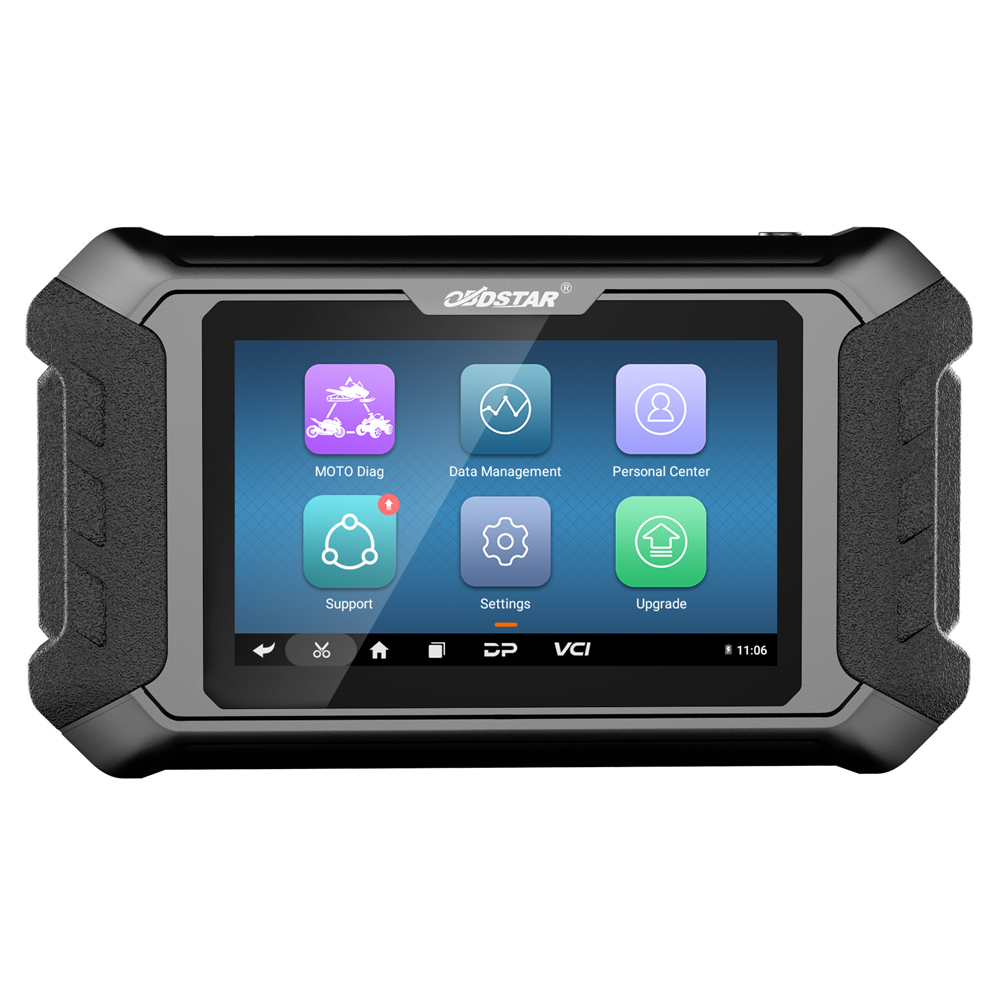

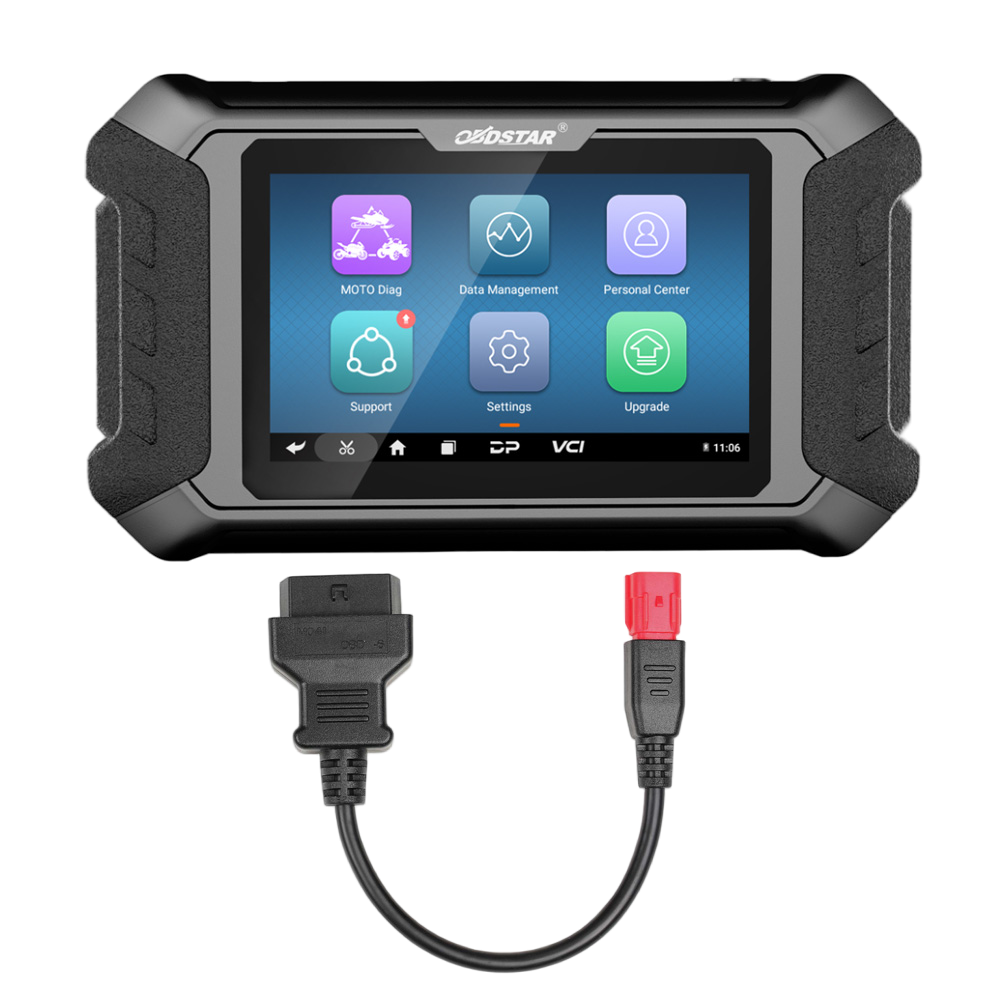

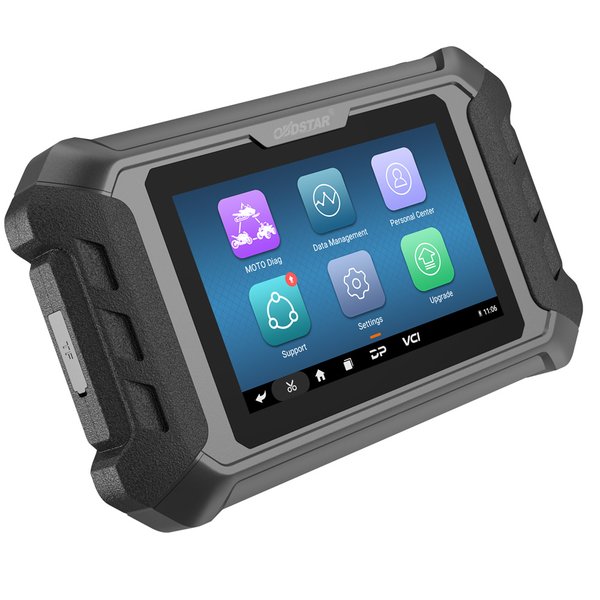

The OBDSTAR iScan Ducati is a dedicated handheld tablet for 2019 and newer Ducati motorcycles, covering full diagnostics, service resets, module coding and key programming. Coverage reaches some 2025 models; check the supported list before ordering.

  • Ducati 2019+
  • M041 Cable Included
  • Key Programming
  • Service Light Reset
  • 1 Year of Updates

Key Features

  1. Complete Diagnostics

    Read and clear codes, live data, actuation tests, settings and coding, with auto scan and automatic VIN recognition.

  2. Service and Adjustment Functions

    Service light reset, CO and idle adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset and computer memory clearing.

  3. Programming and Coding

    Control module programming and coding, ECU settings, instrument cluster coding and TPMS.

  4. Key Programming

    Adds keys without a PIN code on immobilizer models including the Diavel, XDiavel and Multistrada 1200 family (European models, 2010 onward).

  5. Feature Activation

    Activates fog lights and heated grips on the Ducati Multistrada V4 S 2022.

  6. Live Data Analysis

    Record and play back data streams as text, waveform or gauge views to locate sensor and component faults.

  7. Built-In Repair Help

    Fault guidance, help data, technical bulletins and diagnostic socket locations on the tablet.

Highlights

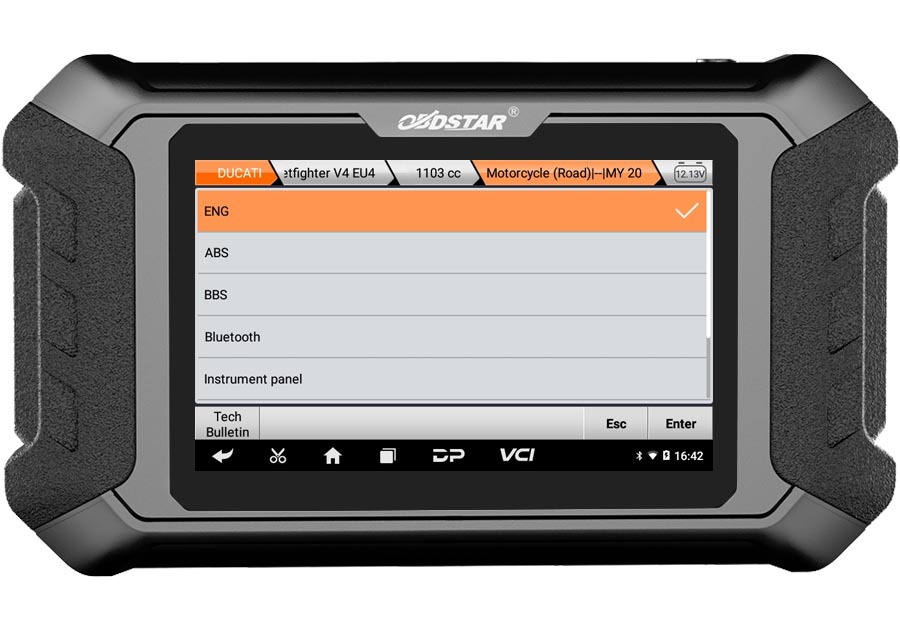

iScan Ducati showing the supported system list for a Streetfighter V4
Supported System List

Choose the model and go straight to the engine, ABS, instrument panel and other modules.

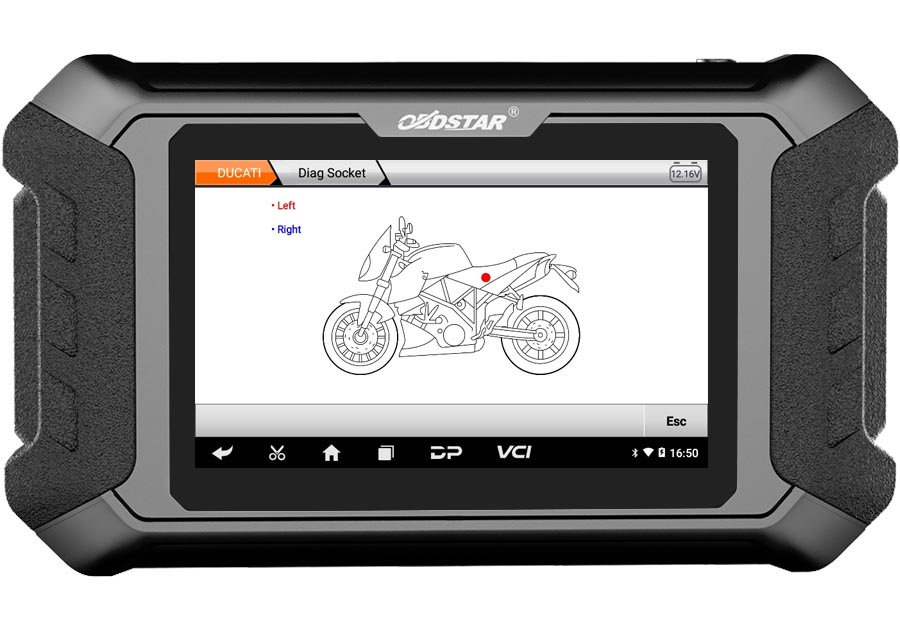

iScan Ducati diagnostic socket location screen
Diag Socket Location

Shows where the diagnostic connector sits on the motorcycle.

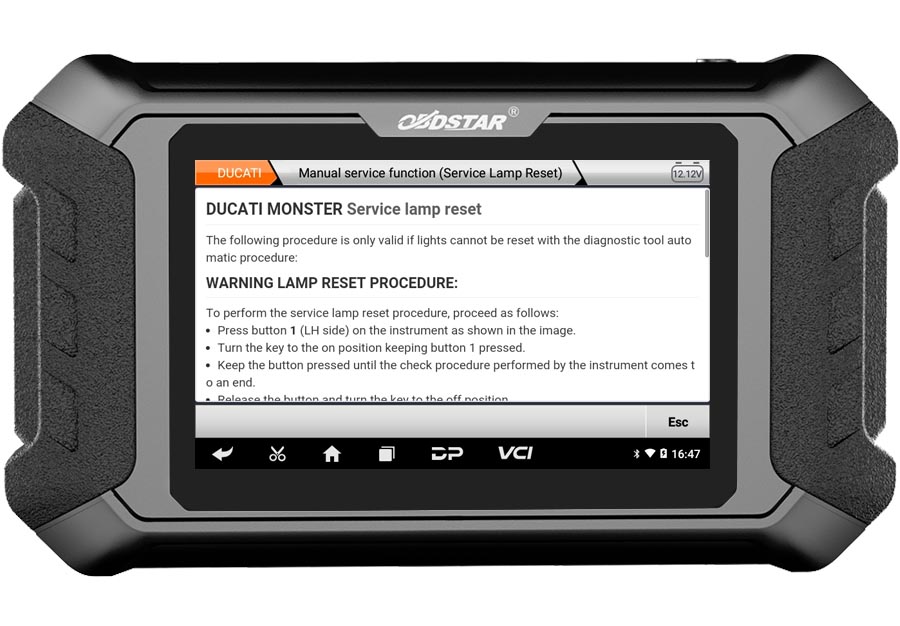

iScan Ducati manual service lamp reset procedure screen
Manual Service Functions

Step-by-step service lamp reset procedures for when the automatic reset cannot be used.

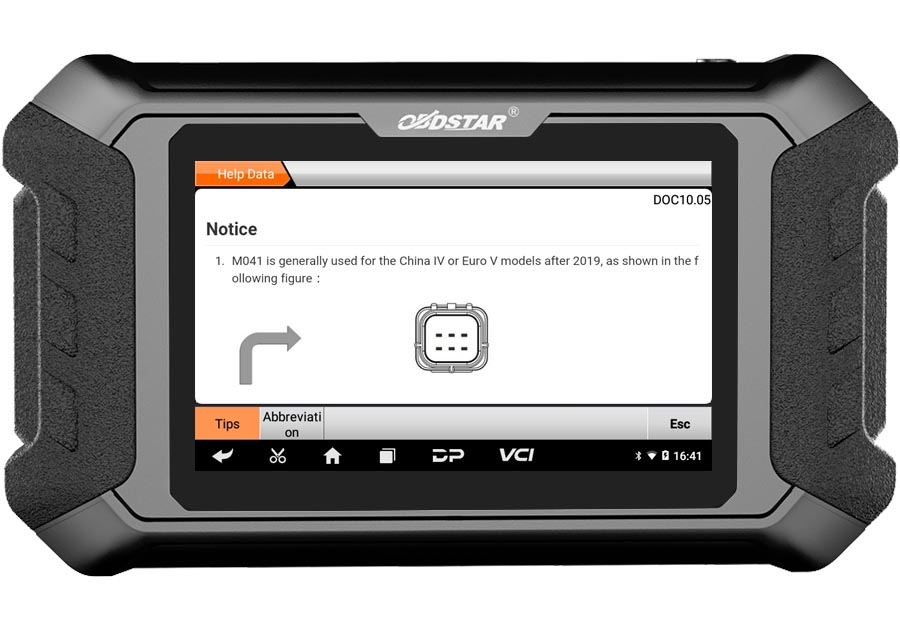

iScan Ducati help data screen describing M041 connector use
Help Data

On-screen notes explain which cable applies, such as the M041 for later models.

More Specifications

Memory card 32 GB micro SD (TF) supported
Storage temperature -20 to 70 °C (-4 to 158 °F)

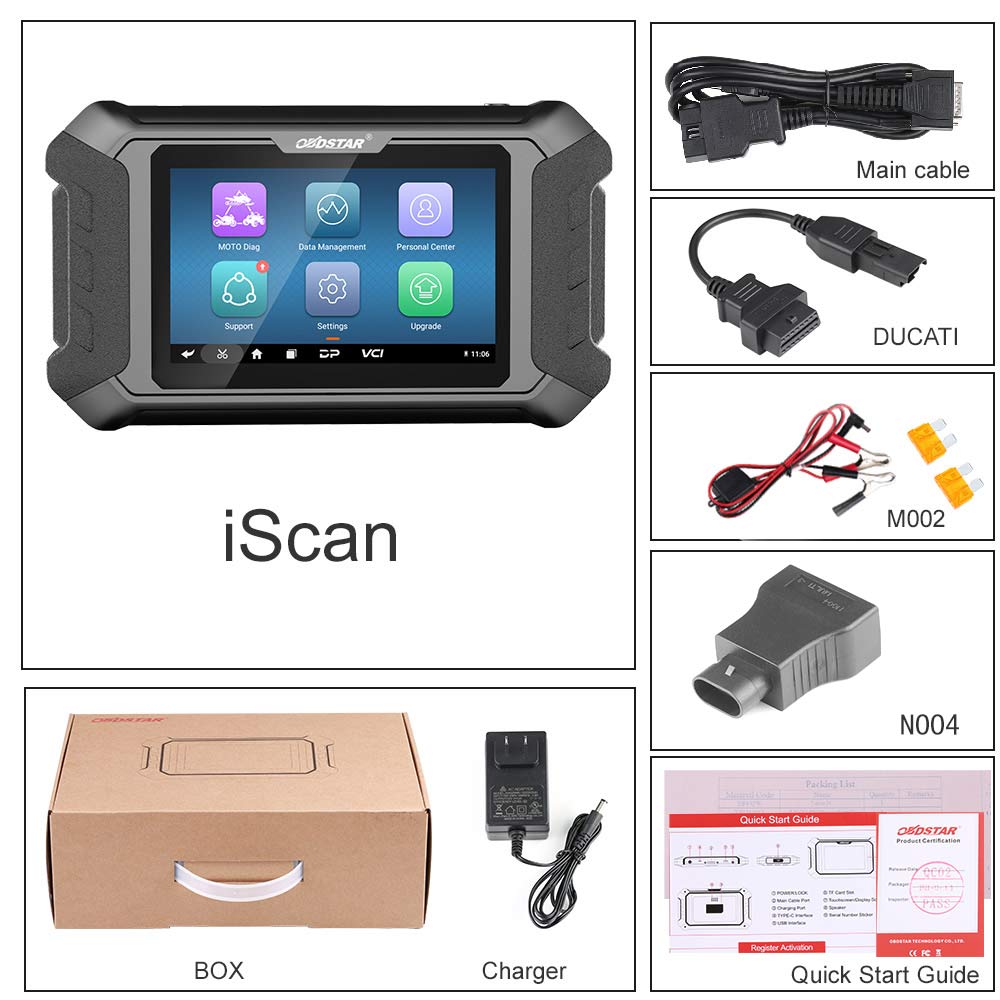

What’s in the Box

  • 1×iScan Ducati main unit
  • 1×M001A main cable
  • 1×N004 adapter
  • 1×M037 Ducati cable

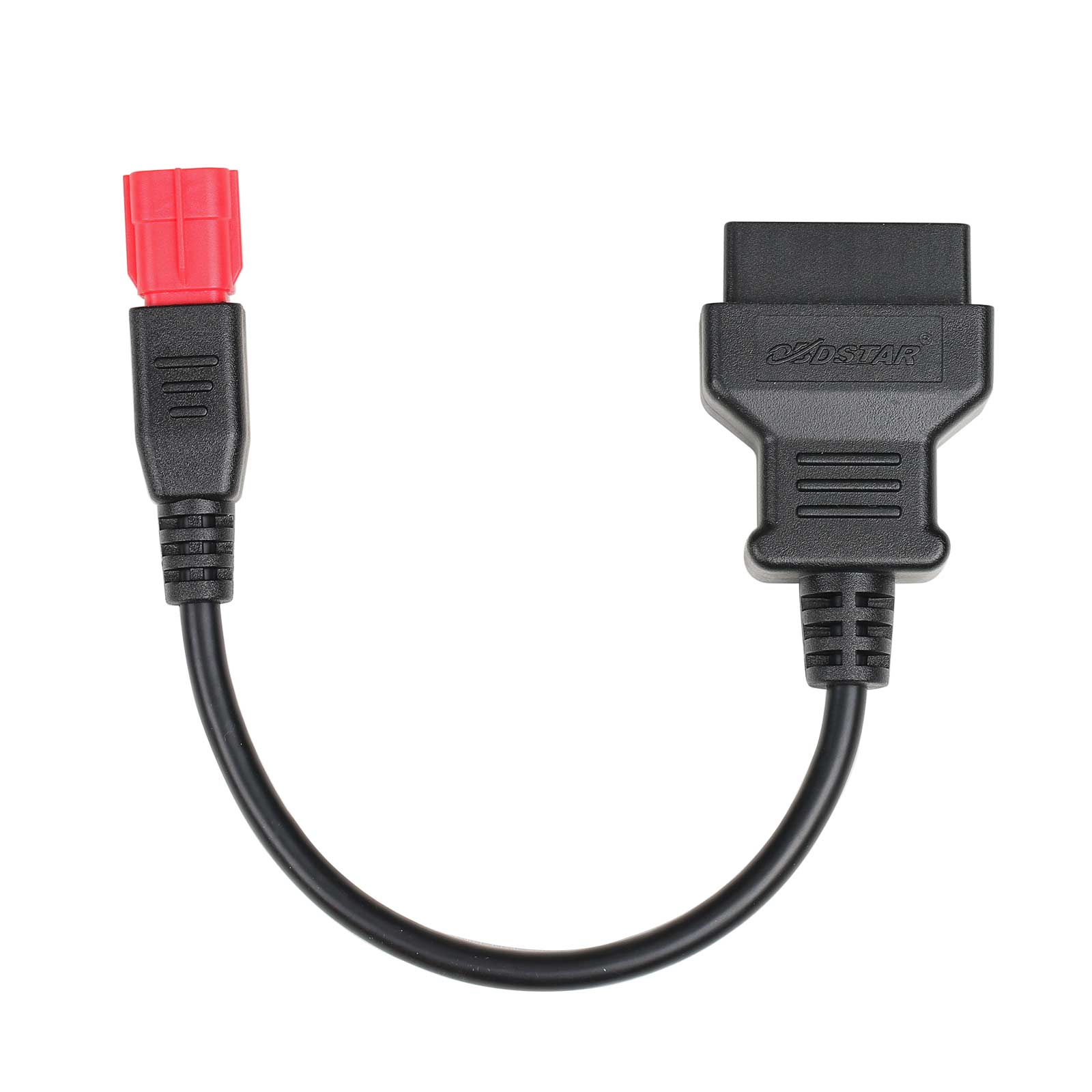

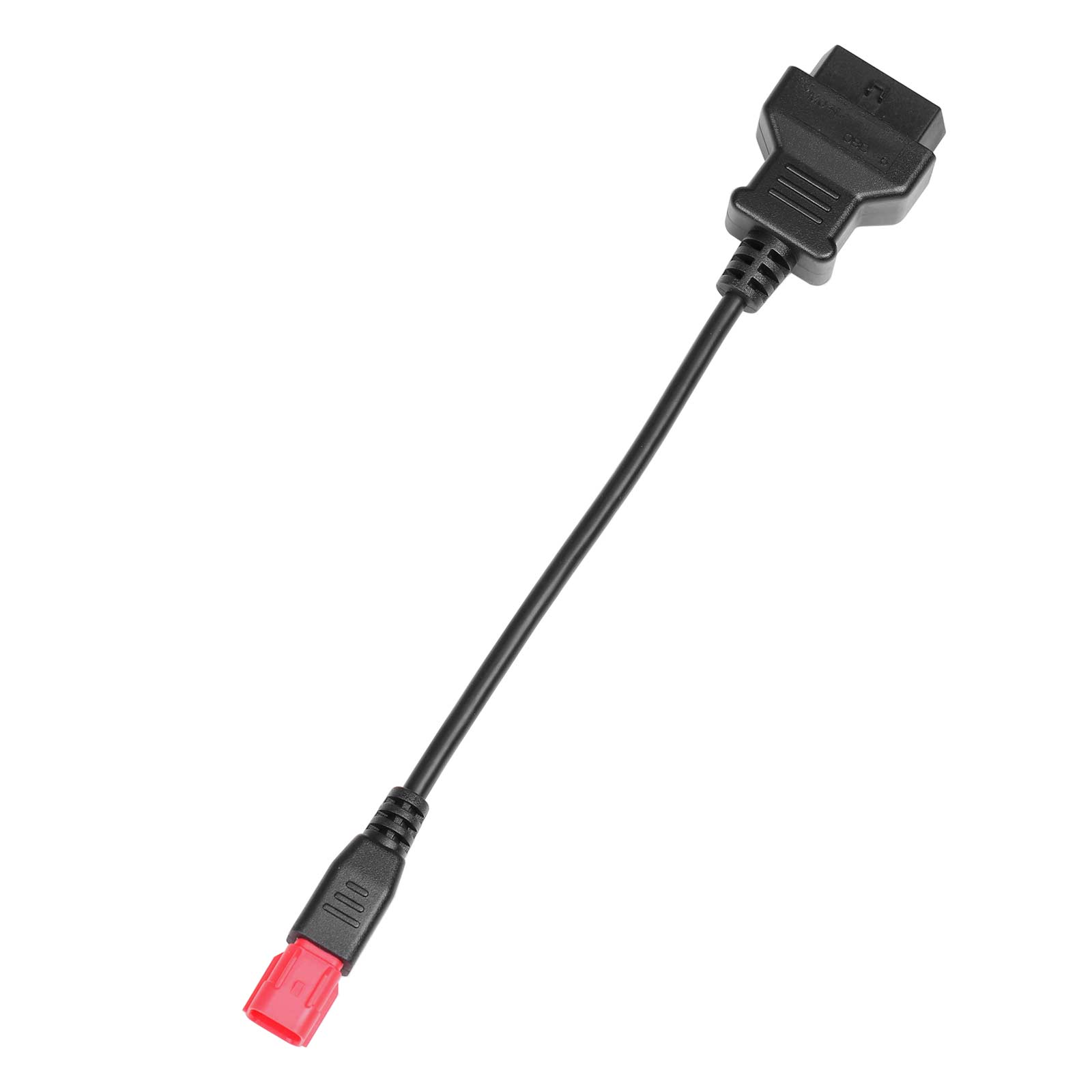

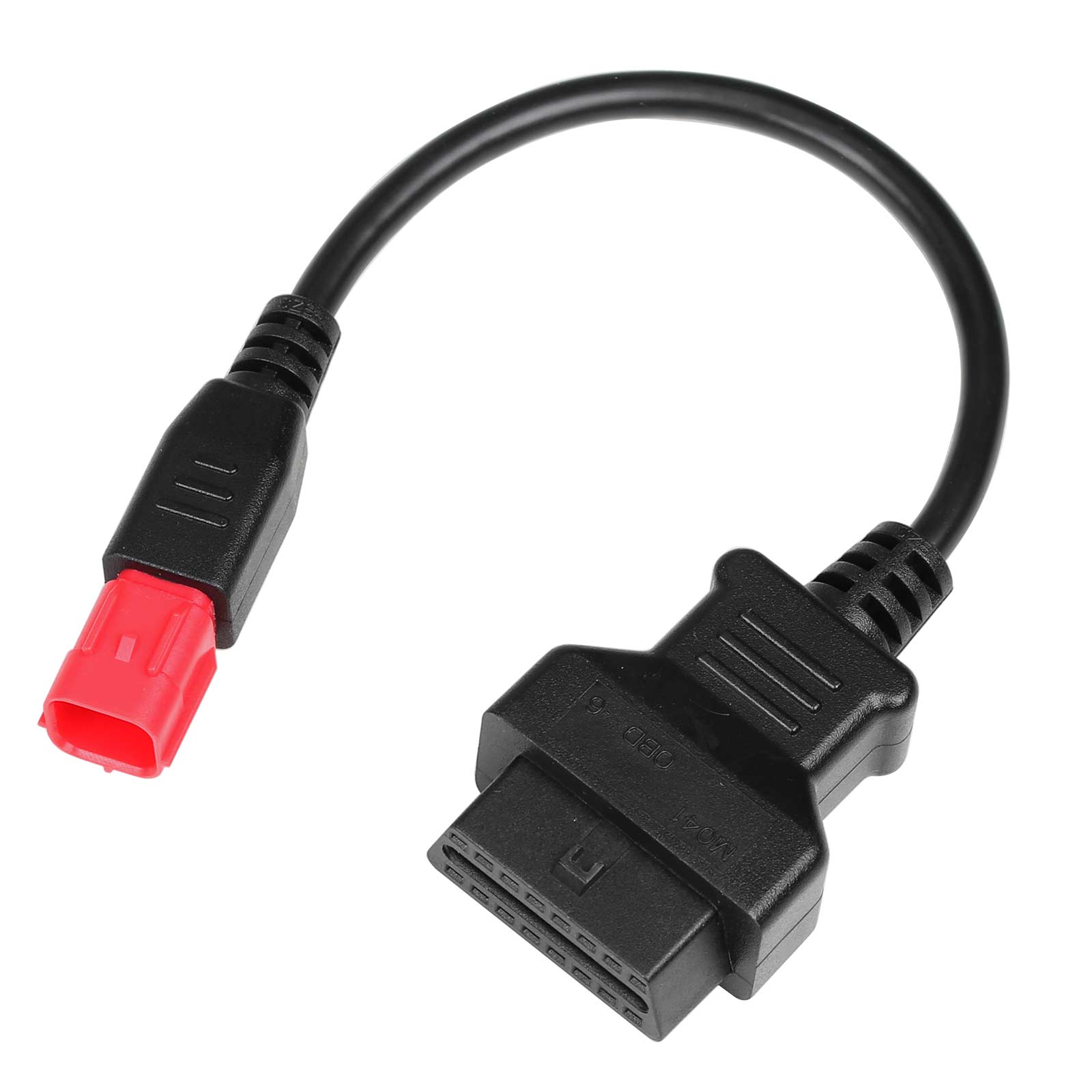

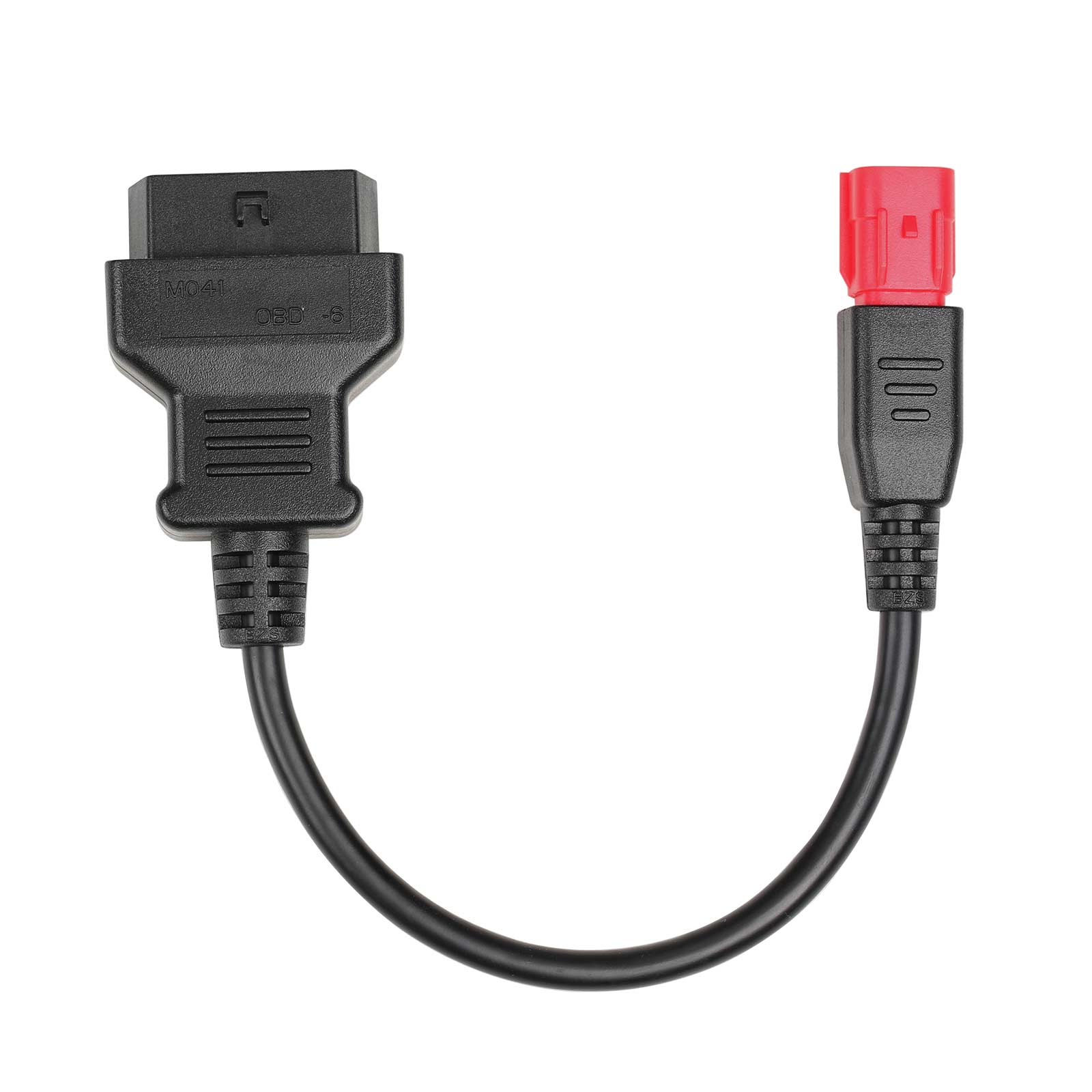

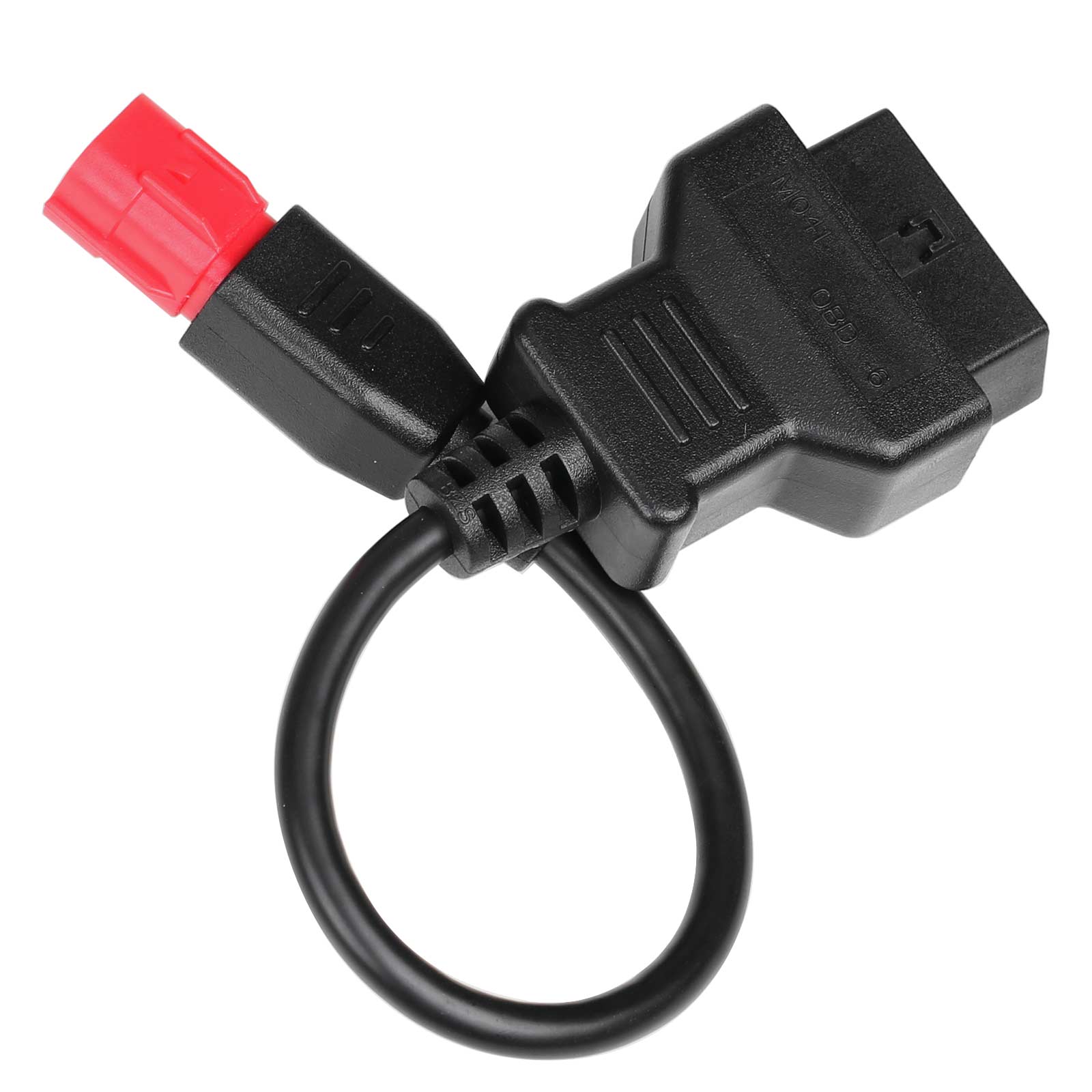

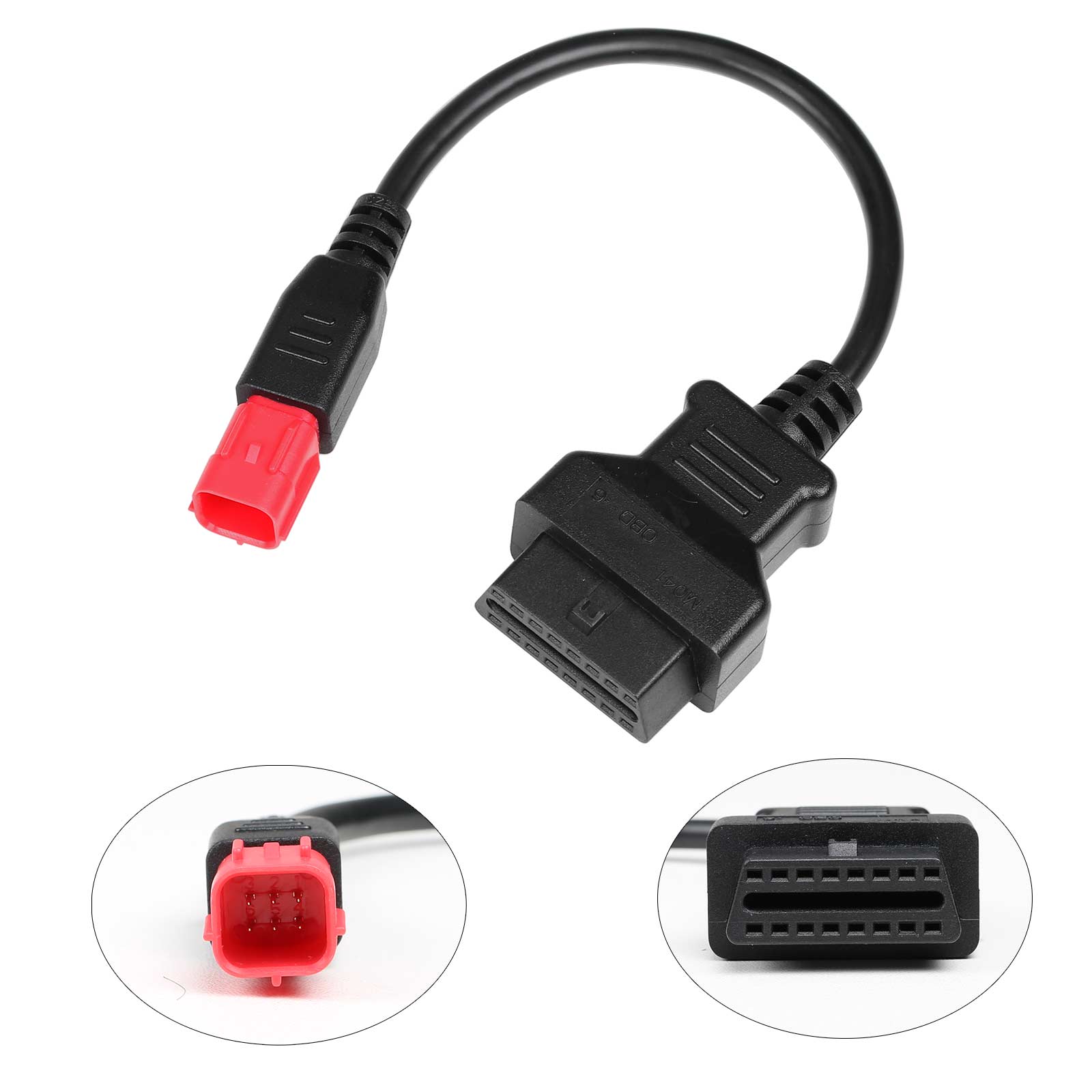

  • 1×M041 cable
  • 1×M002 power cable
  • 1×12 V 2 A charger
  • 1×English manual

Updates & Support

Software updates
1 year included; one-click update over Wi-Fi
Registration
Required before first use
Remote help
One-click remote assistance from OBDSTAR technical staff

Operating instructions: iScan Series user manual (PDF).

Good to Know

Caution
  • Key programming requires the OBDSTAR P001 programmer, sold separately.
  • Odometer adjustment requires a separately purchased license.
  • Only Ducati software can be used; other motorcycle brands cannot be added.
  • DESMO light reset must be done within 1000 km; beyond that it may not work.
Care
  • The default language is English; register the device before changing it.
