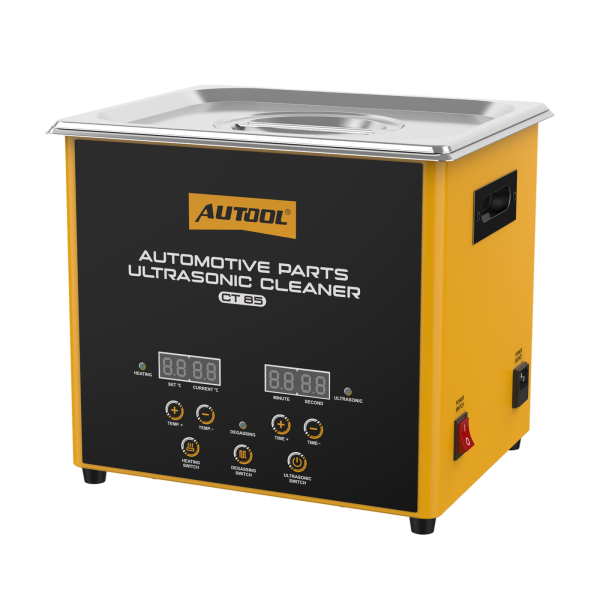

Heated Ultrasonic Cleaning for Larger Loads, Drained Without Tipping
The CT85 cleans compatible immersible parts in a 10 L stainless tank with four 40 kHz transducers, adjustable heat and separate cleaning and heating timers, then empties through a drain ball valve. It cleans injector parts but does not test injector performance.

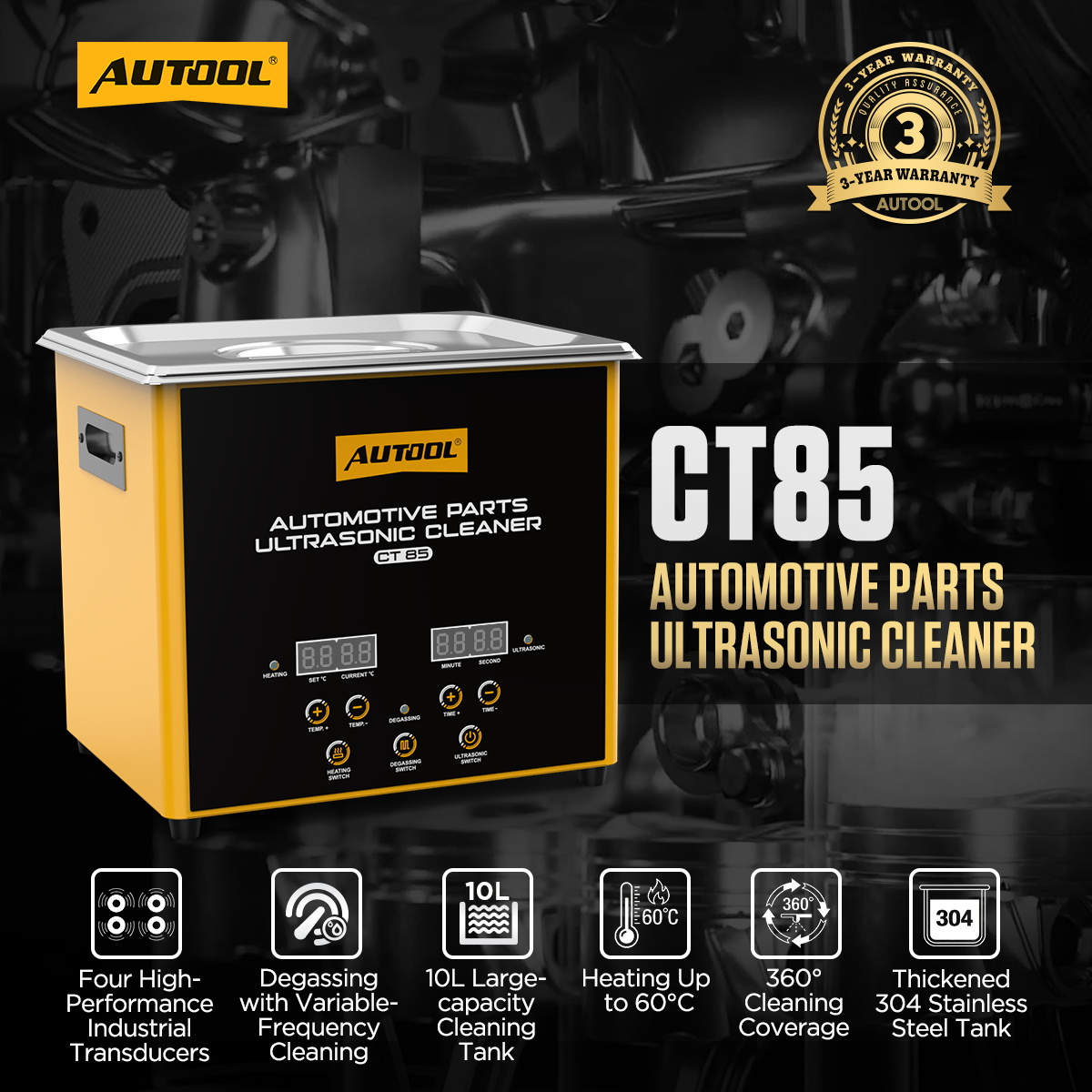

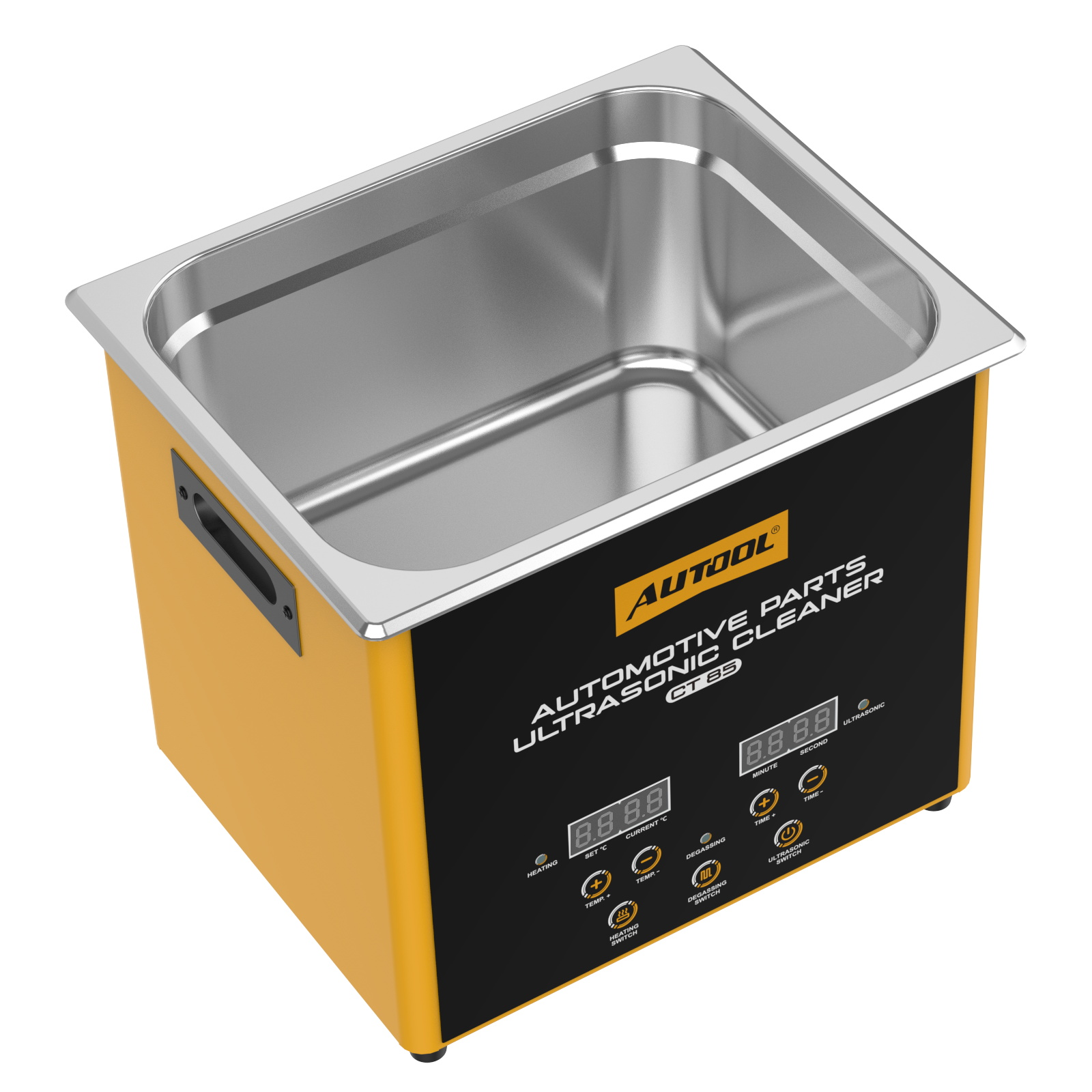

- 10 L Tank + Basket
- 4 × 40 kHz Transducers
- Normal / Degassing Modes
- 10–60°C Heating
- Drain Without Tipping
Key Features
-

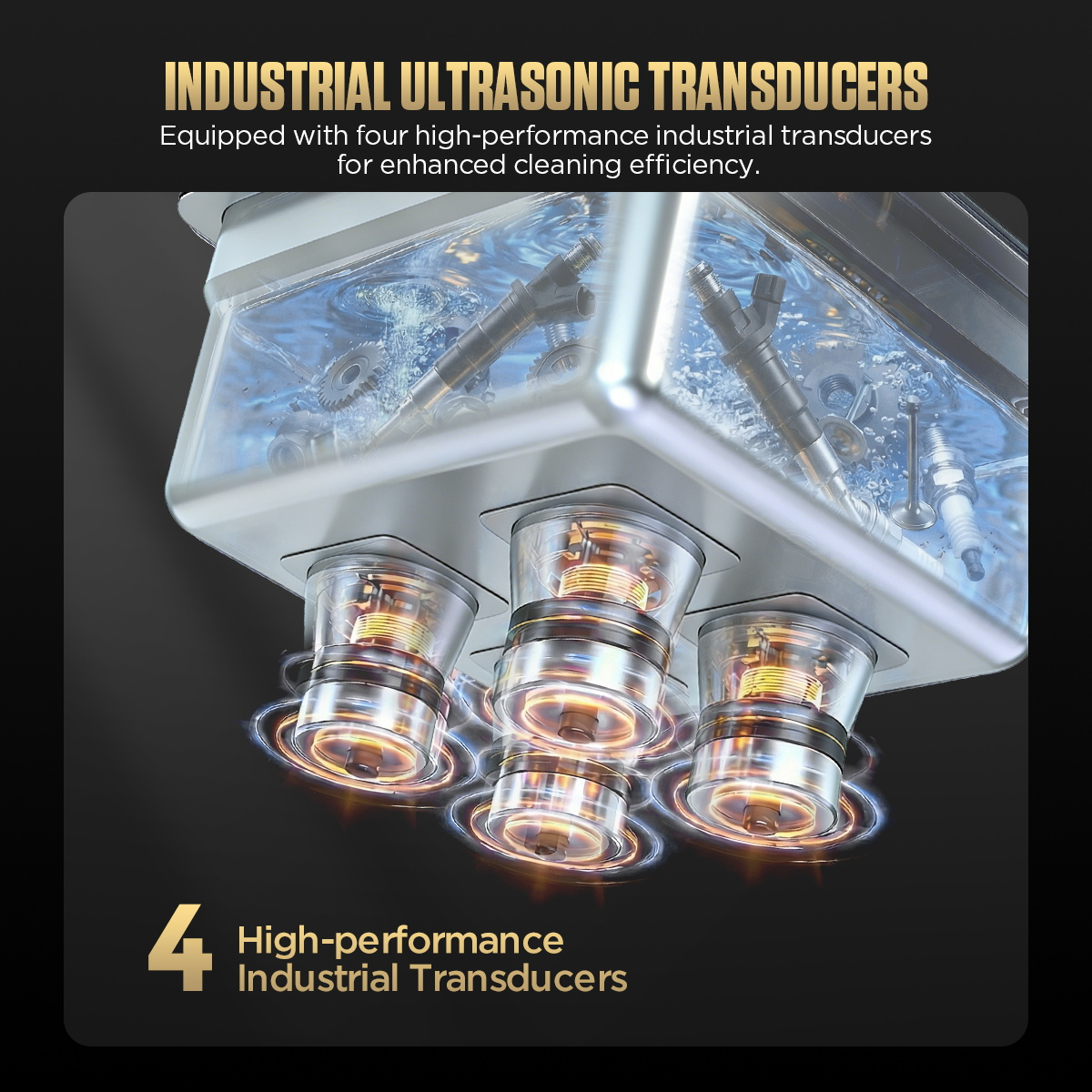

Four Transducers
Cavitation through the fluid helps loosen grease, carbon deposits, rust, dirt and residue on immersed surfaces.
-

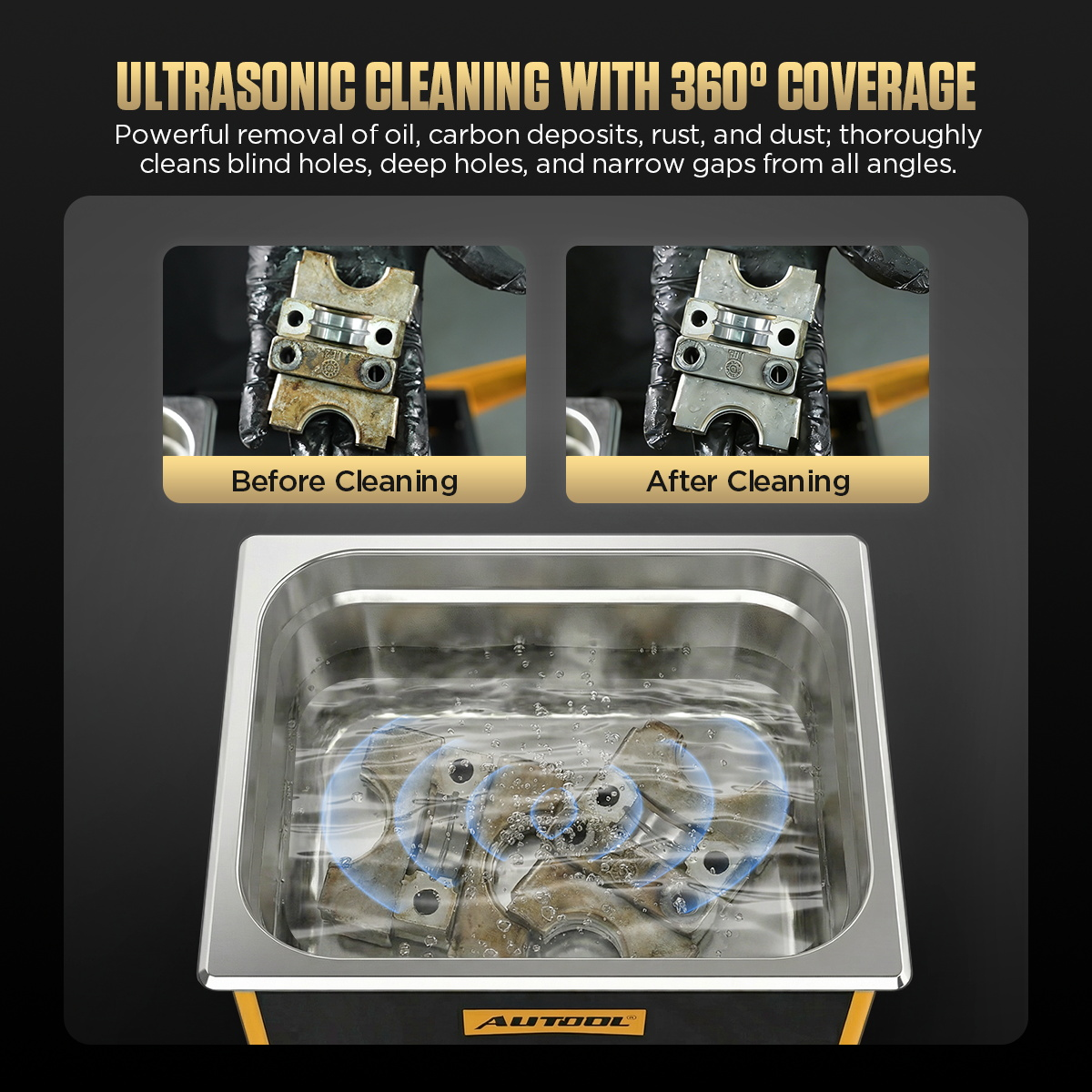

Reaches Holes and Crevices
Because cleaning happens in the surrounding liquid, it can act in blind holes, deep holes, narrow crevices and multi-sided parts that are hard to brush.
-

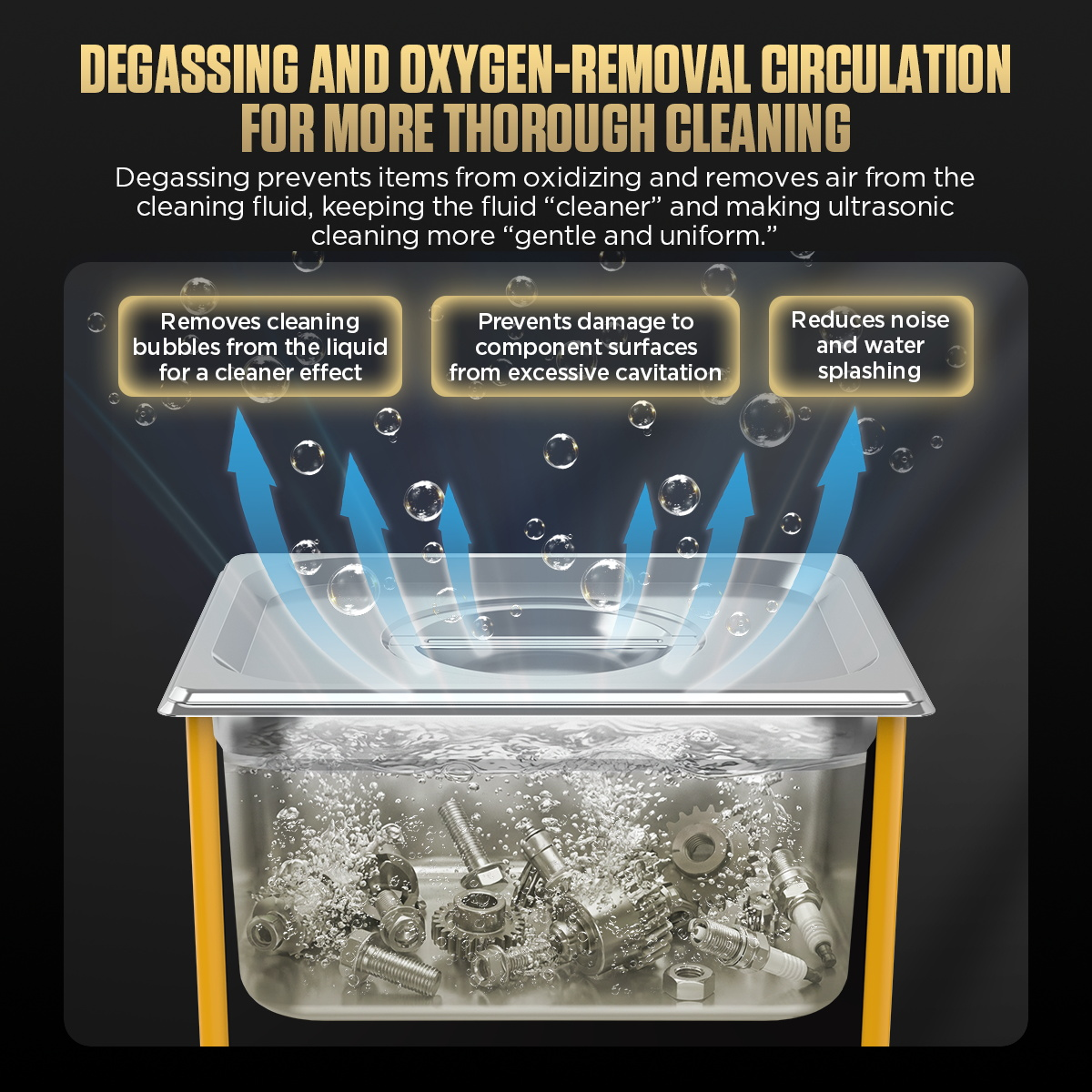

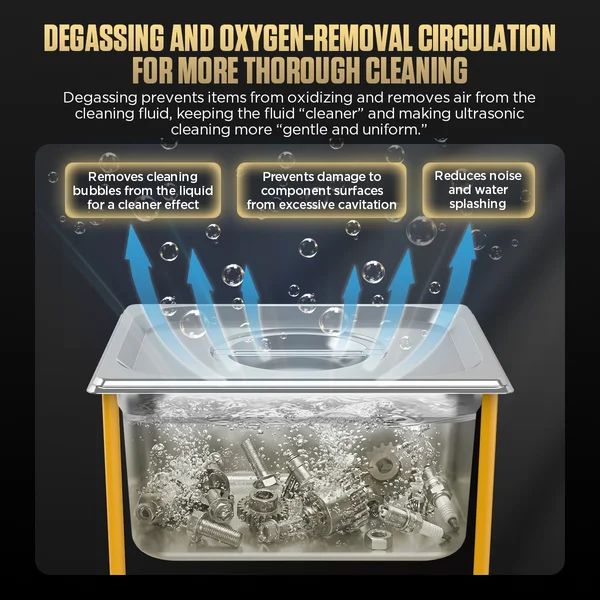

Normal and Degassing & Variable-Frequency Modes
Use Normal mode for routine cleaning; switch to degassing and frequency sweep for fresh fluid or loads that need it, even during operation.
-

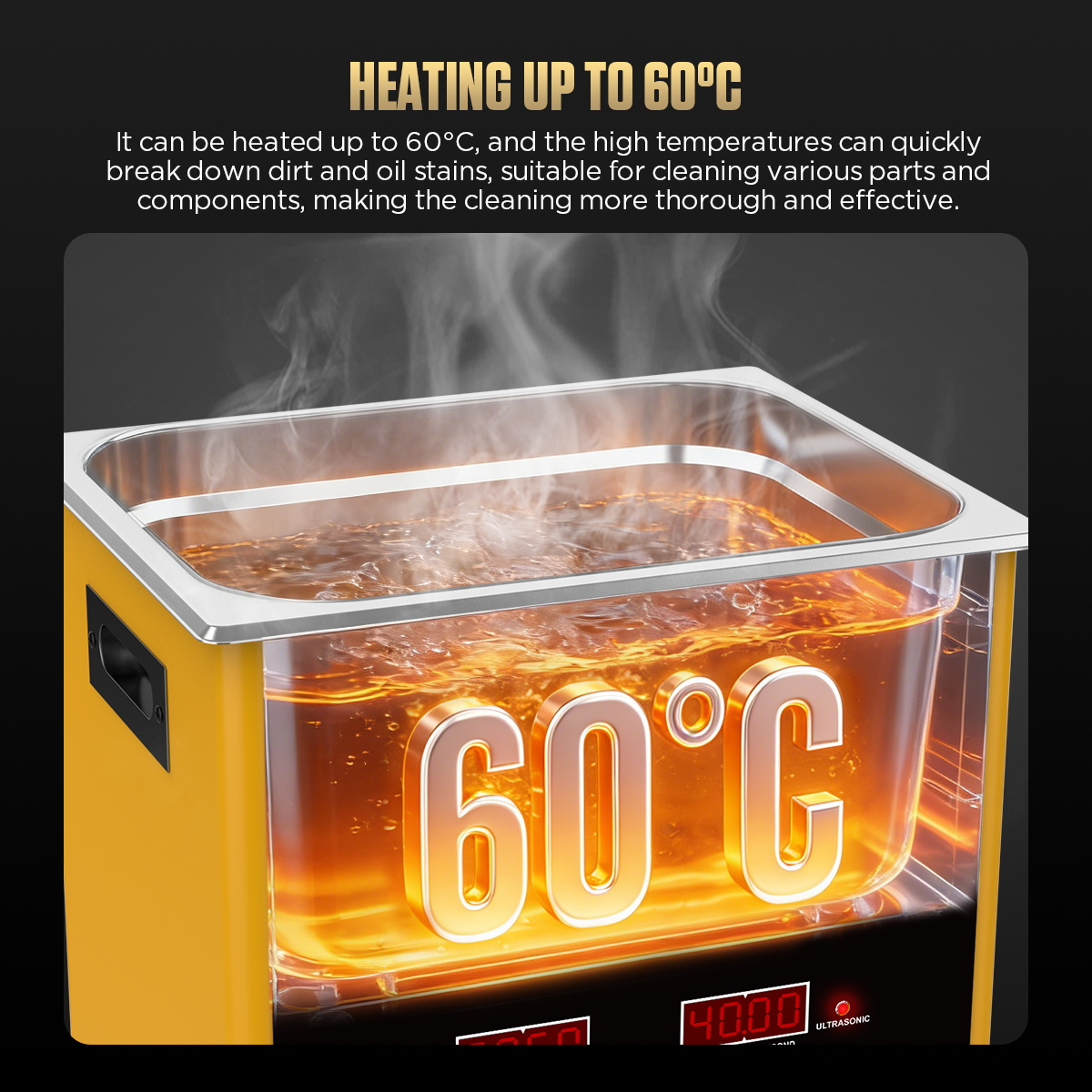

Heat and Time Set Separately
Set temperature and heating time, then the ultrasonic cycle; a buzzer sounds at set temperature and when cleaning stops automatically.
-
Drain Ball Valve
Empty used fluid through the valve instead of lifting or tilting a filled tank.
-

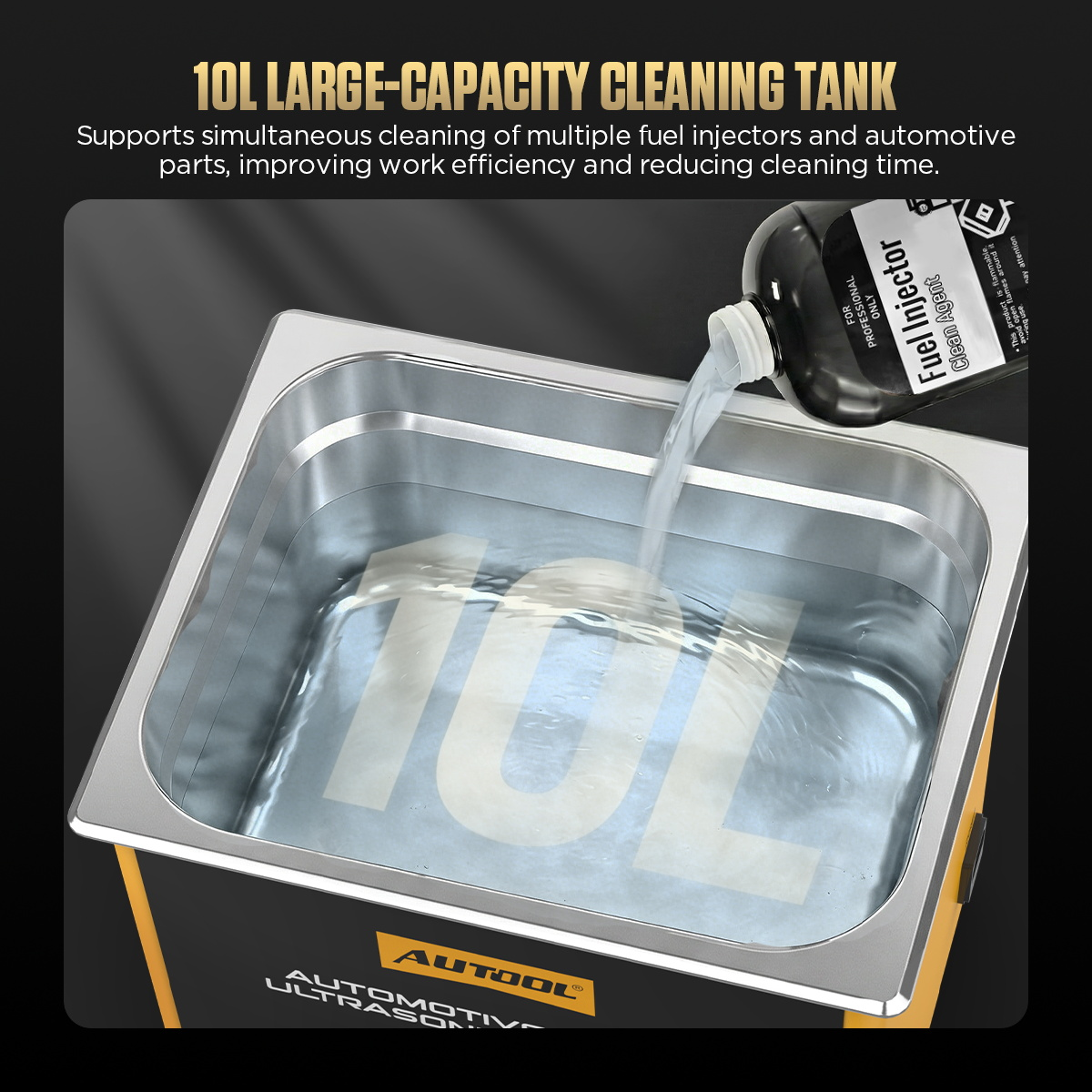

Mixed Loads
Several compatible parts can share a load in the included basket, chosen by basket clearance and fluid access rather than a fixed count.

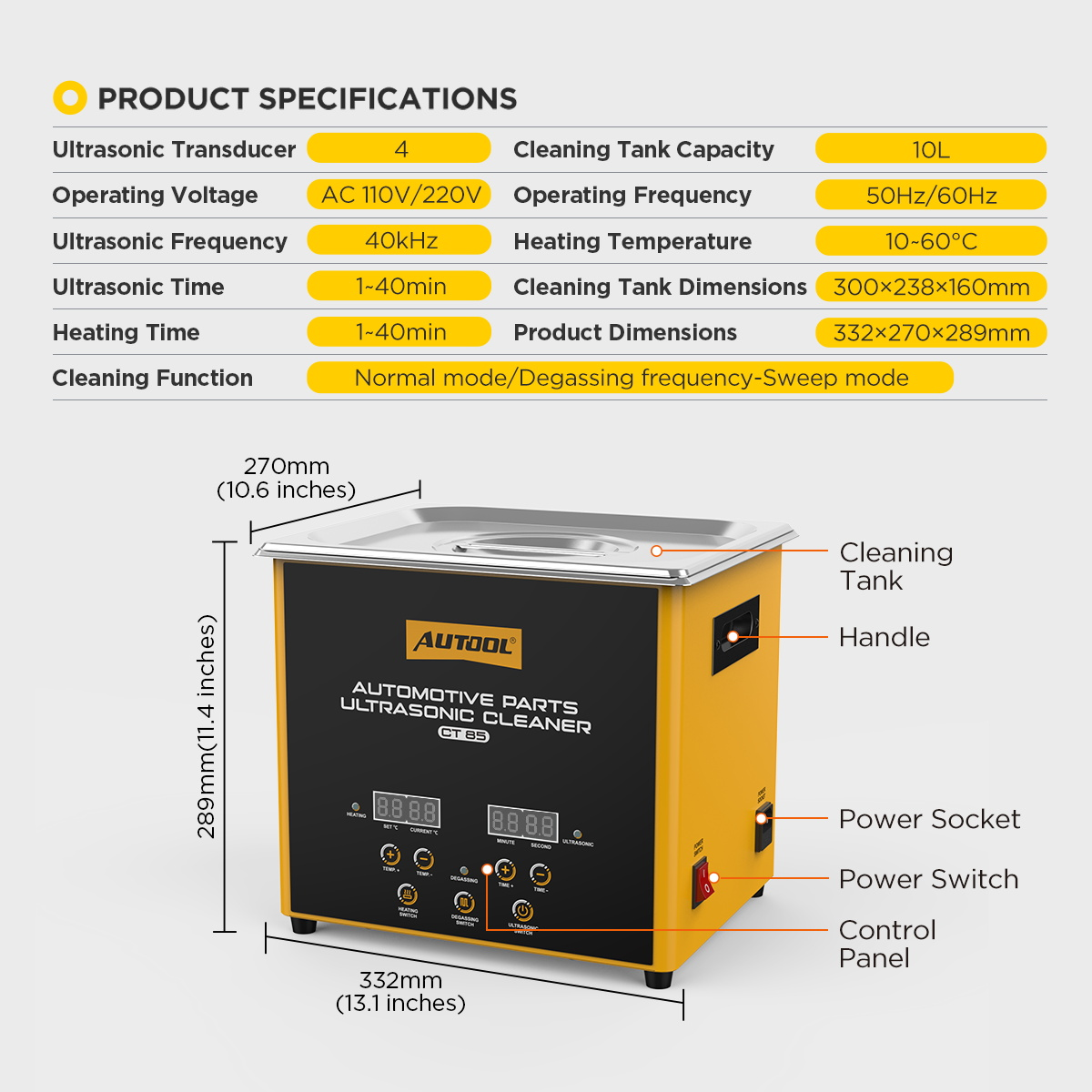

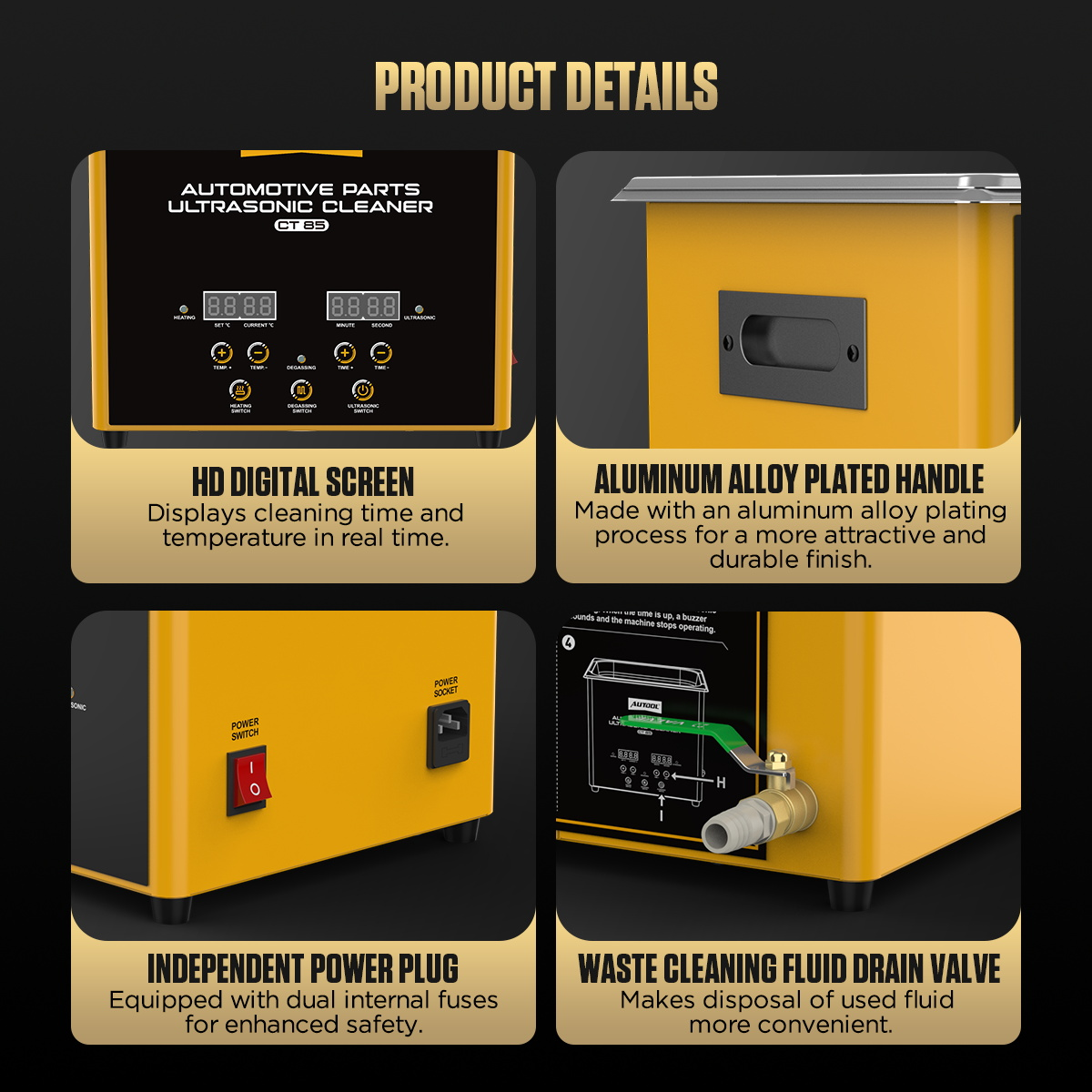

More Specifications
| Tank construction | Integrally formed, welded on the inner and outer sides |
|---|---|
| Display | Digital display for time and temperature |
| Handles | Aluminum, electroplated |
| Injector testing | Not provided (cleaning only) |
CT85 vs CT83
| CT85 | CT83 | |
|---|---|---|
| Tank capacity | 10 L | 3 L |
| Transducers | 4 | 2 |

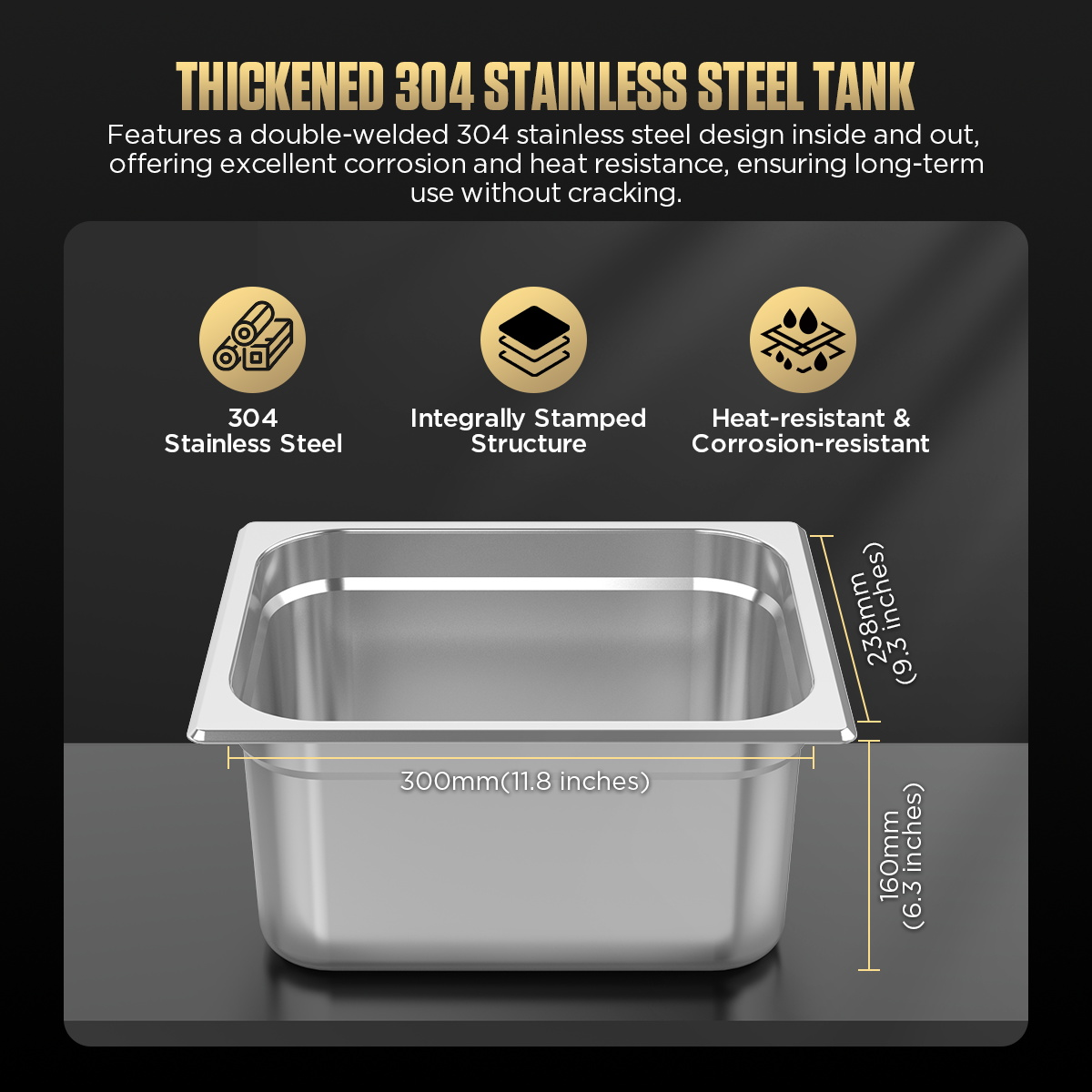

| Tank dimensions | 300 × 238 × 160 mm | 239 × 137 × 100 mm |
| Unit dimensions | 332 × 270 × 289 mm | 268 × 165 × 230 mm |

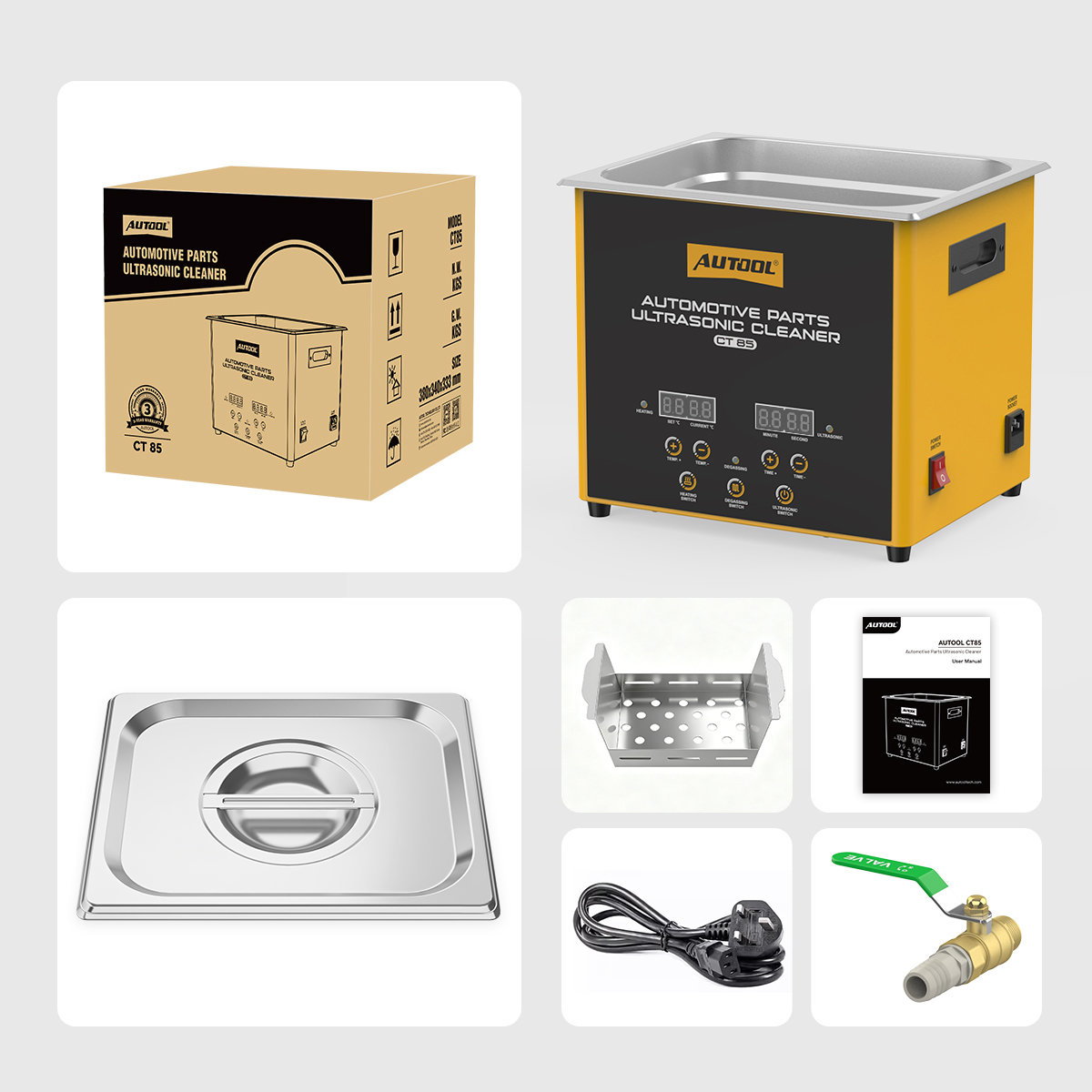

What’s in the Box
- CT85 ultrasonic cleaner
- Stainless steel tank lid
- Cleaning basket
- Drain valve assembly
- Power cord for the ordered power version
- User manual
The drain valve may be supplied pre-installed or as a separate component; check before first use. Cleaning fluid is not listed in the package.

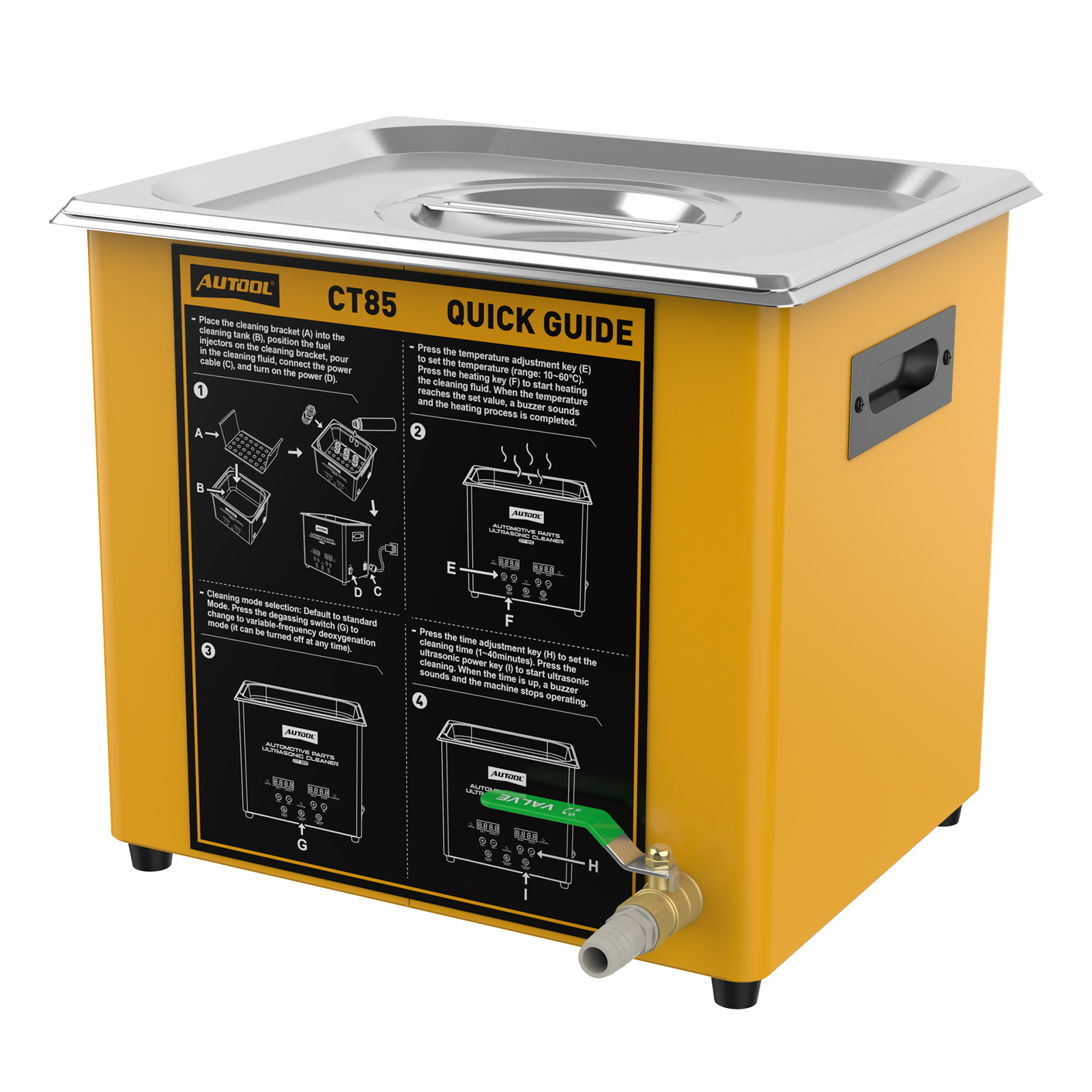

How to Use
- Load and fillClose the drain valve, place the basket and parts, add a suitable fluid to the required level, connect power and switch on.
- Set heatingChoose a temperature approved for the fluid and parts, set the heating time and press the heating key.
- Select the modeStart in Normal mode, or press the degassing key for Degassing & Frequency-Sweep mode.
- Run and finishSet the cleaning time, press start, and inspect the parts after the automatic stop.
- DrainCool, switch off and disconnect power, route the outlet safely, open the valve, then close it again.
Good to Know
Caution
- Never run the ultrasonic system or heater with an empty tank.
- Keep the drain valve fully closed while filling, heating and cleaning.
- Order the 110 V or 220 V version that matches your power supply; the unit does not switch automatically.
- Confirm the fluid suits the part, tank, basket, seals and drain system; plated, fragile or mixed-material items, sensors and circuit boards need a compatibility check first.
Care
- Stop if you notice abnormal sound, leakage, overheating or electrical behavior.
- Do not lift or tilt a filled tank to bypass the valve.
