PGO 6-Pin Cable for FXTUL M4-Asia and M7
Connects an FXTUL M4-Asia or M7 diagnostic tool to the 6-pin diagnostic port on PGO motorcycles and scooters.
- PGO 6-Pin
- M4-Asia
- M7
More Specifications

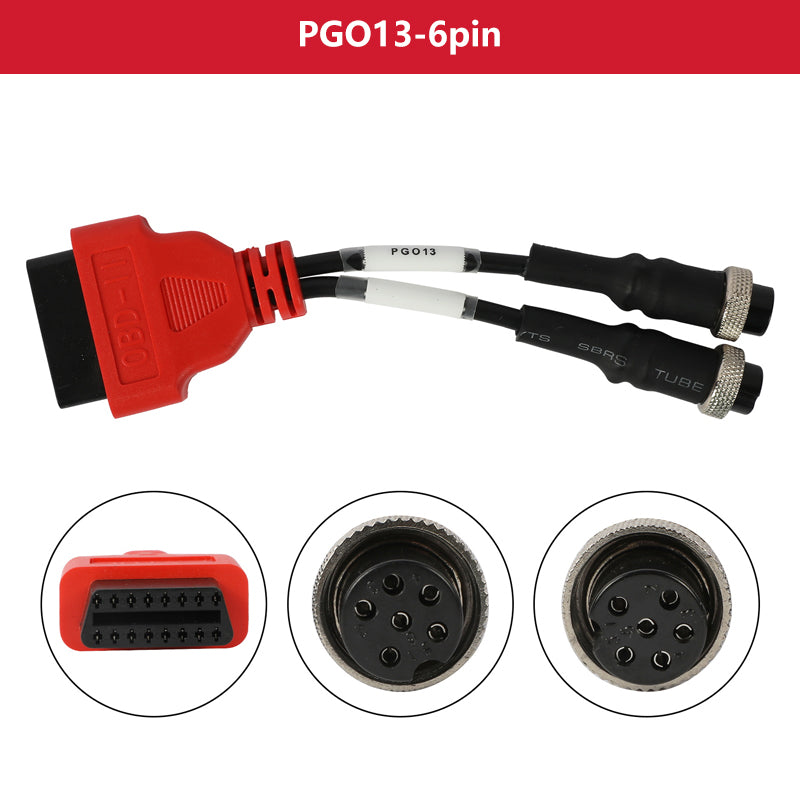

| Bike-side plugs | Two round 6-pin connectors with knurled metal locking collars |
|---|---|
| Tool-side end | Red OBD-II style socket |
| Versions | M4-Asia or M7 |
How to Choose and Fit
- Find the portOn scooters, check under the footrest or at the front as well as under the seat.
- Match and lockFit the round plug that matches the port and tighten its collar.
- Connect the toolPlug the red socket into the FXTUL tool and select PGO and the model.
Good to Know
Caution
- For PGO vehicles with the round 6-pin port, used with the FXTUL M4-Asia or M7. Check both before ordering.
Care
- Keep the metal collars clean so they thread on smoothly, and inspect the cable before use.
