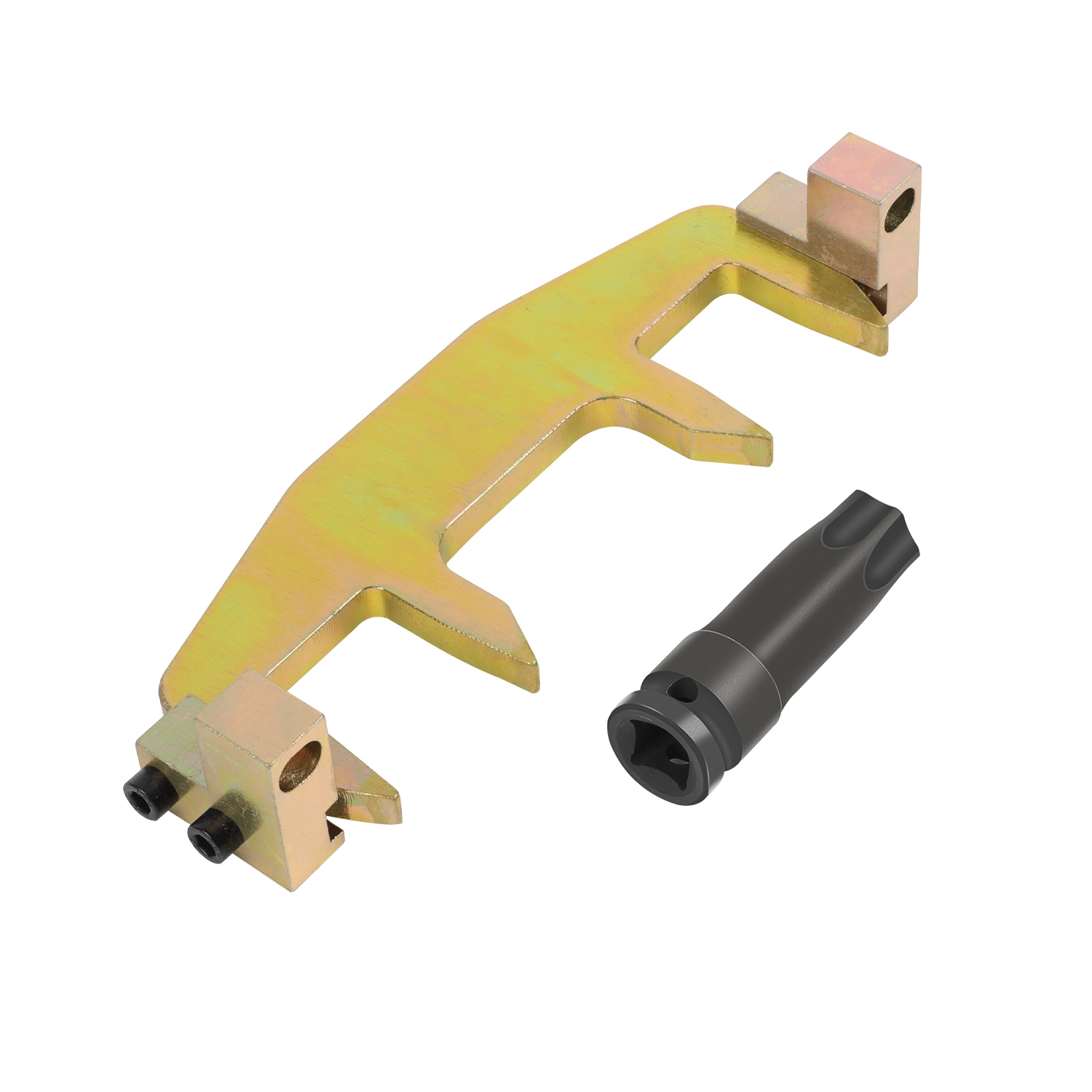

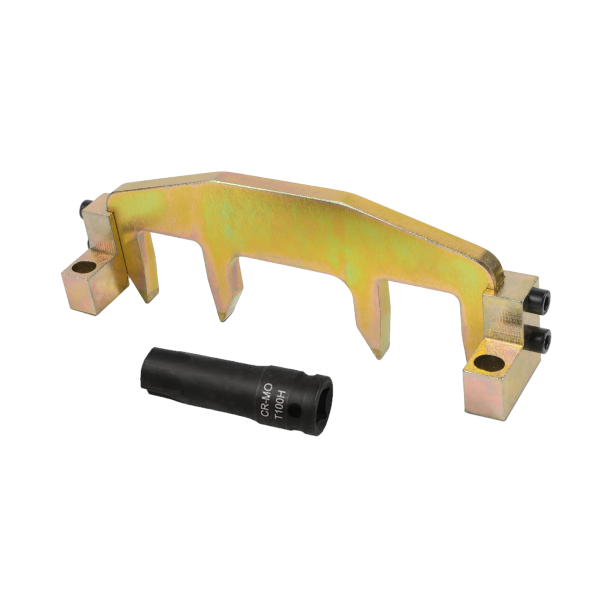

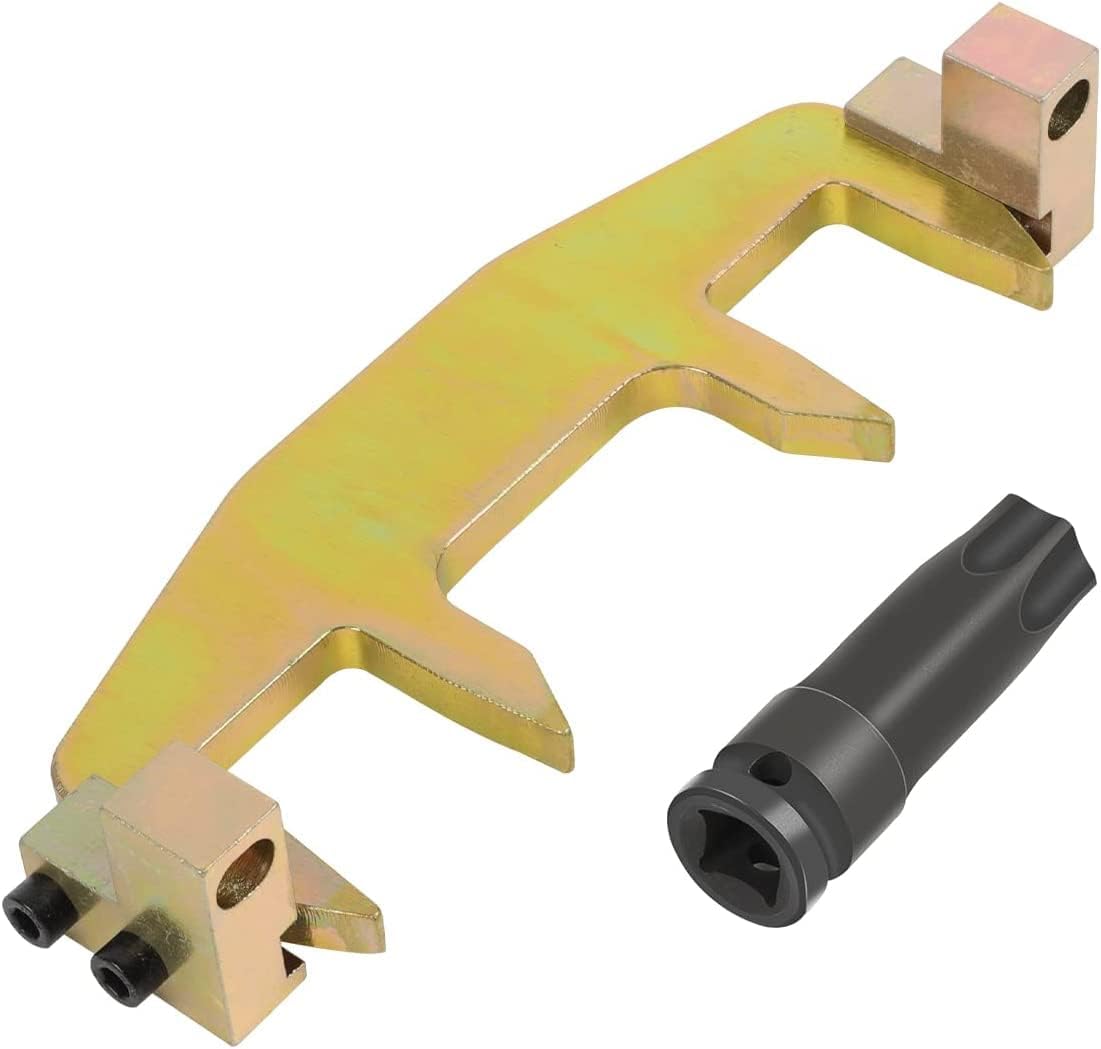

MRCARTOOL Mercedes-Benz M271 Camshaft Timing Tool Kit

Lock Mercedes-Benz M271 Camshafts at TDC for Timing Chain and Phaser Work

This kit holds the camshafts of Mercedes-Benz M271 engines at TDC, so the cam phasers can be removed and the timing chain replaced with the camshafts kept in alignment.

Benz M271
Holds Camshafts at TDC
OE 271589-Series Equivalent
Carbon Steel

Key Features

Holds the Camshafts at TDC

Keeps the camshafts in position while the phaser bolts are loosened and tightened, for efficient cam phaser removal.
Keeps Timing Alignment

Ensures camshaft alignment during removal and installation of the timing chain.
M271 Engine Coverage

For engine codes E18ML, DE18ML, E16ML and DE18LA, as fitted to the CLK 200 Kompressor and CGI (C209), C-Class W203/W204, E-Class W211/W212/C207, SLK 200K (R171) and CLC.

How to Use

Prepare the vehiclePark on flat ground, set the parking brake, let the engine cool and disconnect the battery.
Find the timing marksOpen the engine cover and locate the marks on the crankshaft pulley and camshaft sprocket.
Set the crankshaftAttach the correct tool to the crankshaft, secure it and align it with the timing marks.
Align the camshaftRotate the camshaft until its marks match those on the engine block.
Double-checkRecheck crankshaft and camshaft alignment and adjust if wrong.
Finish and verifyRemove the tool carefully, reconnect the battery and start the engine to check the timing.

Good to Know

Caution

Wear safety gear and never work on a running engine.
Use the tool designed for your vehicle model, and inspect it for damage before use.
Reinstall all parts correctly during reassembly.
