Read Toyota and Lexus Smart Key Data Past the Gateway
On gateway-equipped vehicles, reading ECU data through the OBD connector is blocked. The CAN Direct kit reads it directly and, with the TOYOTA-27 or TOYOTA-24 cable on the smart key ECU, supports proximity key programming without a PIN code, including all keys lost.
- 2018+ Toyota & Lexus
- 4A and 8A Smart Keys
- No PIN Code
- All Keys Lost
- 3 Cables Included
Key Features
-
Gateway Access
Reads ECU data on vehicles whose gateway blocks access through the OBD connector.
-
Split Design
The CAN Direct cable separates from the ECU cables, so more ECU cables can be connected.
-

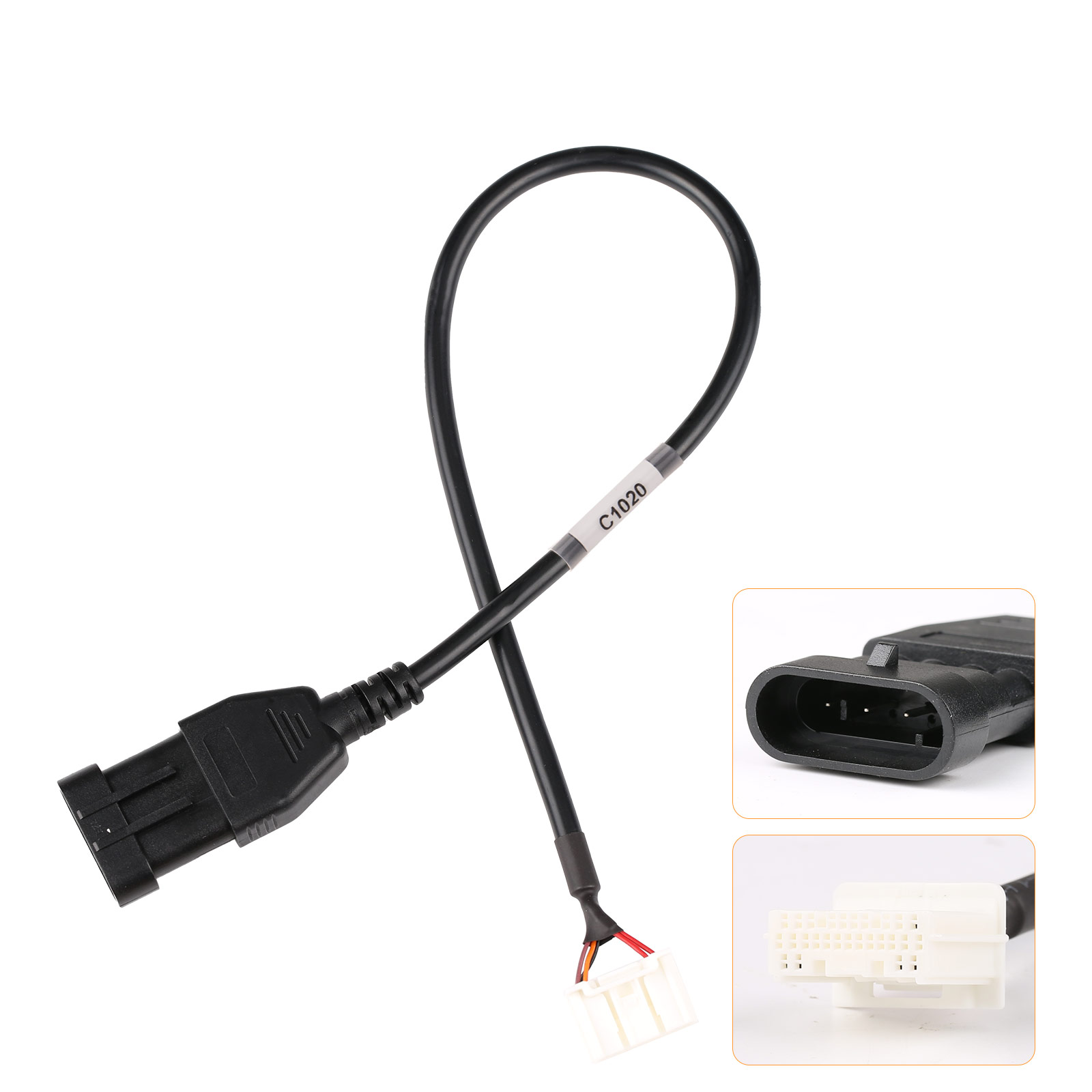

TOYOTA-27 for 4A, 8A-A9 and 8A-AA
Covers the Corolla family (2019+ and 2021+ variants), Camry, C-HR, Prius, RAV4, Avalon, Highlander HV and Lexus ES, UX, RX, LC and LS from 2018.
-
TOYOTA-24 for 8A-A8 and 8A-A9
Covers 2018+ Prado, Land Cruiser, Crown, Highlander and Vellfire.
Highlights

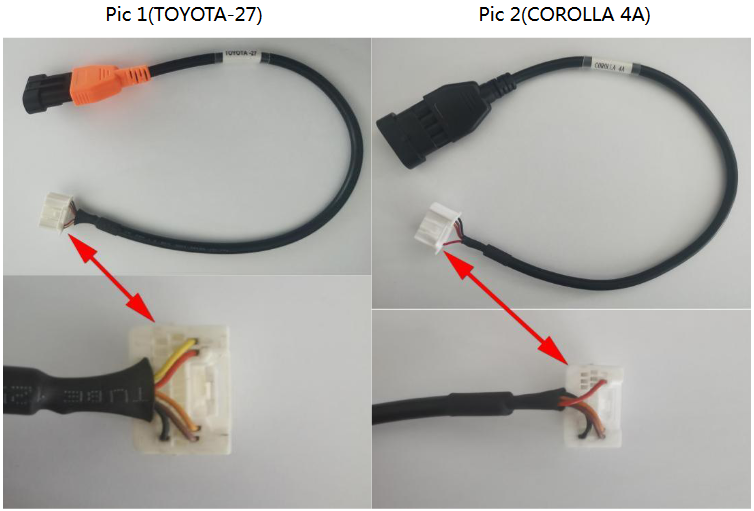

TOYOTA-27 Replaces COROLLA 4A
The included TOYOTA-27 is the upgraded version of the COROLLA 4A cable, adds 8A-A9 and 8A-AA support and has one more power wire.

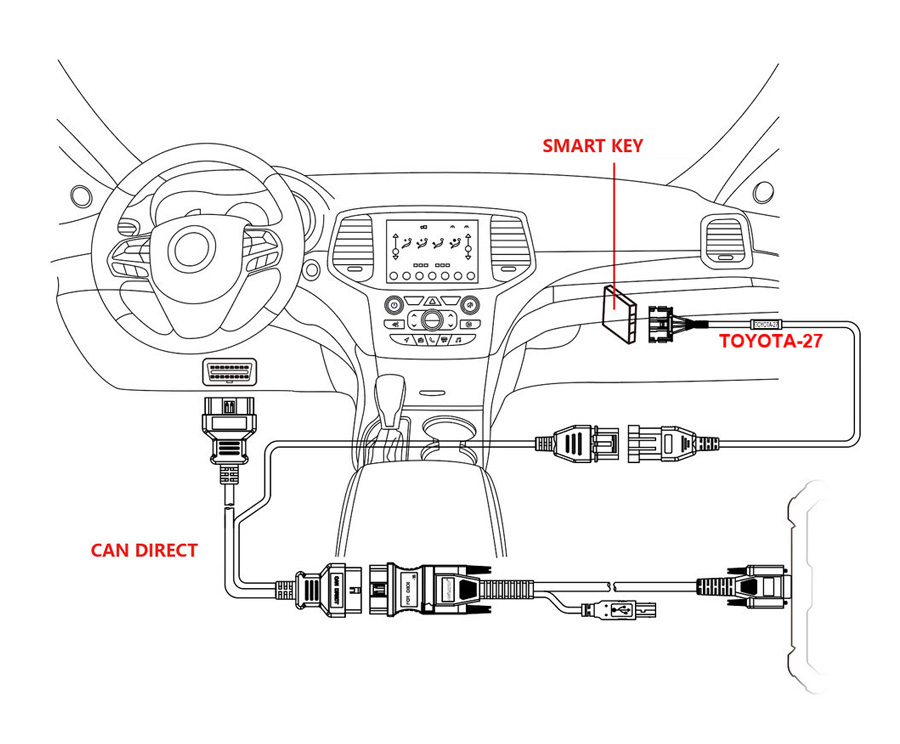

Connection Example
Wiring on a 2021 Toyota Corolla: CAN Direct at the OBD port and TOYOTA-27 at the smart key ECU.
What’s in the Box

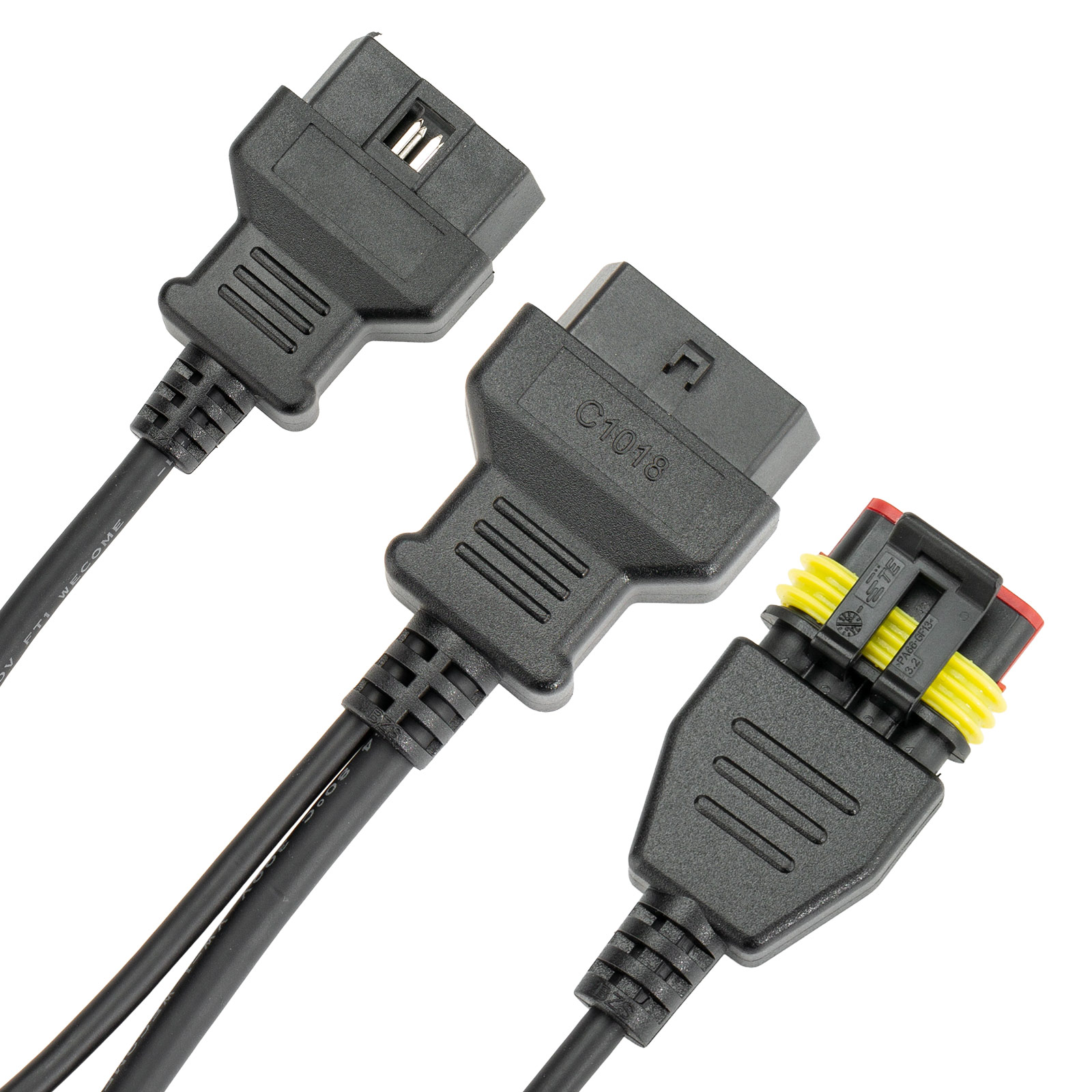

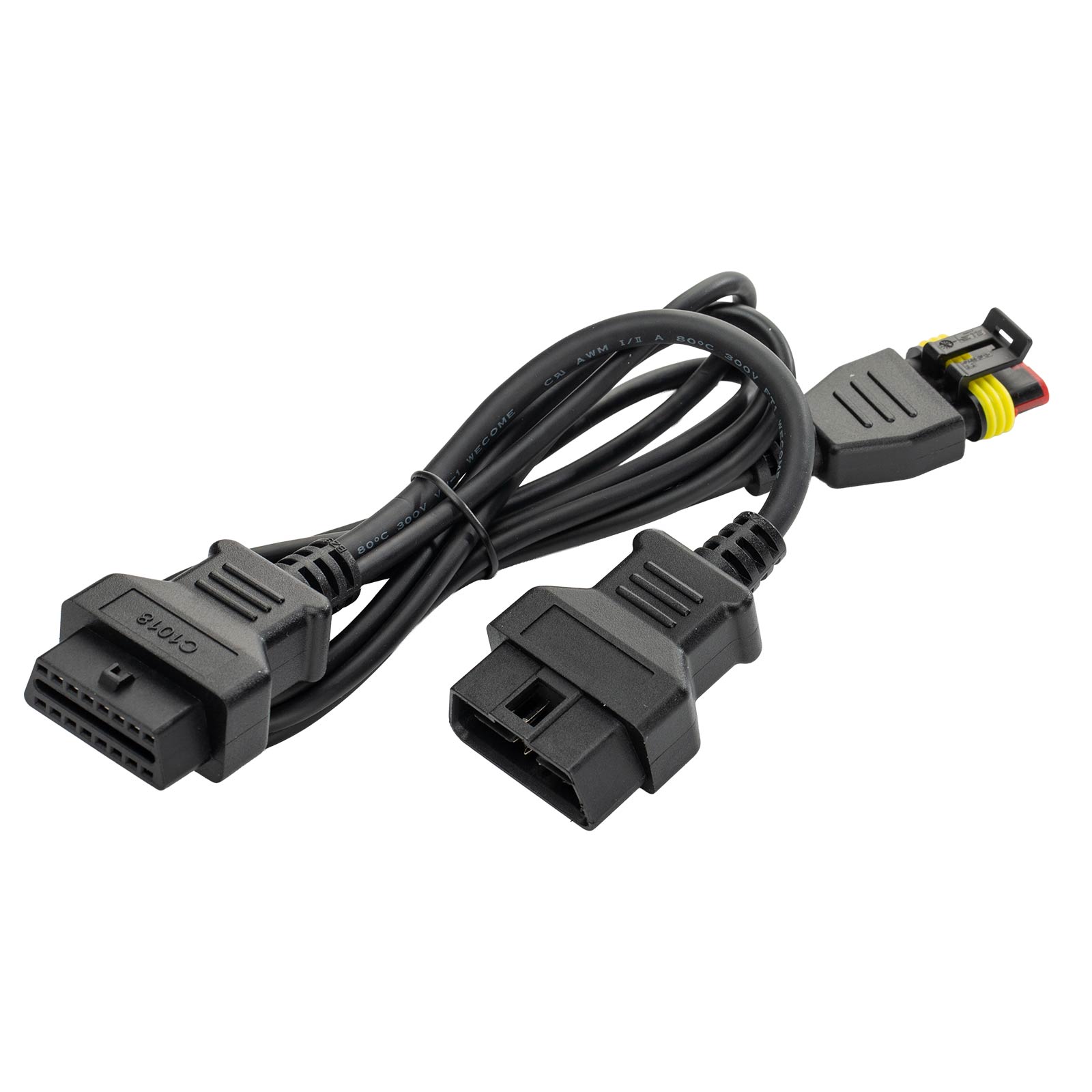

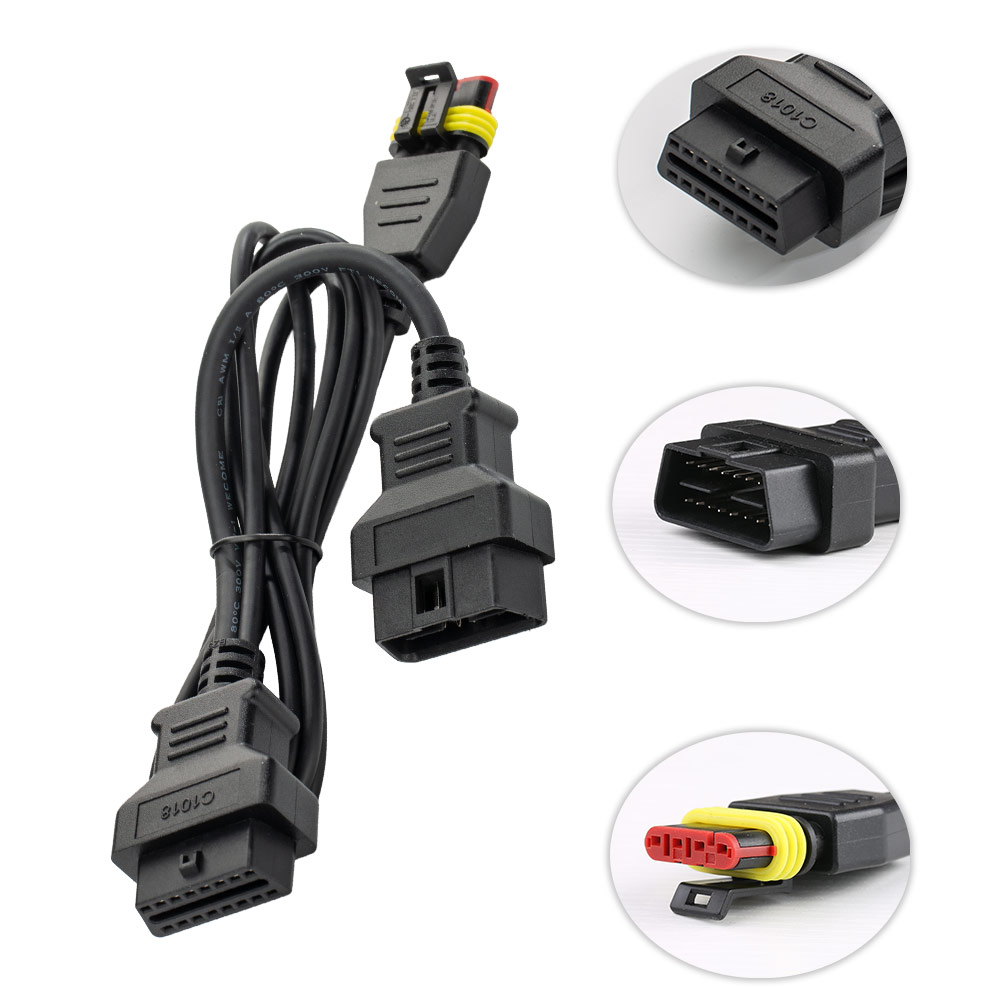

- 1×CAN Direct cable
- 1×TOYOTA-27 cable

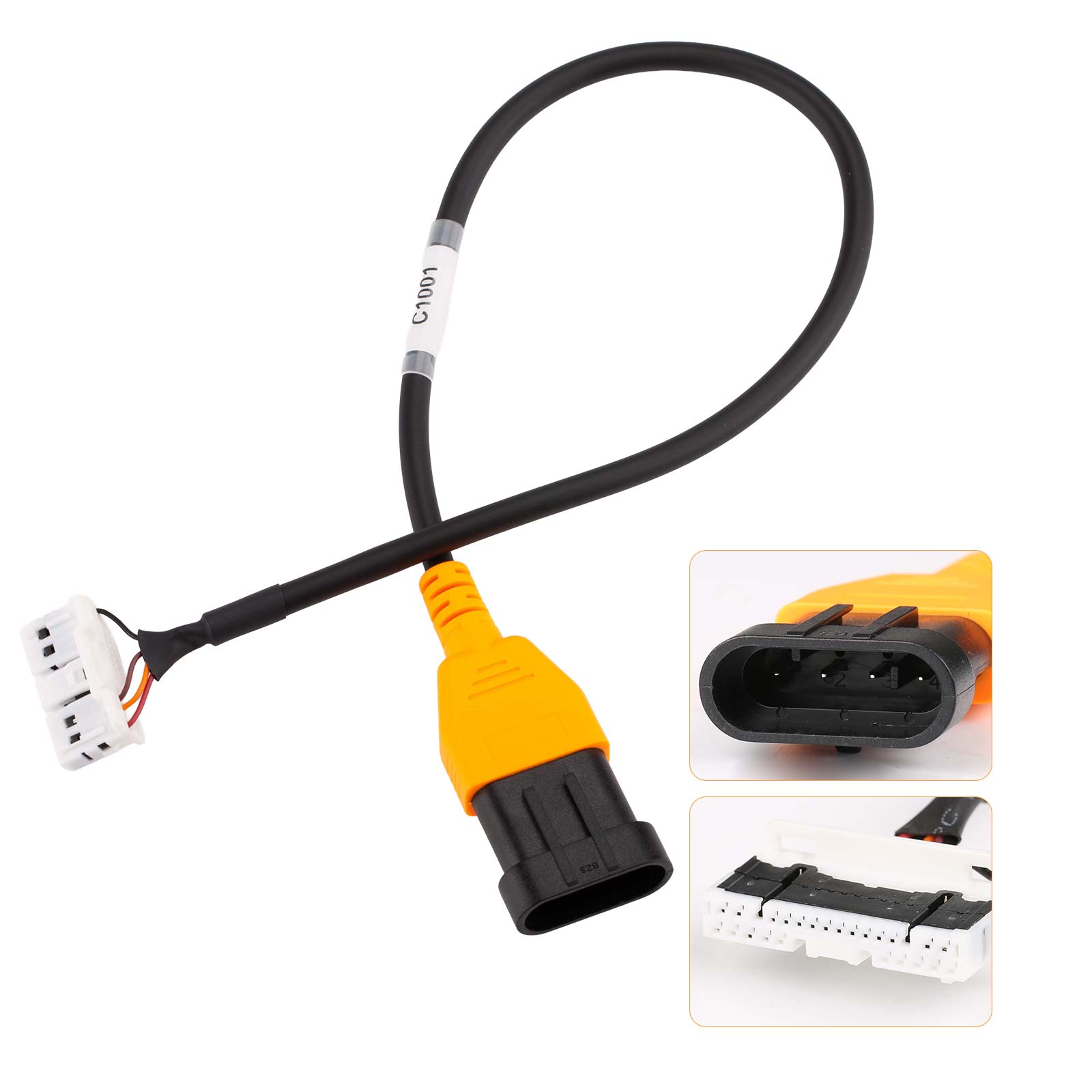

- 1×C1001 TOYOTA-24 cable
Step-by-step procedure: Toyota 4A proximity key programming instructions (PDF).
Good to Know
Caution
- A compatible OBDSTAR key programmer is required and not included.
- The CAN jumper cable is optional and sold separately.
