Specifications

BrandOBDSTAR
SKUOBDSTAR-4334
Weight0.3 lbs
FunctionsCAN driver (wakes up cluster/audio/gear lever/A/C panel modules, etc.) + gateway simulation
ProcessorSTM32H723 MCU
Supported ProtocolsStandard CAN, low-speed fault-tolerant CAN, CAN FD
Baud Rate500K/250K, 500K/125K, 500K/83.3K, 500K/100K, 500K/5M, 500K/2M, custom
ModesAuto scan, manual baud rate selection, custom input
Termination ResistorIntegrated 120Ω resistor switch
CompatibilityWorks with Autel / Launch X431 diagnostic tools; CAN driver supports AUDI, BMW, BENZ, FORD, PORSCHE, VW, VOLVO, LAND ROVER, etc.

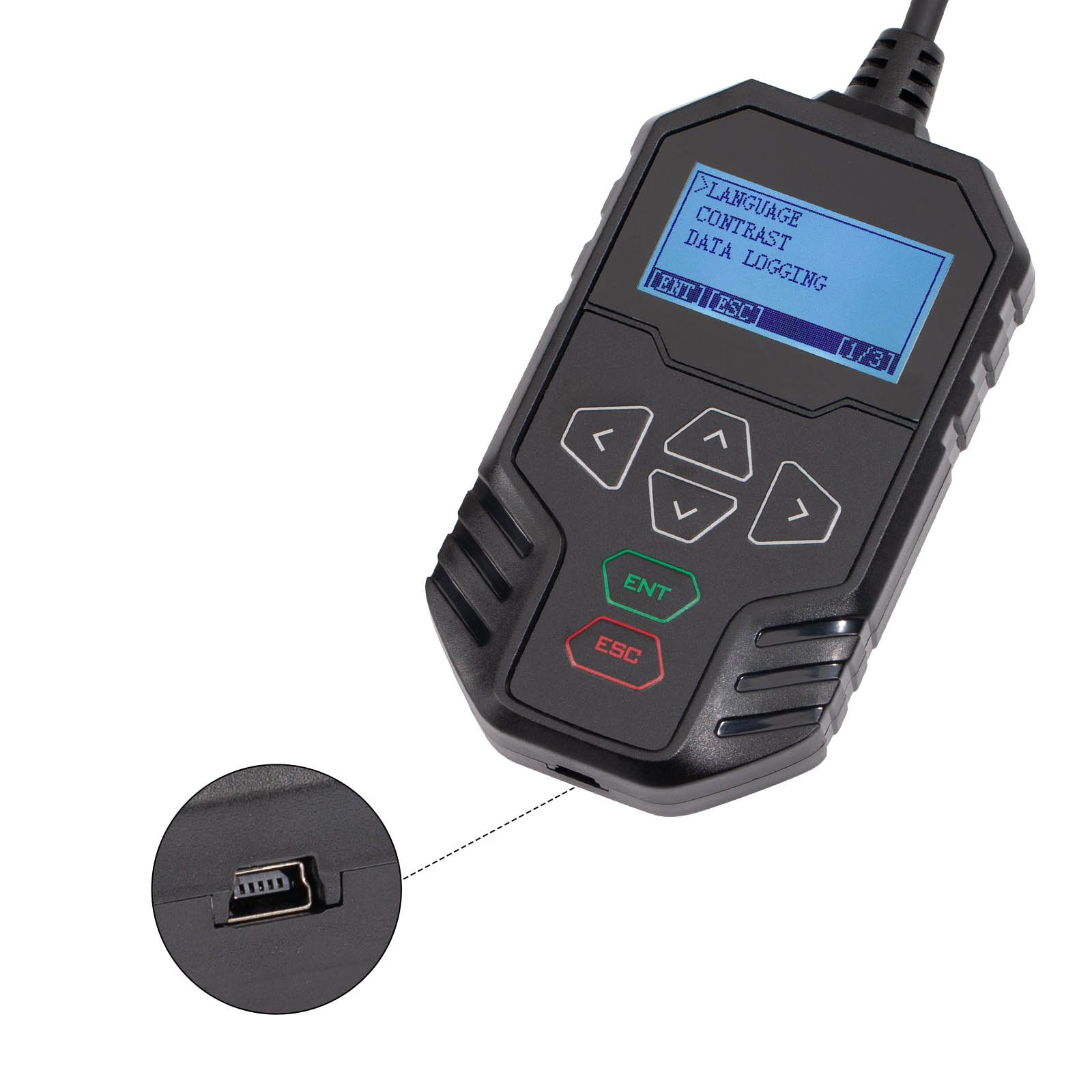

Software Updates2 years free; one-click update via Mini USB connection to PC

Details

Wake Up and Communicate With Modules on the Bench

The MT203 sends CAN wake-up signals so dashboards, audio units, gear levers and A/C panels work off the vehicle, and simulates the gateway so an Autel or Launch X431 scan tool can reach airbag, BCM and EV modules. Check the coverage list before ordering.

  • CAN Driver + Gateway Simulator
  • Standard, Fault-Tolerant & CAN FD
  • 120 Ω Resistor Switch
  • 2 Years of Updates

Key Features

  1. CAN Driver

    Simulates CAN communication to put a detached module into its working state for testing, without a separate startup platform or harness for each model.

  2. Gateway Simulation

    Emulates most automotive gateways, converting protocol type and baud rate so the scan tool can talk to the ECU.

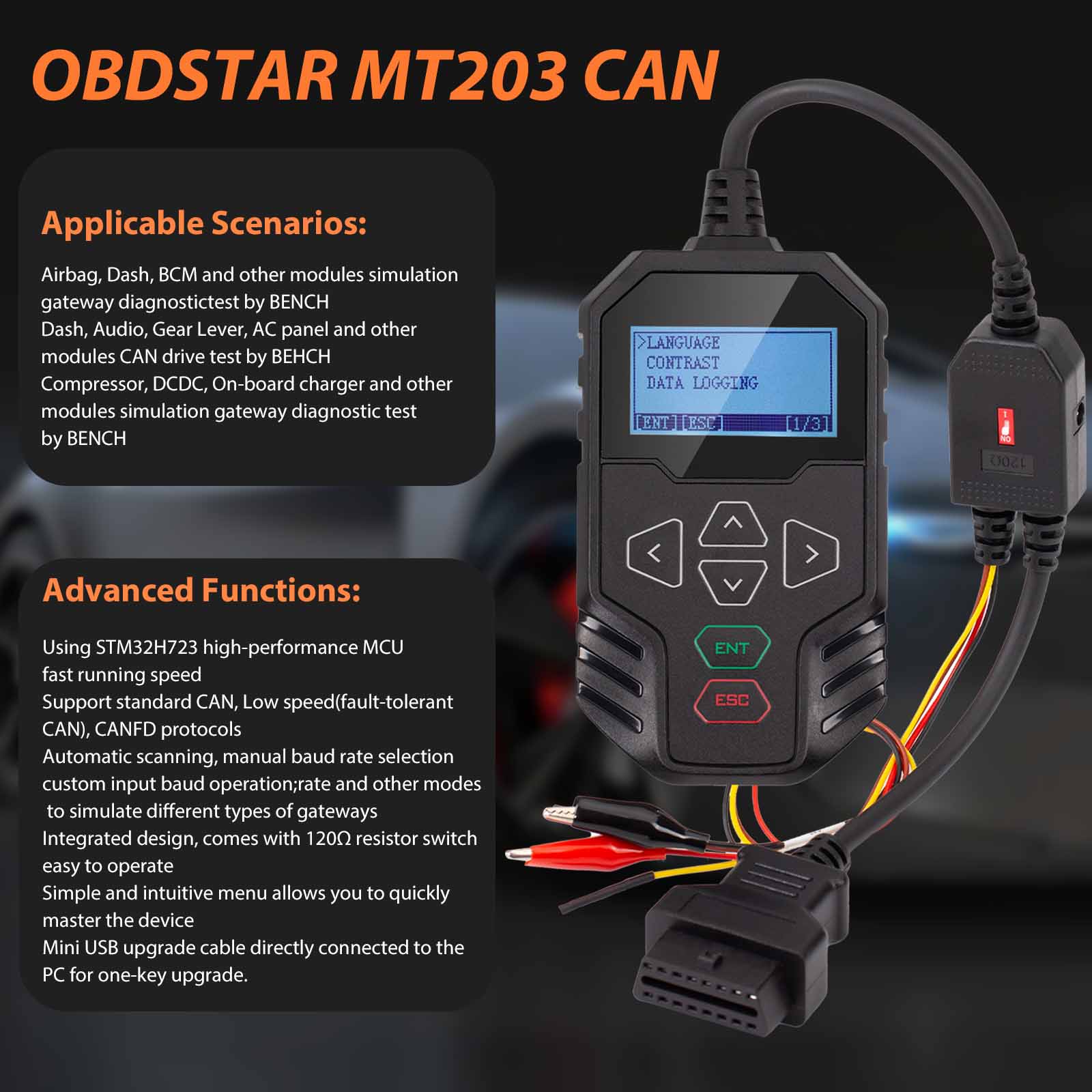

  3. Bench Repair Scenarios

    Airbag, dash and BCM gateway diagnostics; dash, audio, gear lever and A/C panel CAN drive tests; and EV components such as compressors, DC-DC converters and on-board chargers.

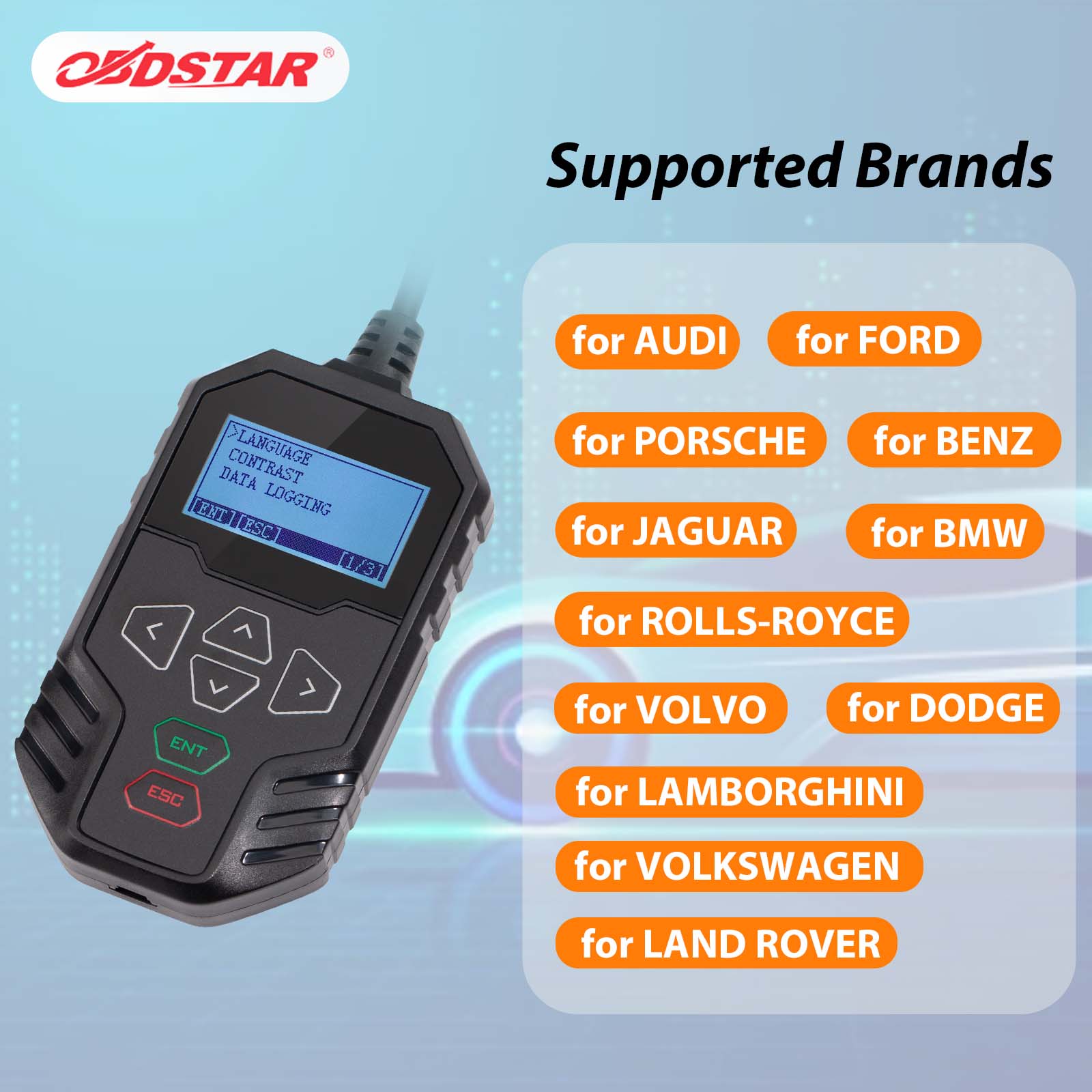

  4. CAN Driver Brand Coverage

    Audi, BMW, Benz, Dodge, Ford, Jaguar, Lamborghini, Land Rover, Porsche, Rolls-Royce, Volkswagen, Volvo and others.

  5. Flexible Gateway Modes

    Auto scan, manual baud rate selection or custom input to simulate different gateways.

  6. Pinouts in the Mobile App

    The OBDSTAR app shows dash, radio and gear lever pinouts for bench wiring.

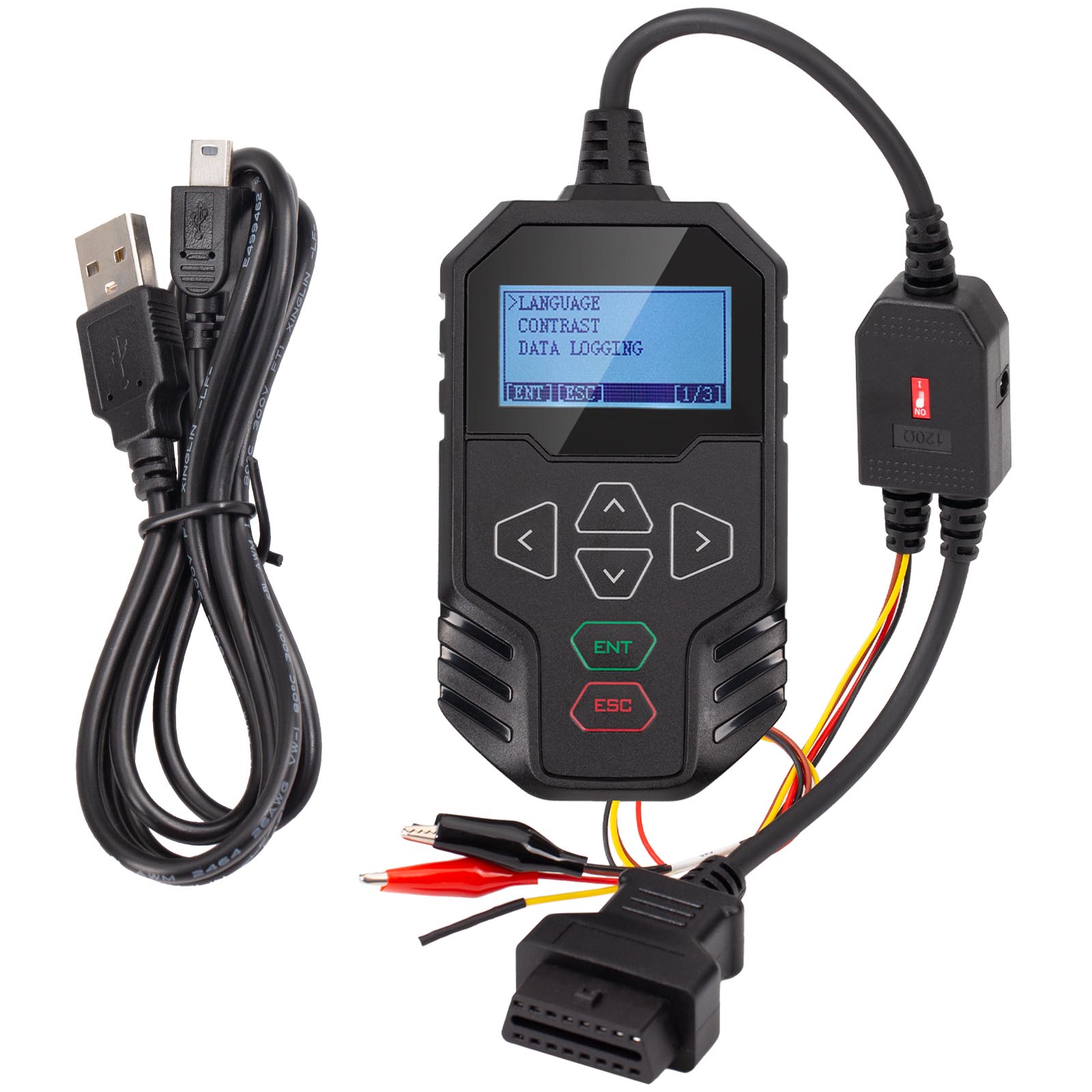

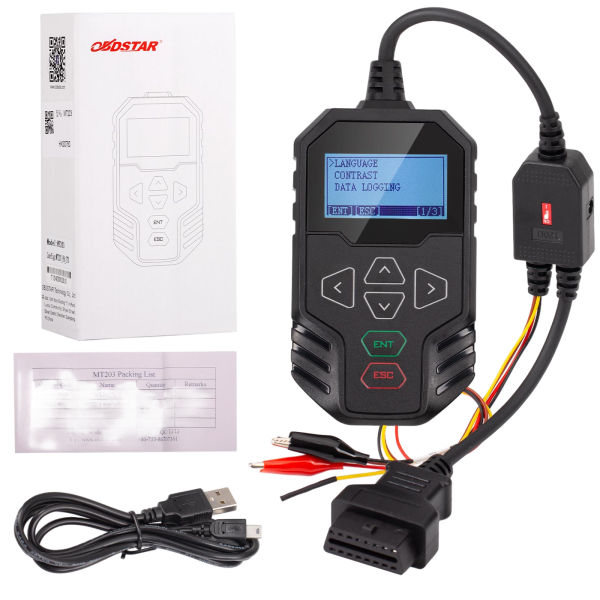

What’s in the Box

  • 1×MT203 main unit
  • 1×Mini USB upgrade cable

Good to Know

Caution
  • Gateway diagnostics need a compatible diagnostic tool, which is not included.
