Dealer-Level Diagnostics With Non-OBDII Adapters for Older Vehicles

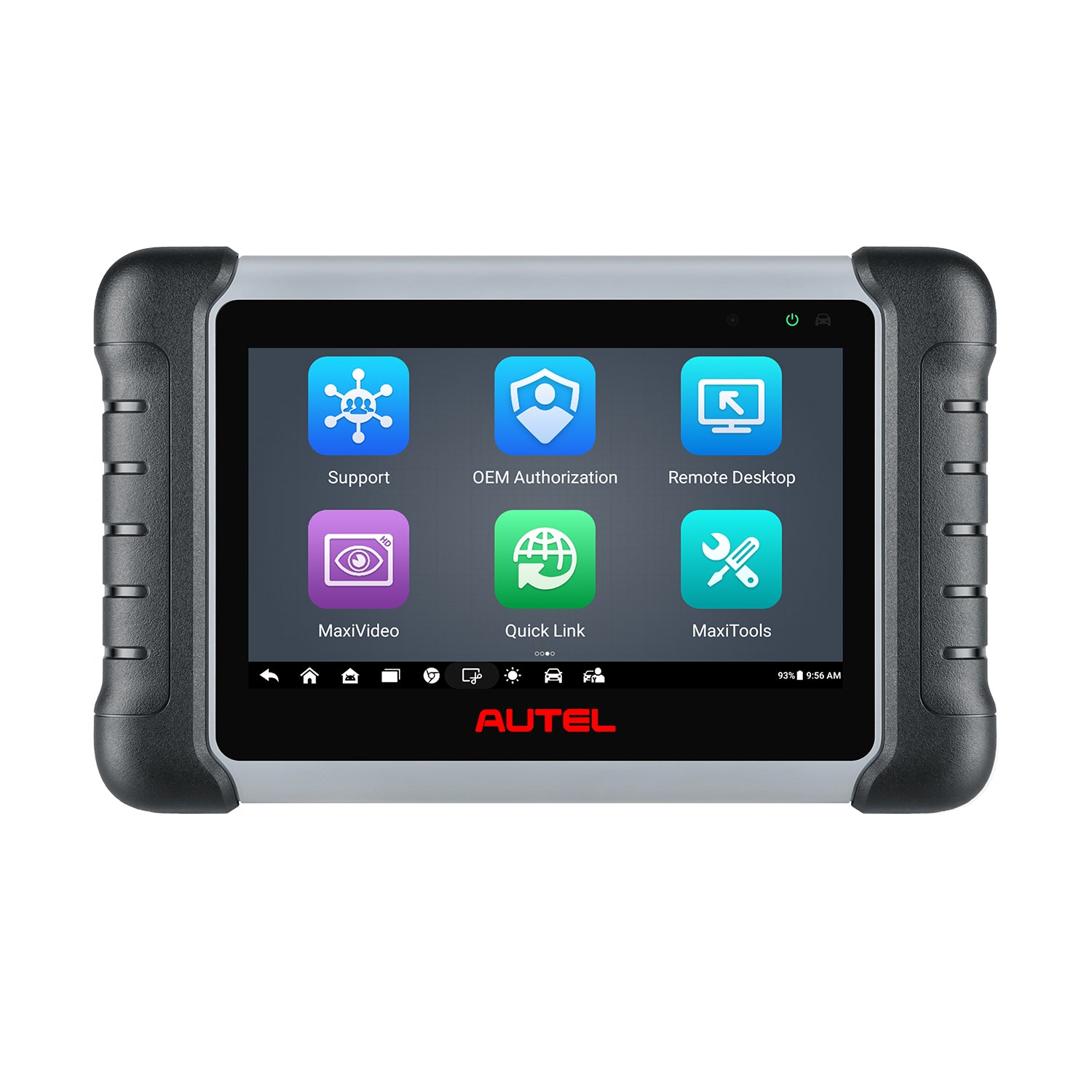

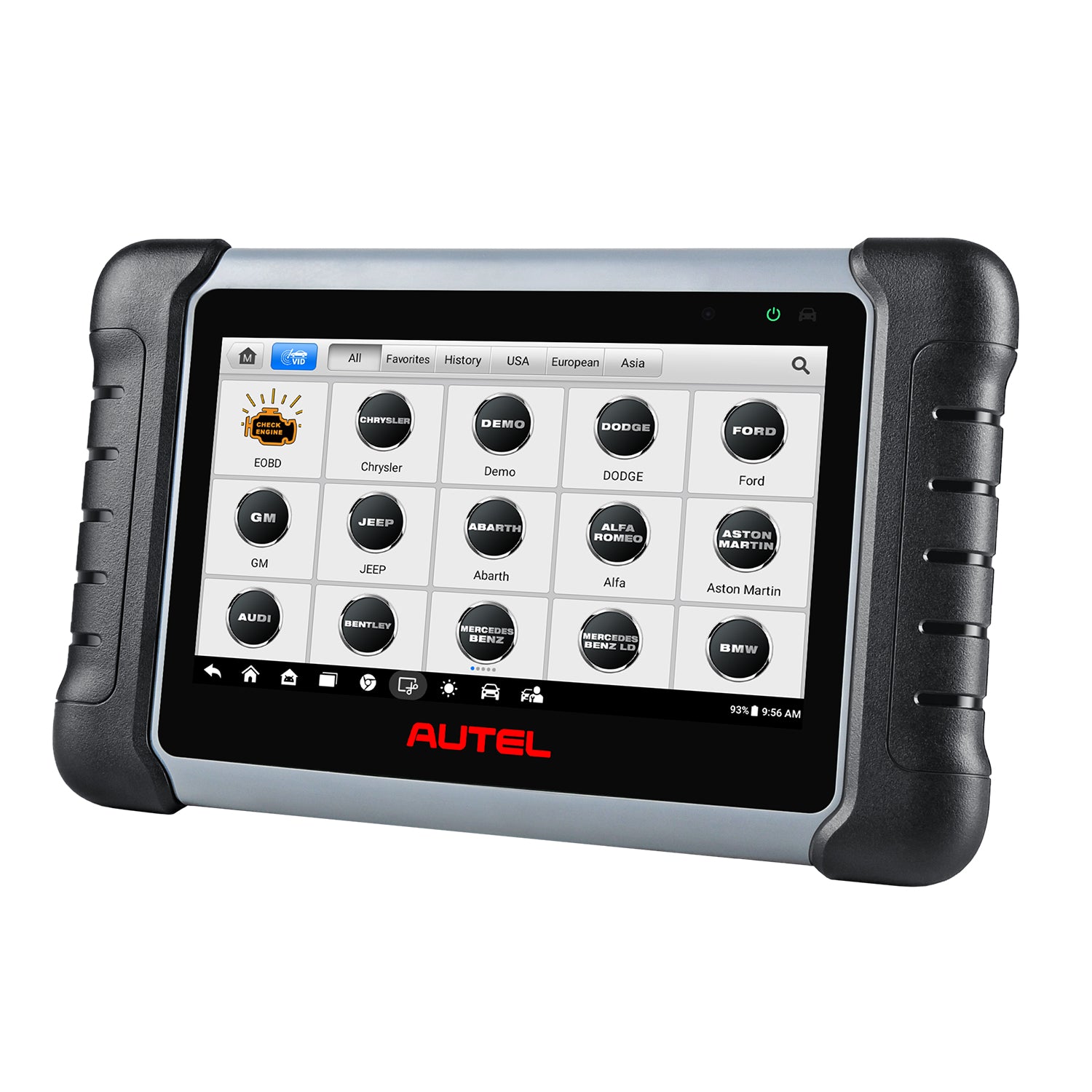

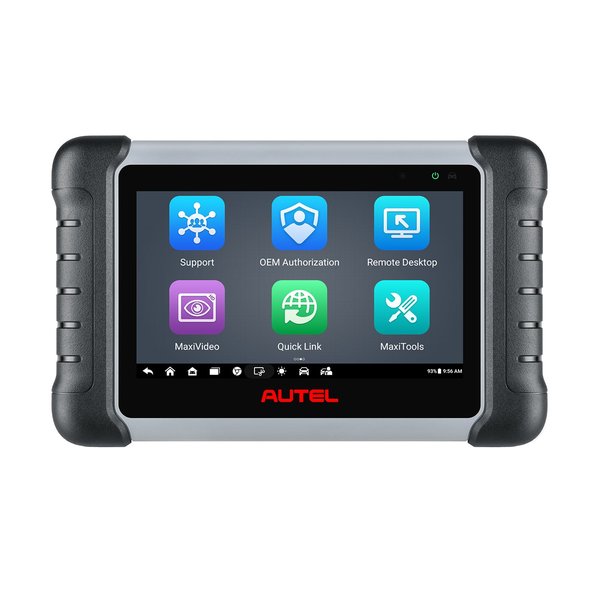

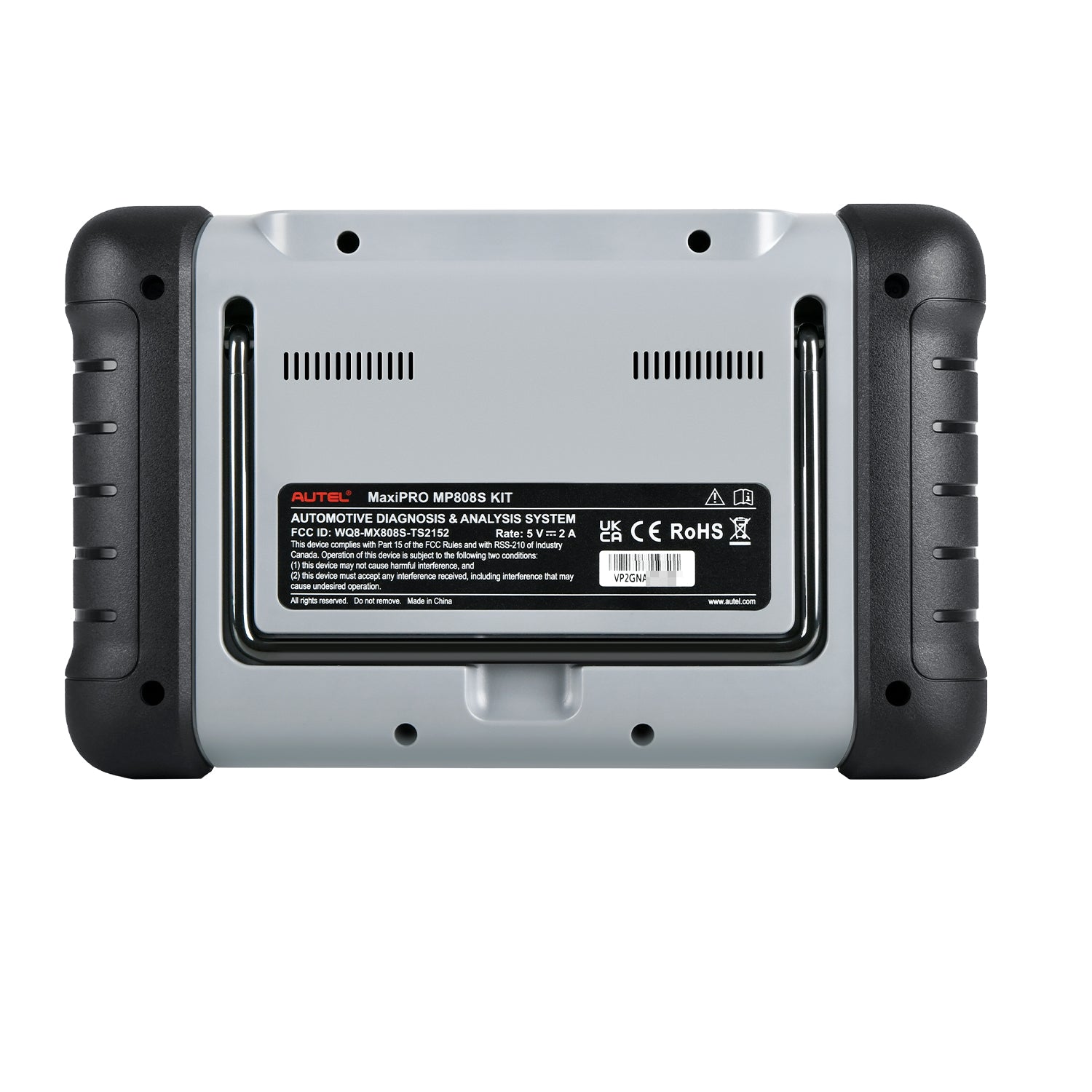

The MaxiPro MP808S Kit pairs a 7-inch Android tablet with a non-OBDII adapter kit for more vehicle models and modules. It reads and clears codes across all systems, runs active tests and handles 28+ service functions on 80+ U.S., European and Asian makes.
- Non-OBDII Adapter Kit
- 28+ Services
- Bidirectional Control
- FCA AutoAuth
- AutoVIN
Key Features
-
OE-Level All-System Diagnosis
Access systems such as PCM, ECM, TCM, BCM and SCCM to read and erase codes, view and graph live data, and perform adaptations.
-
28+ Service Functions
Oil, SAS, EPB, TPMS, injector coding, bleeding, DPF, throttle and more.
-
Bi-Directional Control
Active tests on systems and components such as solenoids, relays, switches, valves, sunroof, windows and doors.
-
FCA AutoAuth Access
With an authenticated AutoAuth account, access the gateway on 2018 and newer FCA vehicles (Chrysler, Jeep, Dodge, Fiat) in the US, Canada and Mexico.
-
AutoVIN
Automatically identifies the vehicle make, model and year.
-
Cloud Reports and Workshop Data
View, save, print and share reports on phones, tablets and computer browsers, and keep data files, customer information and vehicle records organized.
-

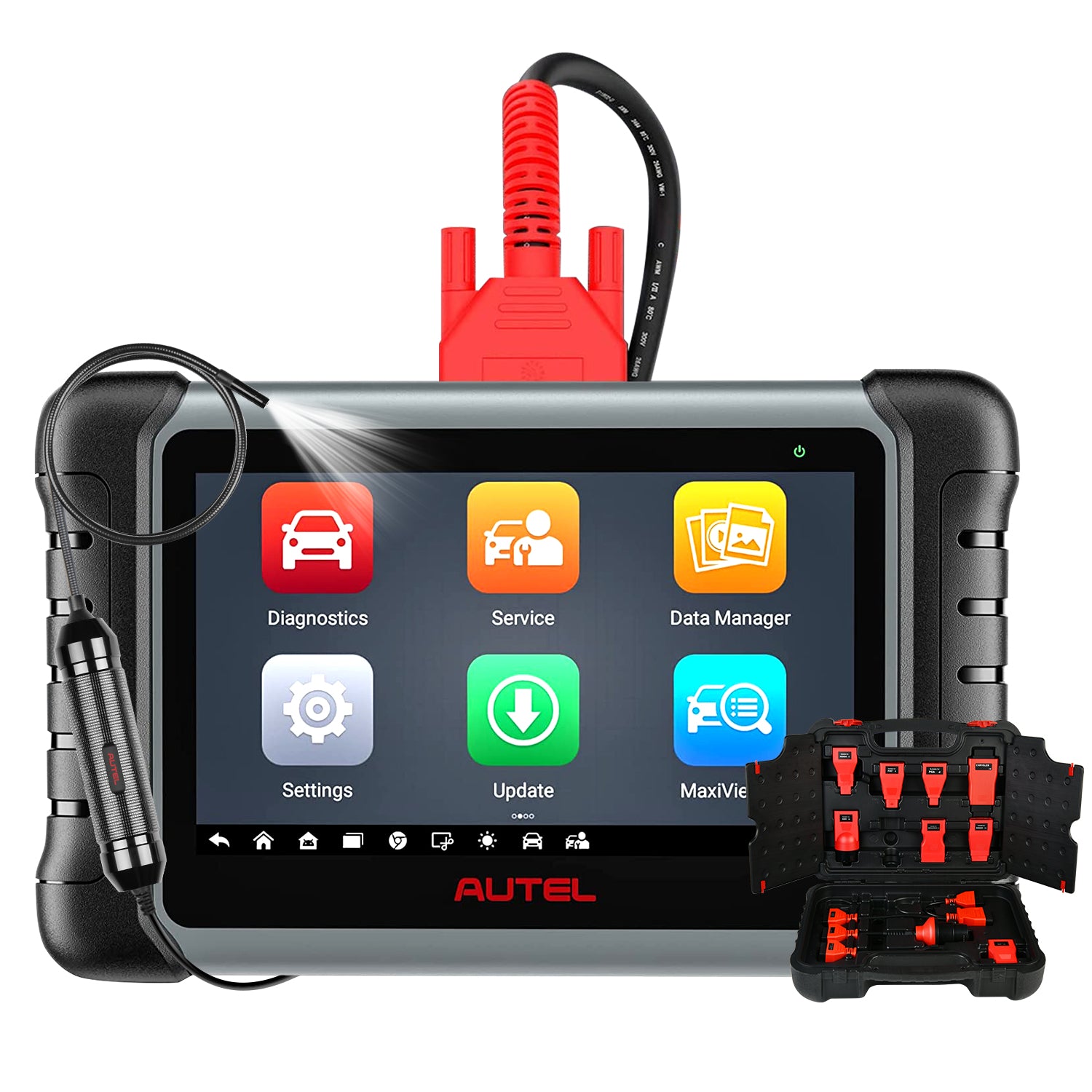

Videoscope and Remote Support
Works with a videoscope; data logging sessions and remote control connect you directly with Autel technical support.
More Specifications
| Connectivity | Wi-Fi (802.11a/b/g/n/ac), USB 2.0, Mini USB 2.0, SD card (up to 64GB) |
|---|---|
| Sensors | Light sensor for automatic brightness |
| Audio | Beep output |
| Charging | 5 VDC power supply |
| Operating temperature | 0 to 50°C (32 to 122°F) |
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (high-speed, middle-speed, low-speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP2.0, TP1.6 |

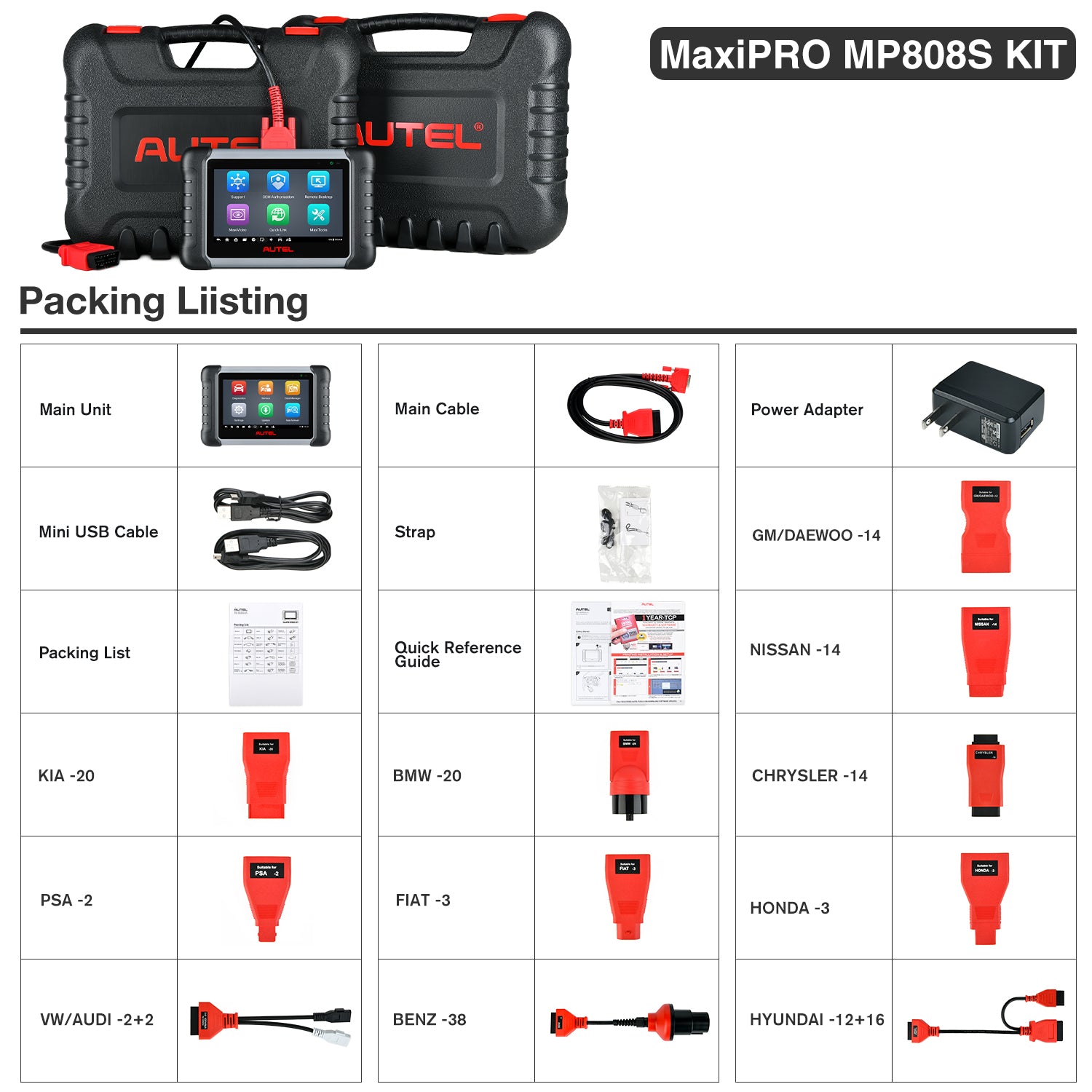

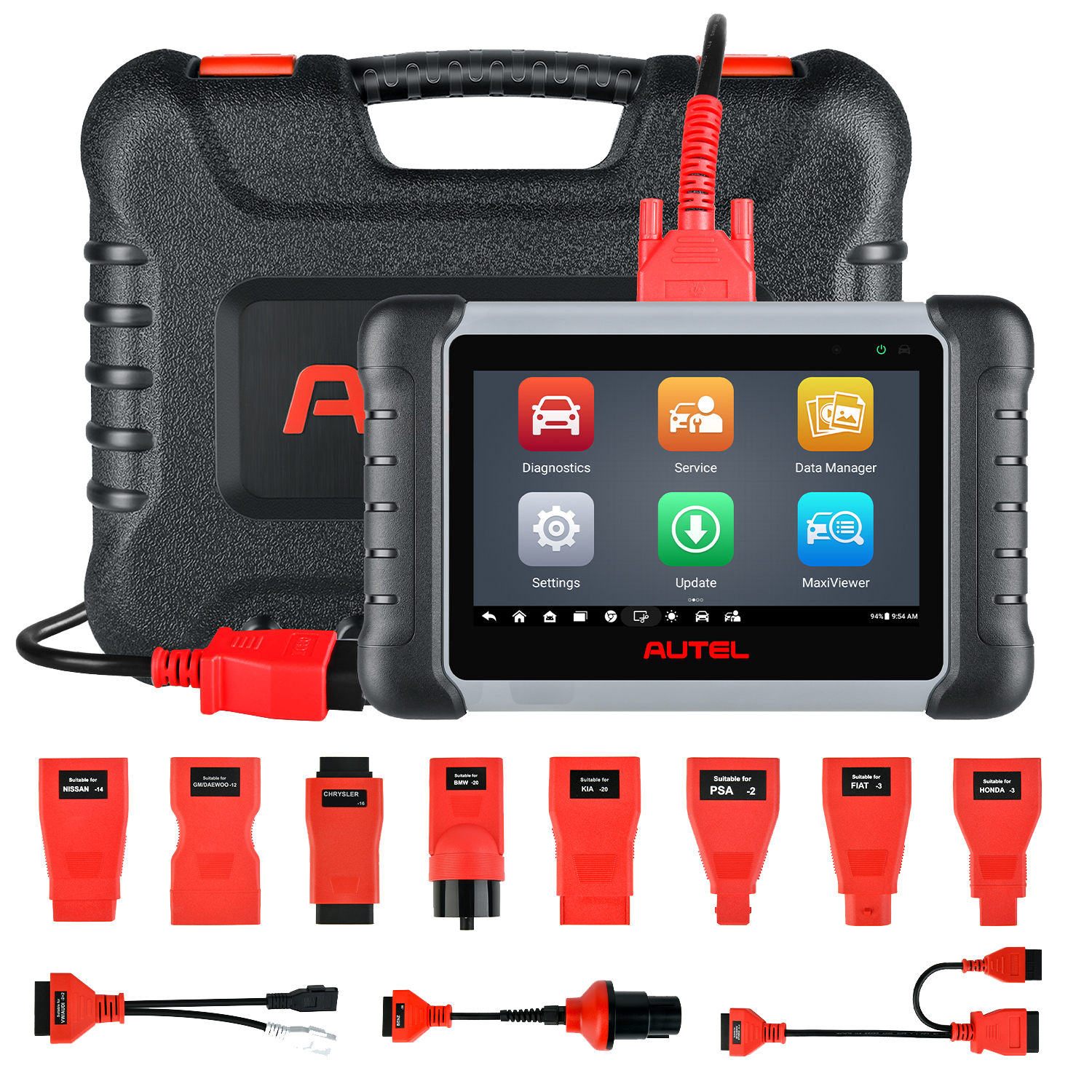

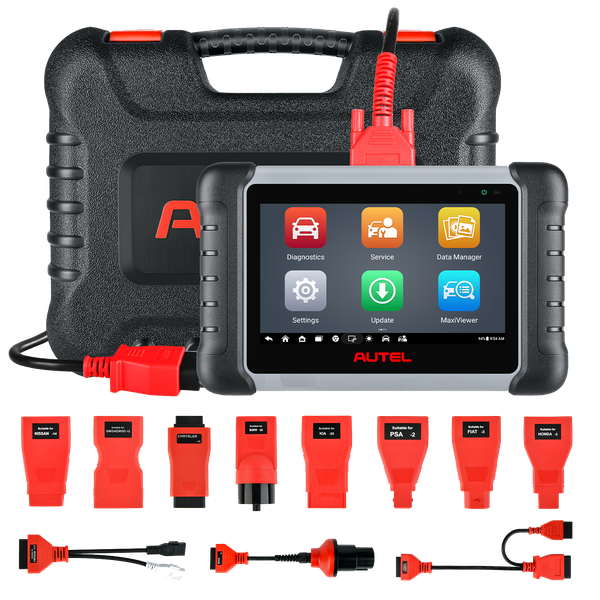

What’s in the Box
- 1×MP808S main unit
- 1×Main cable
- 1×Mini USB cable
- 1×Power adapter
- 1×Honda-3
- 1×Nissan-14
- 1×Mitsubishi/Hyundai-12+16
- 1×Kia-20
- 1×BMW-20
- 1×Volkswagen Audi-2+2
- 1×GM/Daewoo-12
- 1×Benz-38
- 1×Fiat-3 (Europe only)
- 1×PSA-2 (Europe only)
- 1×Chrysler-16 (America only)
- 1×Benz-14 (Europe only)
- 1×Quick reference guide
- 1×Packing list
- 1×Soft cloth
- 1×Carrying case for the main unit (380 × 300 × 120 mm)

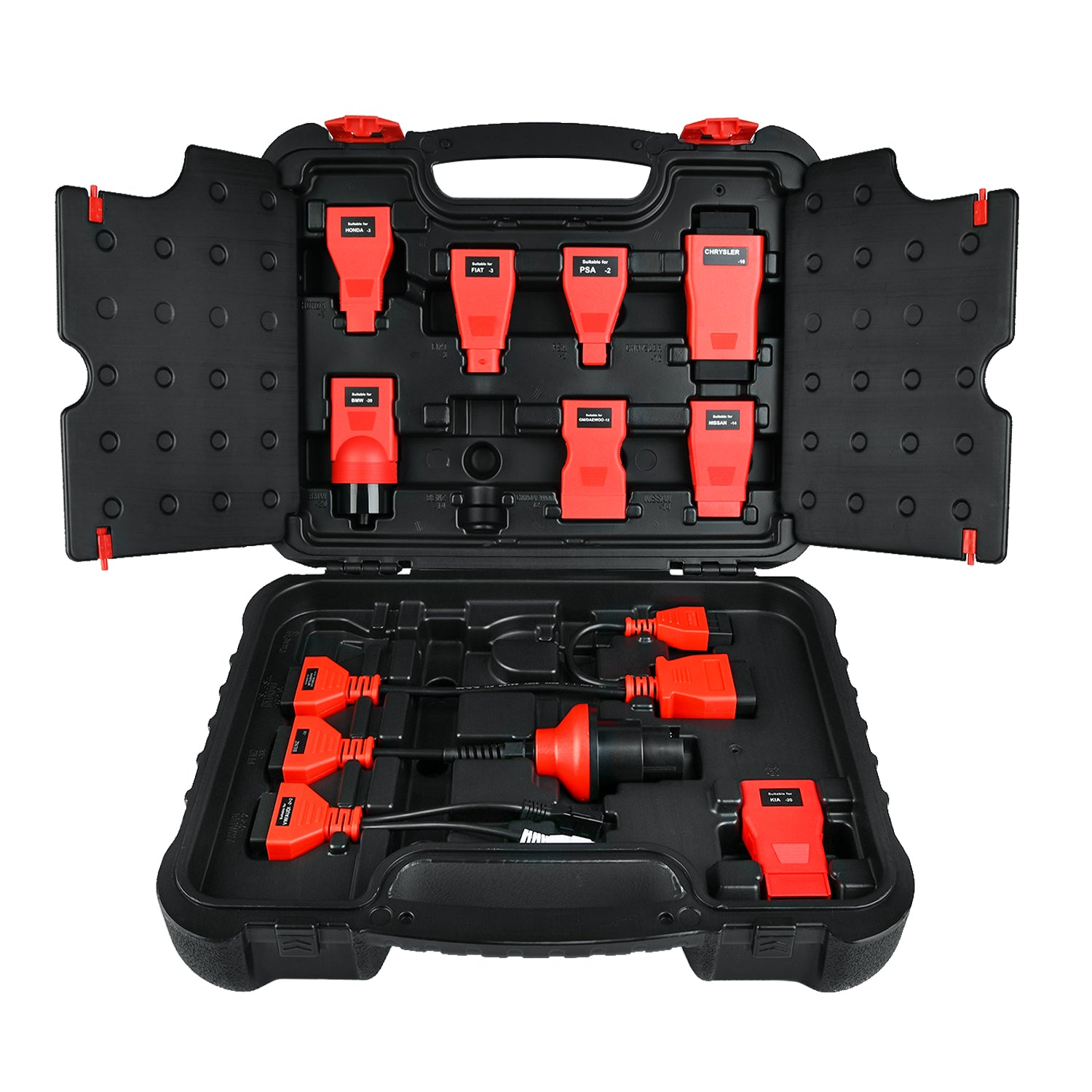

- 1×Carrying case for the adapters (409 × 320 × 140 mm)
Adapters marked Europe only or America only are available in those regions only.
Good to Know
Caution
- FCA AutoAuth access requires an authenticated AutoAuth account and is limited to vehicles in the US, Canada and Mexico.
