Full TPMS Service and Bi-Directional Diagnostics Without Extra Devices

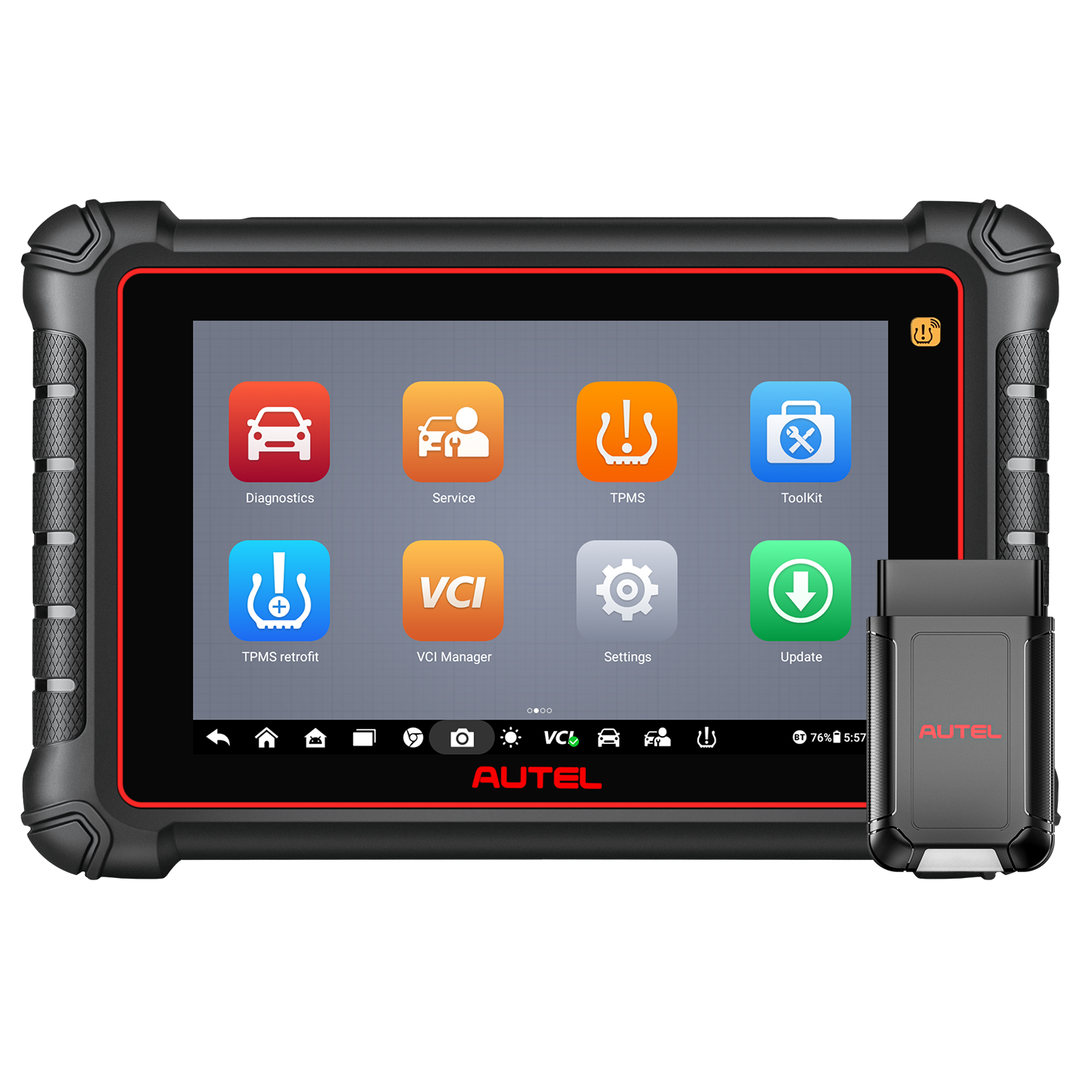

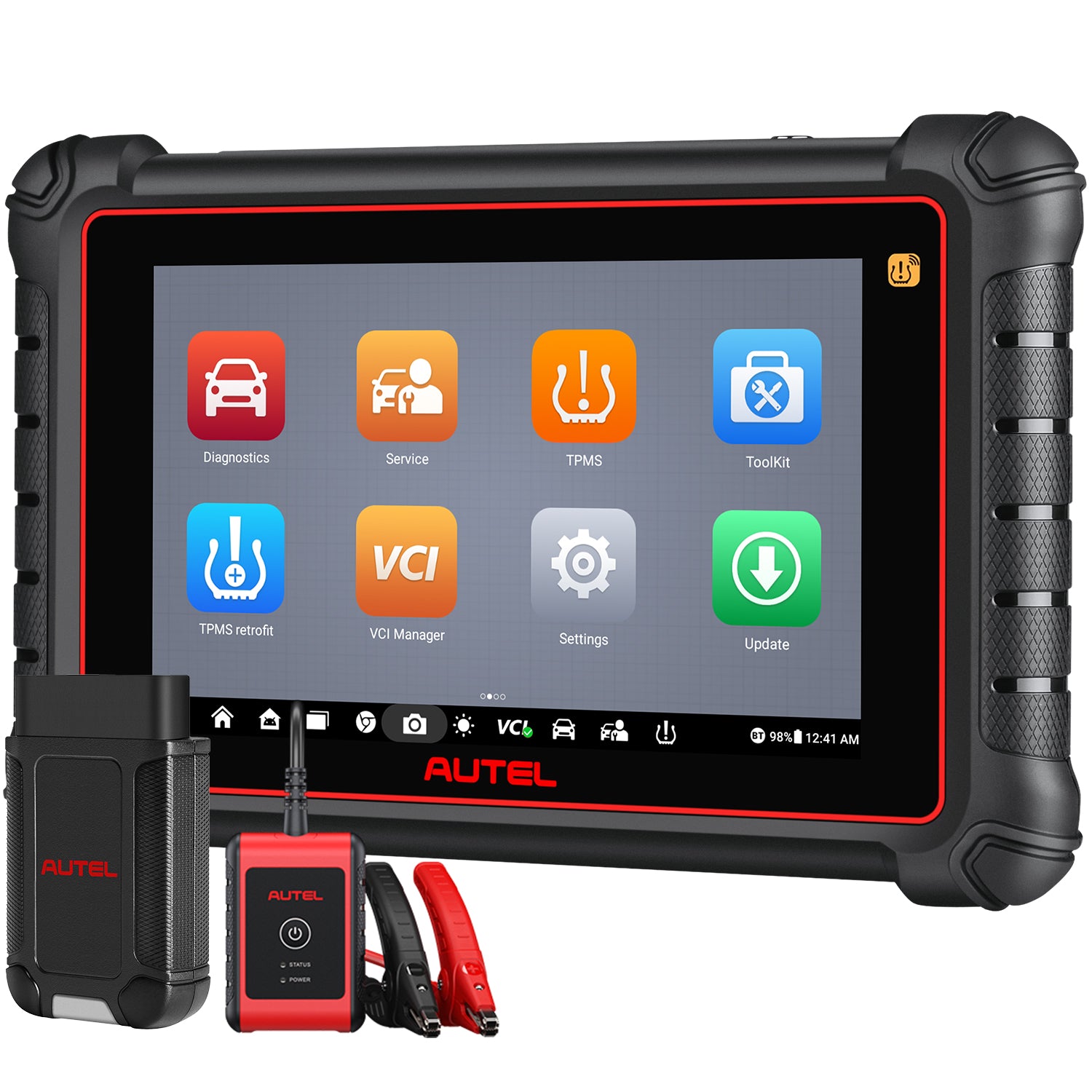

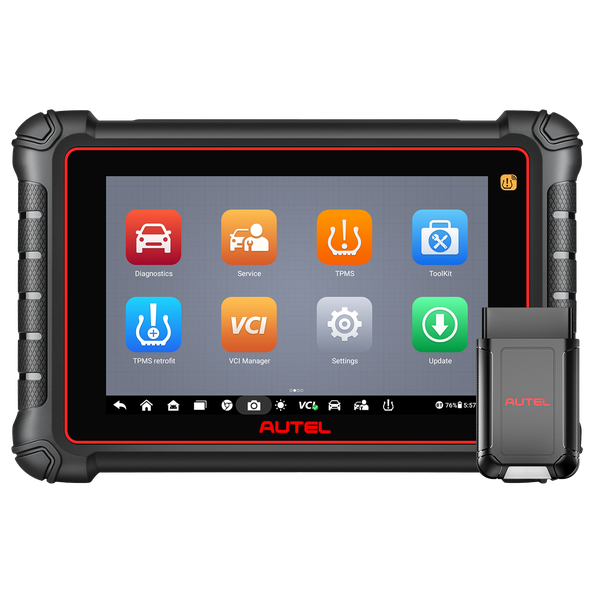

The MaxiCOM MK900-TS covers all available electronic systems with OE-level diagnostics and active tests, and adds complete TPMS functions, from sensor activation and MX-Sensor programming to on-screen relearn procedures, through the included MaxiVCI V150.
- Full TPMS Functions
- Bi-Directional Control
- 40+ Service Functions
- Pre- & Post-Scan
- Wi-Fi Printing
Key Features
-
OE-Level All-System Diagnostics
Read and clear codes, view live data and freeze frame data, retrieve ECU information, and perform adaptation and matching on U.S., Asian and European vehicles.
-
Complete TPMS Service
Read and clear TPMS DTCs with descriptions, read sensor data, check TPMS status in one step, retrofit TPMS modules and follow on-screen relearn procedures.
-
Active Tests
Send commands to the ECU to activate actuators such as ABS, windows, doors and solenoids to locate faulty parts.
-

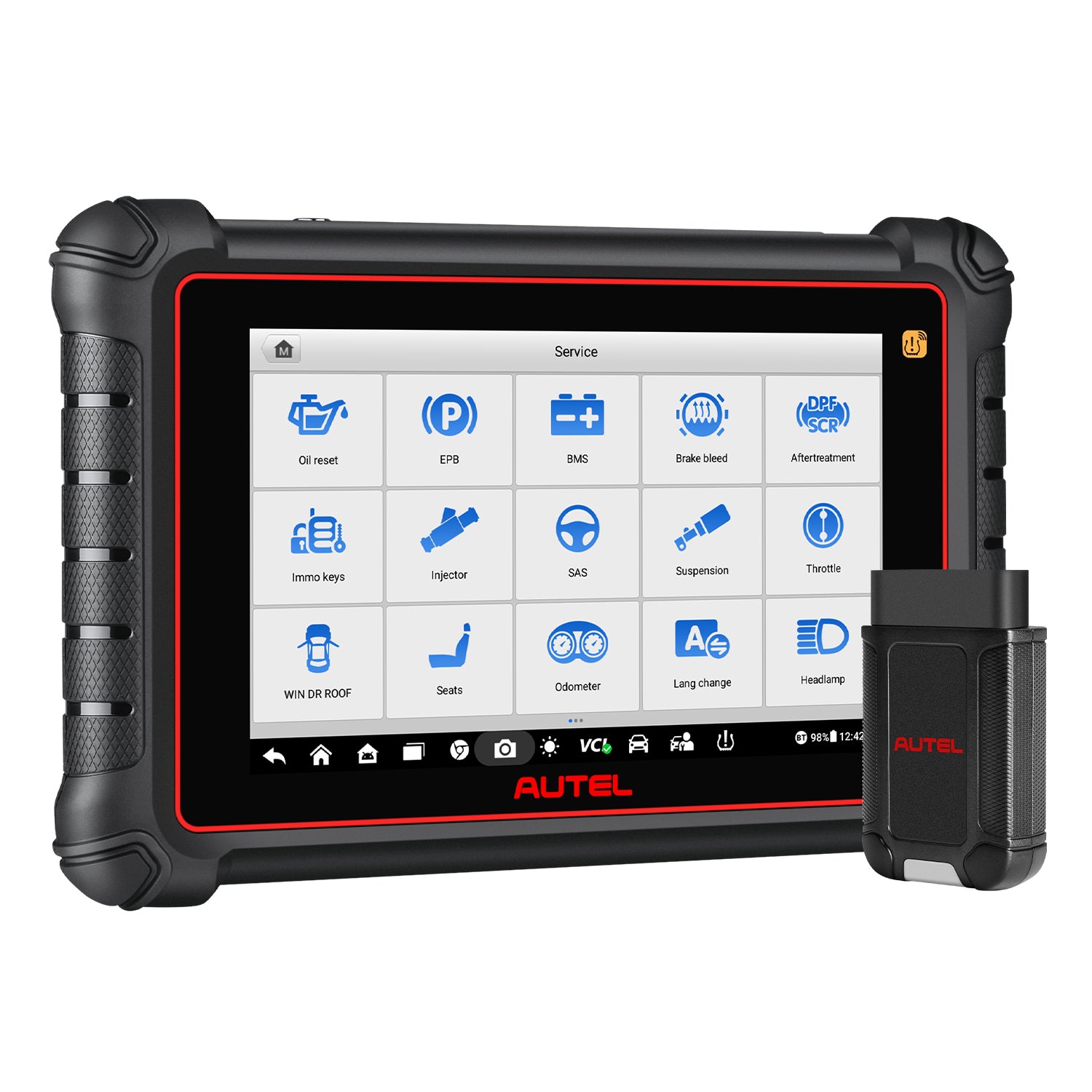

Service Functions
Oil reset, EPB, SAS reset, DPF regeneration, throttle reset, ABS bleed, battery registration, injector coding, window/door/roof, cylinder, headlamp and more.
-

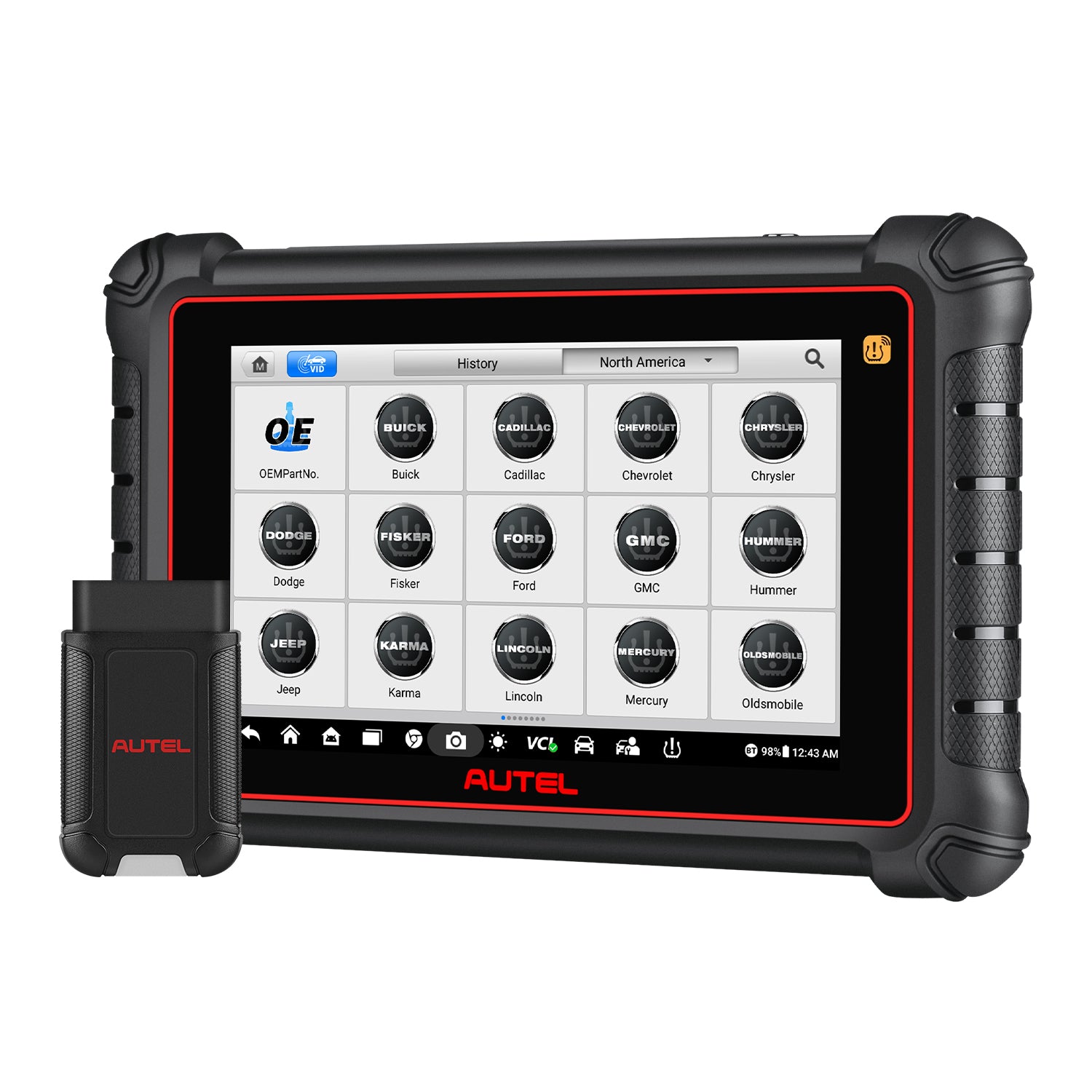

AutoVIN and Remote Support
Smart AutoVIN identifies vehicles quickly, and remote-control tech support is built in.
-
Workshop Data Management
Keep data files, customer information and vehicle records organized in one place.
More Specifications
| Memory card | Mini SD card (supports up to 64GB) |
|---|---|
| Charging | 5 VDC power supply; 5V/3 A charging input |
| Audio output | Buzzer |
| Operating temperature | 0 to 50°C (32 to 122°F) |
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE J1850 VPW and PWM, ISO 11898 (high, middle, low speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP 2.0, TP 1.6, DoIP, CAN FD |

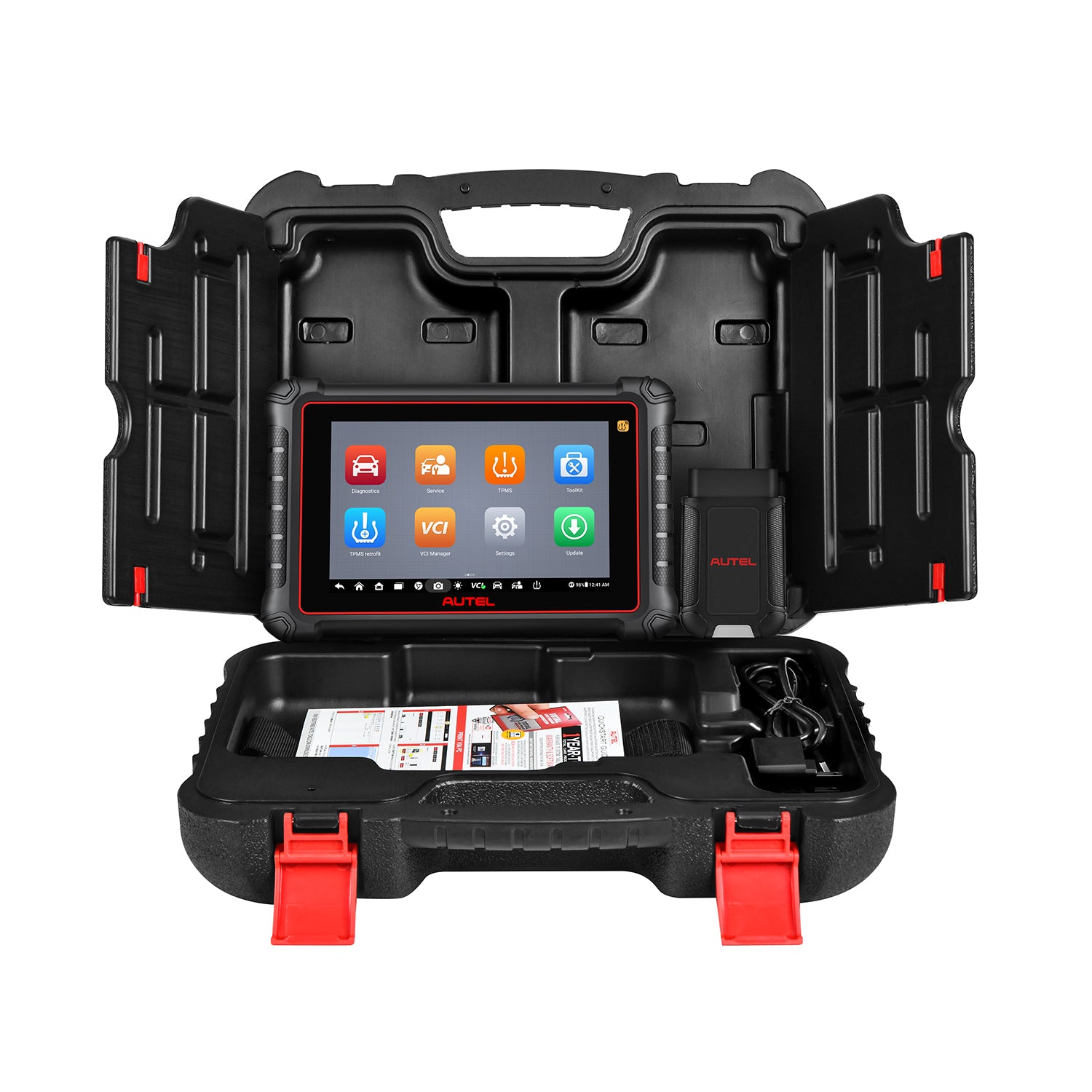

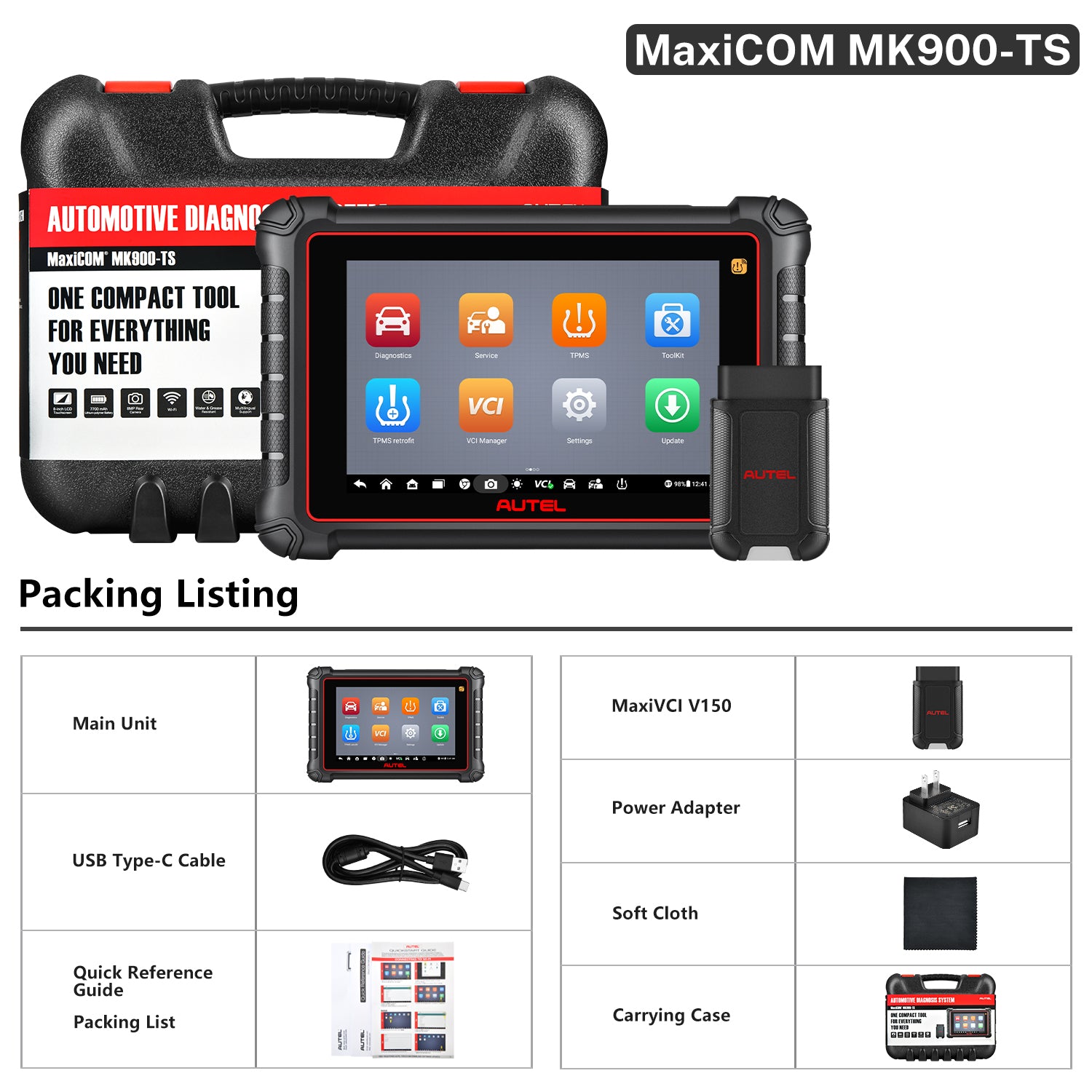

What’s in the Box
- 1×MK900-TS tablet main unit

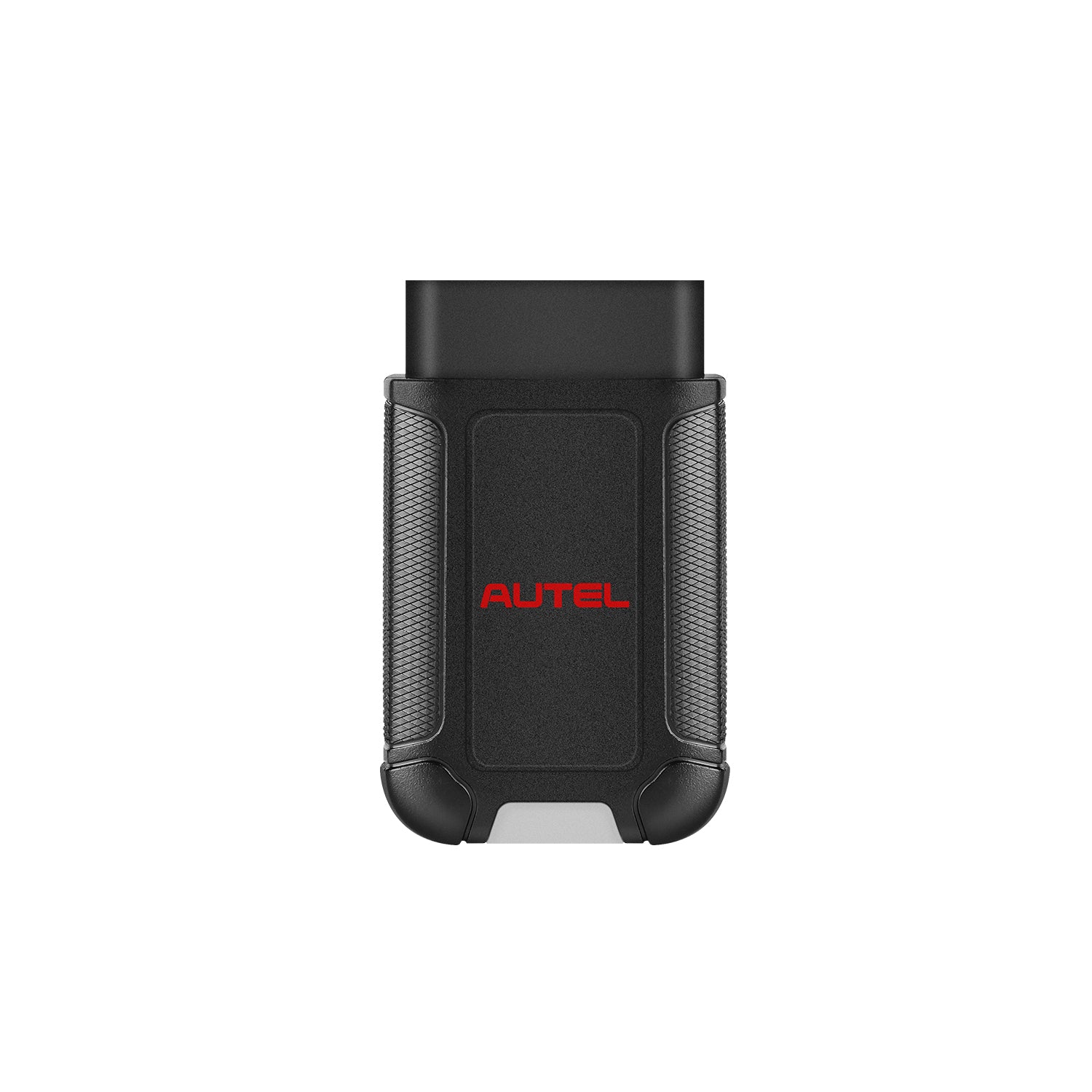

- 1×MaxiVCI V150
- 1×Power adapter
- 1×USB Type-C cable
- 1×Soft cloth
- 1×Quick reference guide
- 1×Carrying case
- 1×Packing list
