Online ECU Coding, Active Tests and 40+ Services on an 8-Inch Tablet
The MaxiPro MP900-BT (also known as DS900-BT / MP900Z BT) pairs an 8-inch Android tablet with the wireless MaxiVCI V150. It handles all-system diagnostics, bi-directional control, online ECU coding for BMW, Porsche and VW, and 40+ service functions, with DoIP and CAN FD support out of the box.
- Online ECU Coding
- 40+ Services
- Bidirectional Control
- DoIP & CAN FD
- VAG Guided Functions
Key Features
-
Online ECU Coding
Activate hidden functions, customize OE settings such as auto start/stop, and match, code, re-code and adapt replacement modules on BMW, Porsche and VW.
-
40+ Service Functions
ABS bleed, oil reset, SAS reset, injector coding, SRS reset, BMS reset, EPB reset and more, plus initial adaptation and self-learning after maintenance, such as crankshaft position sensor learning.
-
Bi-Directional Active Tests
Test the integrity and function of module actuators without disassembly to locate faulty parts quickly.
-
VAG Step-by-Step Guides
Guided special service procedures for VW, Audi, Skoda, Seat and MAN LD help technicians avoid mistakes.
-
Full Diagnostics
Read and clear codes for all available systems and display live data as text, graph or analog gauges.
-
Faster Vehicle Setup
AutoVIN identifies make, model and year; VIN/license plate scanning, pre- and post-scan, and Wi-Fi printing are also supported.
More Specifications
| Connectivity | USB Type-C, USB 2.0, Wi-Fi, Bluetooth, Mini SD card (up to 64GB) |
|---|---|
| Audio | Buzzer output |
| Charging | 5 VDC power supply, input 5 V/3 A |
| Operating temperature | 0 to 50°C (32 to 122°F) |
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (high-speed, middle-speed, low-speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP2.0, TP1.6, DoIP, CAN FD |

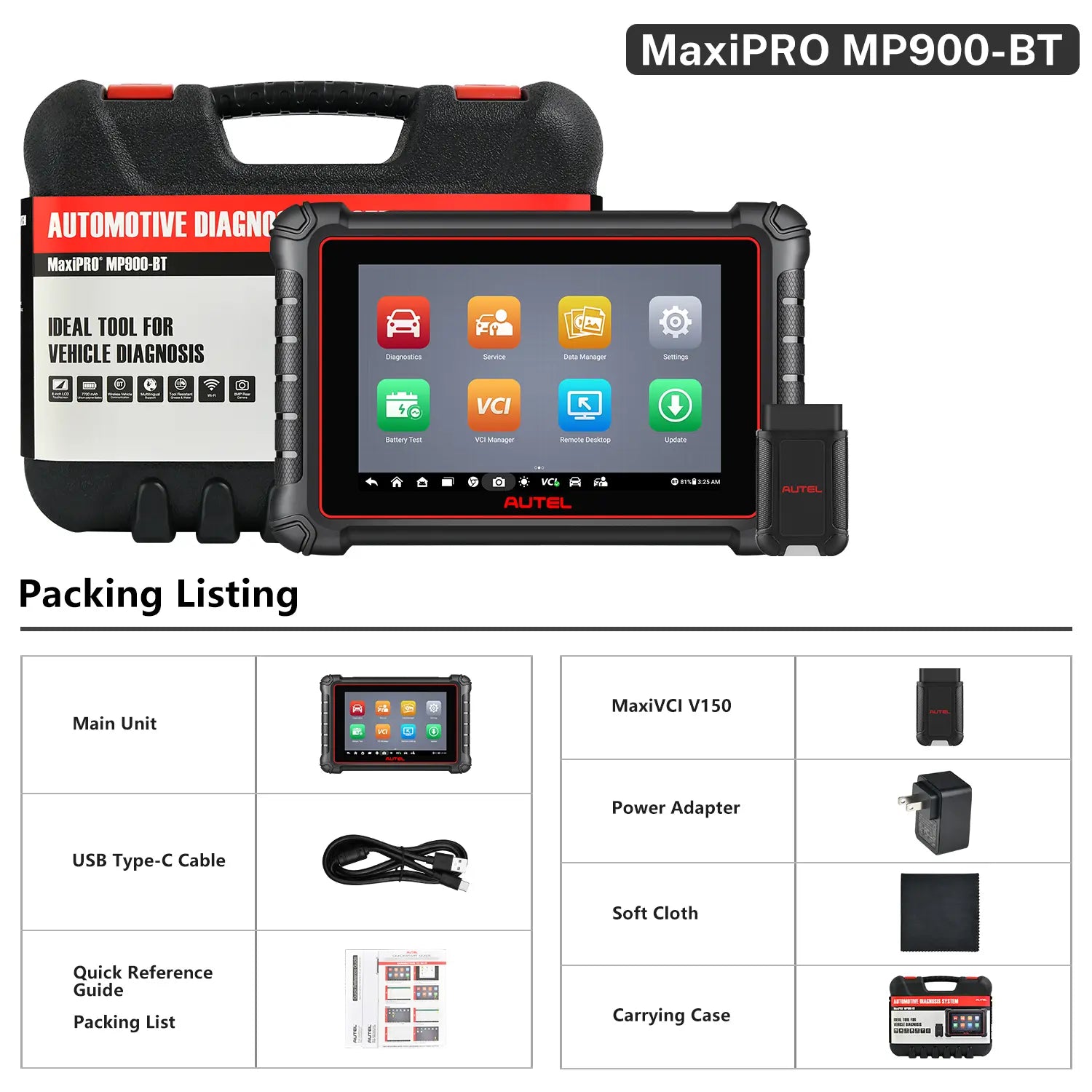

What’s in the Box
- 1×MP900BT main unit
- 1×MaxiVCI V150
- 1×Power adapter
- 1×USB Type-C cable
- 1×Soft cloth
- 1×Quick reference guide
- 1×Packing list
- 1×Carrying case
