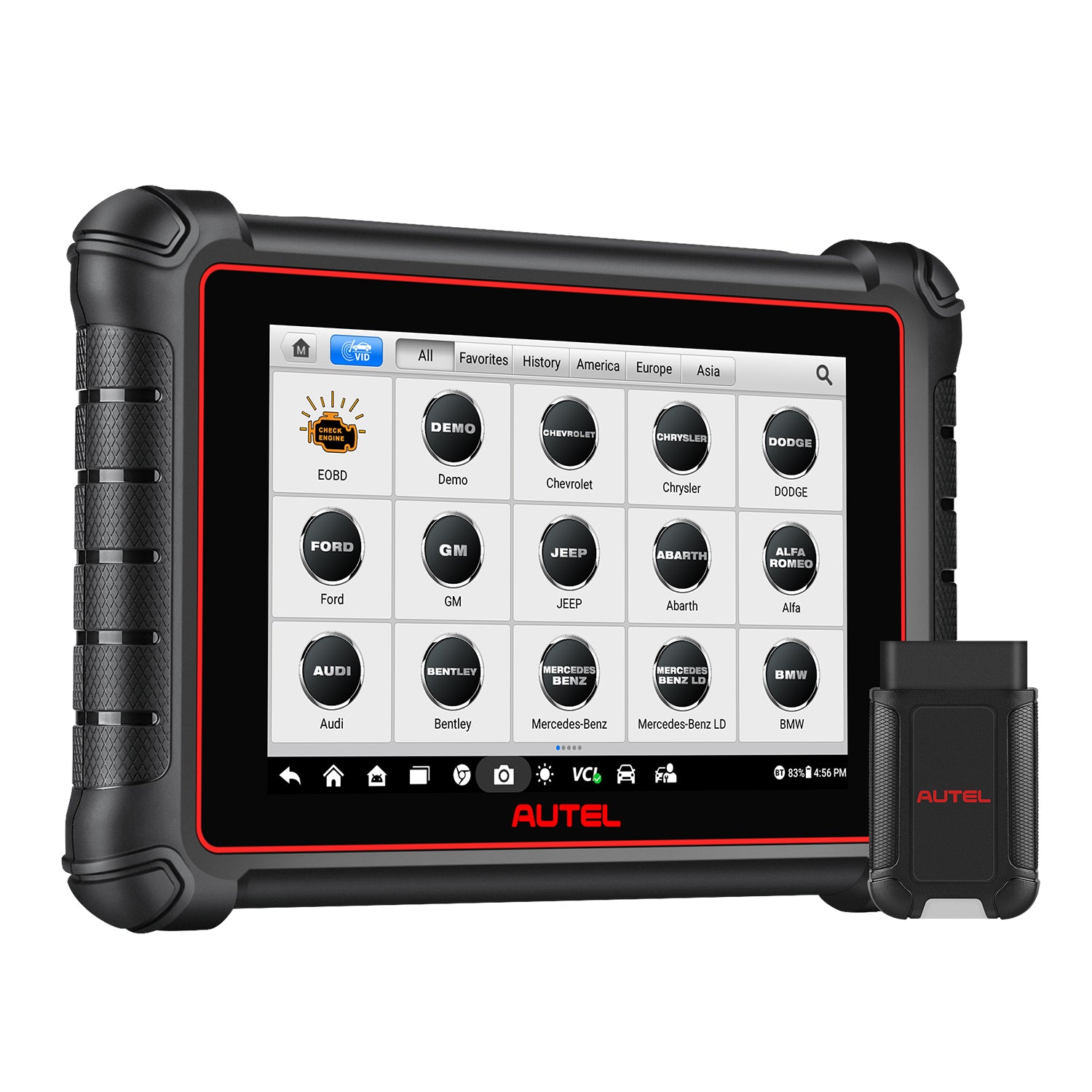

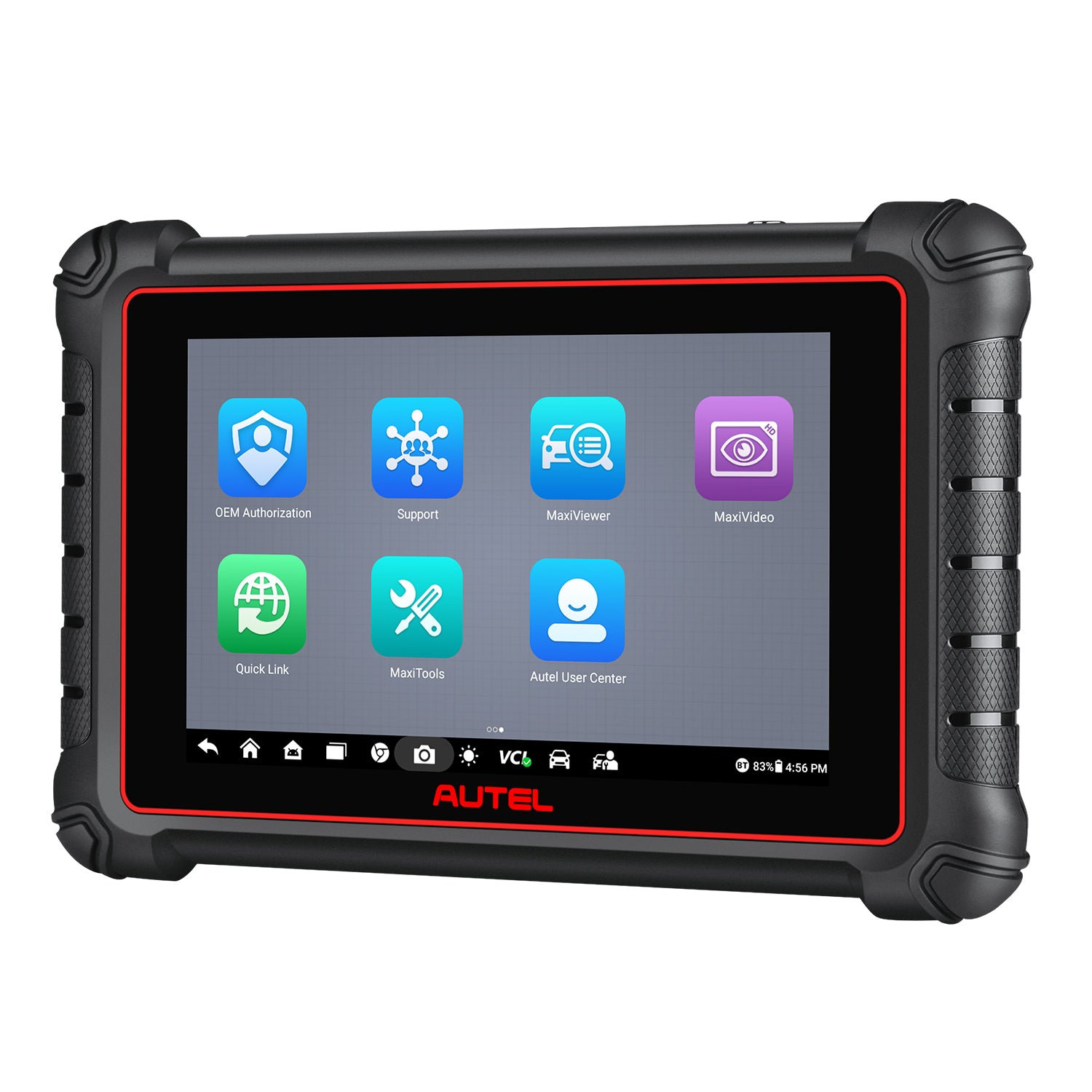

Wireless All-System Diagnostics and Active Tests on an 8-Inch Tablet

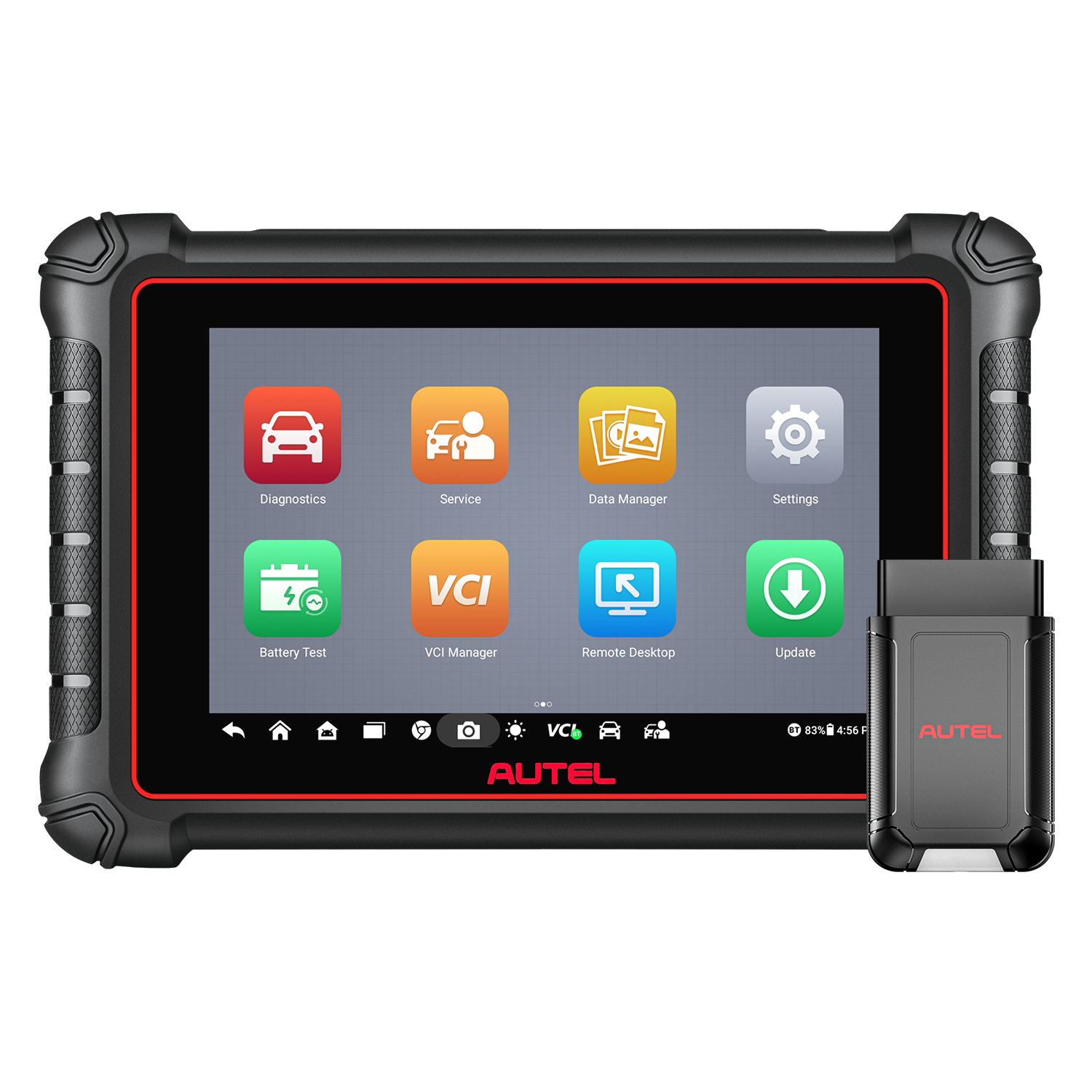

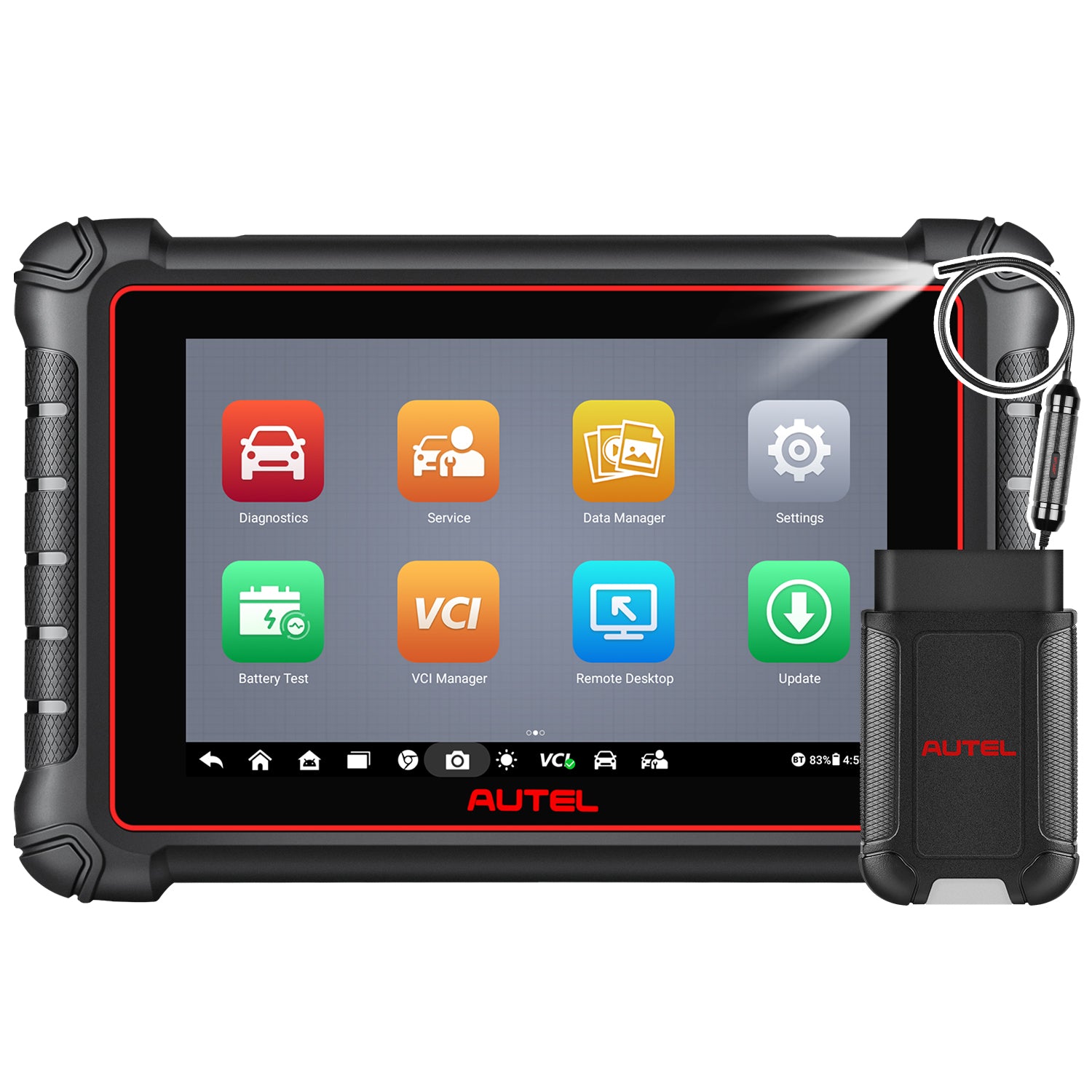

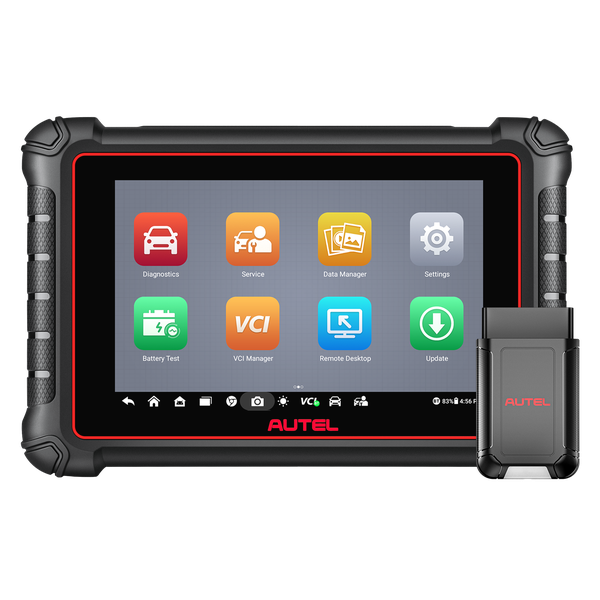

The MaxiCOM MK900-BT connects through the MaxiVCI V150 to read and clear codes on all vehicle systems, run full bi-directional control and more than 40 service functions, and access FCA vehicles through AutoAuth.
- MaxiVCI V150 Wireless
- Bi-Directional Control
- 40+ Service Functions
- CAN FD & DoIP
- Pre- & Post-Scan Reports
Key Features
-
OE-Level All-System Diagnostics
Read and clear fault codes, view live data in various formats and retrieve ECU information on all electronic systems.
-
Full Bi-Directional Control
Injector tests, headlamp and fuel pump control, A/C cycling, clutch engagement and disengagement, oil pressure testing, vehicle level position calibration, brake vacuum pump operation and valve testing.
-

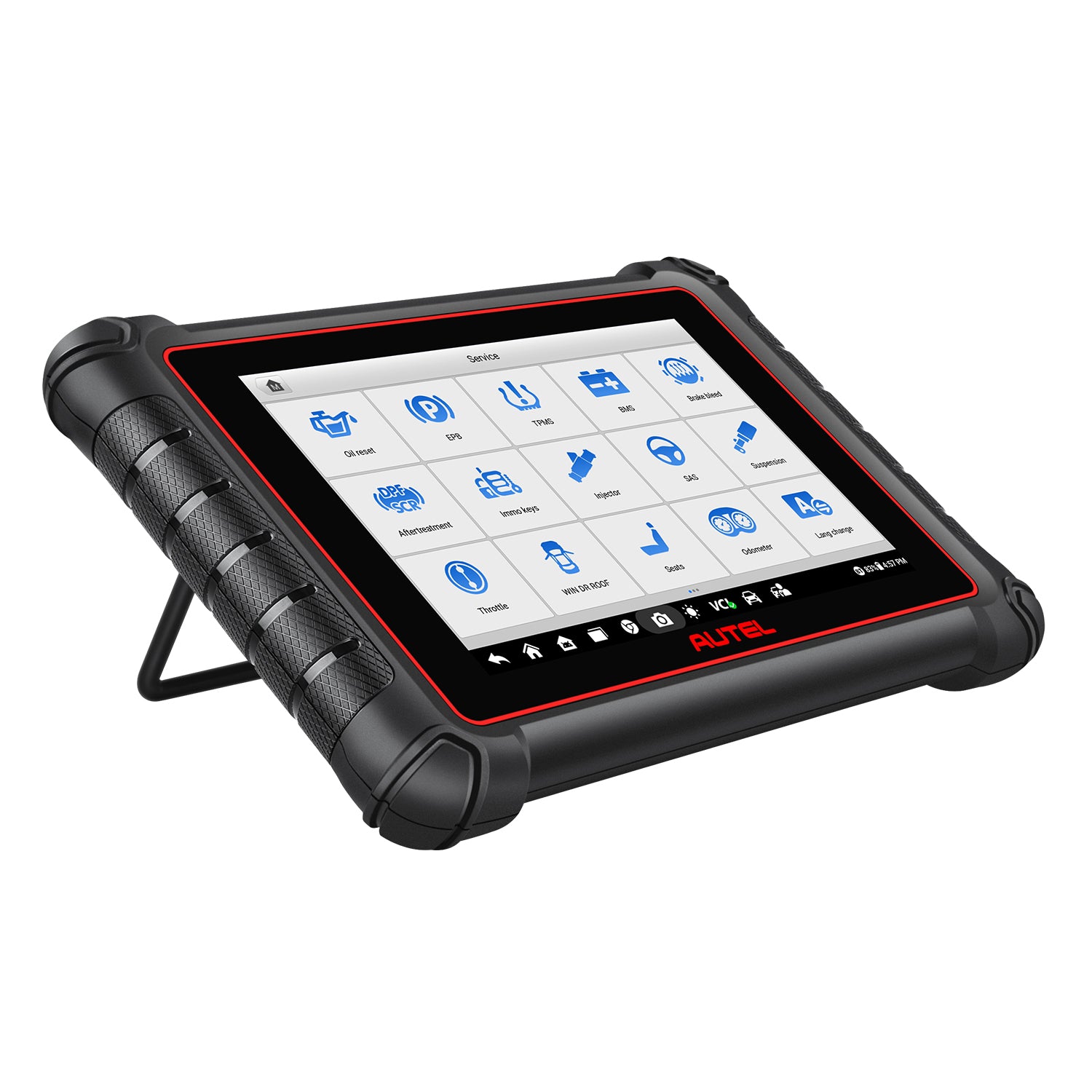

Service Functions
Oil reset, EPB reset, SAS reset, battery registration, throttle reset, ABS bleed and more.
-
AutoVIN and Auto Scan
Retrieve VIN information quickly and run a complete system scan for the specific vehicle.
-
Reports and Printing
Detailed pre- and post-scan reporting, with Wi-Fi printing.
-
Workshop Data Management
Keeps data files, customer information and vehicle records organized in one multitasking system.
-
Remote Support
Remote access technical support for troubleshooting.
More Specifications
| Storage expansion | Micro SD card (up to 64GB) |
|---|---|
| Audio output | Buzzer |
| Charging | 5 VDC power supply; 5 V/3 A charging input |
| Operating temperature | 0 to 50°C (32 to 122°F) |
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE J1850 VPW, SAE J1850 PWM, ISO 11898 (high, middle, low speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP 2.0, TP 1.6, DoIP, CAN FD |

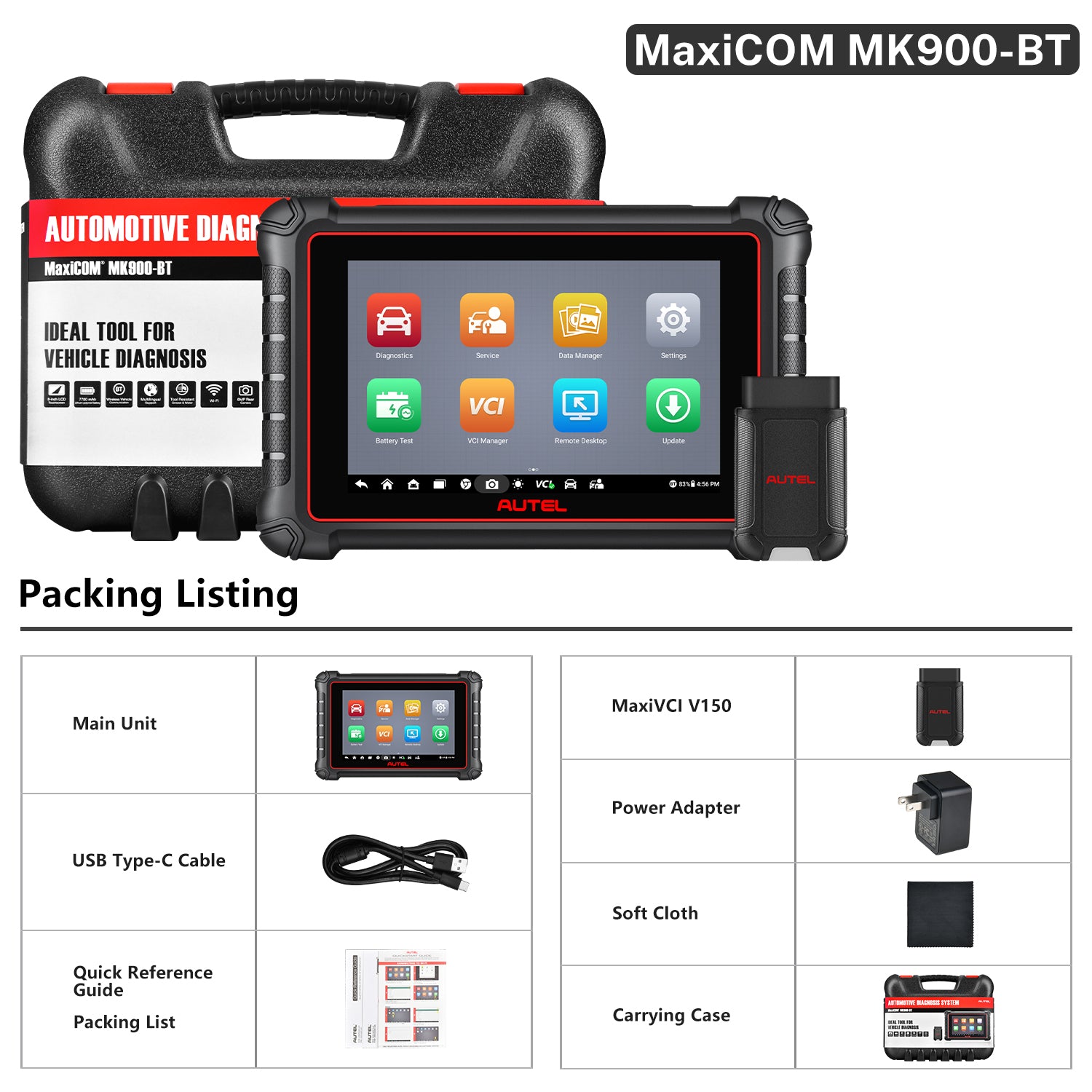

What’s in the Box
- 1×MK900-BT main unit

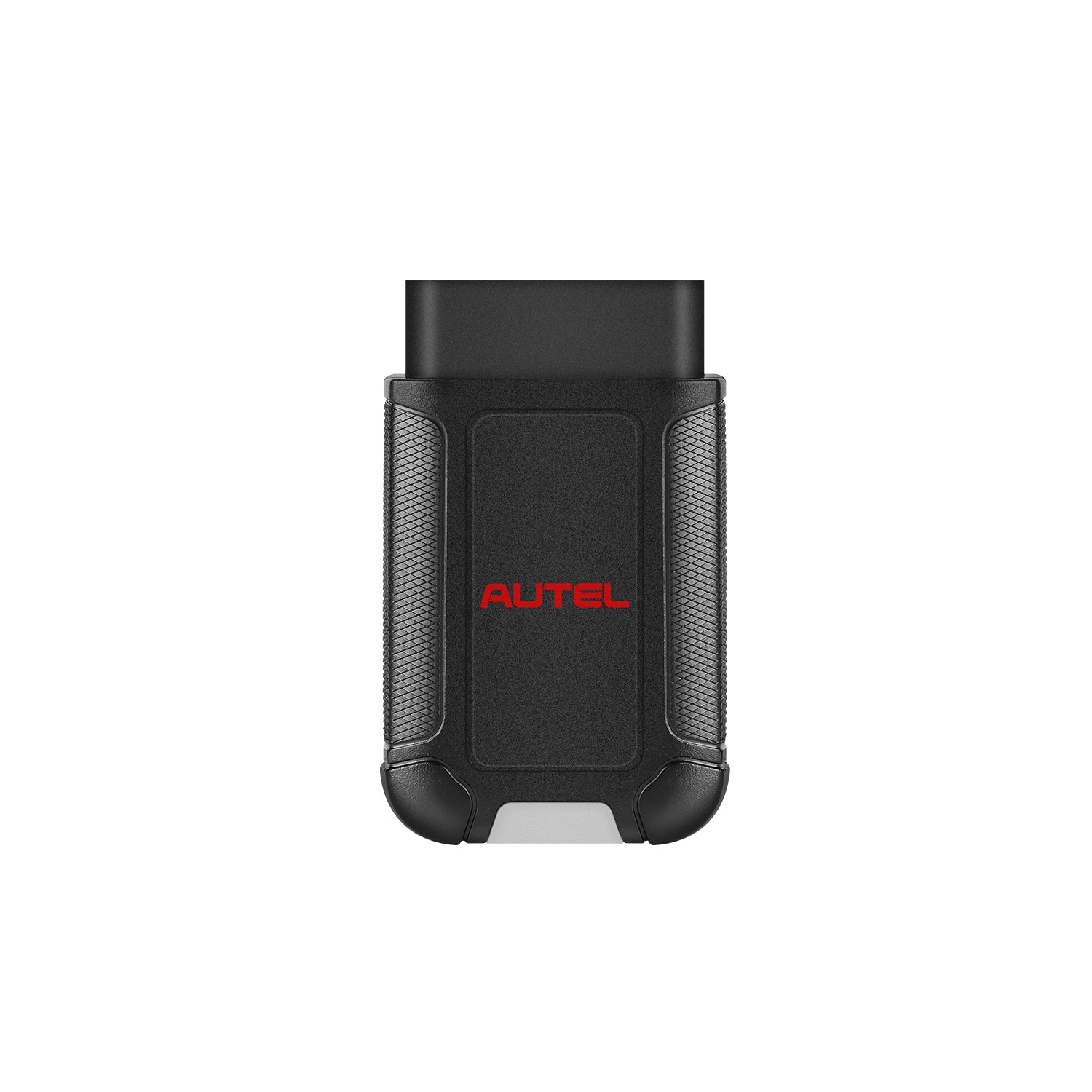

- 1×MaxiVCI V150
- 1×USB Type-C cable
- 1×Power adapter
- 1×Soft cloth
- 1×Quick guide
- 1×Package list

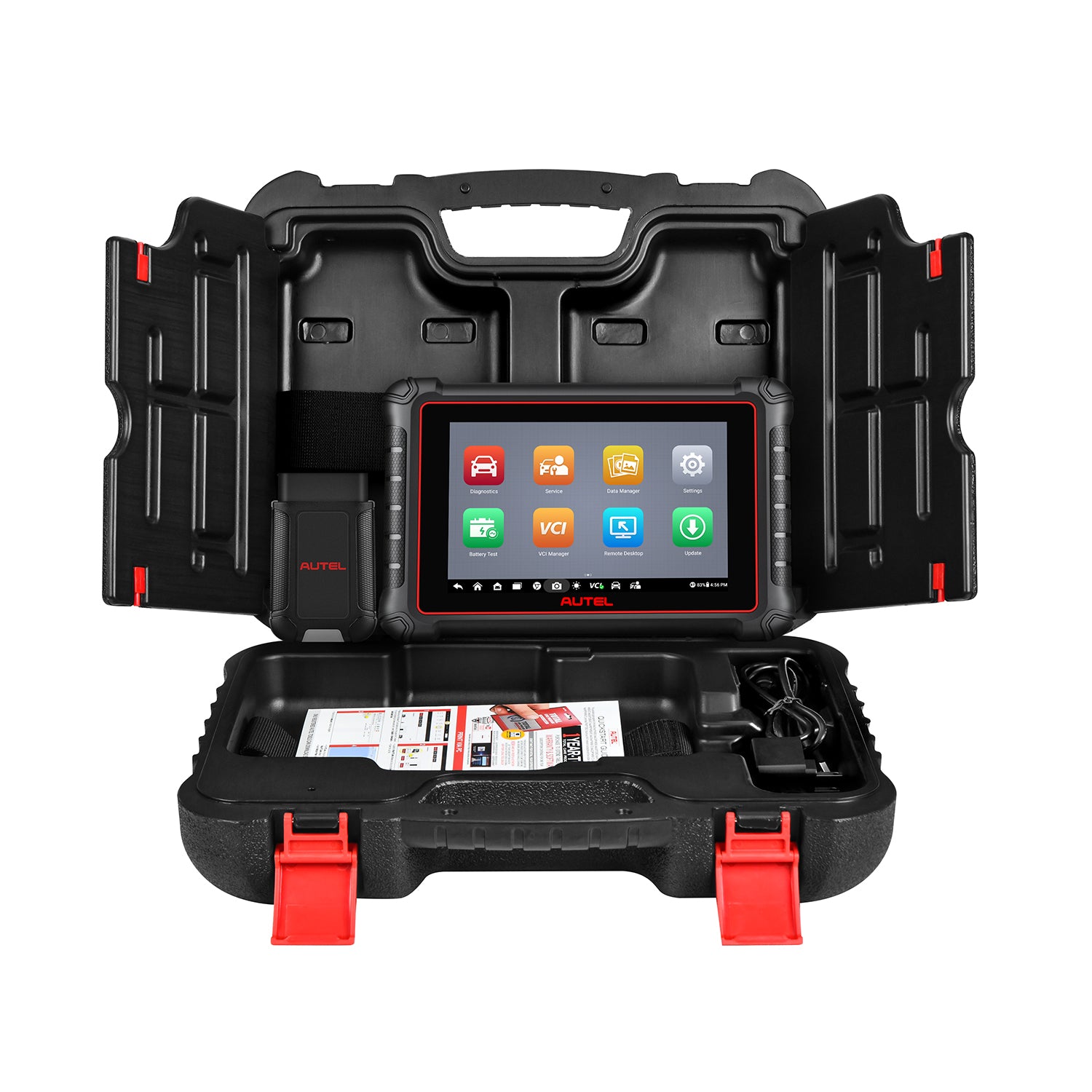

- 1×Carrying case
