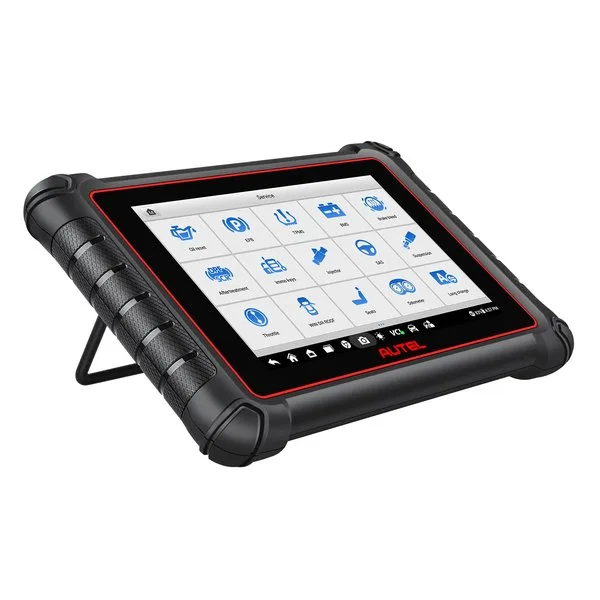

Wireless All-System Diagnostics and Active Tests on an 8-Inch Tablet
The MaxiCOM MK900-BT connects through the MaxiVCI V150 to read and clear codes on all vehicle systems, run full bi-directional control and more than 40 service functions, and access FCA vehicles through AutoAuth.
- MaxiVCI V150 sans fil
- Commande bidirectionnelle
- 40+ fonctions de service
- CAN FD & DoIP
- Rapports de diagnostic avant et après intervention
Key Features
-
Diagnostic de tous les systèmes de niveau OE
Read and clear fault codes, view live data in various formats and retrieve ECU information on all electronic systems.
-
Commande bidirectionnelle complète
Injector tests, headlamp and fuel pump control, A/C cycling, clutch engagement and disengagement, oil pressure testing, vehicle level position calibration, brake vacuum pump operation and valve testing.
-
Fonctions d’entretien
Oil reset, EPB reset, SAS reset, battery registration, throttle reset, ABS bleed and more.
-
AutoVIN et Auto Scan
Retrieve VIN information quickly and run a complete system scan for the specific vehicle.
-
Rapports et impression
Detailed pre- and post-scan reporting, with Wi-Fi printing.
-
Gestion des données d’atelier
Keeps data files, customer information and vehicle records organized in one multitasking system.
-
Remote Support
Assistance technique par accès à distance pour le dépannage.
Autres caractéristiques
| Extension de stockage | Carte Micro SD (jusqu’à 64GB) |
|---|---|
| Audio output | Avertisseur sonore |
| Charge | Alimentation 5 VDC ; entrée de charge 5 V/3 A |
| Température de fonctionnement | 0 à 50°C (32 à 122°F) |
| Température de stockage | -10 à 60°C (14 à 140°F) |
| Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE J1850 VPW, SAE J1850 PWM, ISO 11898 (high, middle, low speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP 2.0, TP 1.6, DoIP, CAN FD |

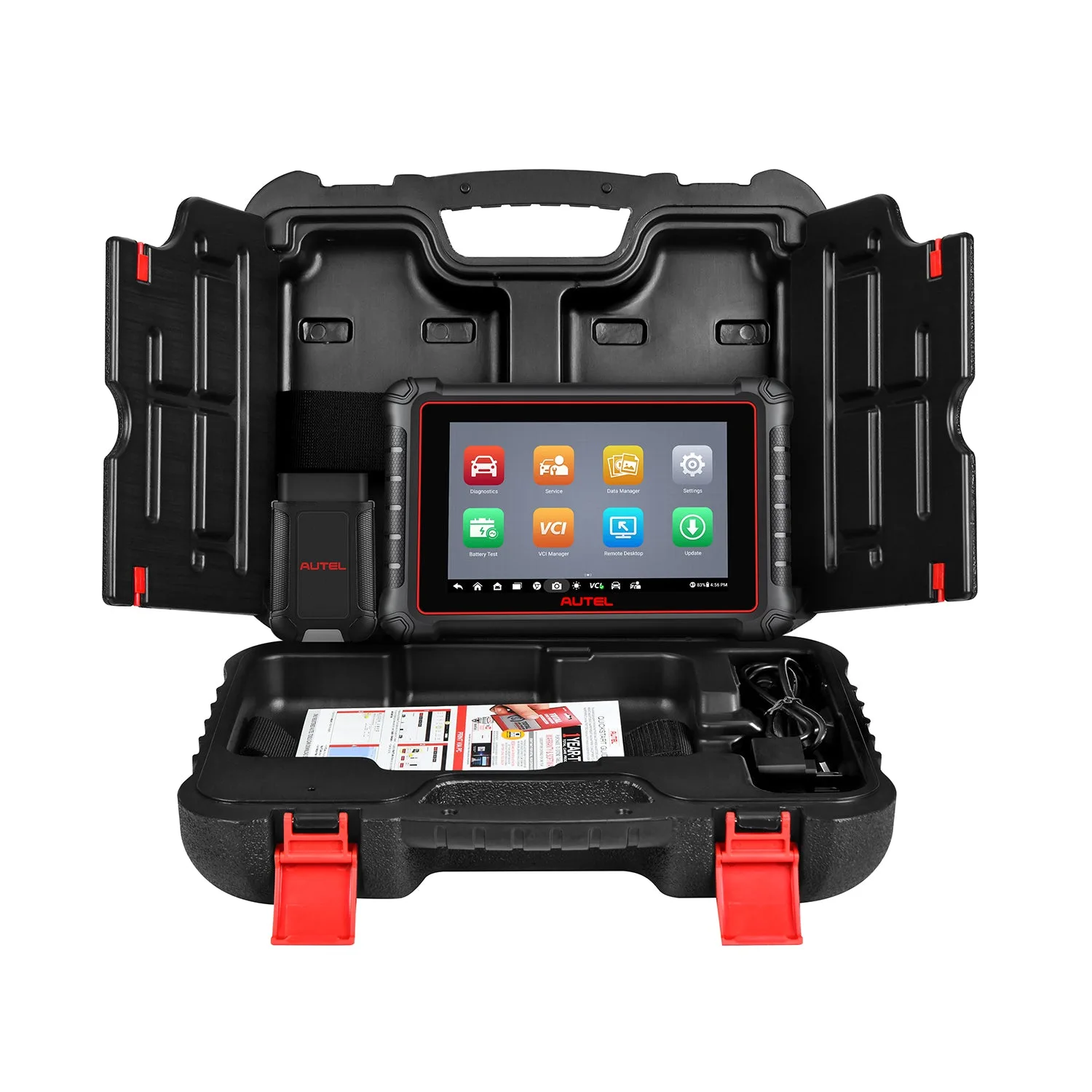

Contenu du coffret
- 1×Unité principale MK900-BT
- 1×MaxiVCI V150
- 1×Câble Type-C USB
- 1×Power adapter
- 1×Soft cloth
- 1×Quick guide
- 1×Package list
- 1×Carrying case
