Clone Car and Motorcycle ECUs by OBD or on the Bench

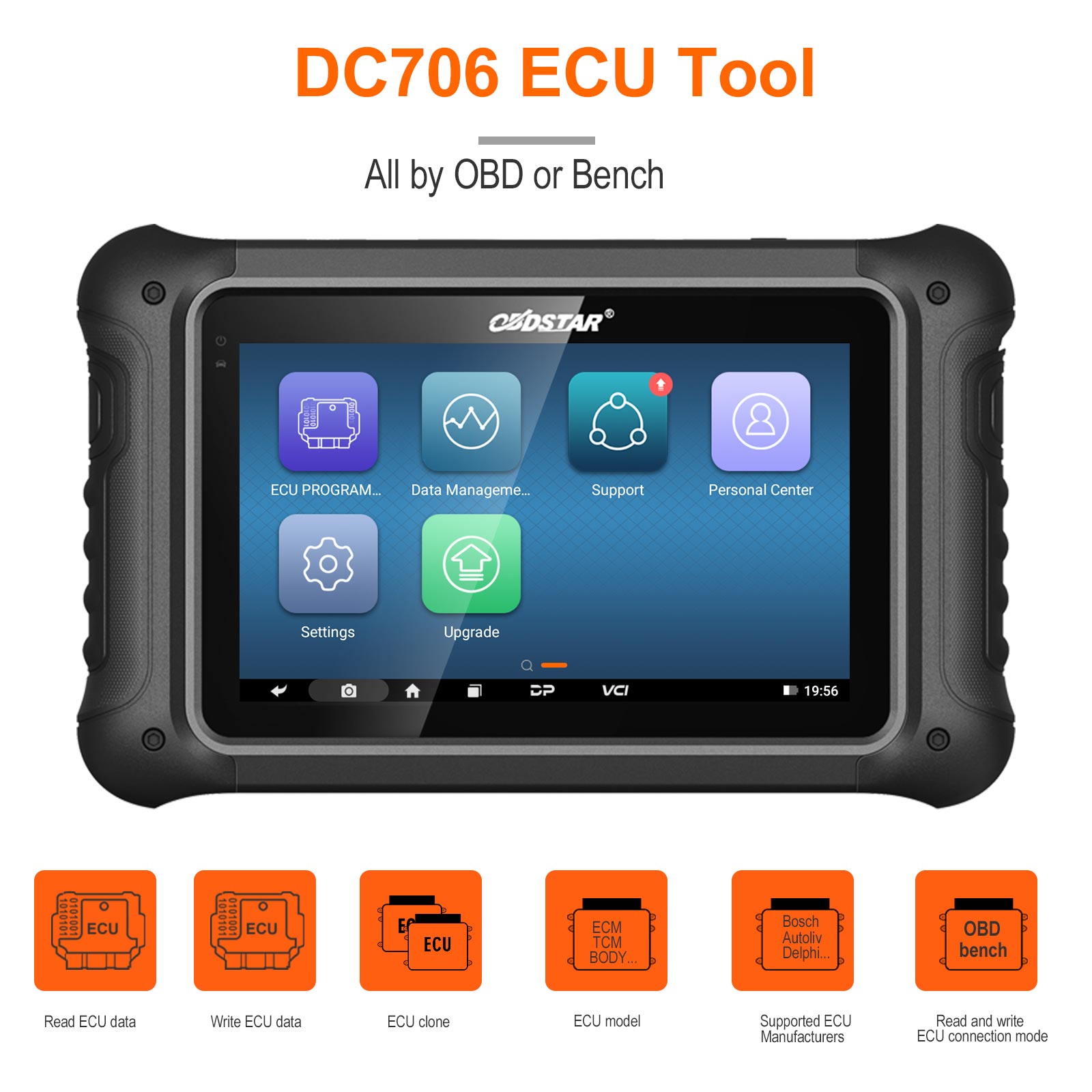

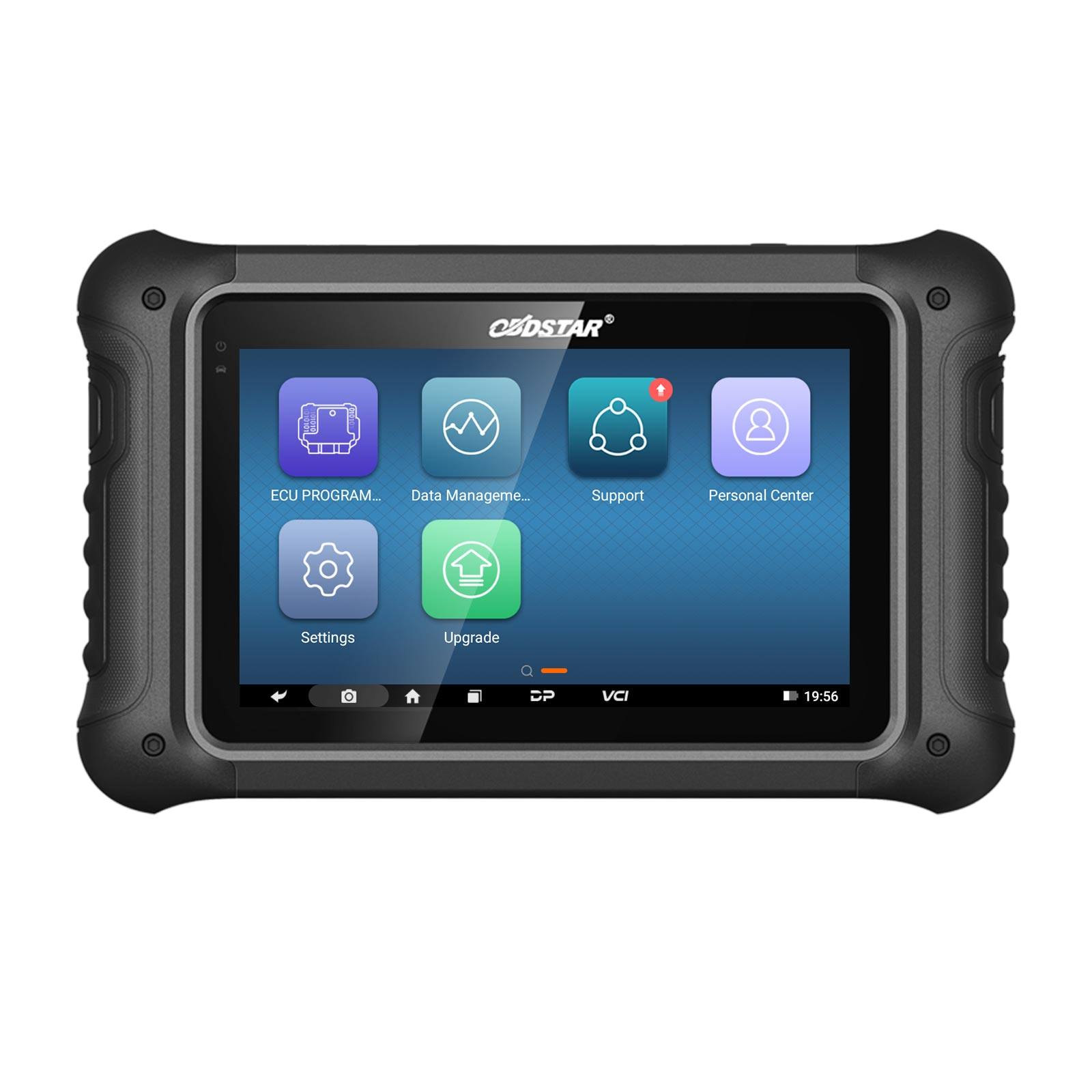

The DC706 is an Android tablet for reading, writing and cloning ECU data on cars and motorcycles. This listing includes one software module of your choice: A (ECM), B (TCM) or C (Body/Other). Check the supported list before ordering.
- Choose ECM, TCM or Body
- OBD or Bench Mode
- Car + Motorcycle ECM
- 1 Year of Updates
Key Features
-
ECU Data Read/Write
Read ECU information, read and write EEPROM, D-flash, P-flash and MAP data, reset an ECU to virgin, read the IMMO PIN code and recover ECUs.
-
ECM Module (A)

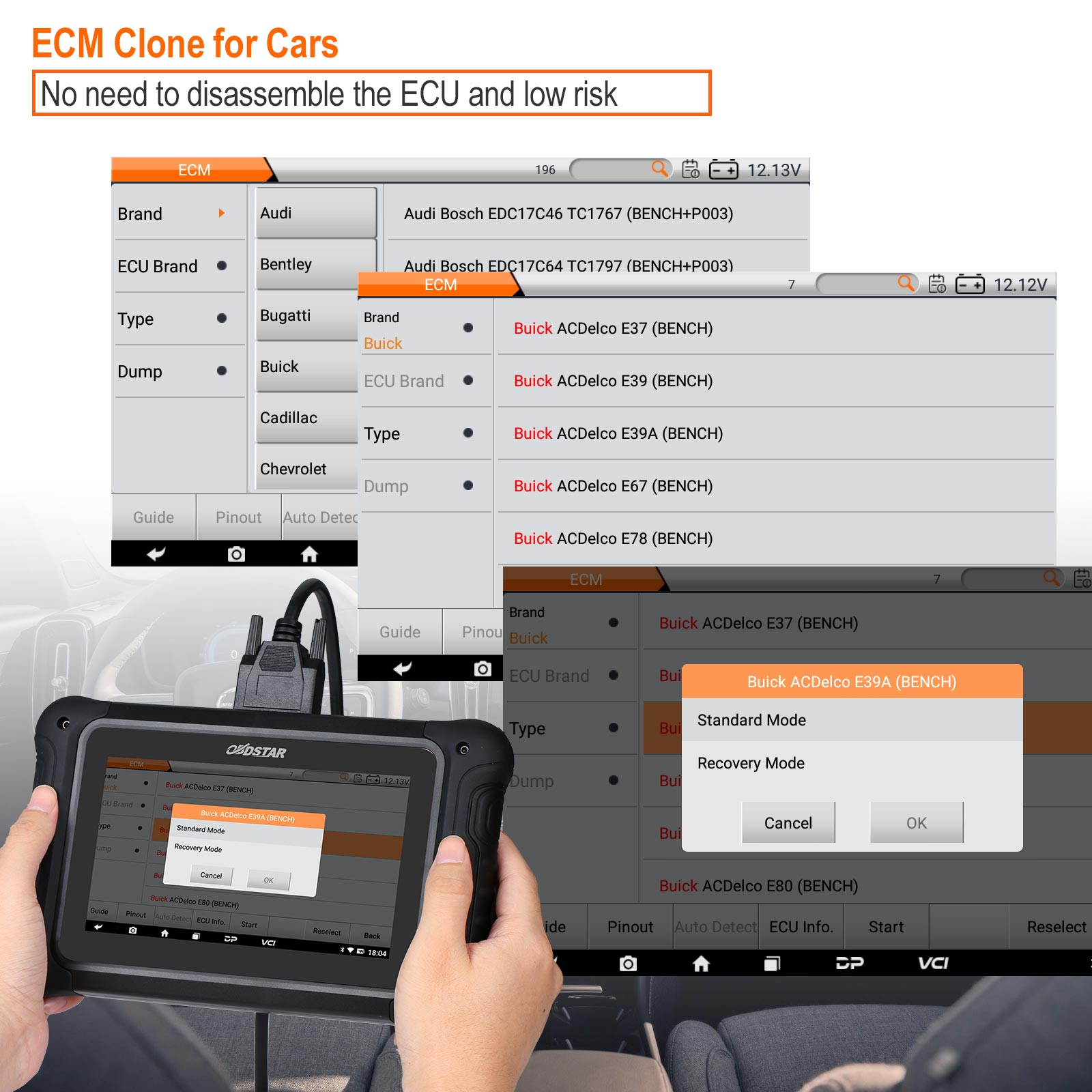

Car ECMs from Bosch, Continental, Delphi, Denso, Magneti Marelli and Siemens; motorcycle ECMs including Delphi MT05, MT05.2 and MT05.3, BRP ME17.8.5 and Piaggio MIU G4 (M4G1).
-
TCM Module (B)
Transmission controllers from AC Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic and ZF.
-
Body/Other Module (C)
Airbag, BCM, BSI, CEM, DDM/PDM, DIM, EPS, keyless (RFHUB/RFHM), KVM, RFA and SAM units from FCA, Ford, GM/Opel, Land Rover/Jaguar, PSA, Smart, Volvo and others.
-
Search and Auto Identification
Find an ECU by brand, model, part number, ECU manufacturer or MCU type, use automatic identification, and follow the built-in help files and pinouts.
Highlights

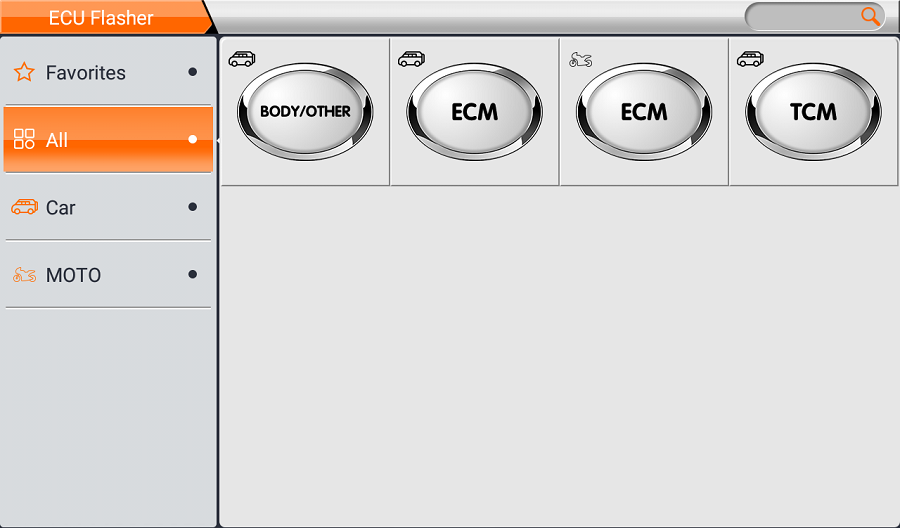

ECU Flasher Menu
Car and motorcycle entries for ECM, TCM and Body/Other, filtered by vehicle type.

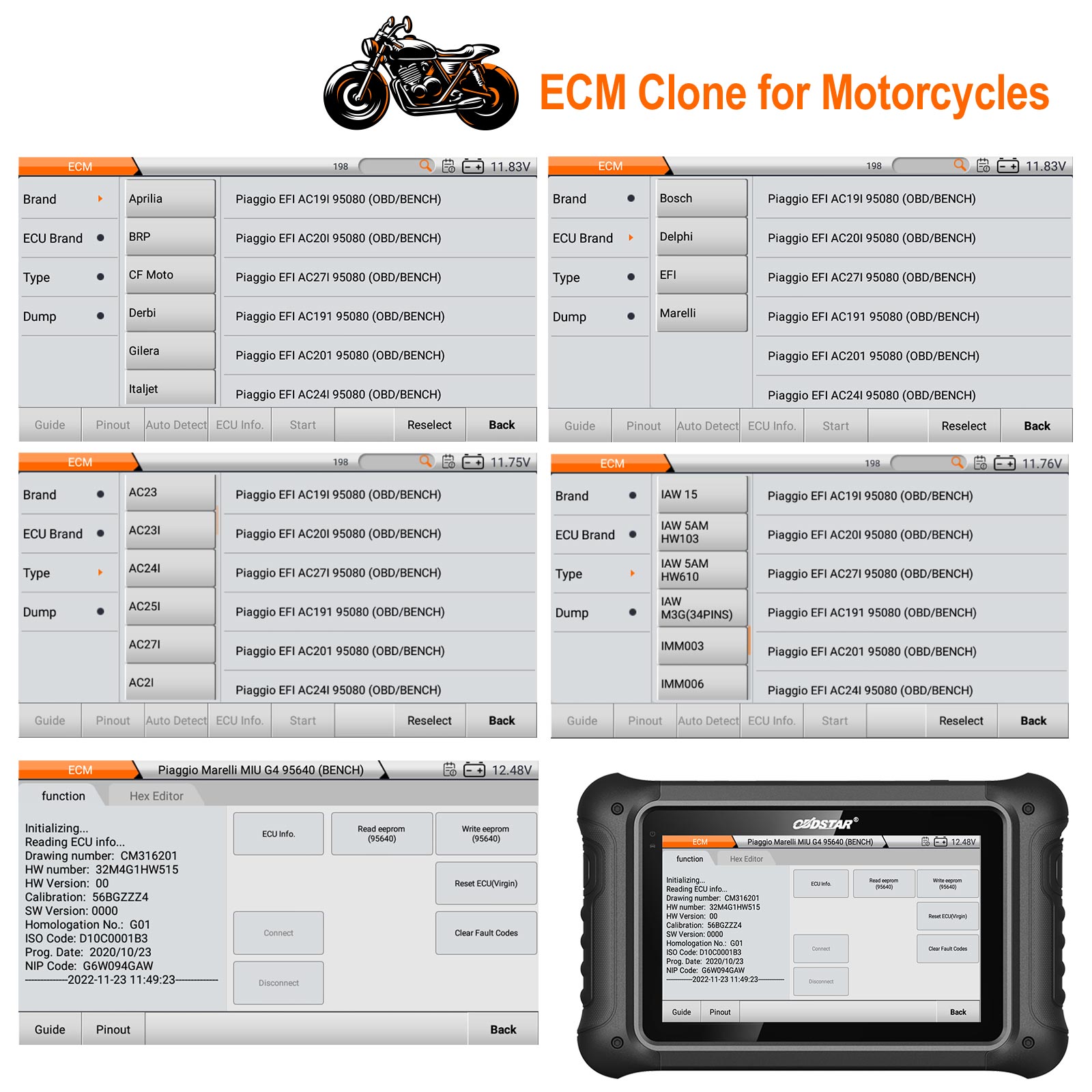

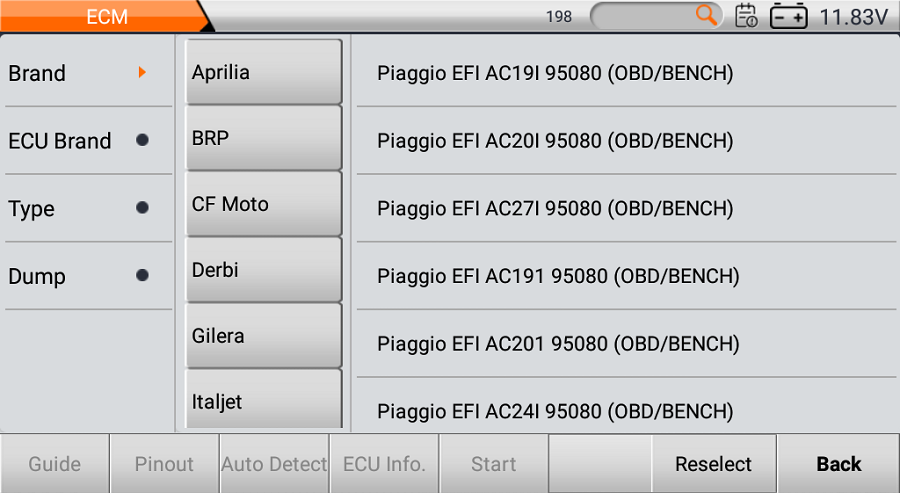

Motorcycle ECM Selection
Browse by brand, ECU brand or type; each entry shows whether it works by OBD or bench.

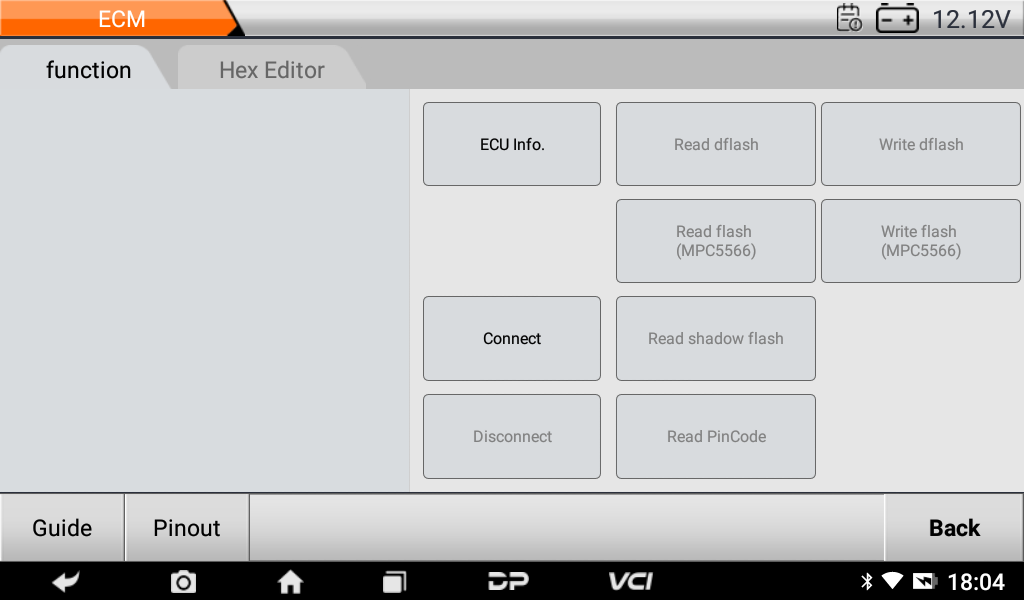

Function Screen
ECU info, flash read and write and PIN reading in one panel, with a hex editor tab.

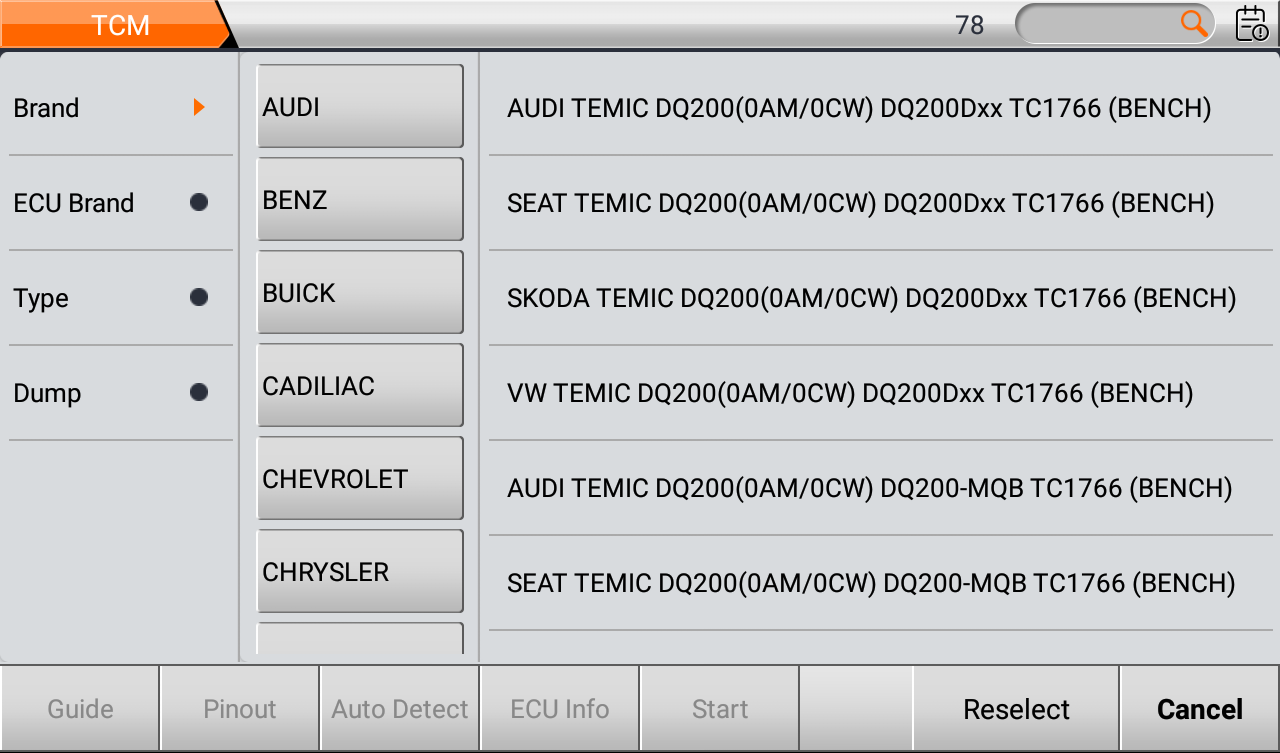

TCM Selection
Transmission controllers listed by brand with the required connection mode.
More Specifications
| Wi-Fi | Supported |
|---|---|
| Storage temperature | -20 to 70 °C (-4 to 158 °F) |
| Weight | About 1.3 kg |
| Dimensions | 243 × 148 × 36 mm |

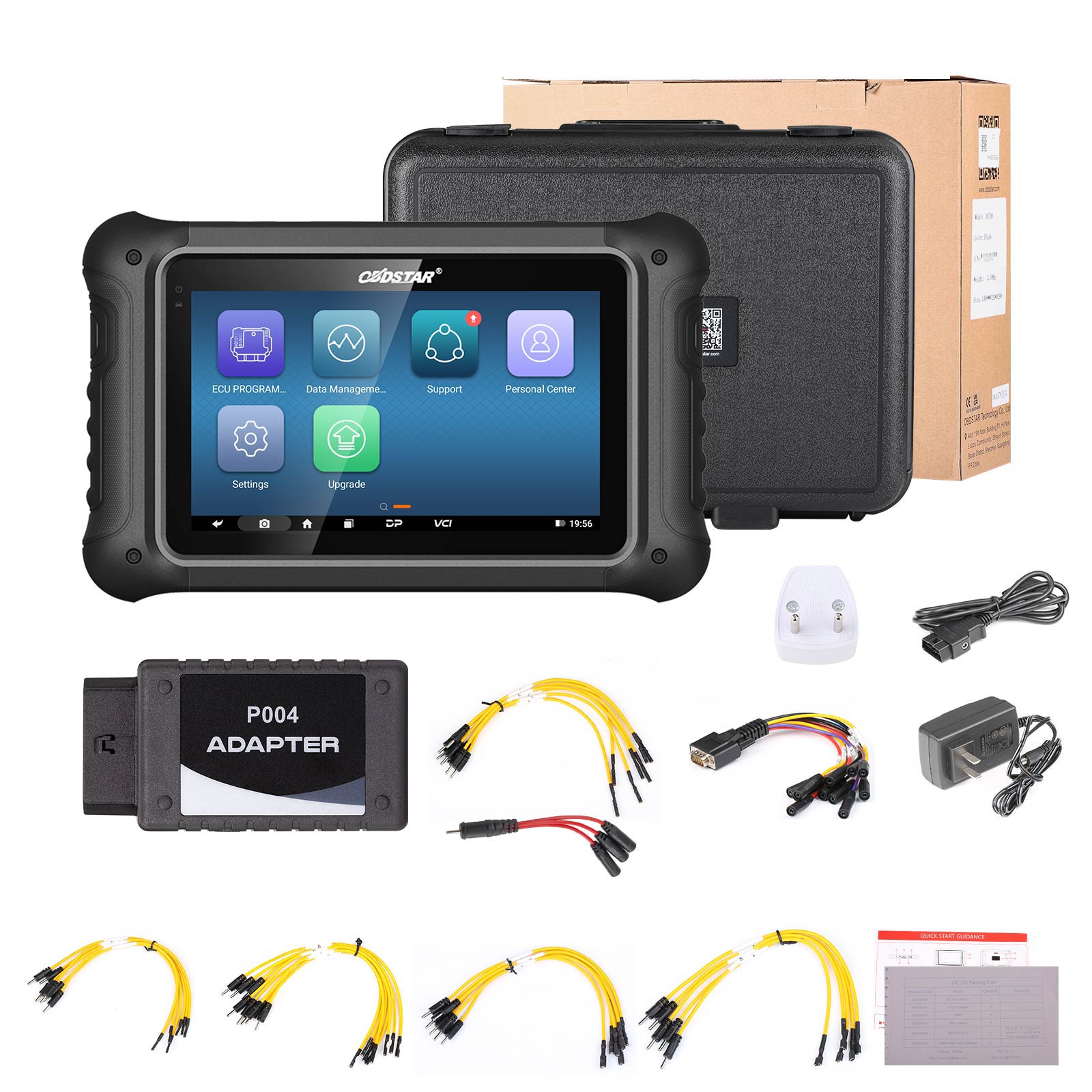

What’s in the Box
- 1×DC706 tablet
- 1×12 V 2 A charger
- 1×M001 cable
- 1×P004 adapter
- 1×BENCH-B V2 cable
- 1×Jumper wire
- 1×3-in-1 jumper
- 1×Quick start guide and certificate
Good to Know
Caution
- This listing includes one software module only.
- Some ECM functions and the BRP ME17.8.5 clone require the P003 adapter, which is not included.
- VAG DQ250 units built before 2008 cannot be cloned.
- Other functions such as airbag reset and key programming cannot be added.
Care
- The P004 adapter is packed in the second layer of the box.
