OBD2 Code Reading, One-Click Smog Check and Basic Electrical Tests

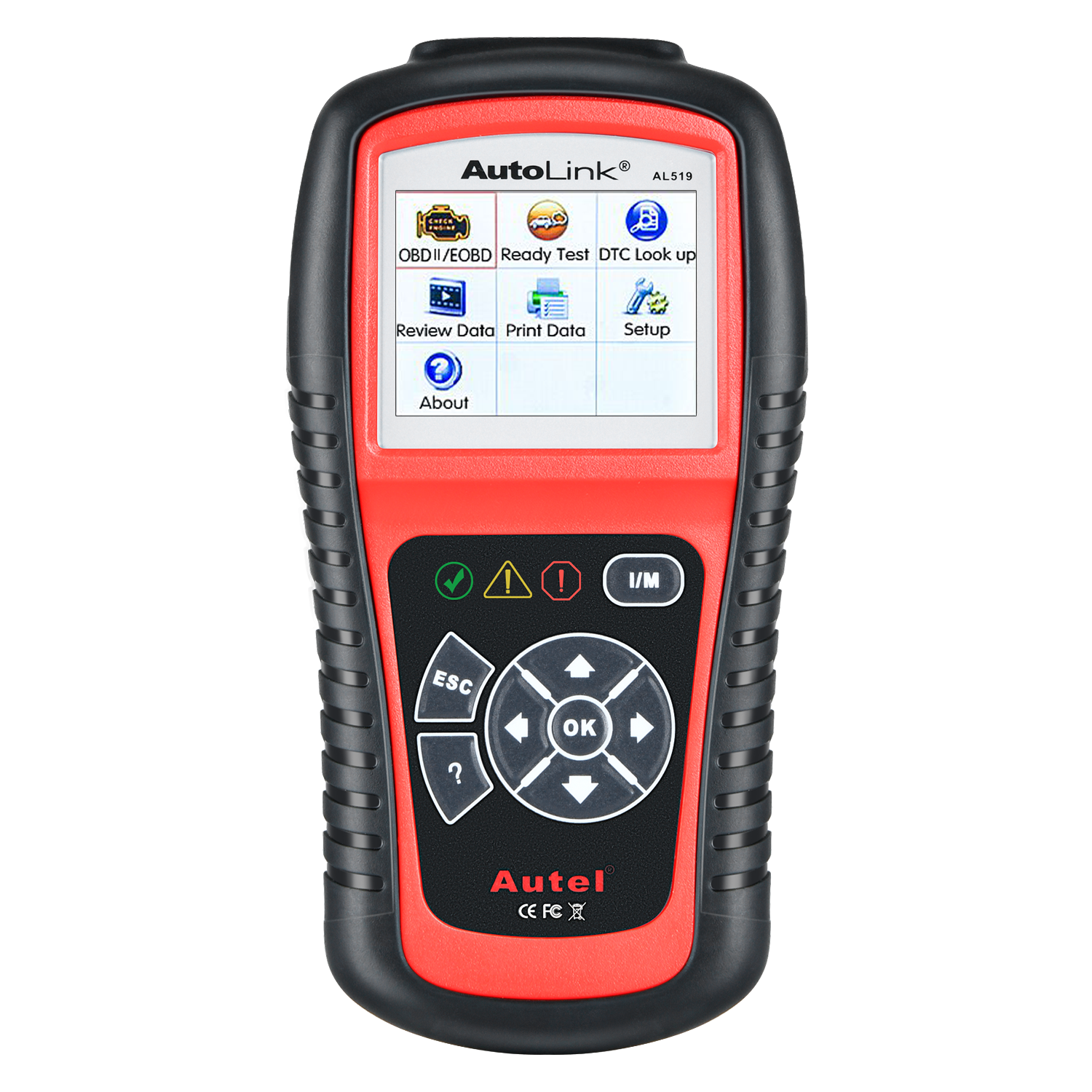

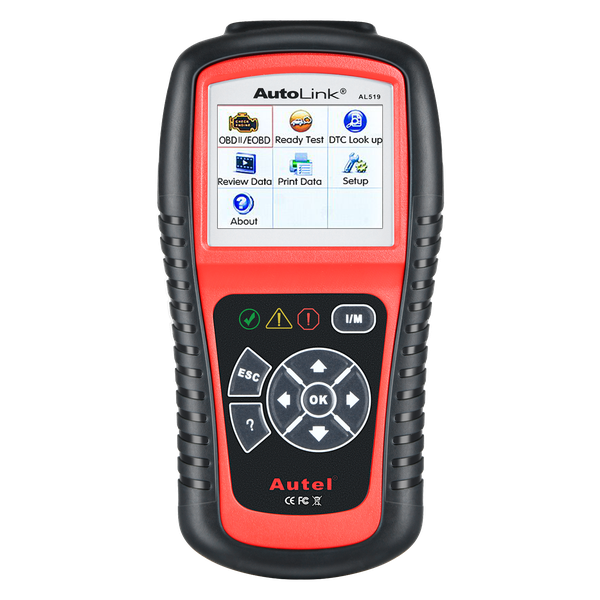

The AutoLink AL519 runs all 10 OBDII test modes on OBDII vehicles, with a one-click I/M Readiness key for emissions checks and a built-in AVOmeter for voltage, continuity and current. Coverage follows OBDII compliance: US 1996+, European 2006+ and Asian 2009+.
- All 10 OBDII Modes
- One-Click I/M Readiness
- Built-In AVOmeter
- DTC Lookup
- TFT Color Display
Key Features
-
One-Click I/M Readiness
Checks state emissions readiness and verifies drive cycles; color-coded LEDs and a built-in speaker give visual and audible results.
-
Codes and Check Engine Light
Retrieves generic, manufacturer-specific and pending codes, turns off the MIL, clears codes and resets monitors.
-
Live Data and Freeze Frame
Reads live PCM data and O2 sensor test data, captures freeze frame data and graphs data.
-
DTC Lookup and Troubleshooter Tips
DTC Lookup and DTC Breaker show code definitions on screen; troubleshooter code tips point toward the root cause.
-
AVOmeter and 12 V System Checks
Tests voltage, continuity and current, and checks 12 V charging and starting systems and the condition of a discharged battery.
-
Vehicle Information and Data Review
Retrieves VIN, CIN and CVN; memory and battery backup allow off-vehicle review, and data can be printed via a PC.
More Specifications
| Operating temperature | 0 to 60 °C (32 to 140 °F) |
|---|---|
| Storage temperature | -20 to 70 °C (-4 to 158 °F) |
| Weight with cable | 0.68 kg |
What’s in the Box
- 1×AutoLink AL519
- 1×OBDII cable
- 1×USB cable
- 1×Carry case
- 1×User’s manual
