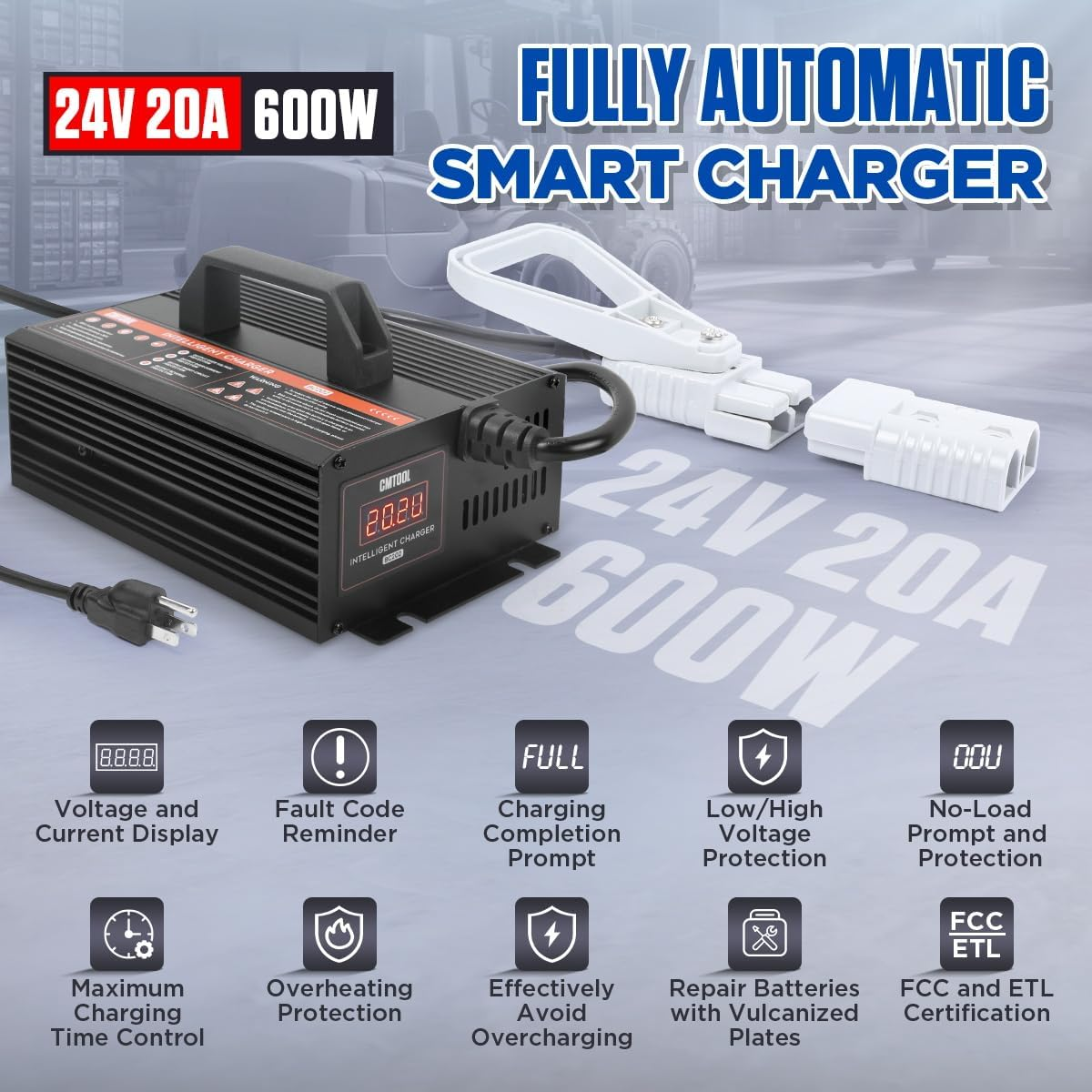

Automatic 24V Charging for Forklifts, Pallet Jacks and Scrubbers
A 600W smart charger for 24V lead-acid batteries in forklifts, pallet jacks, floor scrubbers, sightseeing carts and golf carts, with a display that reports charging progress and faults.
- 24V 20A
- Anderson Plug
- AC 100-240V Input
- FCC & ETL Certified
Key Features
-
Constant Current, Constant Voltage
The charger adjusts output voltage and current automatically and stops output when the battery is full, showing “FULL”.
-
Live Readout
At start-up the display shows “2420” to identify a 24V 20A unit, then alternates between charging voltage and charging current.
-
Fault Codes for Six Conditions
A code appears, the fan stops and charging halts for: no load, pack voltage below the pre-charge limit, pack voltage above the trickle voltage, temperature over 65 °C, short circuit, or reverse polarity.
-
Protected Output

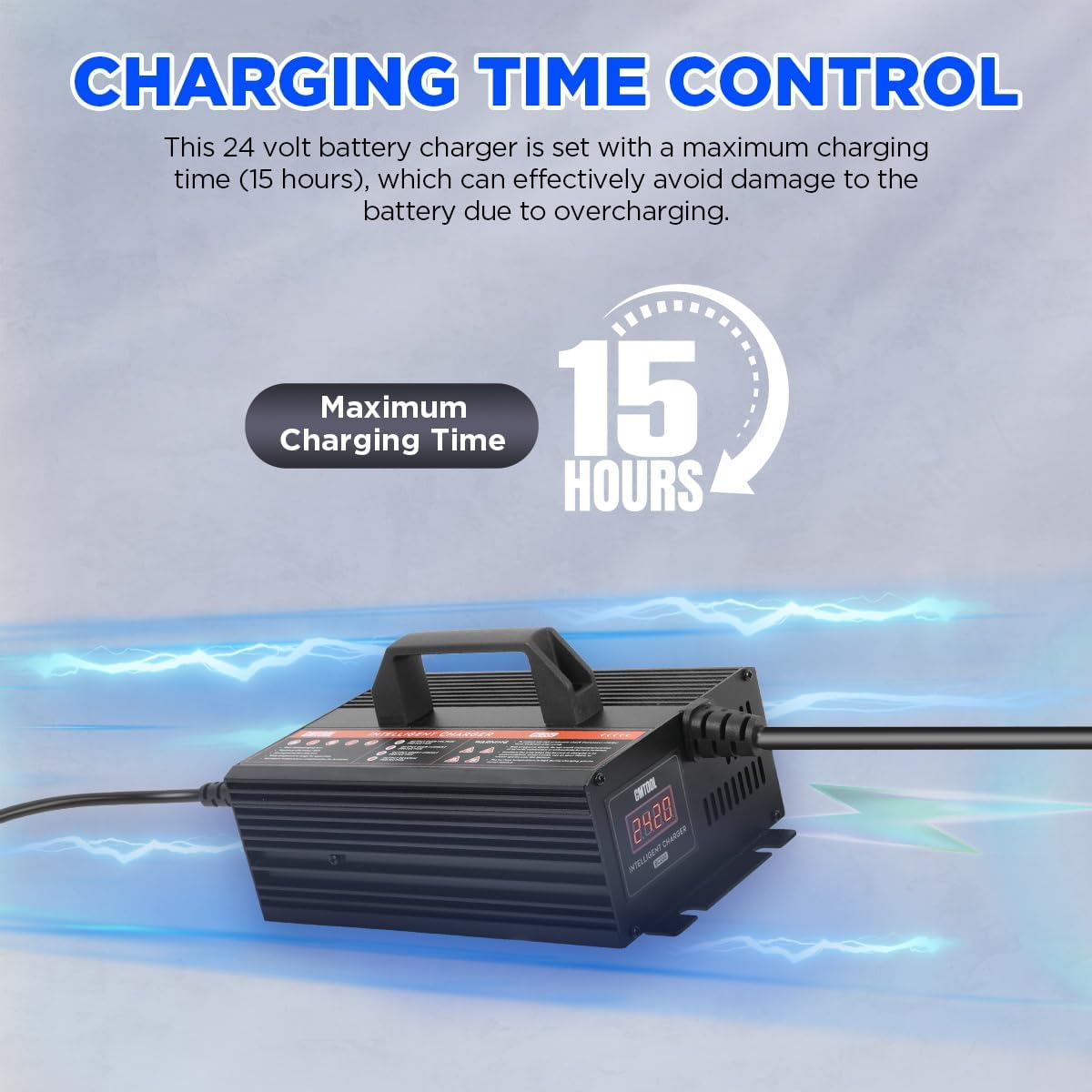

If the battery is reverse-connected or the output is shorted, the internal circuit disconnects from the battery so the charger is not damaged; a 15-hour maximum charging time guards against overcharging.
-

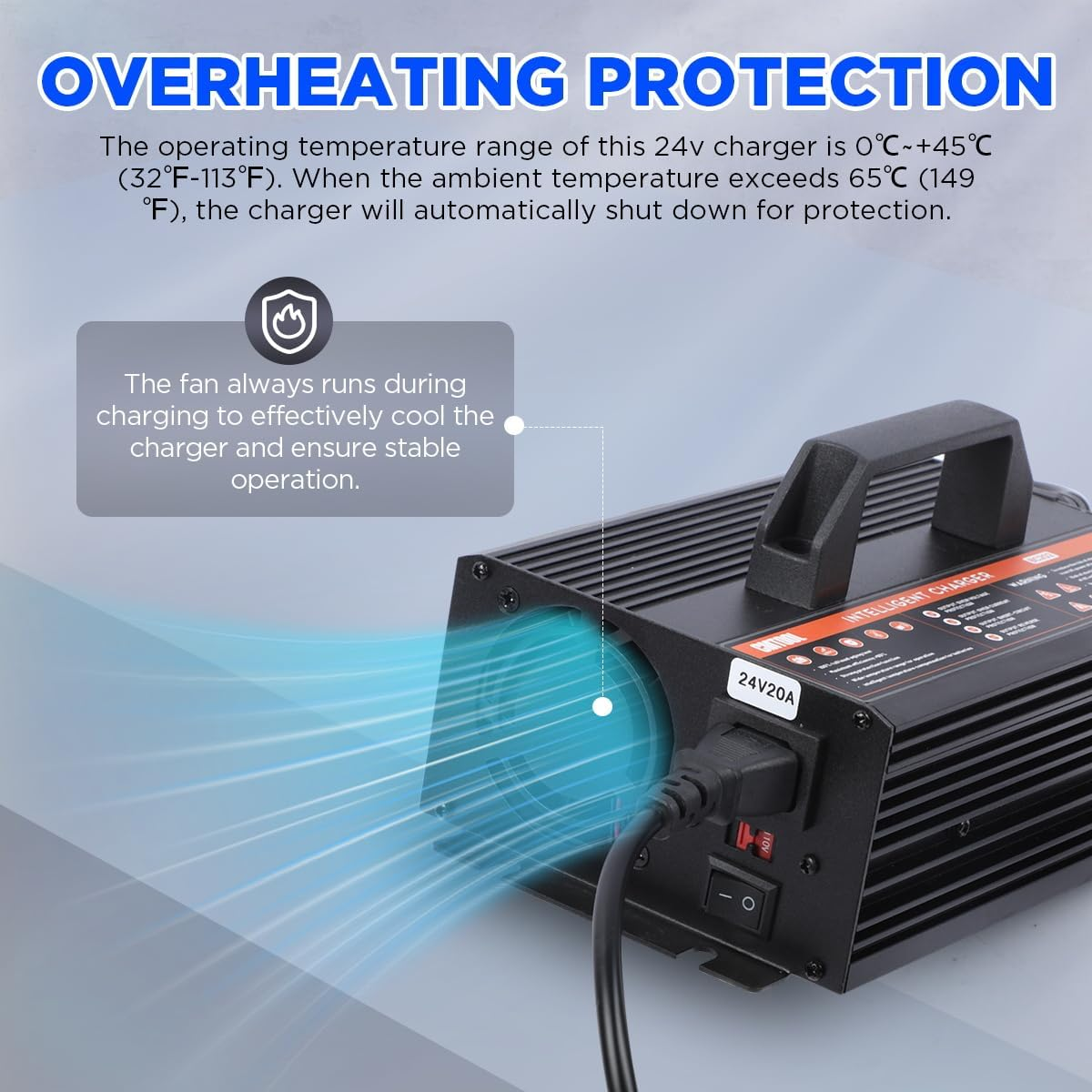

Always-On Cooling
The fan runs for the whole charge to keep the unit stable.
-
Easy to Move
A carry handle on top of a 4.6 lb body.
Highlights

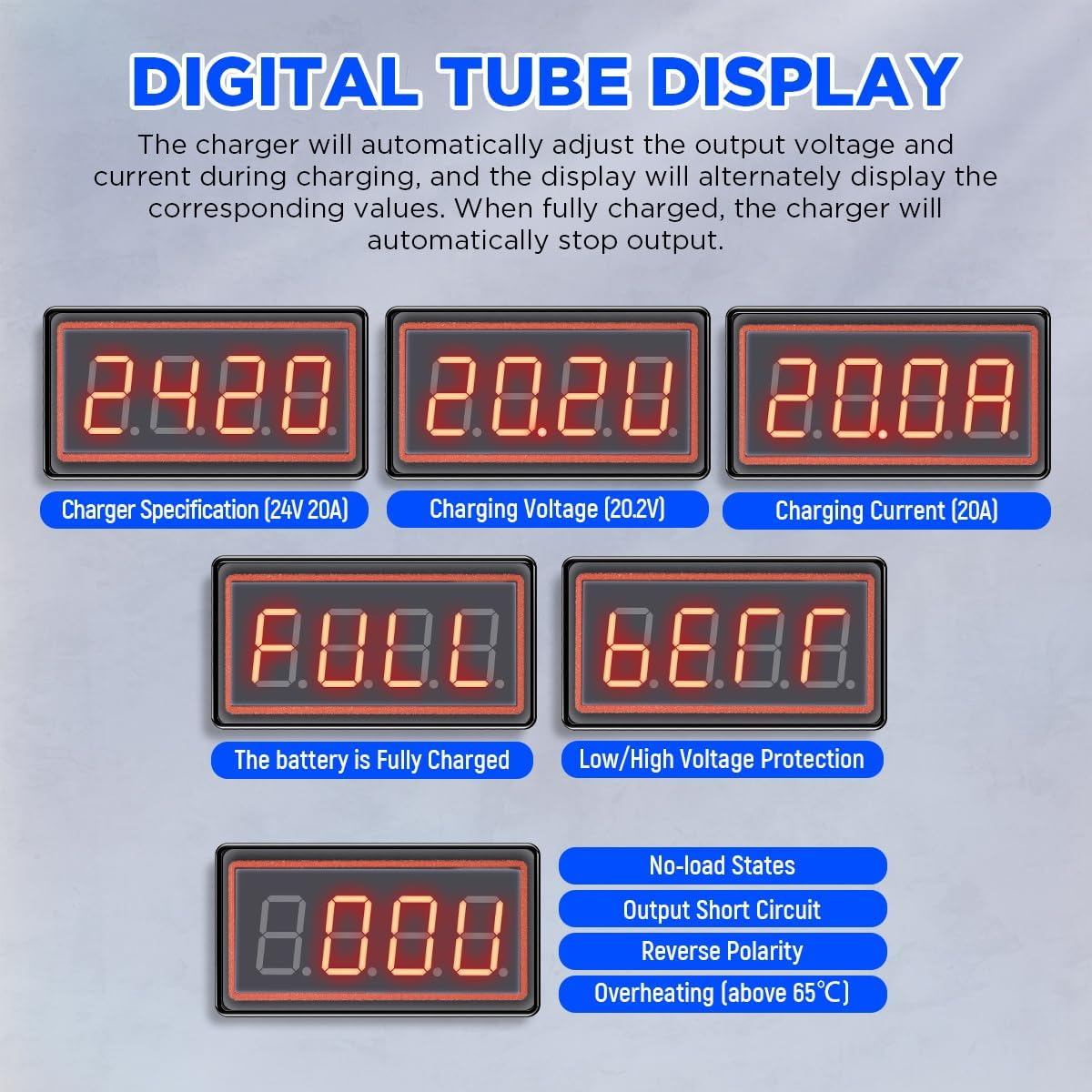

Readable Display
Model code, charging voltage, charging current, FULL and fault codes for low/high voltage, no load, short circuit, reverse polarity and overheating.

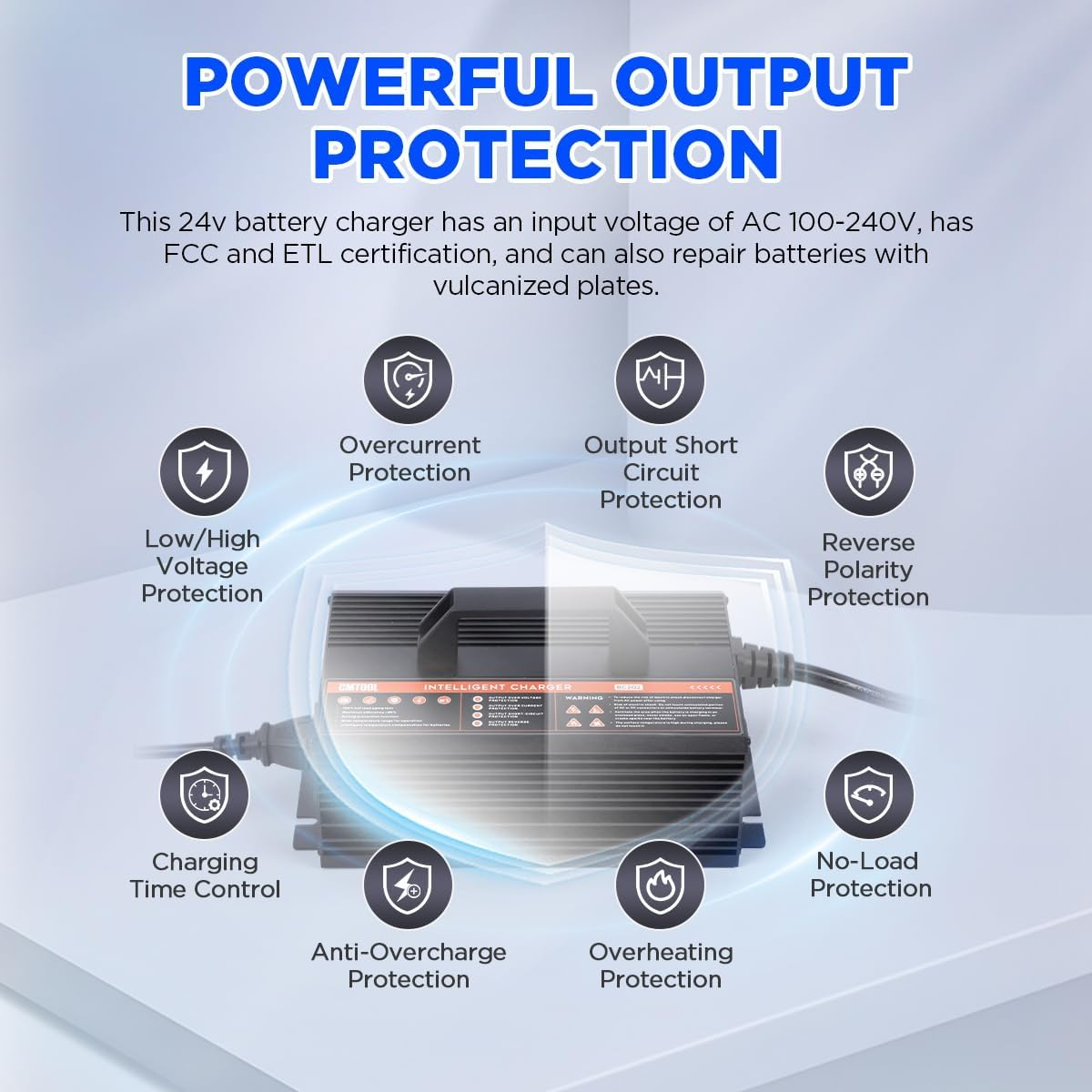

Protection Functions
Over-current, short-circuit, reverse polarity, low/high voltage, no-load, overheating and anti-overcharge protection, plus charging time control.

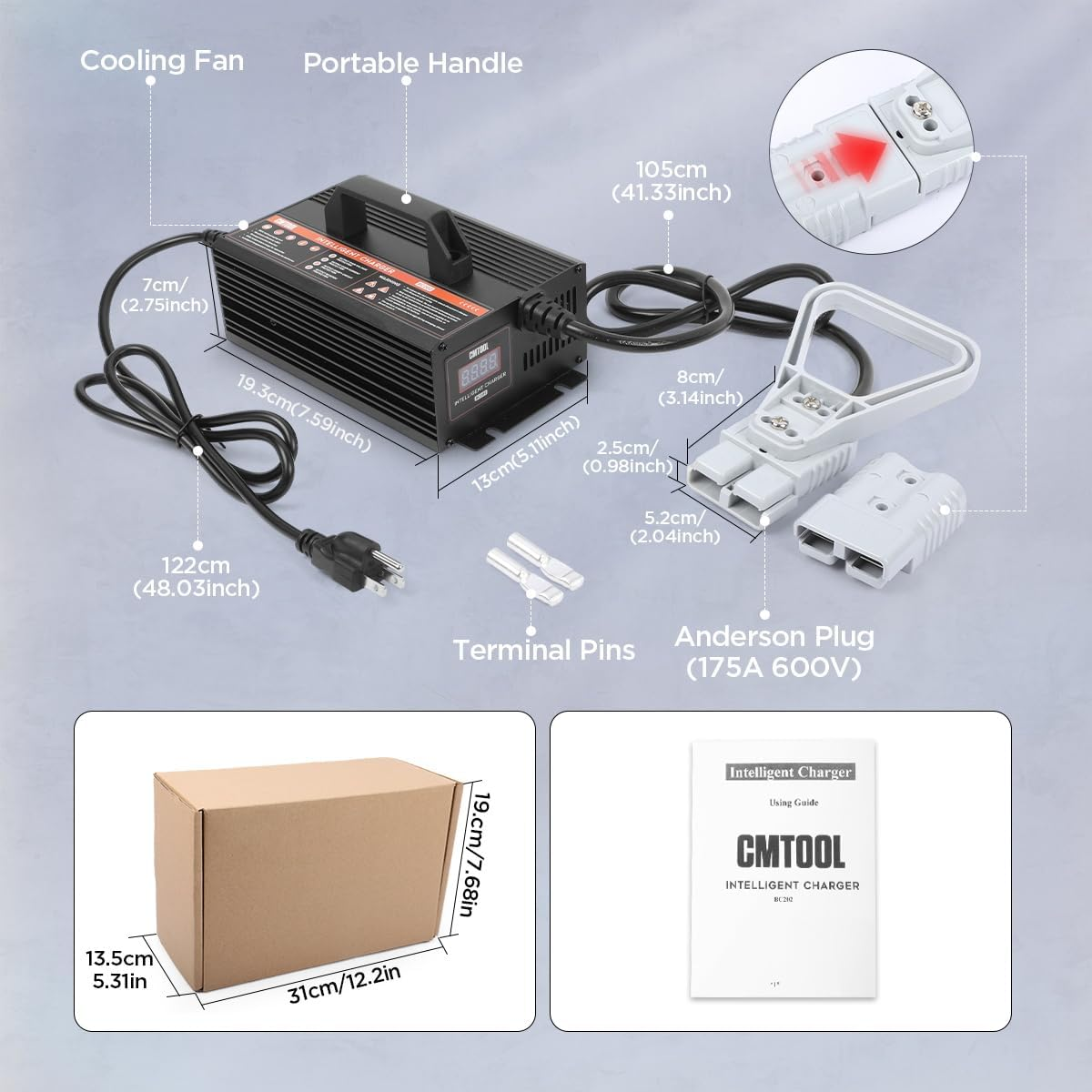

What’s in the Box

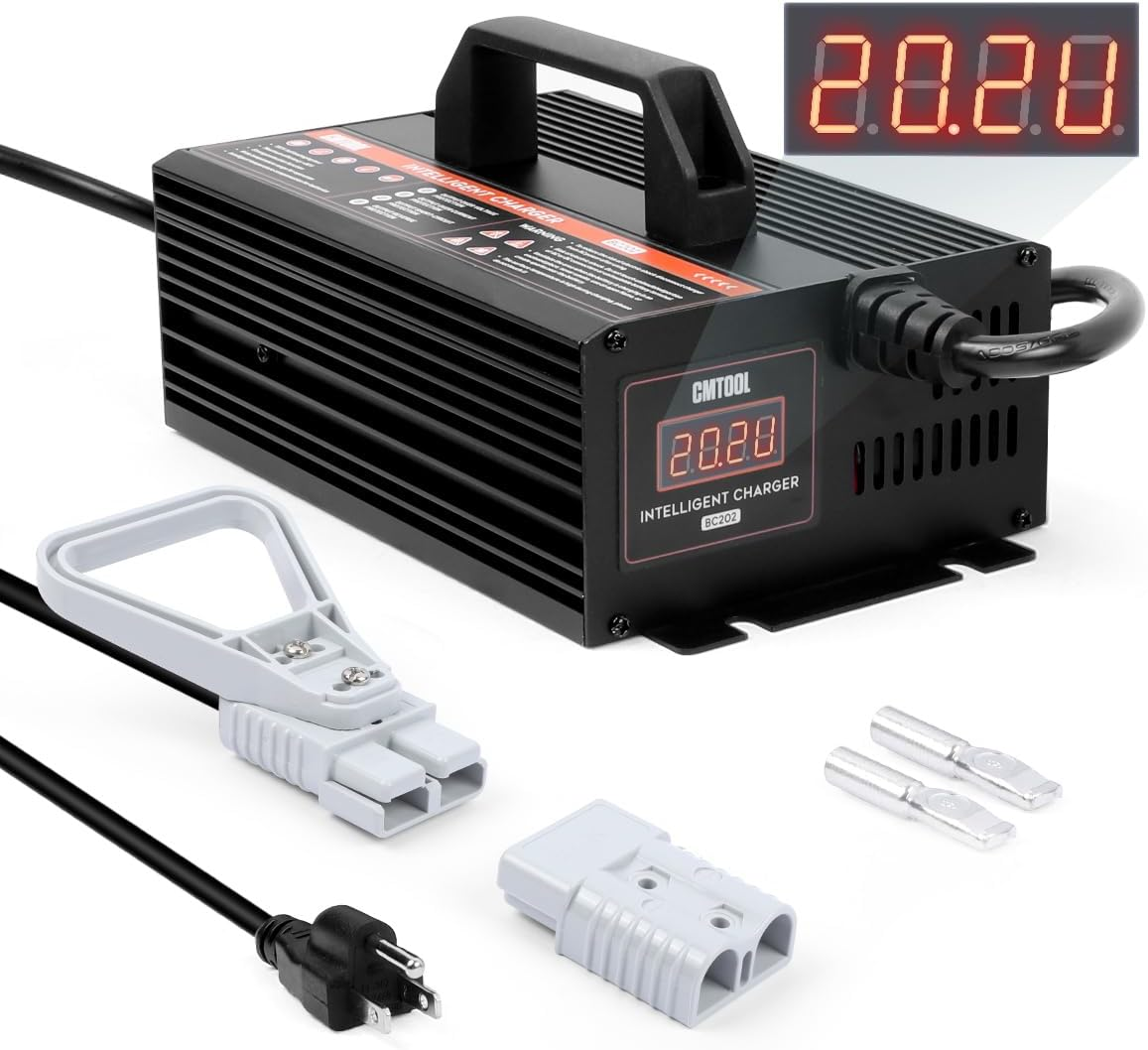

- 1×24V 20A charger with power cord and Anderson-plug charging cable
- 1×Spare plug connector
- 2×Terminal pins
Good to Know
Caution
- For 24V lead-acid batteries only. Confirm your equipment uses a compatible Anderson connector before ordering.
