Specifications

BrandOBDSTAR
SKUOBDSTAR-4323
VersionHKSE169-G,HKSE188-B
Weight3.6 lbs
ConfigurationFull: ECM+TCM+BODY
Special FunctionsOBD/BENCH cloning; read/write EEPROM/FLASH/MAP, Virgin, mileage calibration, read PIN
MP001Covers all P003+ and P002 functions, 12 IO ports, supports SIMOS 18
Operating SystemAndroid 5.1.1
ProcessorRK3128 quad-core ARM cortex A7
Display7.0 inch 1024*600 capacitive touchscreen
Storage16GB, supports 32G micro SD (TF)
Battery3700mA lithium polymer
Operating Temperature-20°C~55°C
Vehicle CoverageCar and motorcycle ECUs: Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens, etc.; 710+ ECM, 210+ TCM, 120+ body/other ECUs
Software Updates1 year free updates

Details

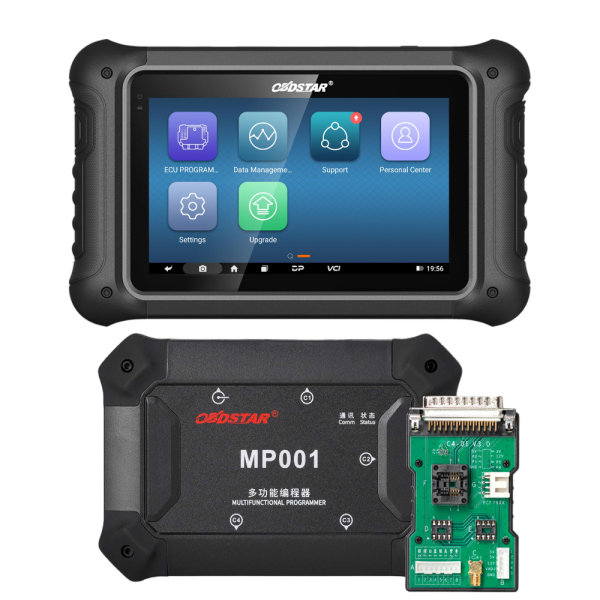

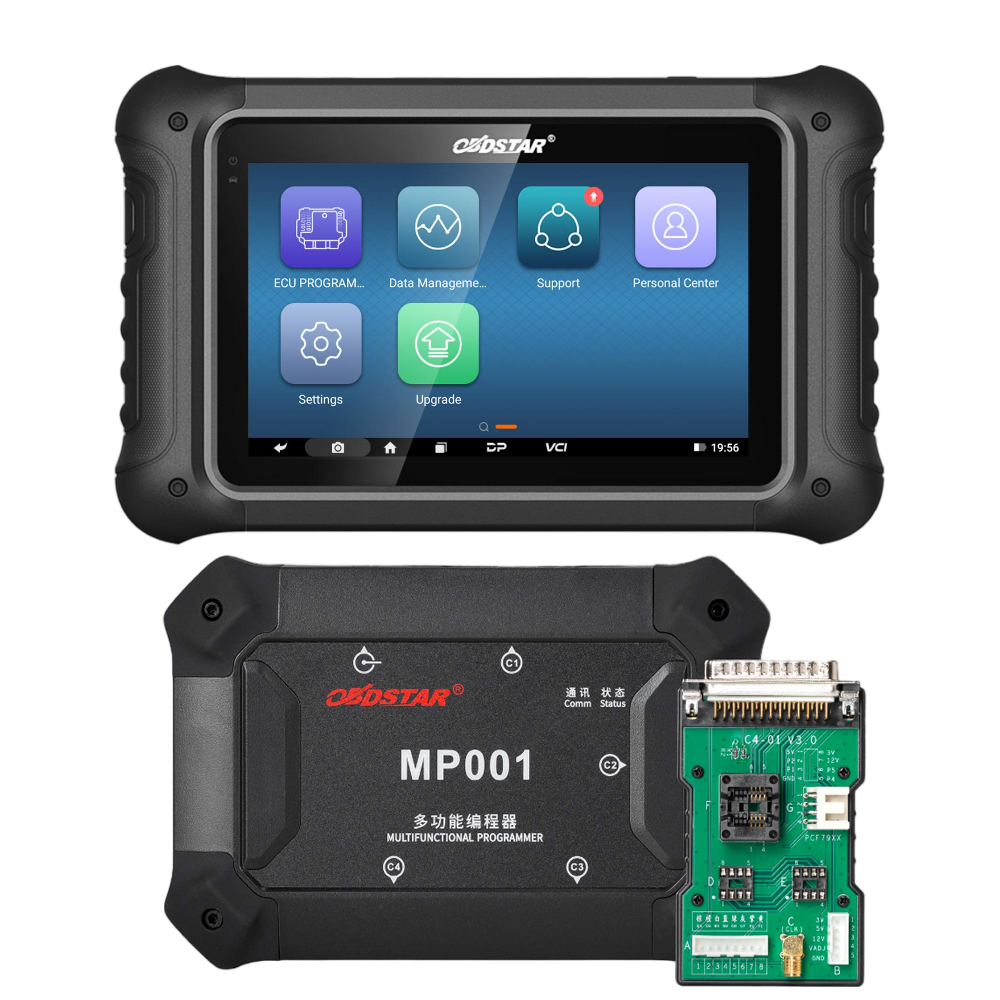

All Three DC706 Clone Modules Plus the MP001 Programmer

This kit pairs the DC706 tablet with full ECM, TCM and Body/Other software and the OBDSTAR MP001 programmer for reading, writing and cloning car and motorcycle ECUs by OBD or on the bench. Check the supported list before ordering.

  • ECM + TCM + Body
  • MP001 Programmer Included
  • OBD or Bench Mode
  • 1 Year of Updates

Key Features

  1. ECU Data Read/Write

    Read ECU information, read and write EEPROM, D-flash, P-flash and MAP data, reset an ECU to virgin, read the IMMO PIN code and recover ECUs.

  2. ECM Clone

    Car ECMs from Bosch, Continental, Delphi, Denso, Magneti Marelli and Siemens; motorcycle ECMs including Delphi MT05, MT05.2 and MT05.3, BRP ME17.8.5 and Piaggio MIU G4 (M4G1). Hyundai/Kia SIM2K-341 (TC1766) read, write and clone is supported.

  3. TCM Clone

    Transmission controllers from AC Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic and ZF.

  4. Body/Other Clone

    Airbag, BCM, BSI, CEM, DDM/PDM, DIM, EPS, keyless (RFHUB/RFHM), KVM, RFA and SAM units from FCA, Ford, GM/Opel, Land Rover/Jaguar, PSA, Smart, Volvo and others.

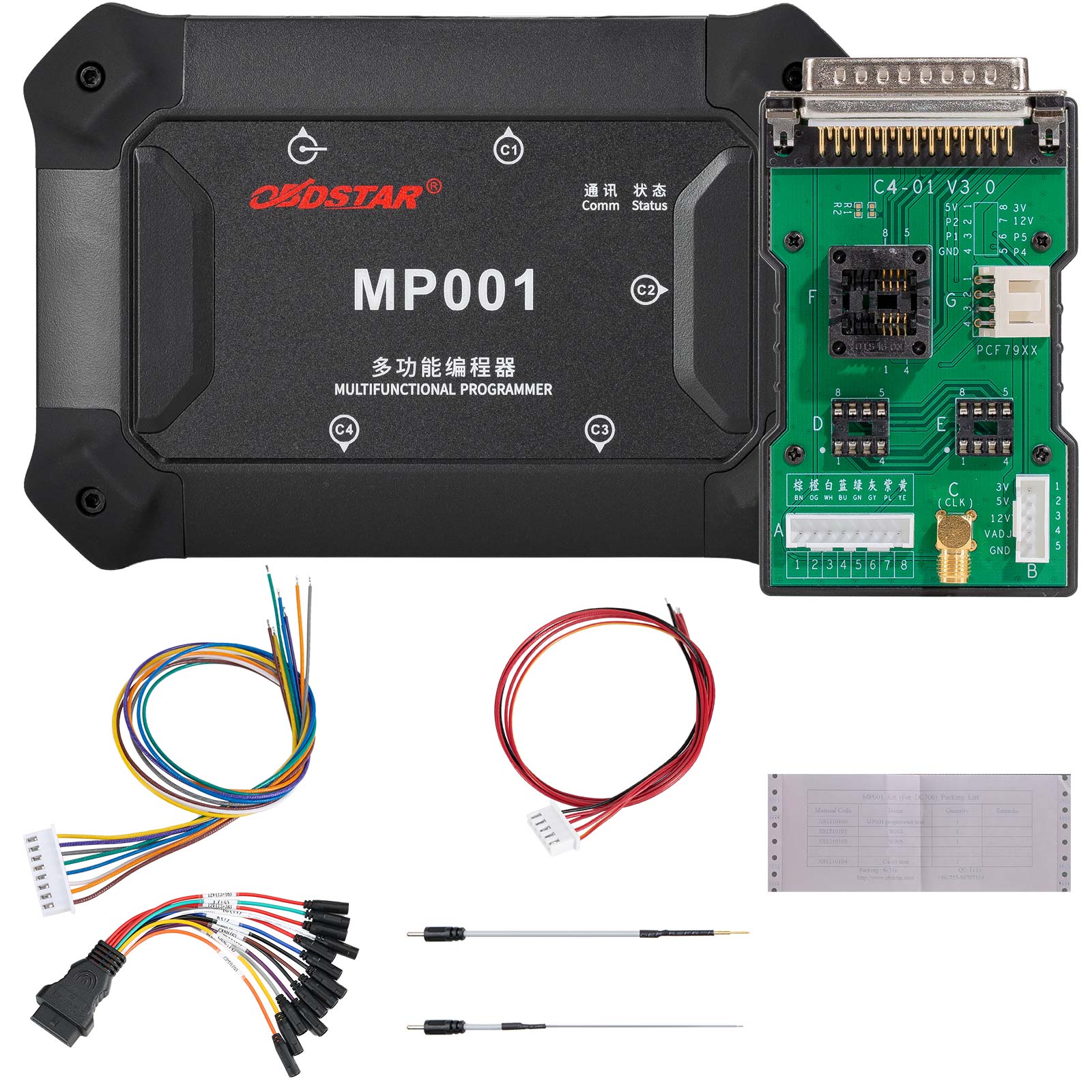

  5. MP001 Multifunction Programmer

    Read, write, clone and data processing for cars, commercial vehicles, new energy vehicles, motorcycles and jet-skis. Its extra IO ports handle the SIMOS 18 boot mode that the 4-port P003+ cannot.

  6. Boot Mode with BDM Frame

    Boot-mode ECU reads can also be done with a BDM frame.

  7. Search and Auto Identification

    Find an ECU by brand, model, part number, ECU manufacturer or MCU type, use automatic identification, and follow the built-in help files.

Highlights

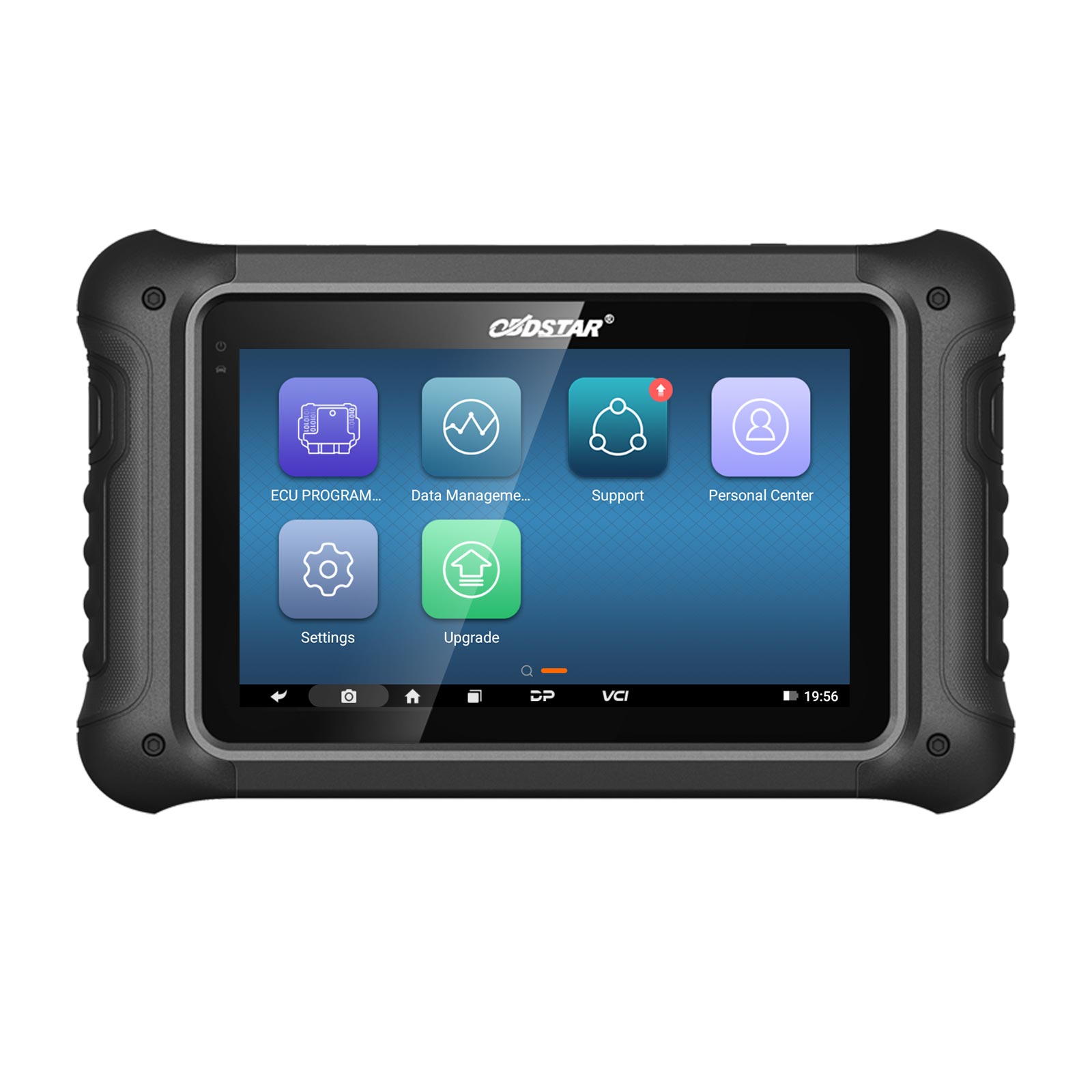

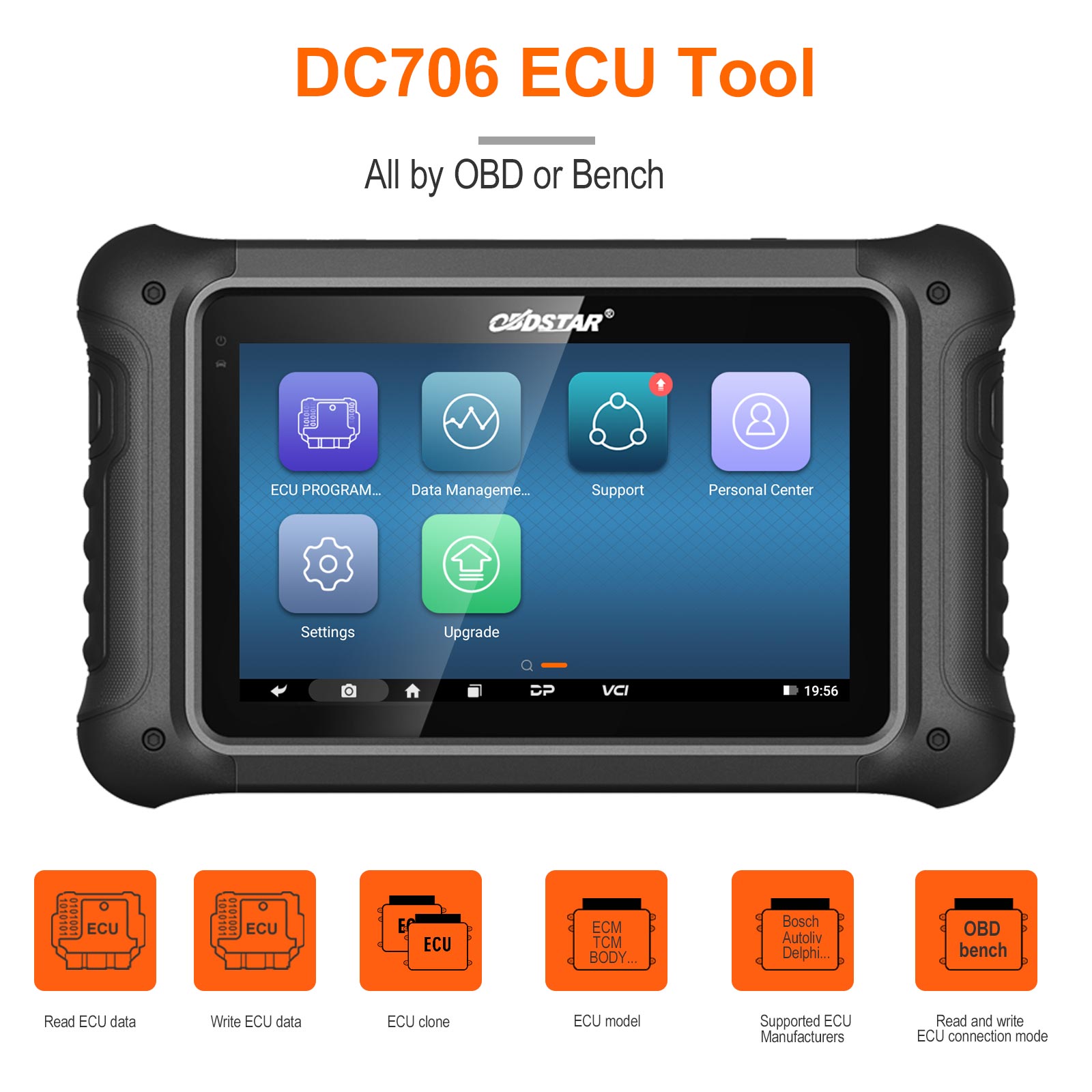

OBDSTAR DC706 tablet home screen with ECU programming, data management, support and upgrade icons
DC706 Tablet

ECU read, write and clone functions, all by OBD or bench connection.

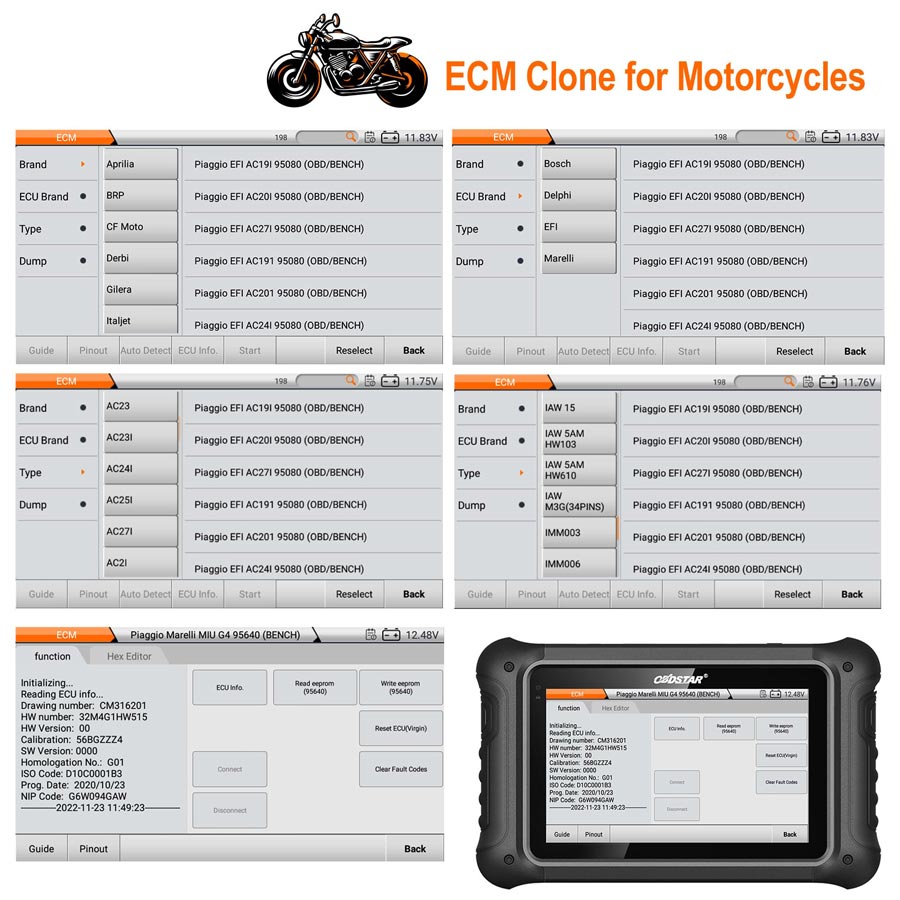

DC706 motorcycle ECM screens showing Piaggio EFI units and a Marelli MIU G4 function panel
Motorcycle ECM Clone

Select by brand, ECU brand or type, then read ECU info and EEPROM from the function panel.

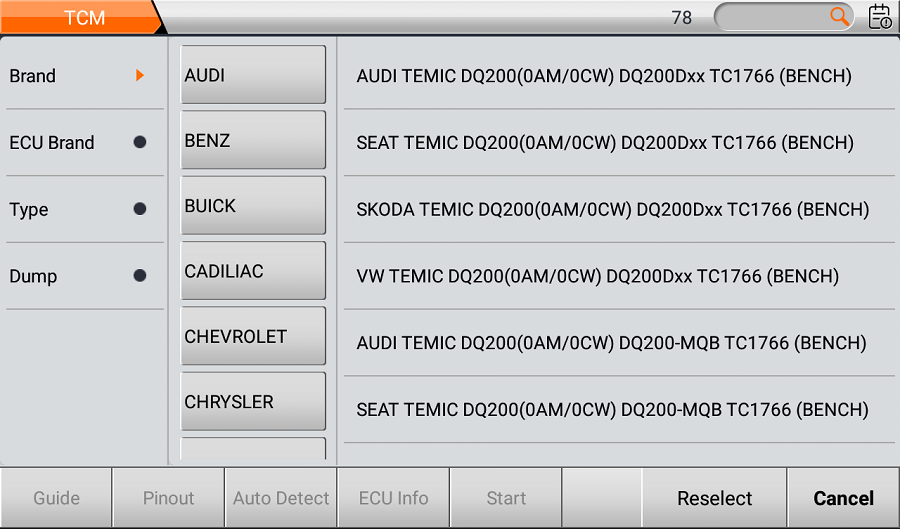

DC706 TCM list showing Temic DQ200 transmission controllers by brand
TCM Selection

Transmission controllers listed by brand with the required connection mode.

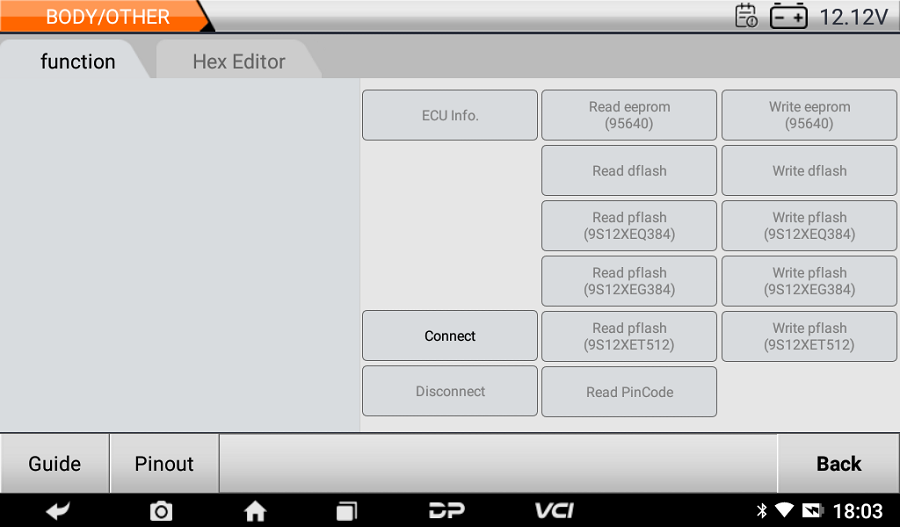

DC706 Body/Other function screen with EEPROM, D-flash and P-flash read and write buttons
Body/Other Functions

EEPROM, D-flash and P-flash read and write plus PIN reading, with a hex editor tab.

More Specifications

Wi-Fi Supported
Storage temperature -20 to 70 °C (-4 to 158 °F)
Tablet dimensions 243 × 148 × 36 mm

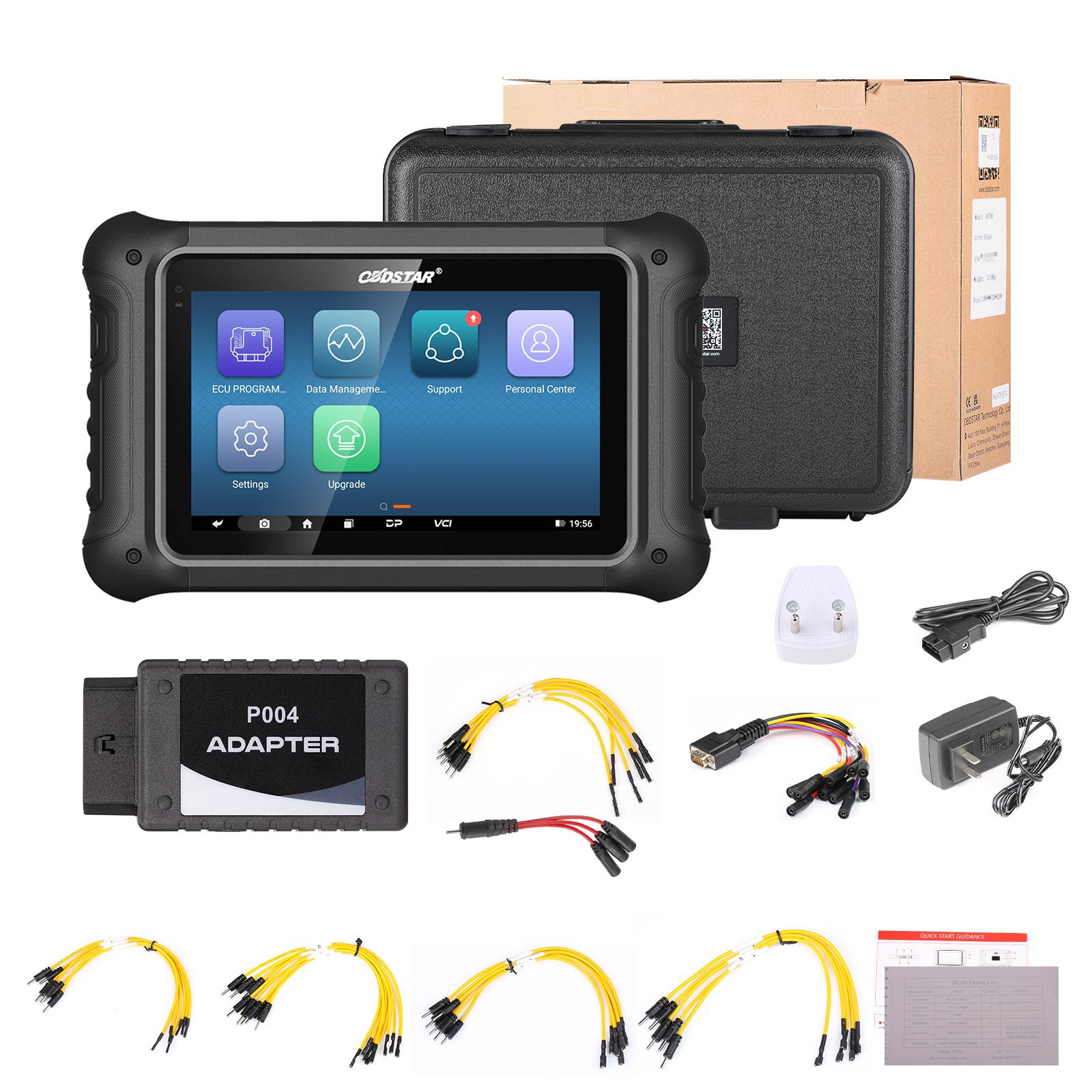

What’s in the Box

  • 1×DC706 tablet
  • 1×12 V 2 A charger
  • 1×M001 cable
  • 1×P004 adapter
  • 1×BENCH-B V2 cable
  • 1×Jumper wire
  • 1×3-in-1 jumper
  • 1×Quick start guide and certificate
  • 1×OBDSTAR MP001 programmer
  • 1×OBDSTAR C4-01 host
  • 1×W004 read/write soldering wire
  • 1×W005 read/write soldering wire
  • 1×OBDSTAR BENCH-A V3 ECU bench jumper

Good to Know

Caution
  • Other functions such as airbag reset and key programming cannot be added.
