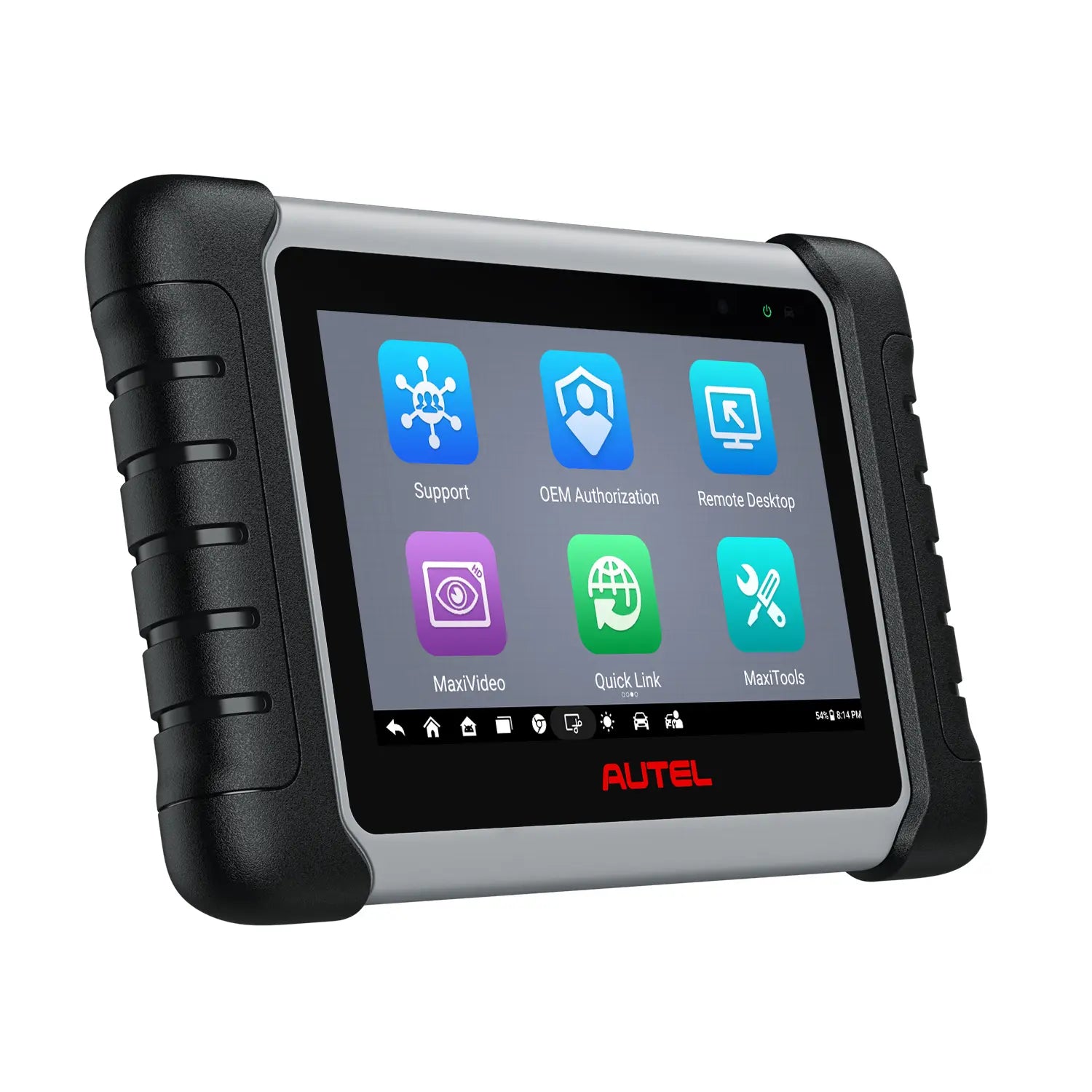

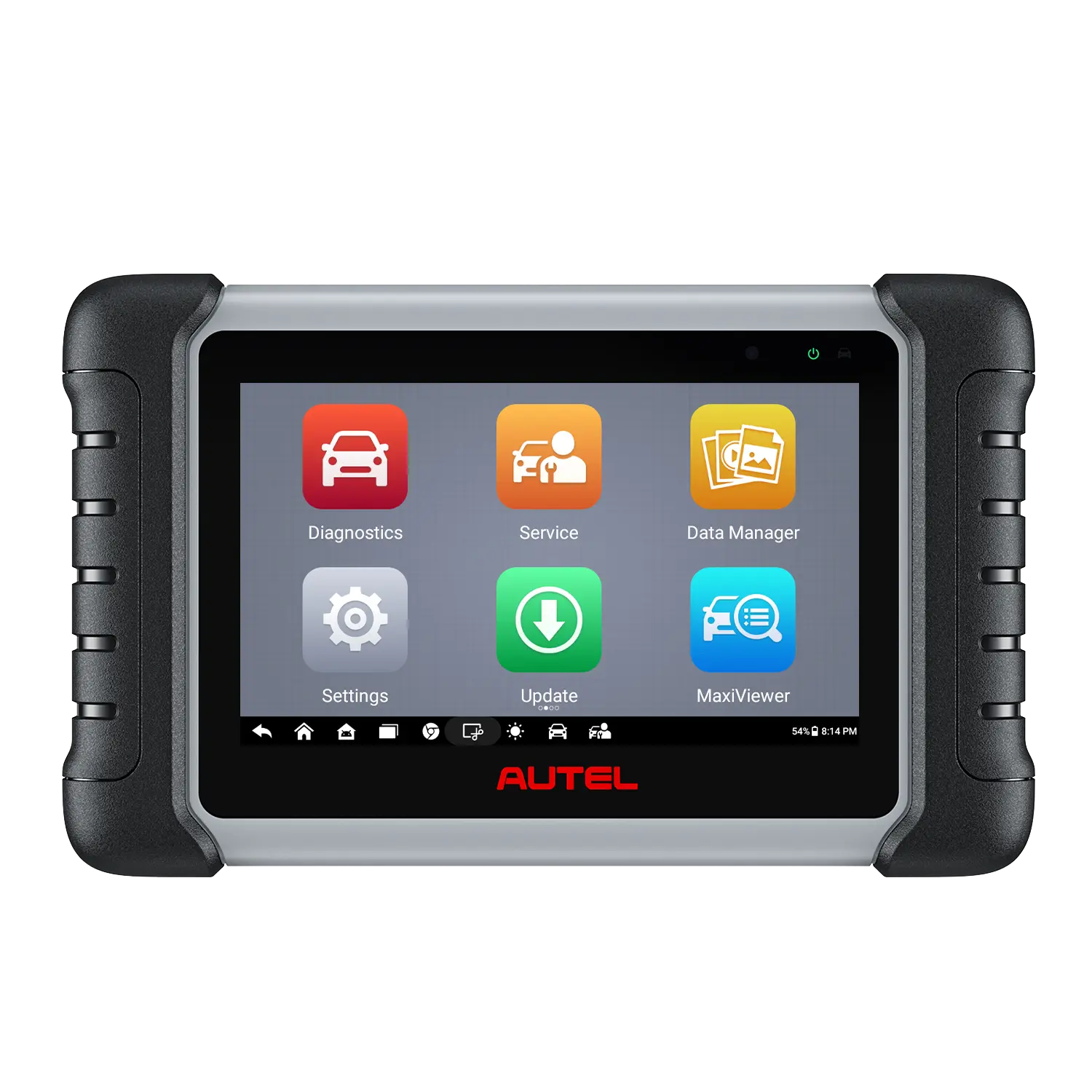

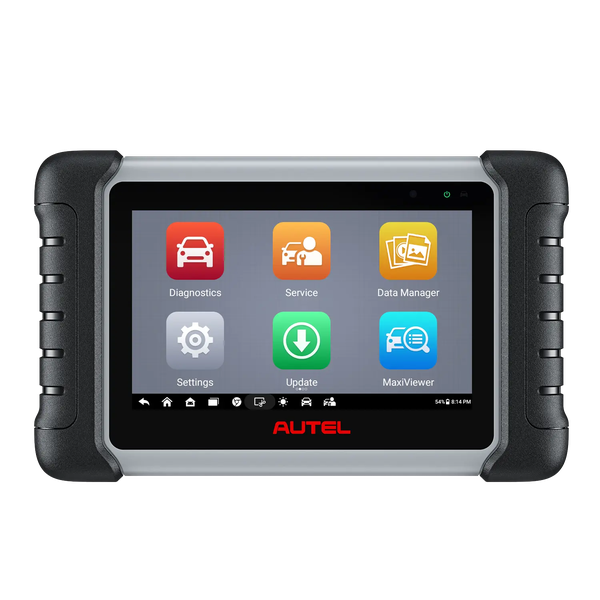

All-System Diagnostics, Active Tests and 28+ Service Functions on a 7-Inch Tablet
The MaxiCOM MK808Z reads and clears codes, shows live data and retrieves ECU information on all available systems, and adds bi-directional active tests, coding and adaptations and a wide menu of service resets. FCA AutoAuth access is unlocked with the latest software update.
- All-System Diagnostics
- Bi-Directional Control
- Coding & Adaptations
- AutoVIN
- FCA AutoAuth
Key Features
-
OE-Level Diagnostics
Read and erase codes on all available systems, view freeze frame and ECU information, and display live data as text, graph or analog; diagnosis reports help reveal the cause of a problem.
-
Bi-Directional Active Tests
Send commands to the ECU to activate and monitor actuators such as ABS, windows, doors, solenoids, valves and wipers, to find bad parts quickly.
-

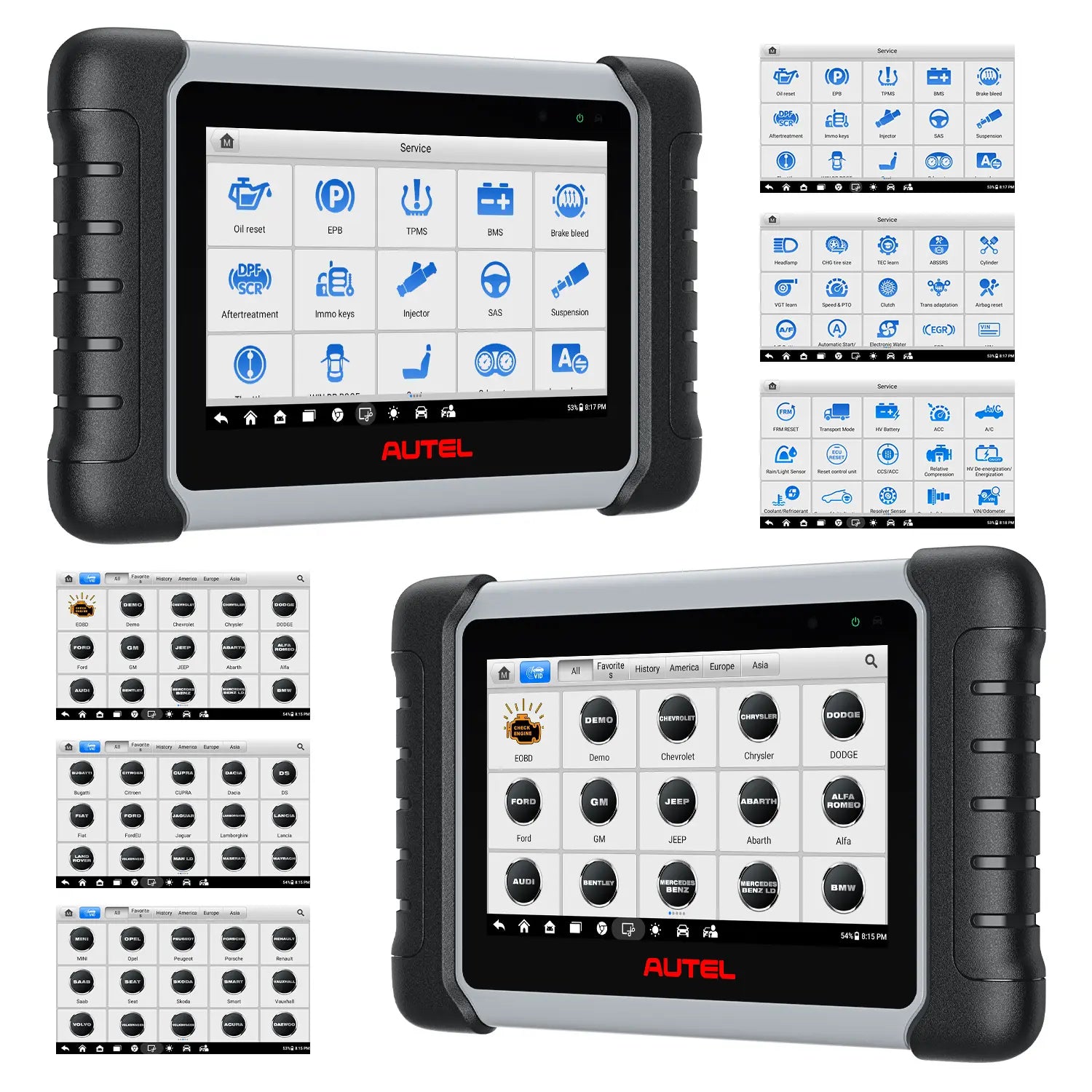

Service Functions
Oil reset, EPB service, ABS auto bleed, SAS calibration, DPF regeneration, injector reset and service interval reset.
-
Coding and Adaptations
Perform coding and adaptations on supported modules.
-
AutoVIN
Automatically identifies the vehicle make, model and year.
-
FCA AutoAuth
With the latest software update, securely serves modern FCA vehicles for OBDII diagnostics and active tests.
-

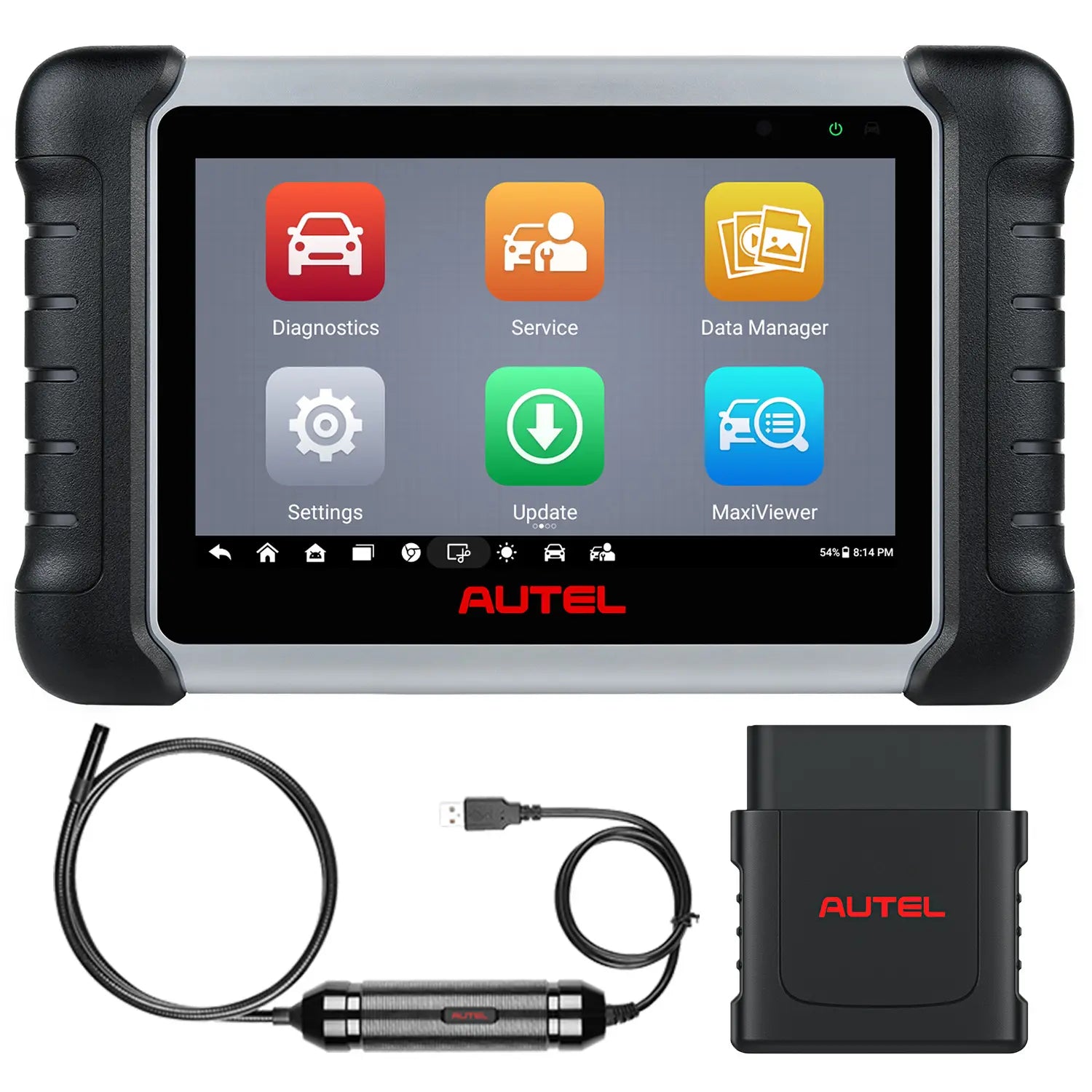

Videoscope Compatible
Works with a compatible videoscope.
More Specifications
| Ports | Mini USB 2.0, USB 2.0, HDMI Type A, Micro SD card slot (up to 32GB) |
|---|---|
| Sensors | Light sensor for automatic brightness |
| Audio output | Beep |
| Battery type | Lithium-polymer |
| Charging | 5 VDC power supply; 5V/1.5A charging input |
| Power consumption | 600 mA at 3.7 V (LCD on at default brightness, Wi-Fi on) |
| Storage temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating humidity | 5%–95% non-condensing |
| Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE J1850 VPW, SAE J1850 PWM, ISO 11898 (high, middle, low speed and single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP 2.0, TP 1.6 |

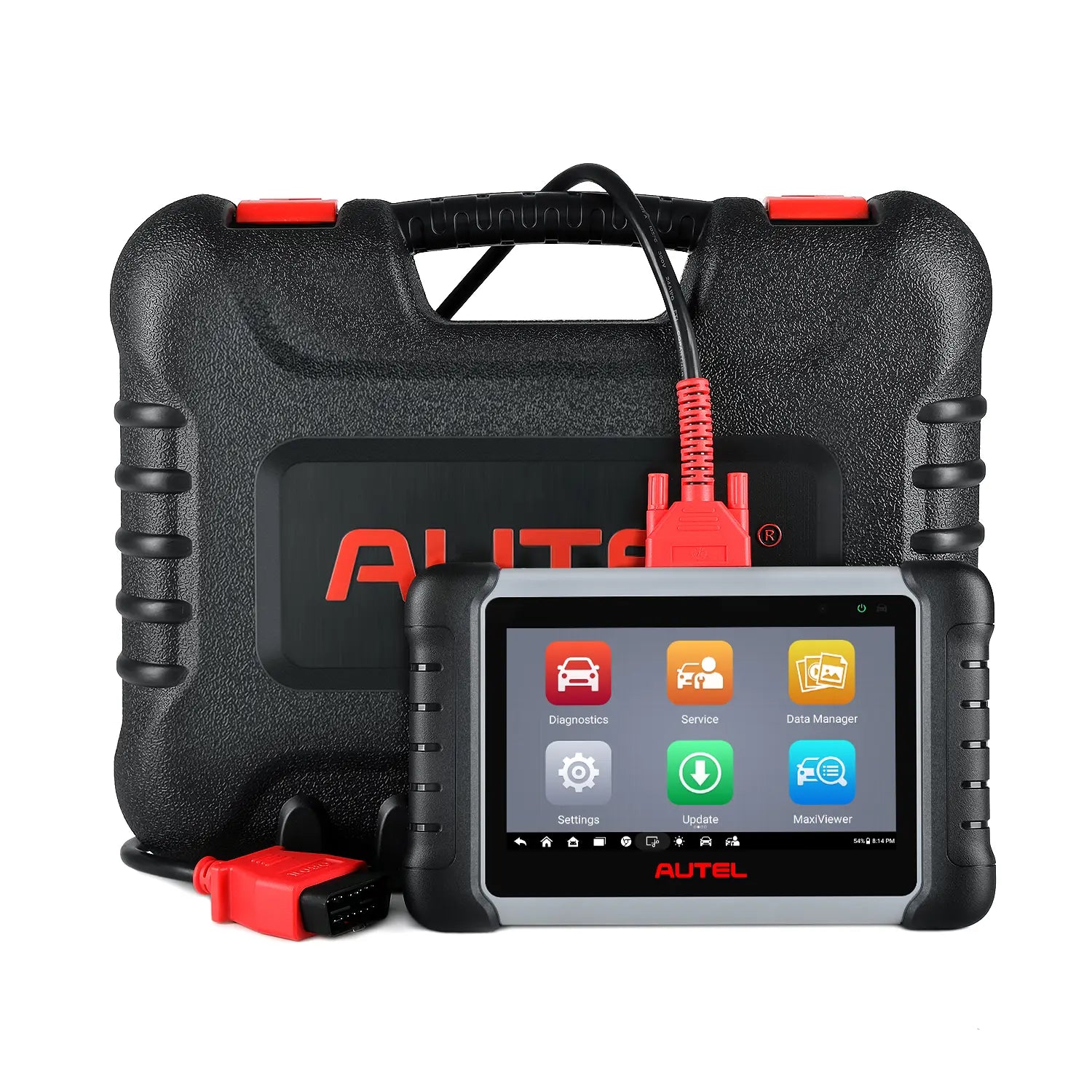

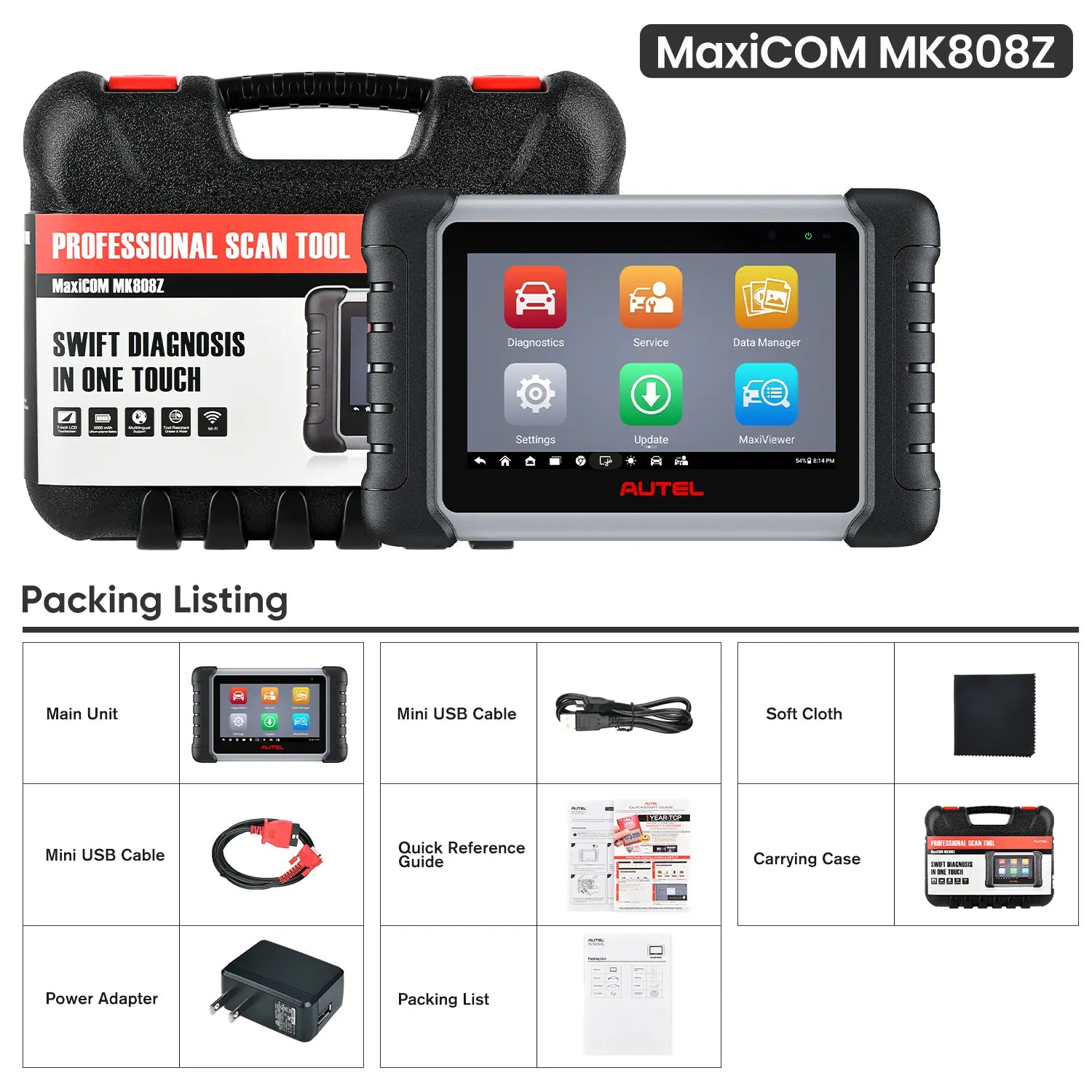

What’s in the Box
- 1×MK808Z main unit
- 1×USB external power adapter
- 1×USB cable (for testing)
- 1×USB cable (for charging)
- 1×Quick reference guide
- 1×User manual
- 1×Carrying case
