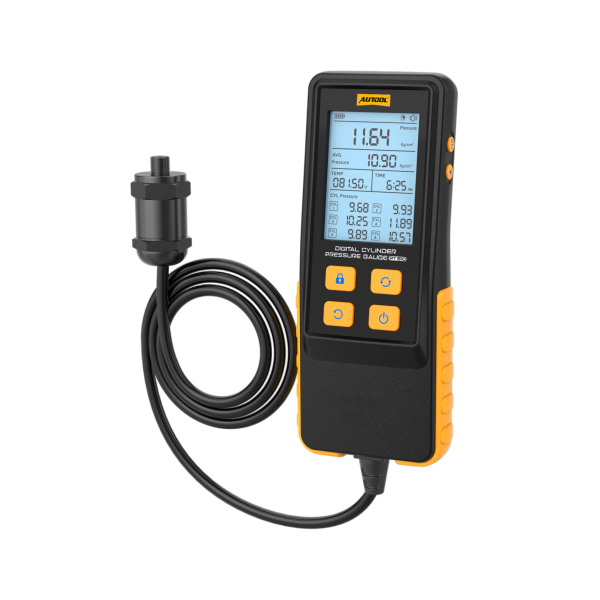

Compare Cylinder Compression Across Six Stored Tests

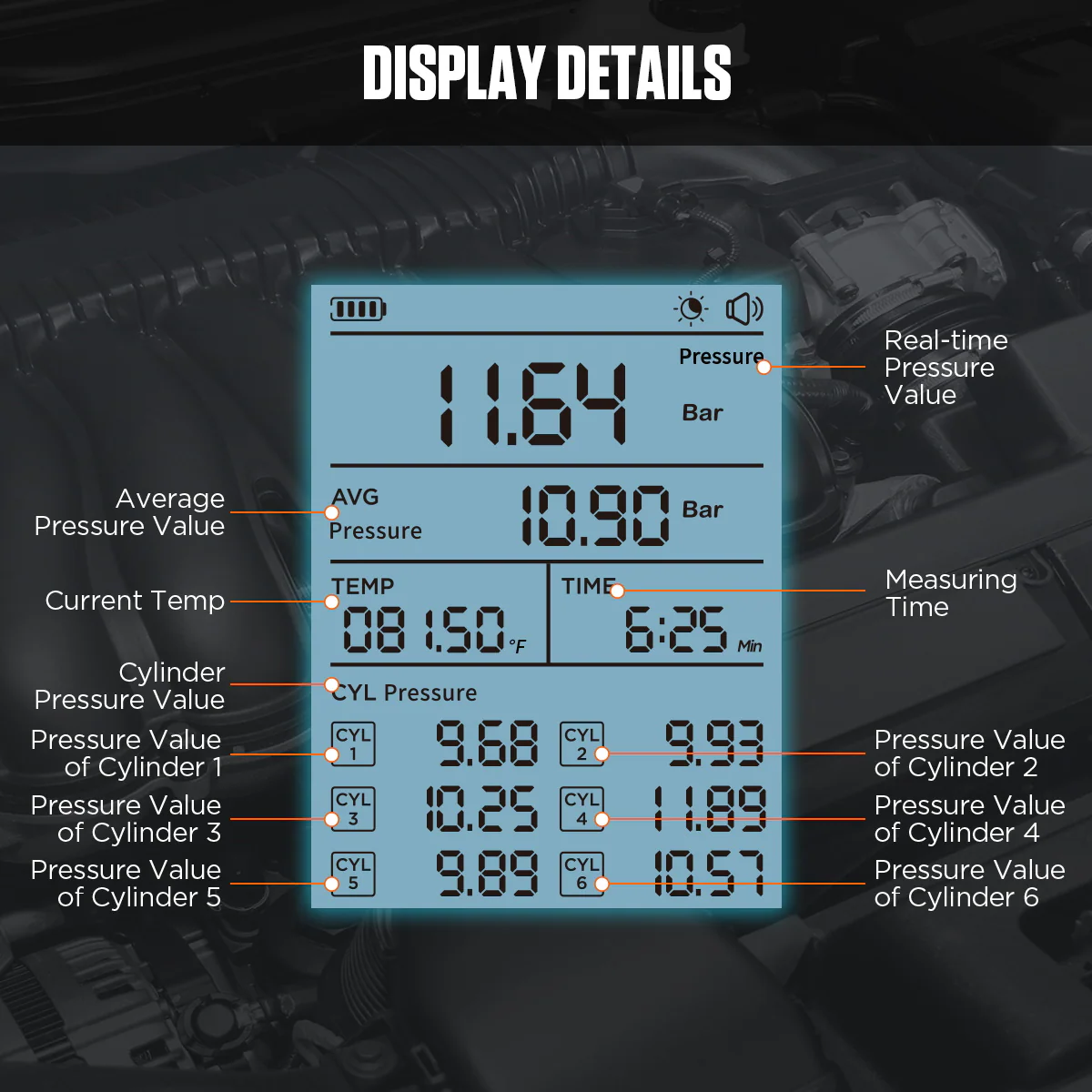

The PT610 shows live and average compression with cylinder temperature and measuring time, and saves six data sets so you can compare cylinders. Pick the adapter that matches the spark-plug opening.
- 6 Stored Data Sets

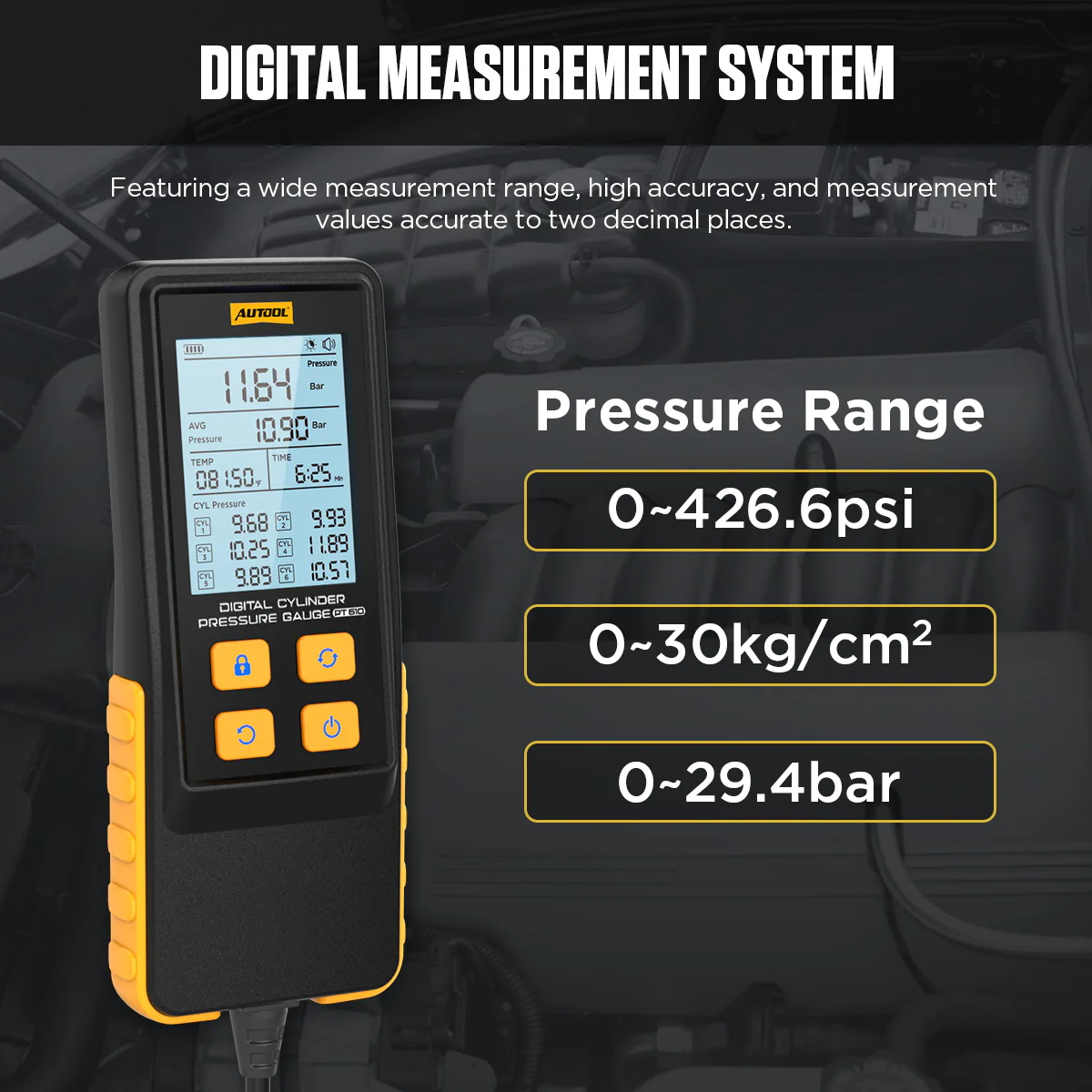

- 0–29.4 Bar Range

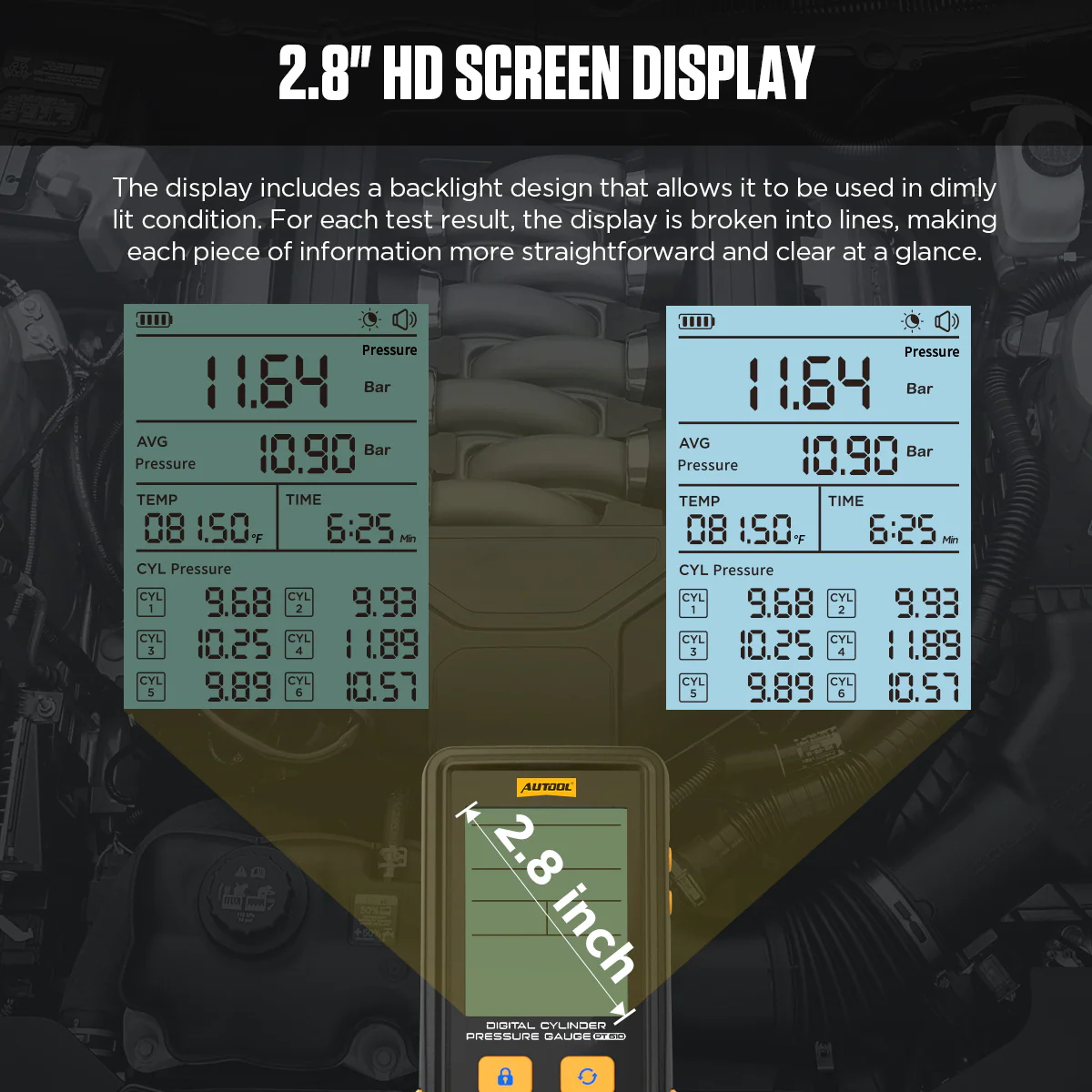

- 2.8-Inch Backlit Display
- 78.7-Inch Reinforced Hose
- 5 Thread Adapters
Key Features
-
Two-Decimal Readings
Cylinder pressure shown to two decimal places for comparing cylinders or repeated tests.
-

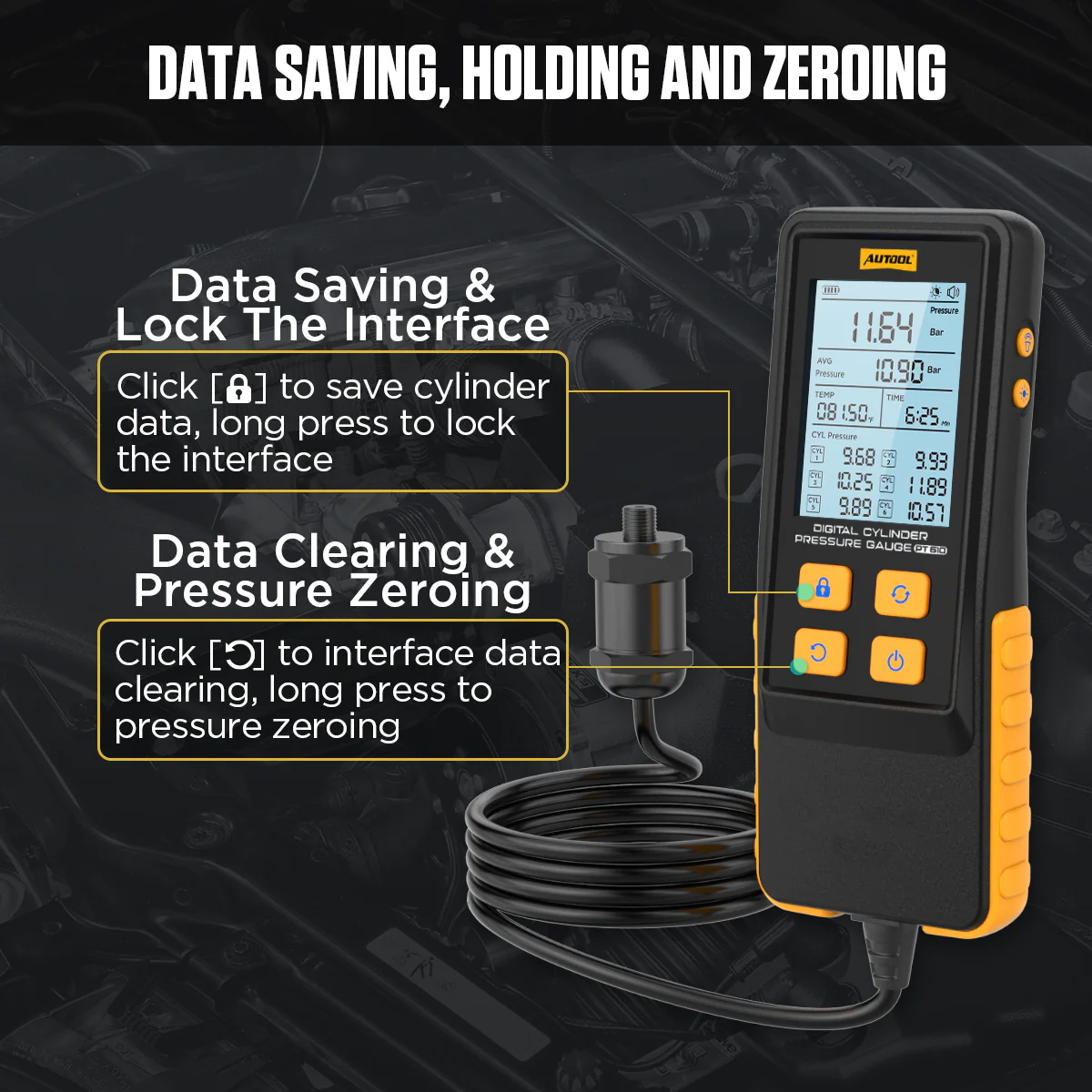

Save, Lock and Compare
Data saving and interface locking keep each cylinder’s result for recording, querying and comparison during diagnosis.
-

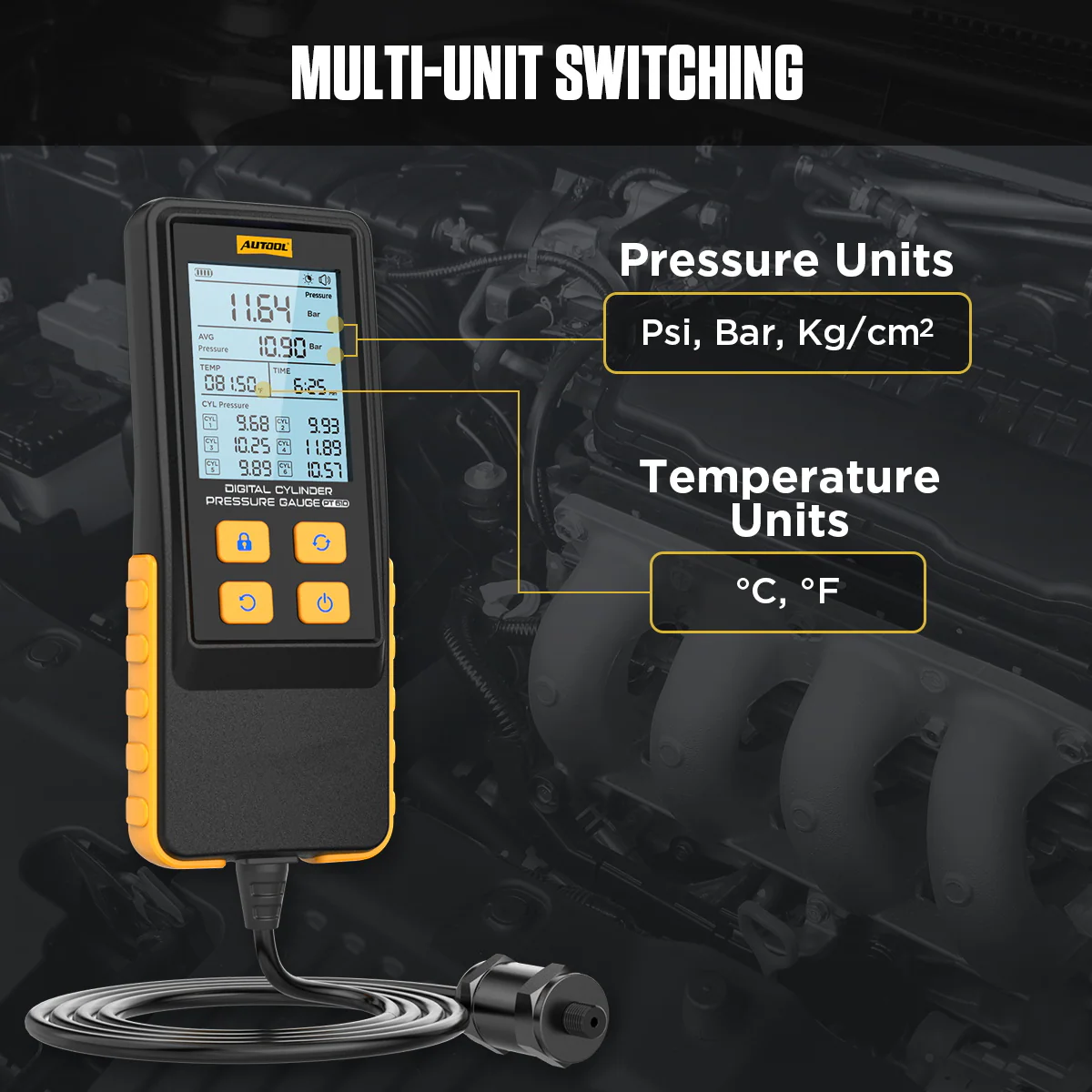

Switchable Units
Change pressure units to match the engine reference and switch temperature between Celsius and Fahrenheit.
-

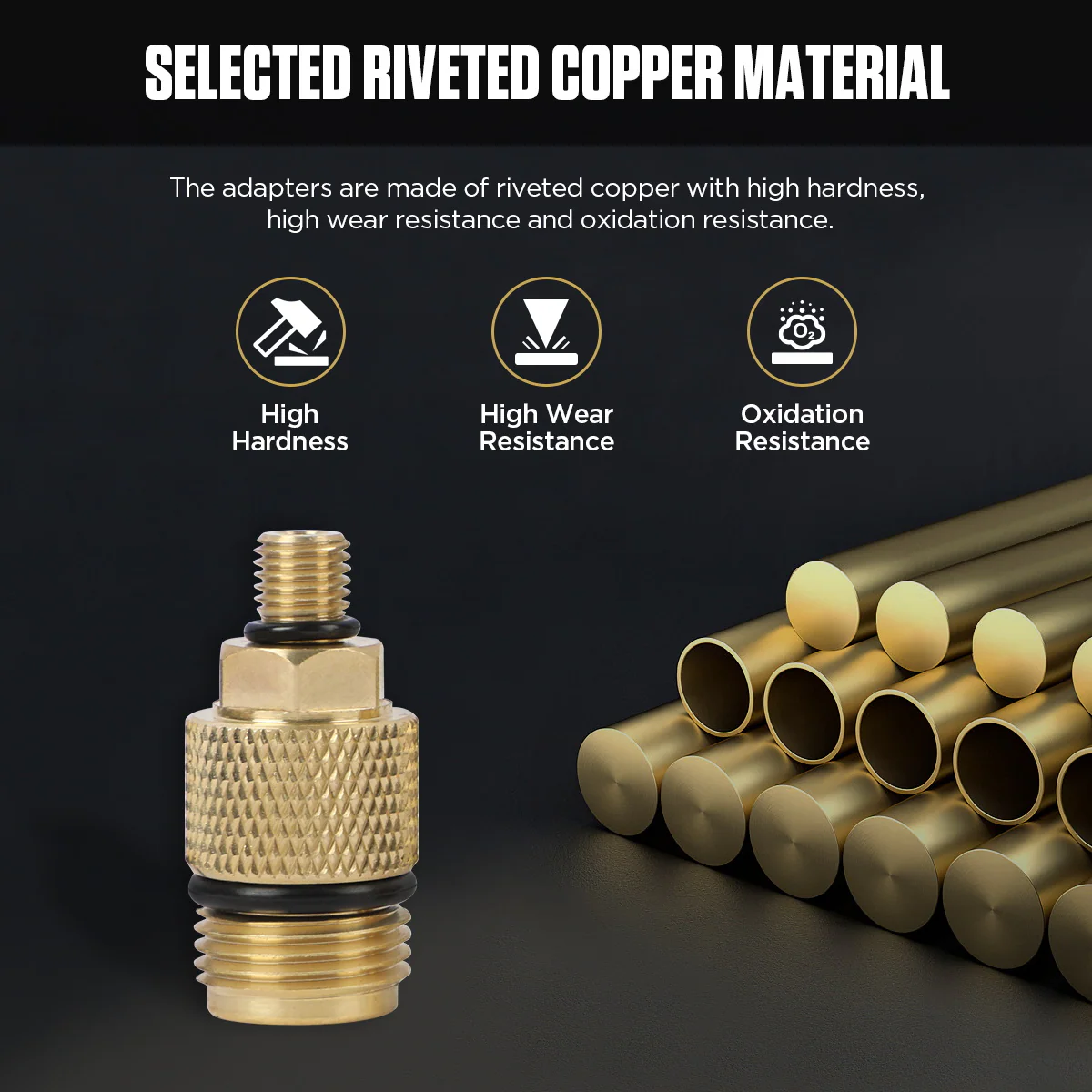

Riveted Copper Adapters
Fittings resist wear, oxidation and corrosion.
-
Long Reinforced Hose
Resists pressure, heat and twisting while reaching motorcycle, car and truck test points.
-
Multiple Connection Options
Threaded adapters, flexible and rigid test lines and rubber cone fittings suit different ports.

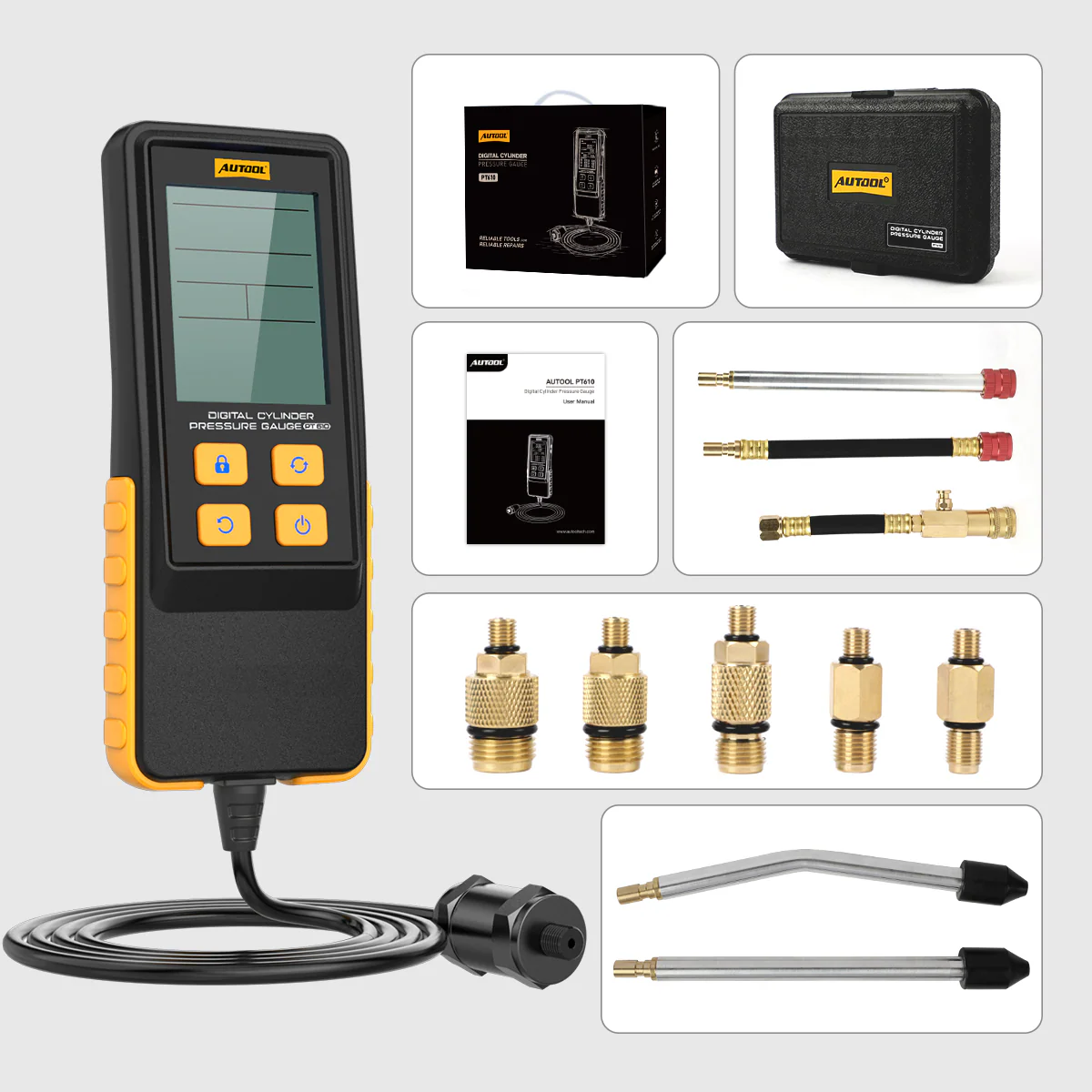

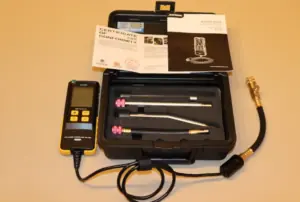

What’s in the Box

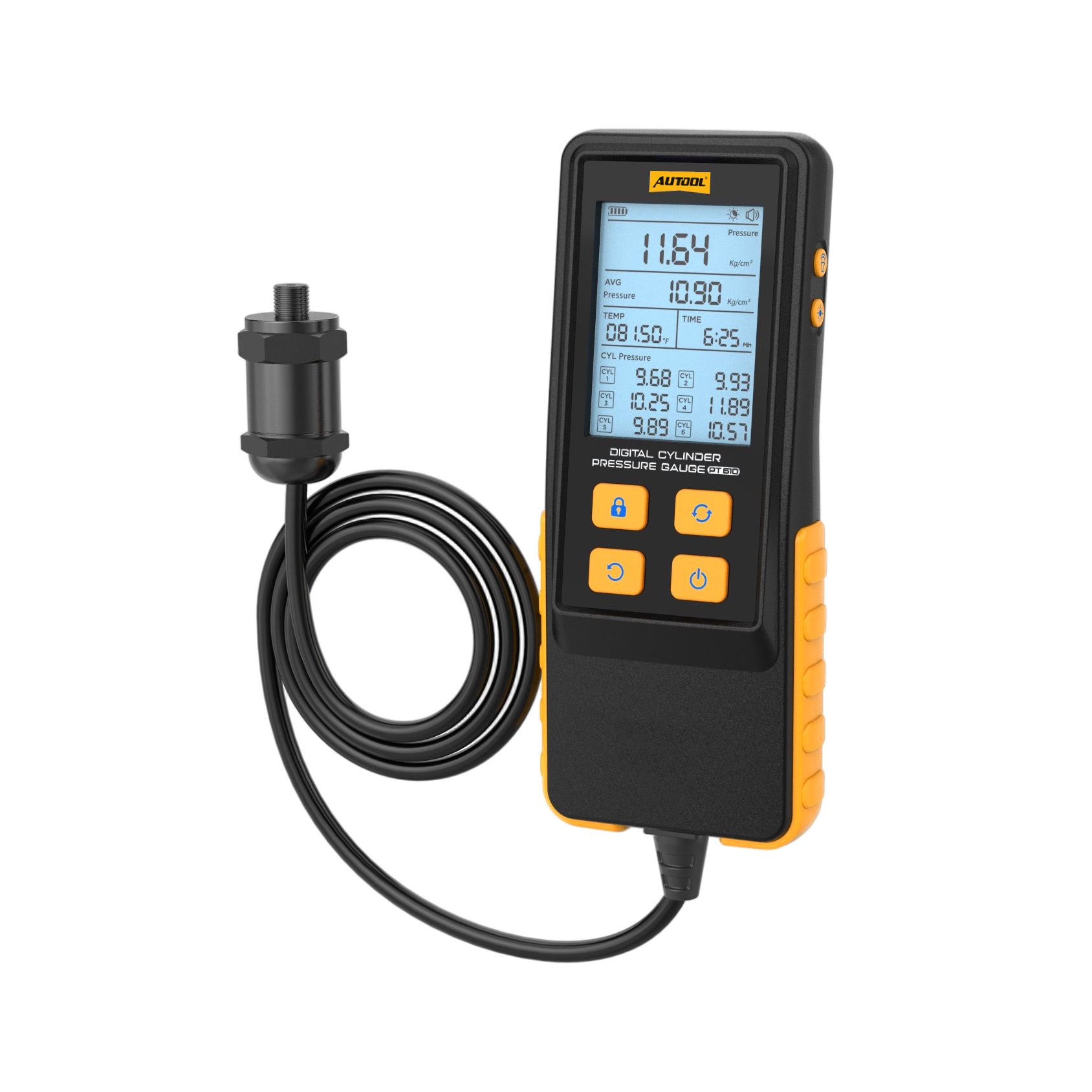

- PT610 digital cylinder pressure gauge
- Carrying case
- User manual

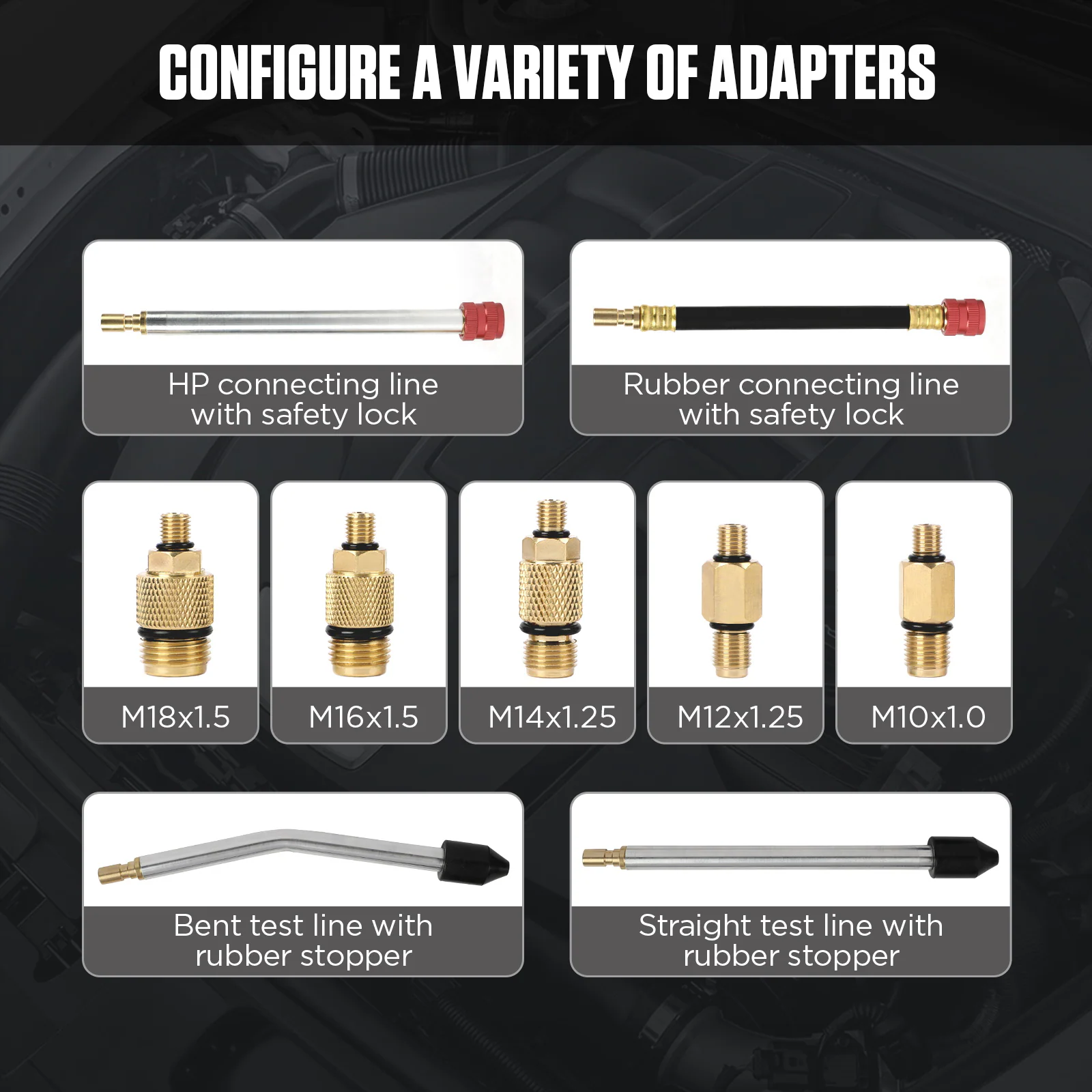

- HP connecting line with safety lock
- Rubber connecting line with safety lock
- M18×1.5, M16×1.5, M14×1.25, M12×1.25 and M10×1.0 adapters
- Bent test line with rubber stopper
- Straight test line with rubber stopper

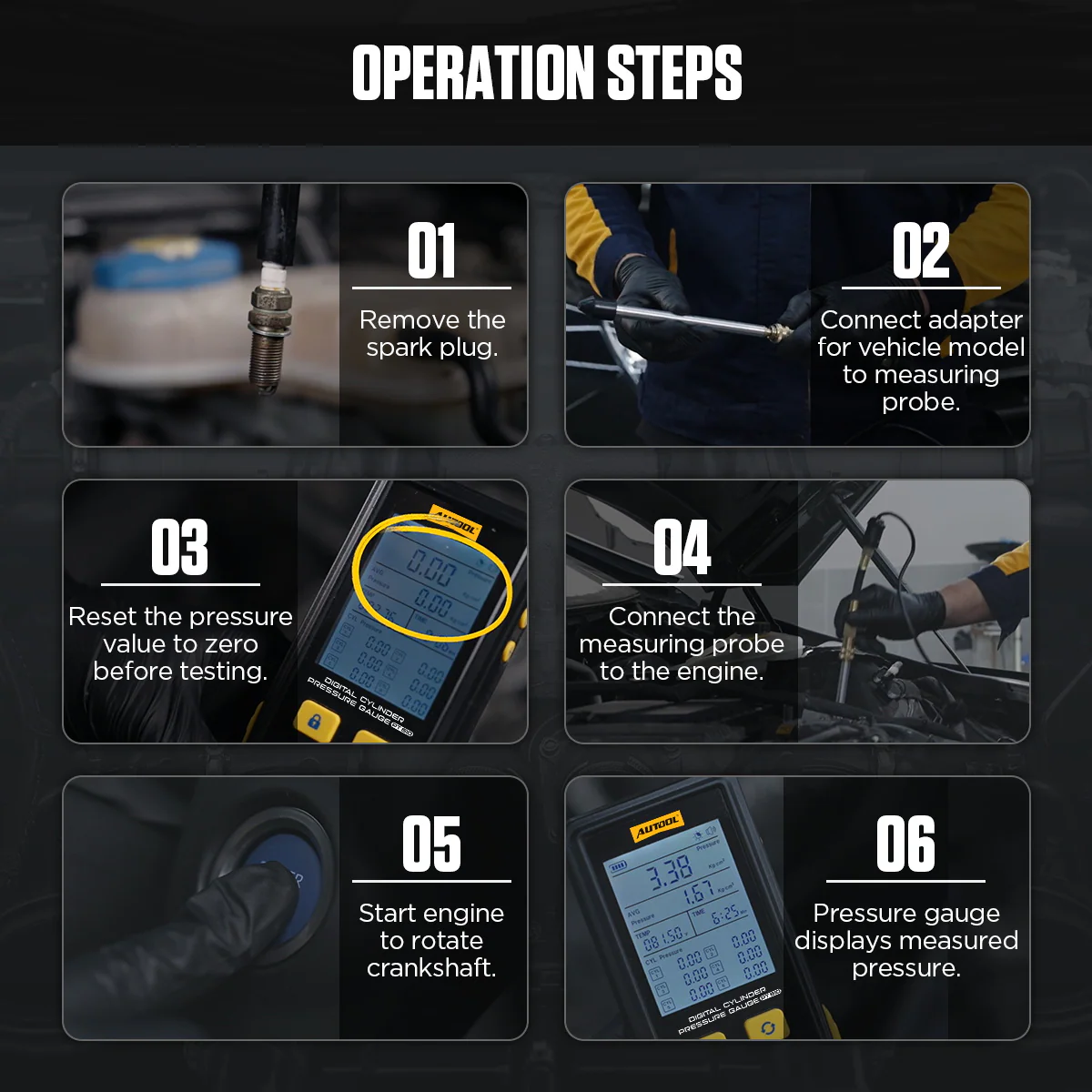

How to Use
- Remove the spark plugTake it out of the cylinder to be tested.
- Fit the adapterChoose the adapter for the vehicle and connect it to the measuring probe.
- Zero the gaugeReset the pressure value before each new measurement.
- Install the probeConnect the probe securely to the engine.
- Crank the engineRotate the crankshaft as the test procedure requires.
- Read and saveRead the pressure on the display and save it for comparison.
Unit selection, connections and saved readings: PT610 user manual (PDF)
Good to Know
Care
- Compare cylinders under the same conditions and follow the engine’s compression-test procedure.
- Display resolution is not measurement accuracy; recheck a low cylinder with the specified follow-up test.
