Key Programming, IMMO and OE-Level Diagnostics in One Tablet Kit

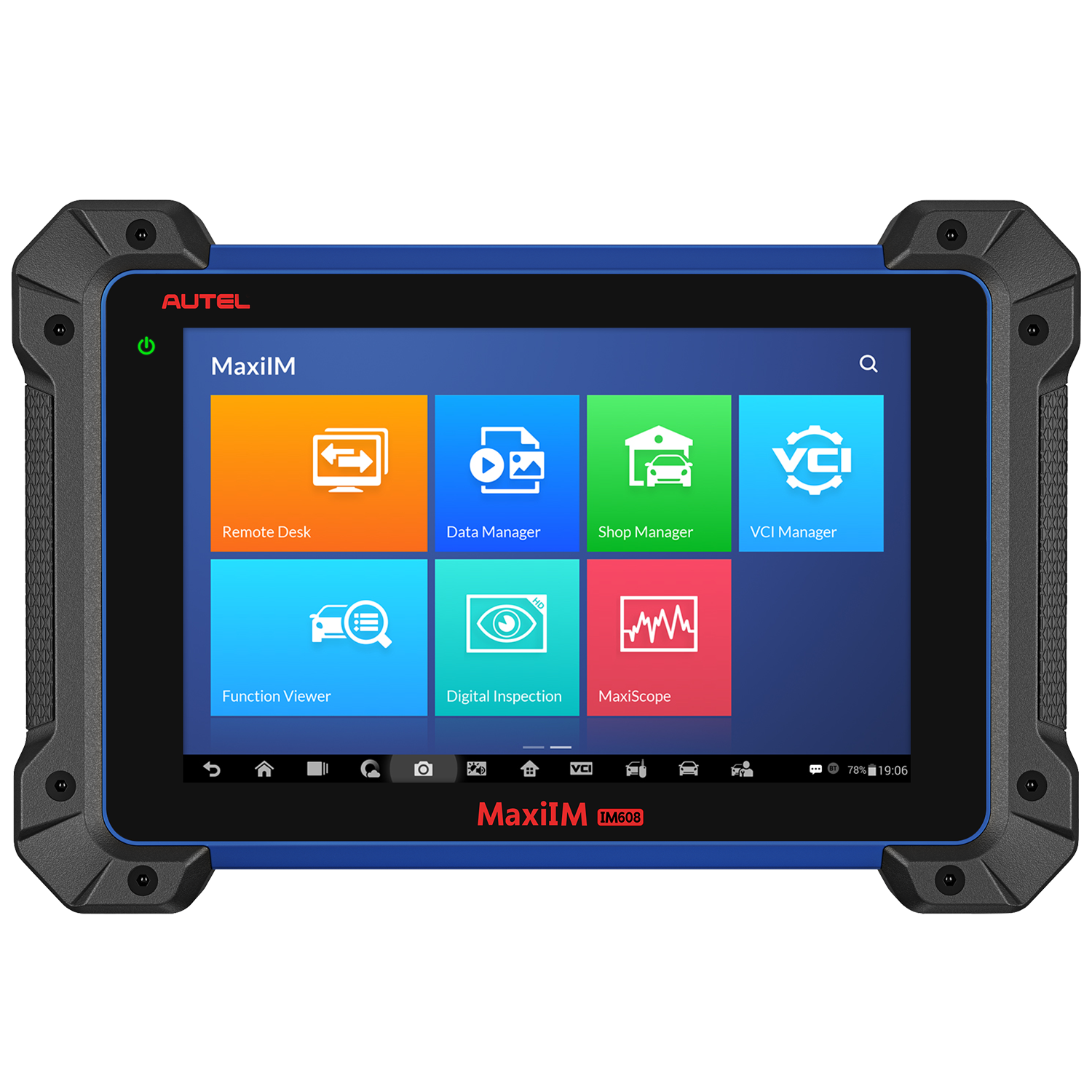

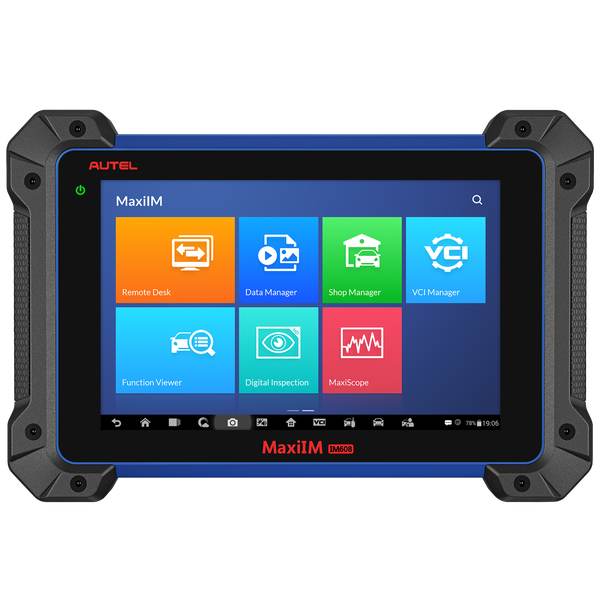

The MaxiIM IM608 Pro combines a 10.1-inch Android tablet with the XP400 Pro key programmer and the MaxiFlash JVCI ECU programmer for immobilizer and key work, including read PIN/CS with all keys lost, alongside all-system diagnostics, ECU coding, bi-directional control and maintenance services.
- XP400 Pro + MaxiFlash JVCI
- All Keys Lost / Read PIN
- Smart & Expert Modes
- ECU Coding
- 2 Years of Updates
Key Features
-
Key Programming and IMMO
Read PIN/CS with all keys lost, key generation, key learning and remote learning, IMMO data backup and restore, IMMO ECU reset, adaptation, refresh and coding.
-
Transponder, EEPROM and MCU Read/Write
Read and write transponders, EEPROMs and MCUs through the XP400 Pro.
-
Smart and Expert Modes
Smart Mode guides and automates key learning; Expert Mode is for advanced key learning.
-
OE-Level Diagnostics
Diagnose all modules, read and erase DTCs and view live data on more than 80 US, Asian and European makes.
-
Maintenance Services
30+ services, including EPB, DPF, SAS, SRS, oil reset, ABS bleeding and BMS.
-
ECU Coding and Bi-Directional Control
Change pre-programmed options in the vehicle’s ECU to unlock hidden functions, activate, match, code and relearn replaced modules, and test subsystems and components to check system integrity.
More Specifications
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac), USB 2.0, BT v.2.1 + EDR, SD card (up to 32GB), HDMI |
|---|---|
| Sensors | Gravity accelerometer, ambient light sensor |
| Charging | 12 V AC/DC power supply |
| Power consumption | 6.5 W |
| Operating temperature | 0 to 50°C (32 to 122°F) |
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE J1850 VPW and PWM, CAN ISO 11898 (high, middle, low speed and single-wire), GM UART, UART Echo Byte, Honda Diag-H, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
What’s in the Box
- MaxiIM IM608 Pro tablet
- XP400 Pro key programmer
- MaxiFlash JVCI
- Connection cables
- USB adapter
- Carrying case
