Check Coolant Boiling Point Against the Right Reference

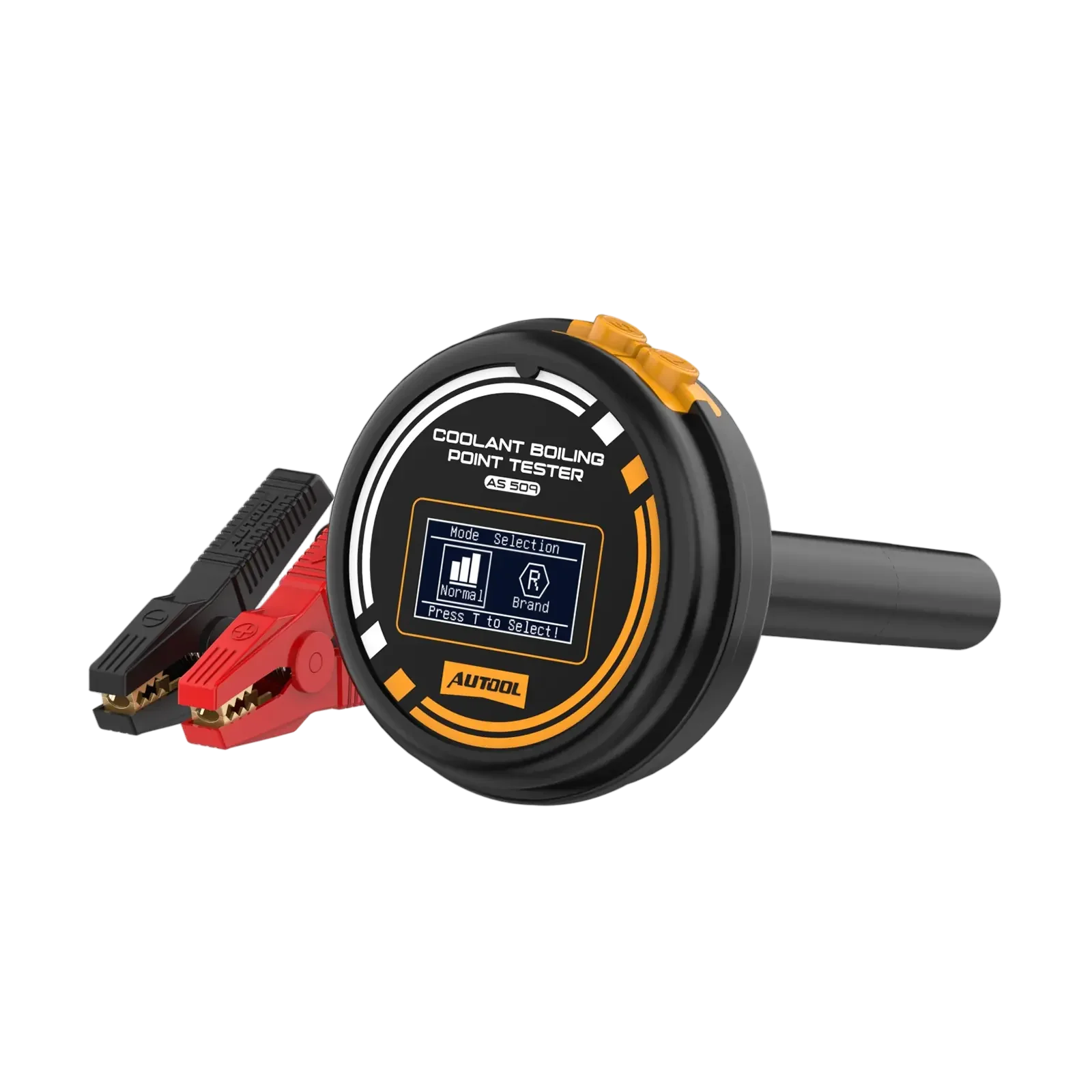

The AS509 heats a 50 ml coolant sample and shows its boiling point on an OLED screen, either as a general reading or against built-in references for 23 coolant brands. It is powered from a 12 V vehicle battery through clamps.
- 23 modes de référence par marque
- 20–40 s Test
- Précision de température ±3%
- Alimenté par batterie de 12 V
Key Features
-
Modes normal et marque
Normal Mode measures the actual boiling point for everyday checks across vehicles and coolant types; Brand Mode compares the result with built-in brand reference values.
-
23 marques de liquide de refroidissement
ACDELCO, BASF, BOSCH, CASTROL, ENGINE_ICE, EVANS, FORD, HONDA, JOHN_DEERE, KUNLUN, MOBIL, MOPAR, NISSAN, OMTECH, PEAK, PRESTONE, RECOCHEM, SHELL, SKI-DOO, ZEREX, STAR_BRITE, TOTAL and TOYOTA.
-
Trois types de liquide de refroidissement
Tests ethylene glycol, propylene glycol and water-based coolant.
-
Écran OLED lisible
The self-illuminating display stays clear in bright light, dim workshops or at night.
-
Double protection de sécurité
Reverse polarity and overheat protection reduce connection mistakes and overheating risk.
Autres caractéristiques
| Sample volume | 50 ml |
|---|---|
| Unités de température | °C / °F |
| Méthode de détection | Sample heating |
Contenu du coffret
- AS509 coolant boiling point tester
- Carrying case
- Béchers, seringue et tube
- 12 V battery clamps and power cable
- User manual
- Retail box
How to Use
- Draw a sampleUse the syringe to draw 50 ml of coolant from the reservoir and inject it into the beaker.
- Raccordez l’alimentation 12 VClamp the tester to a 12 V battery, switch on and select the coolant type or Brand Mode.
- Insérez la tige de testPlace the rod in the beaker with the sampling hole fully submerged.
- Start the testHold the “S” button, wait for the progress bar and read the boiling point on the display.
Coolant selection, reference values and troubleshooting: Manuel d’utilisation AS509 (PDF).
Good to Know
Entretien
- An open-sample boiling point is not the protection temperature of a pressurized cooling system, and the AS509 does not report freeze point, pH or inhibitor reserve.
- Confirm the coolant identity before comparing with a brand reference.
