Caractéristiques

MarqueOBDSTAR
SKUOBDSTAR-4374
Poids3300 g
Fonctions de diagnosticRead/clear codes, live data, actuation test, settings, coding; service reset, idle control
Système d’exploitationAndroid 5.1.1
ProcessorRK3128 quad-core ARM Cortex A7
Display7.0-inch capacitive touch screen, 1024*600
Storage16GB, expandable with 32G micro SD (TF) card
Batterie3700mA rechargeable lithium polymer battery
Power SupplyPrend en charge l’entrée DC24V
CommunicationWiFi, one-click update, one-click remote assistance
Mises à jour logicielles2 years free, then paid annual renewal
Dimensions243mm*148mm*36mm
Couverture des véhiculesYANMAR marine: 4BY2/4BY3, 4JH, 4LV, 6BY2/6BY3, 6LY3, 8LV series, etc.

Détails

Dedicated Diagnostics for Yanmar Marine Diesel Engines

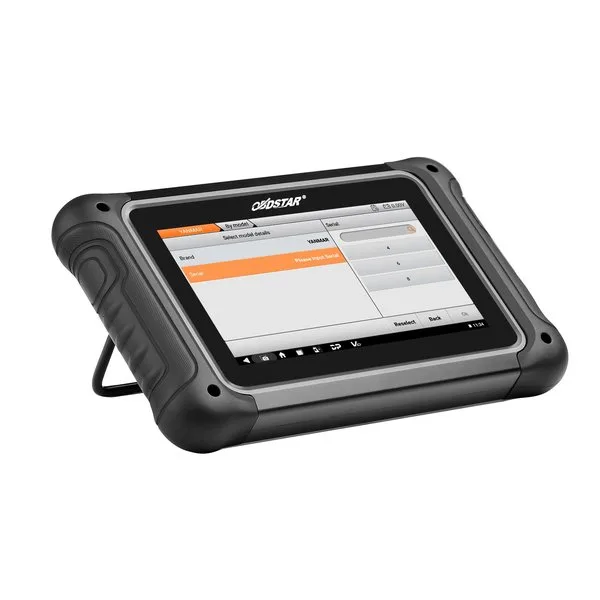

The OBDSTAR iScan PRO Yanmar is a 7-inch Android tablet built for Yanmar marine diesels, including the 4BY2/4BY3, 4JH, 4LV, 6BY2/6BY3, 6LY3 and 8LV series. It reads and clears codes, shows live data, runs actuation tests and performs service reset and idle control. Check the supported list before ordering.

  • Diesel marin Yanmar
  • Service Reset
  • Idle Control
  • DC 24 V Input
  • 2 ans de mises à jour

Key Features

  1. Diagnostic complet

    Read and clear codes, live data, actuation tests, settings and coding, with simple menu guidance.

  2. Fonctions d’entretien

    Service reset and idle control from the special function menu.

  3. Analyse des données en direct

    Record and play back data streams as text, waveform or gauge views to locate sensor and component faults.

  4. Prise en charge de l’application mobile

    The OBDSTAR mobile app adds diagnostic socket locations, flash code lookup, technical bulletins, manual service lamp reset procedures and basic parameters.

Highlights

iScan PRO Marine Diag menu showing the Yanmar inboard brand
Logiciel Yanmar

Marine Diag opens directly to the Yanmar inboard software.

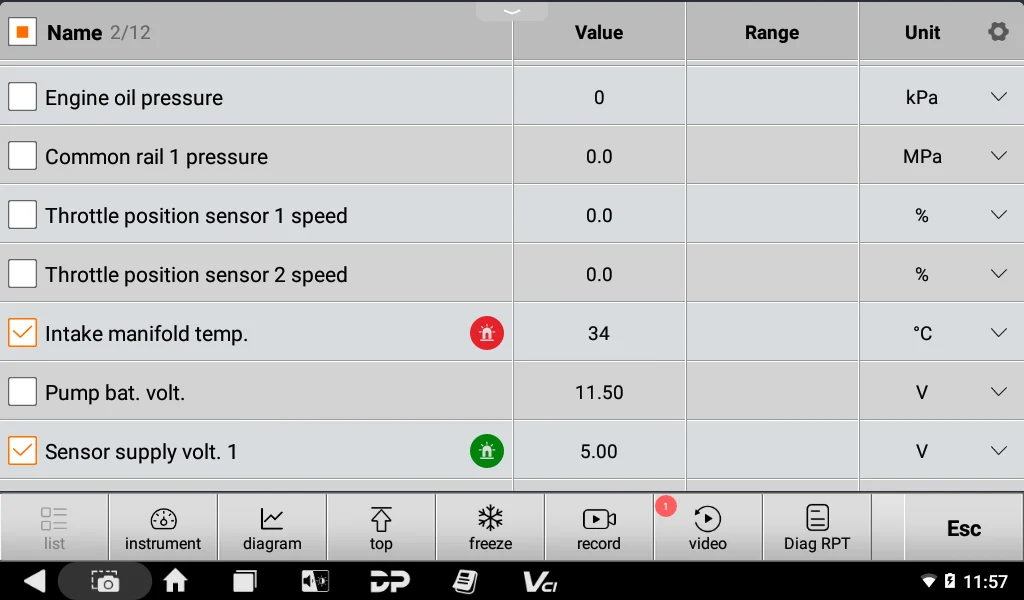

Yanmar live data list with oil pressure, common rail pressure, throttle position, intake temperature and voltages
Live Data List

Oil pressure, common rail pressure, throttle position, intake manifold temperature and supply voltages.

Yanmar live data shown as waveform graphs over time
Waveform View

Plot selected values together over time to spot changes and dropouts.

Autres caractéristiques

Température de fonctionnement -20 to 55 °C (14 to 131 °F)
Température de stockage De -20 à 70 °C (de -4 à 158 °F)

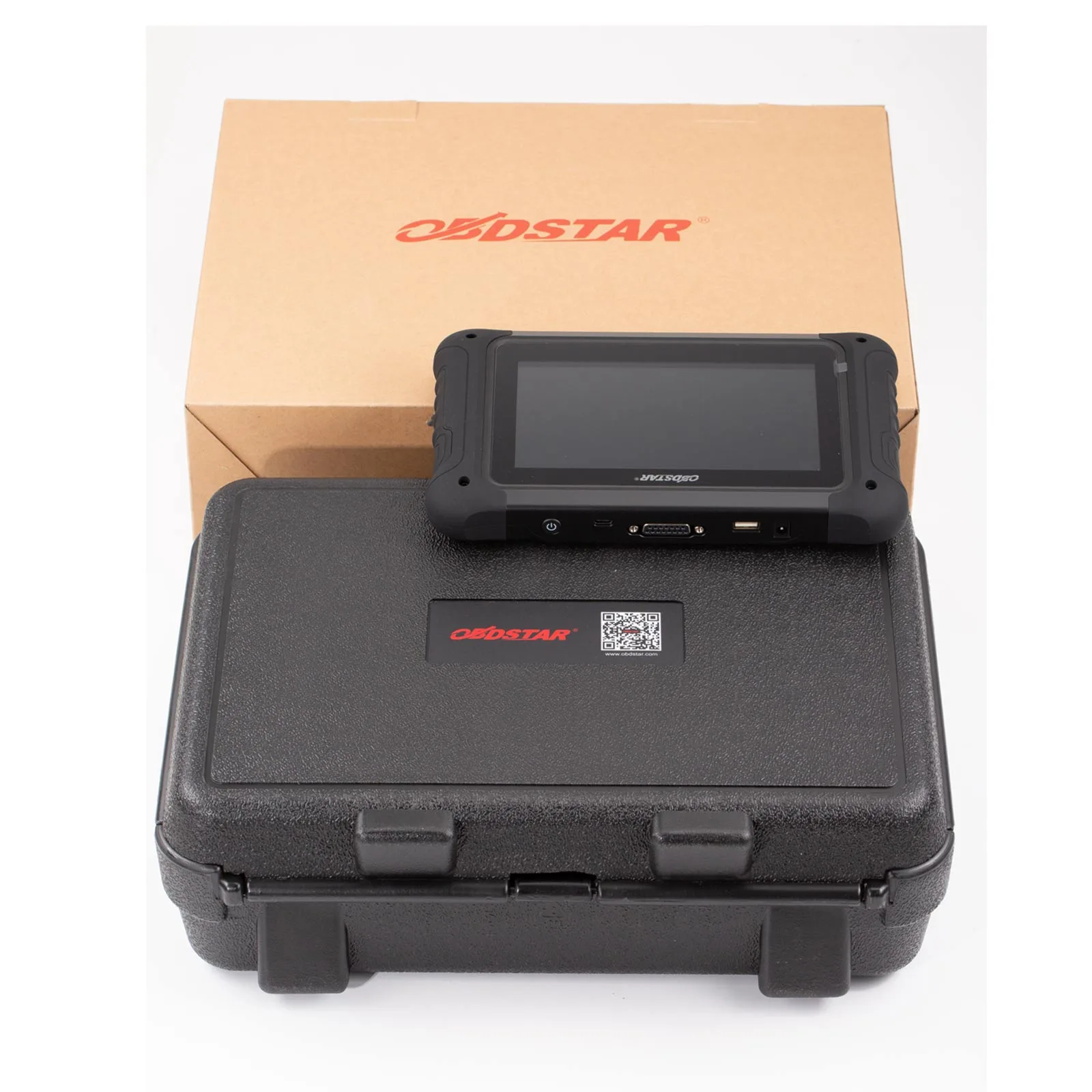

Contenu du coffret

  • Tablette iScan PRO Yanmar
  • Câble de rallonge M000A de 4 m
  • Câble principal M001B
  • M074 Yanmar 3-pin adapter cable
  • M075 Yanmar 6-pin adapter cable
  • Chargeur 12 V 2 A

Mises à jour & assistance

Mises à jour logicielles
2 years included; one-click update over Wi-Fi
Remote help
One-click remote assistance from OBDSTAR technical staff

Instructions d’utilisation : iScan Series user manual (PDF).
